Southbend (Middleby) 4481AC Ultimate Gas Ranges
Description
Southbend “Ultimate” 48" Gas Restaurant Range
8 Open Burners • Convection Oven + Cabinet Base • 296,000 BTUEngineered for demanding, high-volume kitchens, the Ultimate Series packs uncompromising power and durability into a 48-inch footprint. Eight clog-free burners deliver instant, even heat across heavy-duty cast-iron grates, while a full-size convection oven turns out perfectly browned batches every time. A stainless-steel cabinet base keeps sheet pans, hotel pans and utensils right where you need them—on the line.
Why You’ll Love It

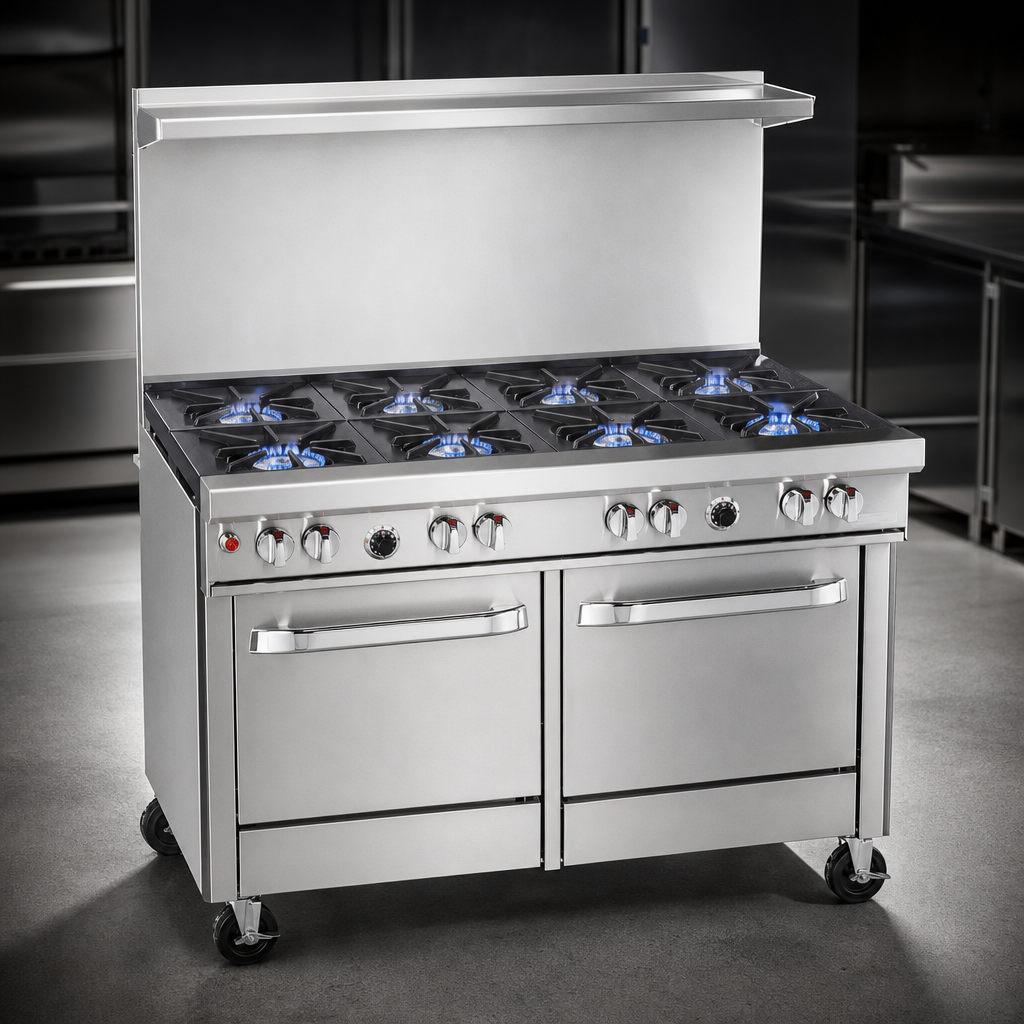

- Eight 33,000 BTU non-clog burners – patented, one-piece cast iron design resists grease build-up and never needs orifice cleaning.
- Full-size convection oven – 32,000 BTU burner, 5-position rack guides and three nickel-plated racks included.

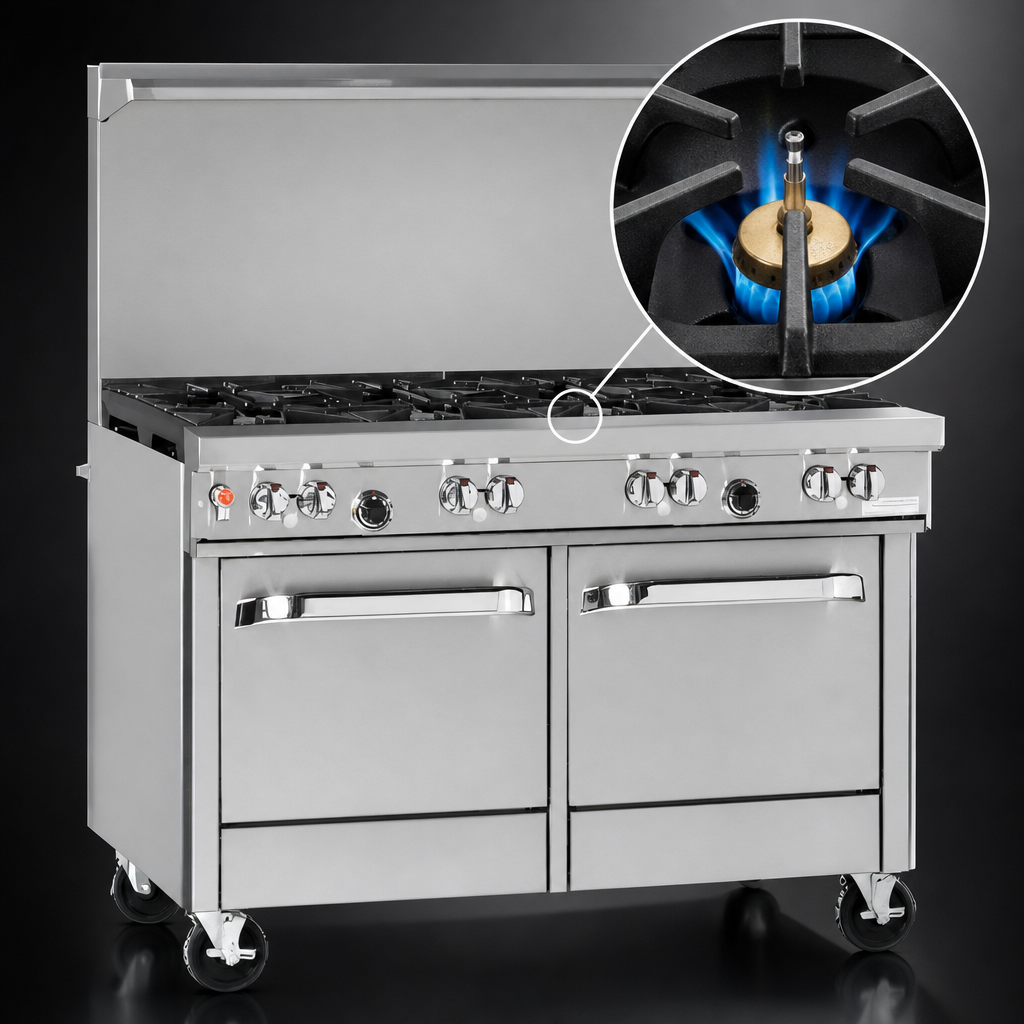

- Battery spark ignition for the oven and standing pilots for the top—fast start-ups without matches.
- 22 ½" flue riser with heavy-duty shelf – perfect for warming plates and smallwares.
- Built-to-clean stainless exterior – front, sides, shelf and 6" adjustable legs wipe down in seconds and stand up to daily abuse.
- Front-located gas shut-off and factory-installed regulator simplify installation and maintenance.
- CSA & NSF listed for verified safety and sanitation.
- 1-year parts & labor warranty backed by Southbend’s nationwide service network.
Performance & Utility
| Total BTU Input | 296,000 BTU/hr (Natural or Propane*) |
|---|---|
| Open Burners | 8 × 33,000 BTU non-clog cast-iron burners |
| Oven Type / Output | Convection, 32,000 BTU; 175 – 550 °F thermostat range |
| Cooking Surface | 27" deep; cast-iron grates handle up to 14" stock pots in the rear |
| Gas Connection | ¾" NPT (rear) |
| Electrical (fan motor) | 115 V / 60 Hz / 1-ph, 5.9 A, 6' cord & 3-prong plug |
| Overall Dimensions | 48 5⁄8" W × 42 ⅛" D × 59 ½" H (to top of flue) |
| Oven Interior | 26" W × 24" D × 14" H – holds full-size sheet pans either direction |
| Shipping Weight | Approx. 735 lb |
*Minimum inlet pressure: 7" W.C. Natural / 11" W.C. LP.
Built for the Long Haul
- Double-sided porcelain-enamel oven cavity with coved corners for easy wipe-out cleaning.
- Spring-assisted, counter-weighted oven door stands up to constant opening and closing.
- Two removable drip trays under the cooktop capture grease for a safer, cleaner workspace.
- 6" stainless adjustable legs standard; optional casters available for added mobility.
Warranty
One-year limited parts & labor warranty. See full terms at southbendnc.com/service-and-parts.
