Southbend (Middleby)

Ultimate 48-Inch Commercial Gas Range with 6 Open Burners, Convection Oven and Cabinet Base

SKU: 4481AC-7R
$13,635.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

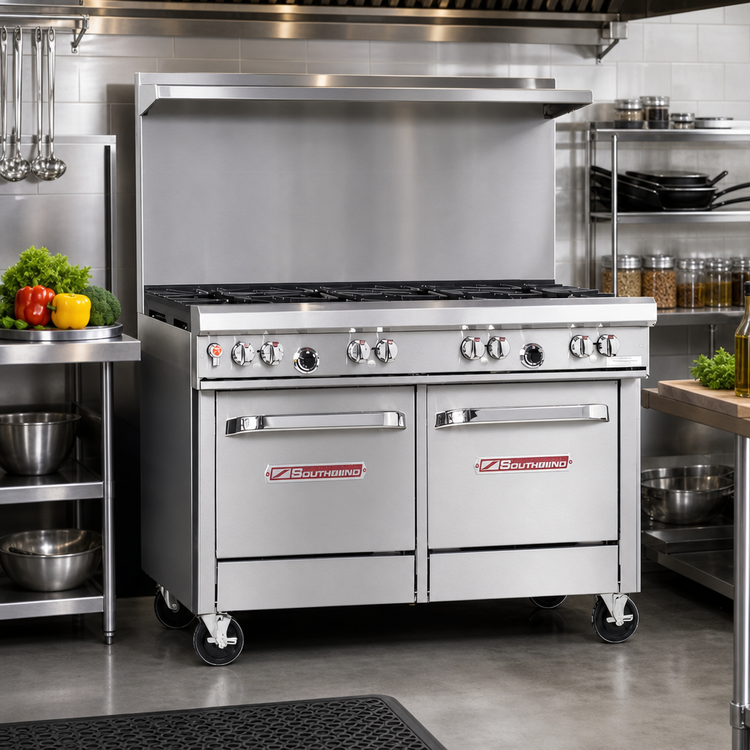

Ultimate 48-Inch Commercial Gas Range with 6 Open Burners, Convection Oven and Cabinet Base

4 Pyromax Right, 2 Non-Clog Left, Natural Gas, 258,000 BTU, Backriser With Hi-Shelf

Built for high-volume cooking, this 48-inch gas range combines six high-output burners, a convection oven, and a cabinet base in a durable stainless steel body.

  • 48-inch commercial gas range with six open burners arranged as 4 Pyromax burners on the right and 2 non-clog burners on the left.
  • Built-in convection oven includes battery spark ignition, standing pilot, thermostat control, and 3 racks.
  • 22-1/2-inch flue riser with heavy-duty shelf adds valuable overhead holding space.
  • Stainless steel front, sides, and shelf plus 6-inch adjustable legs for durability and leveling.
  • Total output of 258,000 BTU supports high-volume production.
  • Factory-installed regulator and front manual gas shut-off simplify hookup and service.

Overall Dimensions:

48.63"W x 44.5"D x 59.5"H

Product Weight:

735.0 lb

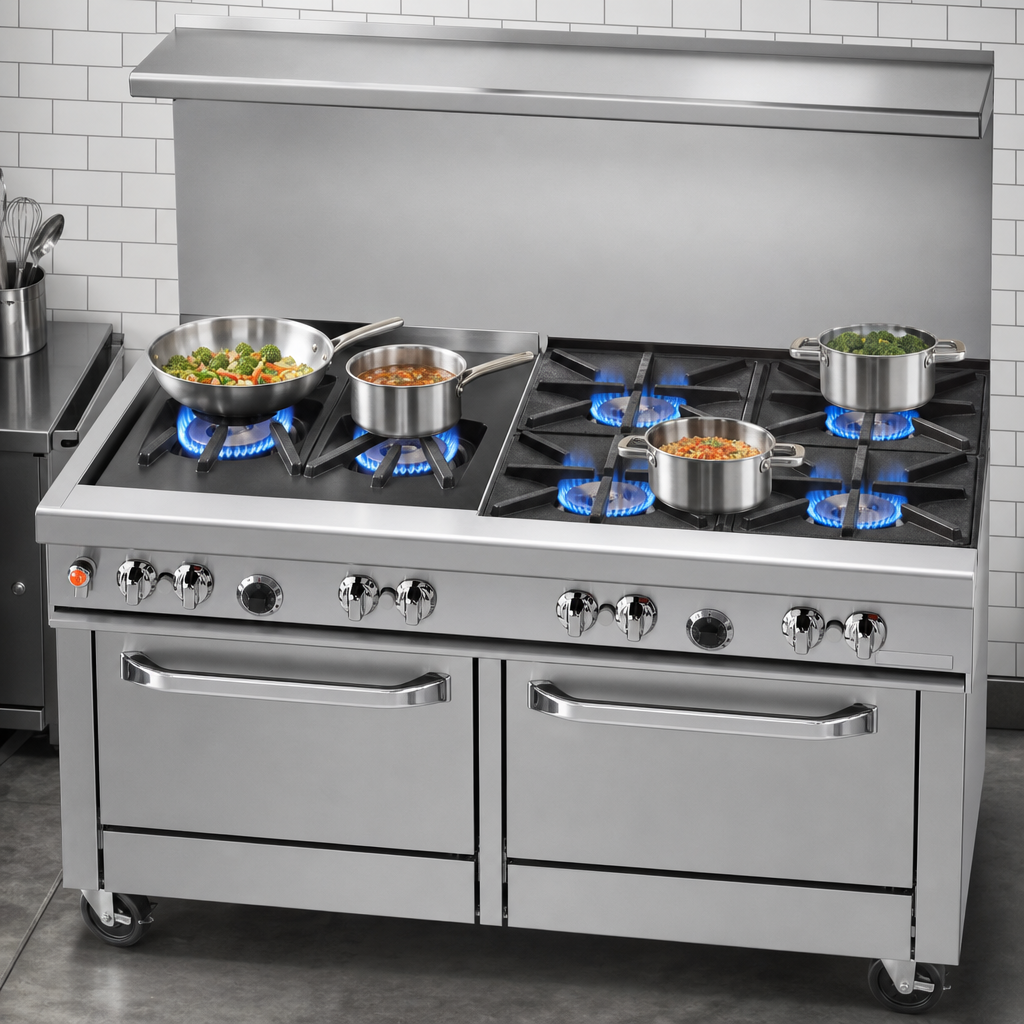

Six-Burner Cooktop

Cooktop combines 4 Pyromax burners on the right with 2 non-clog burners on the left for flexible high-output cooking.

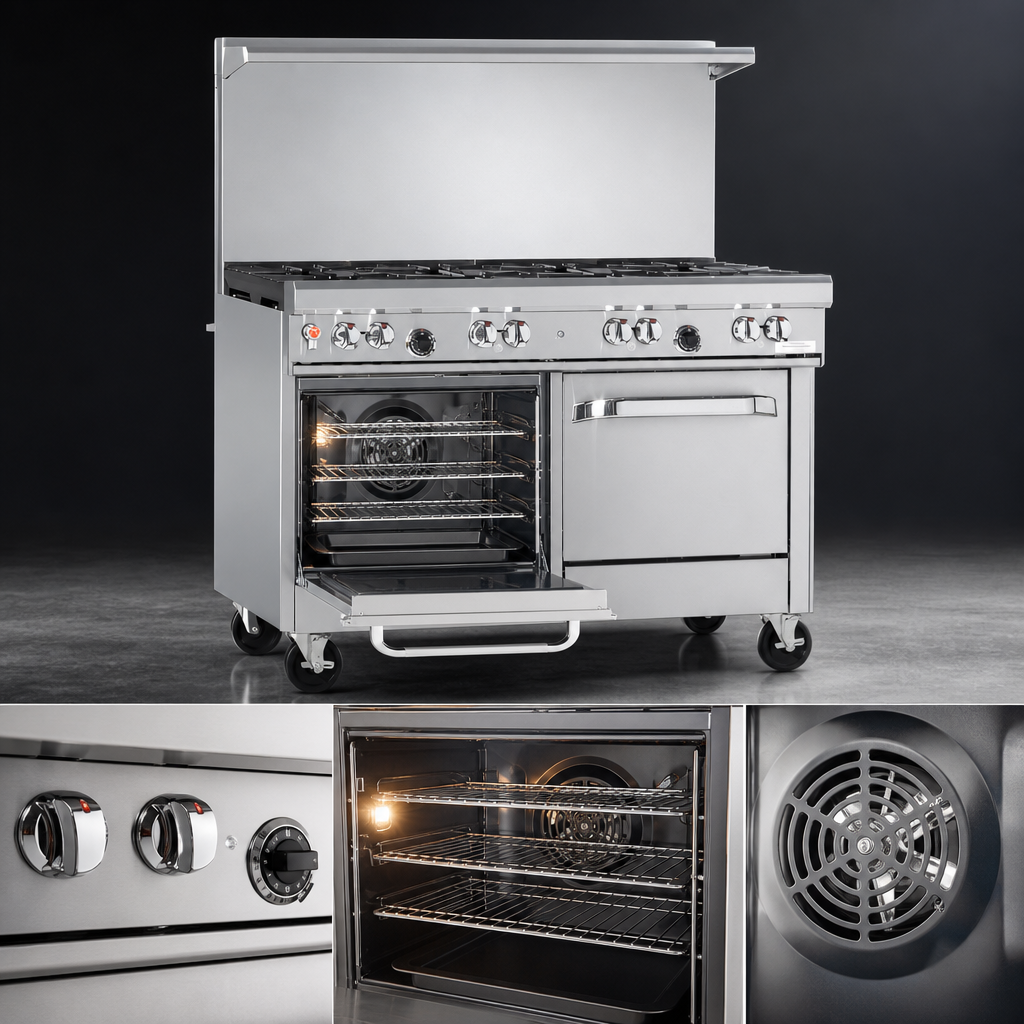

Convection Oven Base

Includes a convection oven with battery spark ignition, standing pilot, thermostat control, and 3 included racks.

Cabinet Storage Base

Adds an under-range cabinet section for storage and kitchen workflow support.

Flue Riser With Shelf

22-1/2-inch flue riser includes a heavy-duty shelf for overhead holding space.

Stainless Steel Exterior

Stainless steel front, sides, and shelf are built for durability and easier cleaning.

Porcelain-Enamel Oven Cavity

Double-sided porcelain enamel interior with coved corners helps improve cleanability and airflow.

Service-Friendly Gas Setup

Factory-installed regulator and front-located manual gas shut-off simplify installation and maintenance.

Adjustable Legs

6-inch stainless steel adjustable legs help level the range on uneven floors.

Type Commercial Gas Range
Style Ultimate Restaurant Range
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Interior Finish Porcelain Enamel
Controls Standing Pilot
BTU 258,000 BTU
Gas Type Natural Gas
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 49 Inches
Shipping Depth 45 Inches
Shipping Height 60 Inches
Shipping Weight 735 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has six open burners total: four Pyromax burners on the right and two non-clog burners on the left.
The convection oven thermostat range is 175°F to 550°F (79°C to 288°C).
The oven includes 3 racks and five-position side rails, plus battery spark ignition and a standing pilot.
Overall dimensions are 48.63 inches wide, 44.5 inches deep, and 59.5 inches high, with a weight of 735 lb.
Southbend lists a one-year limited parts and labor warranty for this range.
