Southbend (Middleby) 4481AC-7L Ultimate Gas Ranges
$13,238.00
Unit price
/
Unavailable
Description
Southbend Ultimate 48" Gas Restaurant Range
4 Pyromax Burners • 2 Non-Clog Burners • Convection Oven & Storage BaseBuilt for the busiest commercial kitchens, the Ultimate Series delivers maximum BTU muscle, precise convection baking, and rugged stainless construction—all in one 48" footprint.
Key Features

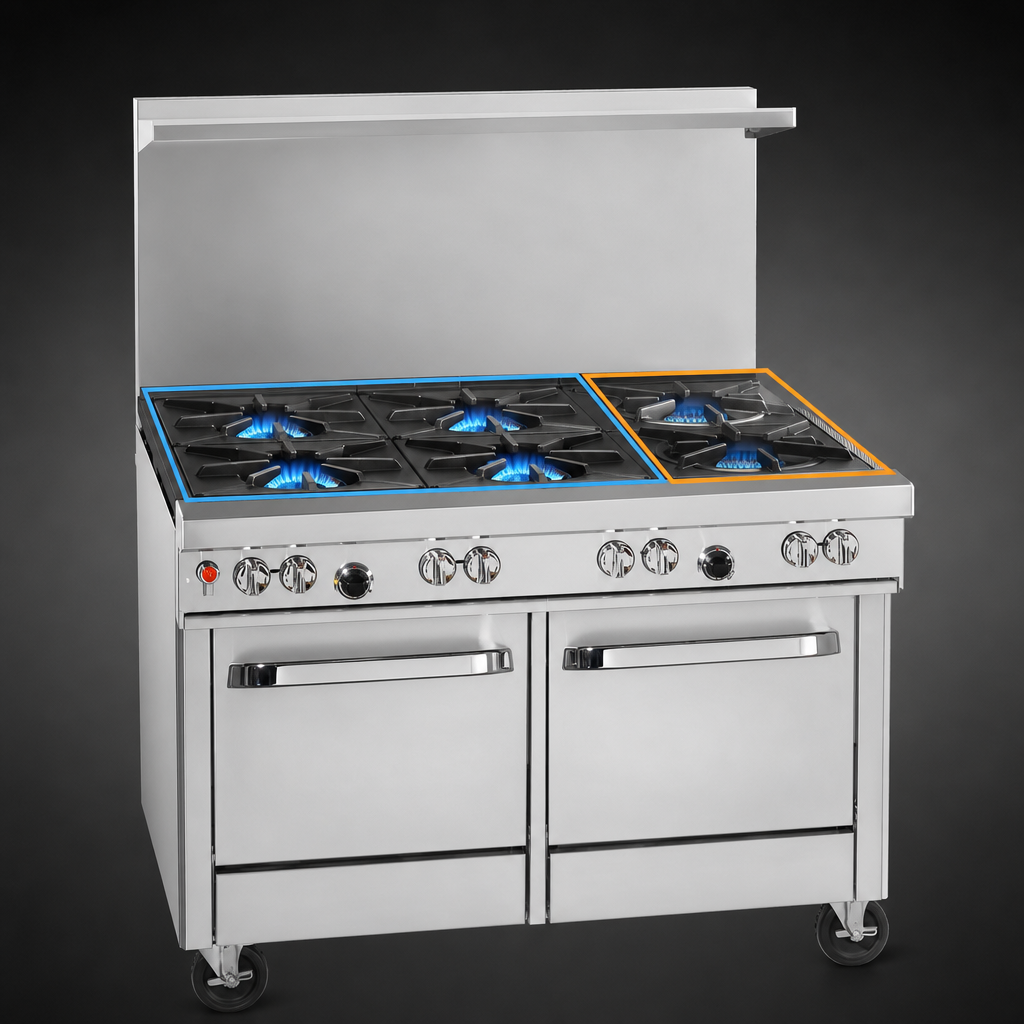

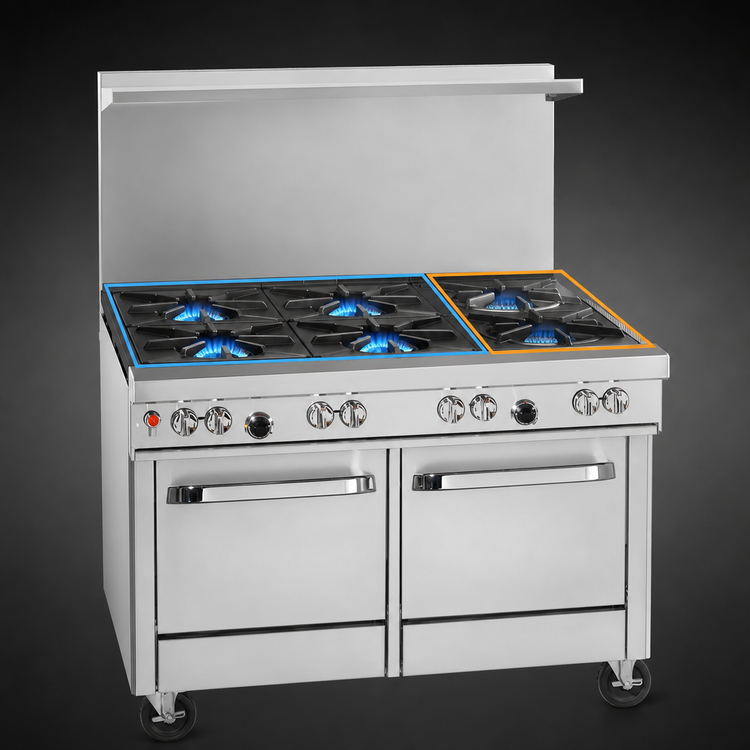

- Four patented Pyromax™ burners (40,000 BTU each) with built-in drip rings for lifetime clog-free performance.
- Two 33,000 BTU cast-iron non-clog burners—perfect for stocks, sauces, and sauté work.

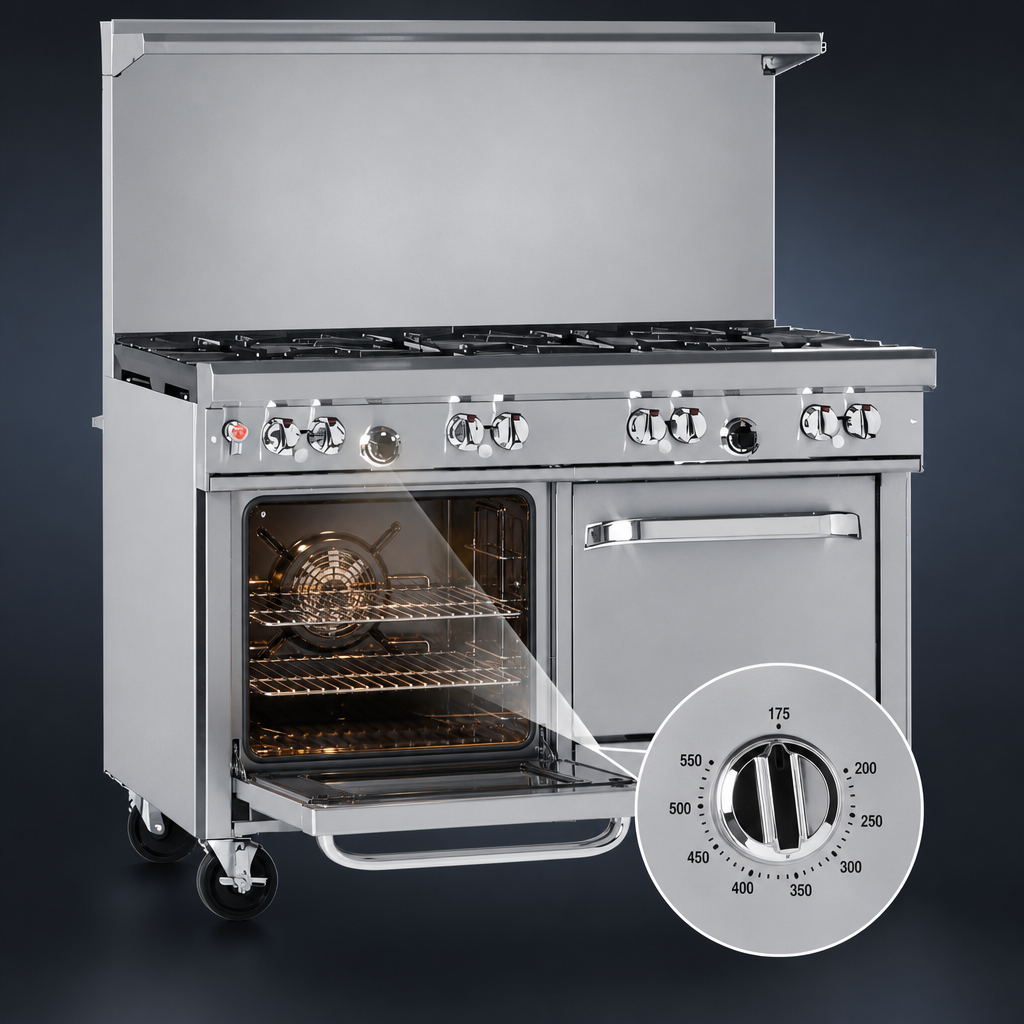

- 32,000 BTU convection oven with battery-spark ignition, porcelain interior, 5-position rack guides & three chrome racks.
- 18" stainless cabinet base for sheet pans, smallwares, or cleaning supplies (optional doors available).
- 22 ½" flue riser with heavy-duty plate shelf keeps plates warm and the workspace organized.
- Front-mounted manual gas shut-off and factory-installed ¾" pressure regulator for a faster, safer install.
- 6" adjustable stainless legs; all-swivel locking casters available.
- Removable drip trays and full stainless front & sides for quick cleanup.
- CSA & NSF certified; backed by a 1-year parts & labor warranty.
Specifications
| Model | 448 AC Ultimate Series |
|---|---|
| Overall width | 48 5⁄8" (1235 mm) |
| Overall depth | 42 1⁄8" (1070 mm) |
| Cook-surface height | 37" (940 mm) |
| Height w/ riser shelf | 59 1⁄2" (1511 mm) |
| Open-top BTU | 226,000 BTU /hr (4 × 40k + 2 × 33k) |
| Convection oven BTU | 32,000 BTU /hr |
| Total input | 258,000 BTU /hr |
| Oven cavity (W × D × H) | 26" × 24" × 14" |
| Gas connection | ¾" NPT (rear, left side*) |
| Electrical | 115 V / 60 Hz / 1 ph, 5.9 A, 6' cord & NEMA 5-15P plug |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor |
*Gas inlet shifts to the opposite side if an optional griddle or charbroiler is specified.
Popular Options (additional cost)
- Stainless cabinet doors (no-charge option)
- All-swivel locking casters
- 5" or 10" flue risers
- Rear step-up burners
- 3⁄4" quick-disconnect hose kits (3', 4', or 5')
- Salamander or cheesemelter mounts
- Extra convection oven racks
Installation Note: When installed on combustible floors, the unit must stand on the
supplied 6" legs or approved casters and be located under a vented hood. Always verify
local code compliance before installation.
Give your culinary team the firepower they demand—upgrade to the Southbend Ultimate 48" Range today.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
48.63in
Depth
44.5in
Shipping Weight
735.0lbs
Top
(6) open burners
Exterior Finish
stainless steel front & sides
Vent
backriser with hi-shelf
Base
(1) convection oven, (1) cabinet
Specifications
Ultimate Restaurant Range, gas, 48", (4) pyromax burners left, (2) non-clog burners right, standing pilot, (1) convection oven with battery spark ignition, (1) cabinet base, includes (3) racks, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 258,000 BTU, CSA, NSF
