Southbend (Middleby)

Southbend Ultimate 48-Inch Gas Restaurant Range with 7 Burners, Convection Oven, and Cabinet Base

SKU: 4481AC-5L
$13,699.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Ultimate 48-Inch Gas Restaurant Range with 7 Burners, Convection Oven, and Cabinet Base

Stainless Steel, 277,000 BTU, 22.5" Flue Riser with Shelf

Built for high-volume kitchens, this 48-inch gas range pairs a 7-burner top with a convection oven and cabinet base in durable stainless steel.

  • 48-inch gas restaurant range with a 7-burner open top.
  • Mixed burner layout includes 3 non-clog burners front left, 2 Pyromax burners back left, and 2 non-clog burners on the right.
  • Includes one convection oven with battery spark ignition and 3 oven racks.
  • Stainless steel front, sides, and shelf for durability and easy cleaning.
  • 22.5-inch flue riser with heavy-duty shelf adds convenient holding space above the range.
  • 277,000 BTU total output with standing pilot burners, factory-installed regulator, and 6-inch adjustable legs.

Overall Dimensions:

48.63"W x 44.5"D x 59.5"H

Product Weight:

735.0 lb

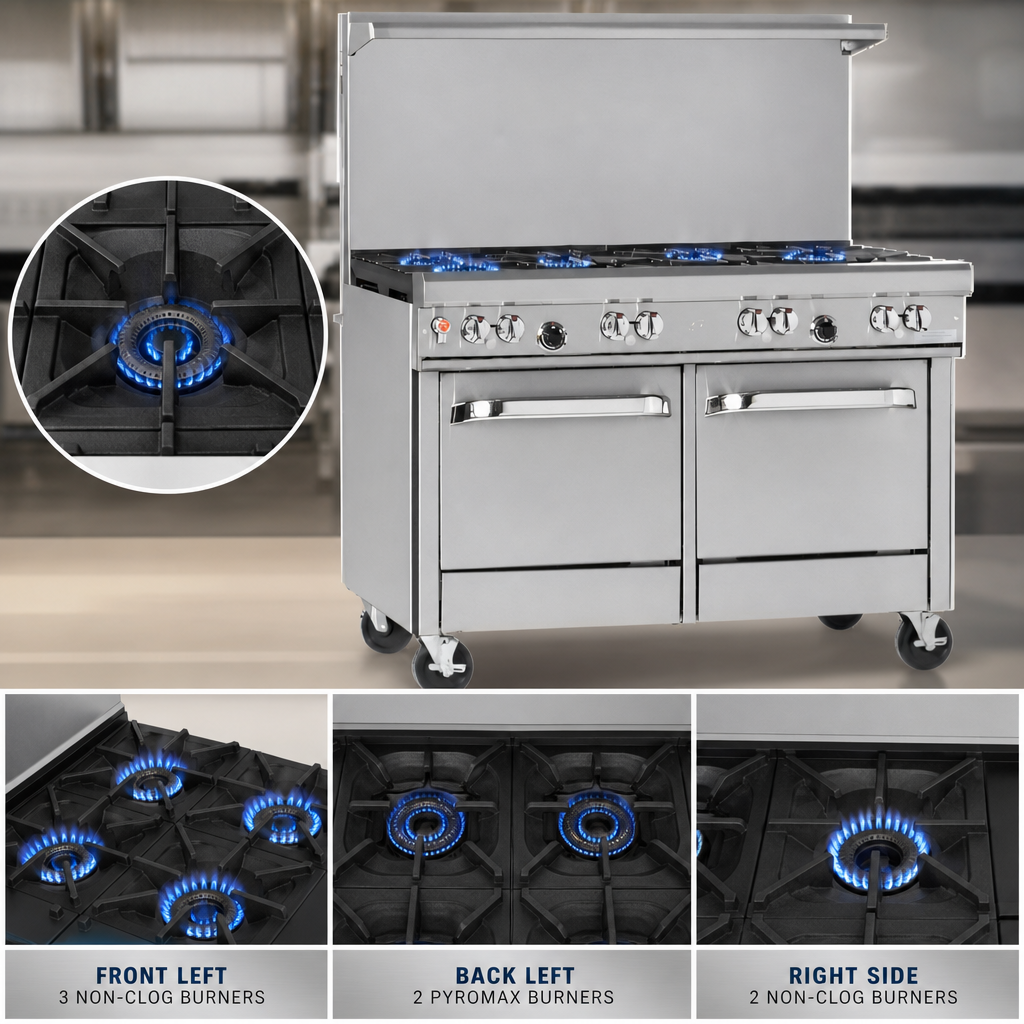

7-Burner Open Top Configuration

Top section is arranged with 3 non-clog burners on the front left, 2 Pyromax burners on the back left, and 2 non-clog burners on the right.

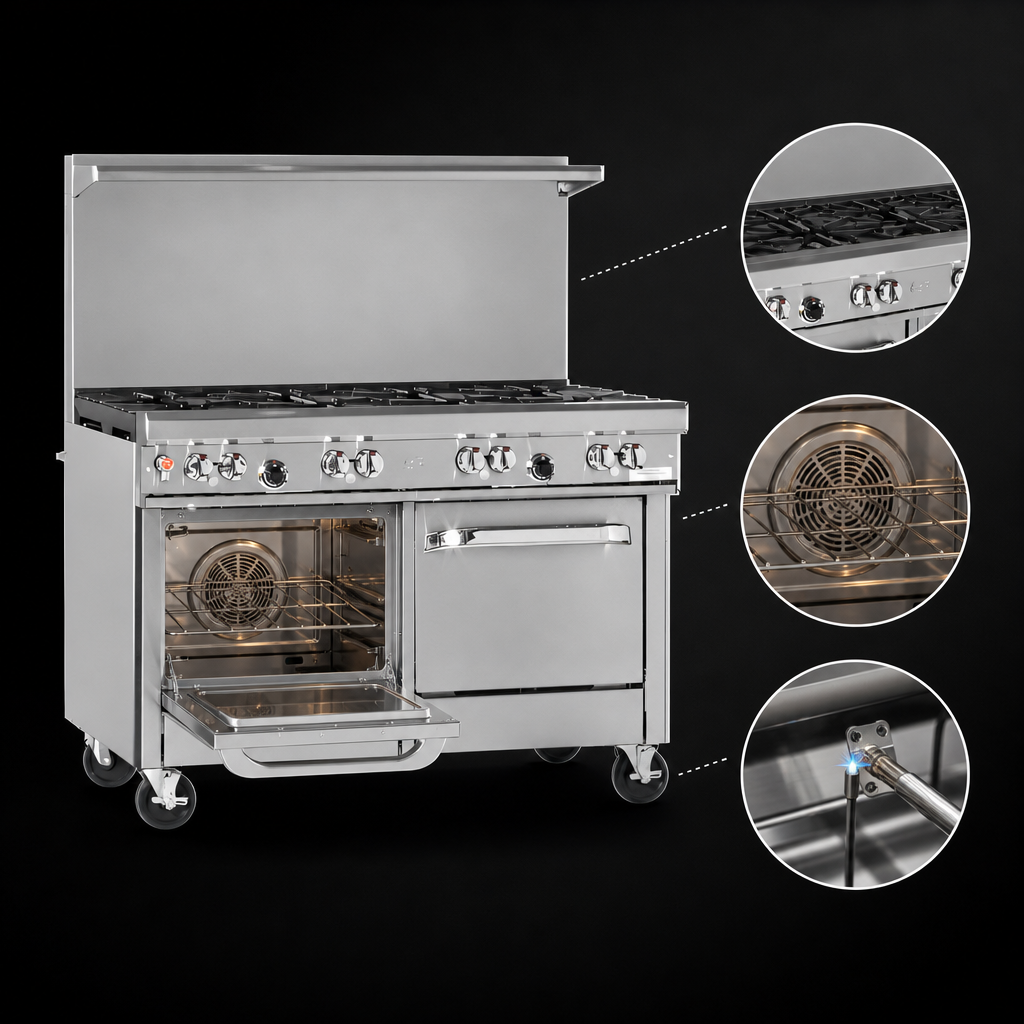

Convection Oven Base

Includes one convection oven base with battery spark ignition for reliable startup.

3 Oven Racks Included

The convection oven comes with three racks and five-position side rails.

Stainless Steel Exterior

Stainless steel front, sides, and shelf help resist wear and simplify cleanup.

22.5-Inch Flue Riser with Shelf

The range includes a flue riser with a heavy-duty shelf for extra holding space.

Standing Pilot and Manual Shut-Off

Standing pilot for the top burners and a front-located manual gas shut-off are standard.

Removable Grate Tops and Drip Trays

Removable cast iron grate tops and drip trays help with cleanup and maintenance.

Adjustable Legs and Factory Regulator

6-inch stainless steel adjustable legs and a factory-installed regulator come standard.

Porcelain Enamel Oven Interior

The oven cavity features a double-sided porcelain enamel interior with coved corners for easier cleaning and improved airflow.

Type Commercial Gas Range
Style Open Burner
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Interior Finish Porcelain Enamel
Controls Thermostatic
Cooking Surface Depth 27 Inches
BTU 277,000 BTU
Voltage 115 Volts
Hertz 60 Hz
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 49 Inches
Shipping Depth 45 Inches
Shipping Height 60 Inches
Shipping Weight 735 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has 3 non-clog burners on the front left, 2 Pyromax burners on the back left, and 2 non-clog burners on the right.
Yes. It includes one convection oven with battery spark ignition and 3 racks.
The range is rated at 277,000 BTU total.
The convection oven thermostat ranges from 175°F to 550°F.
It includes a 1-year limited parts and labor warranty.
