Southbend (Middleby) 4481AC-3CR Ultimate Gas Ranges
Description
Ultimate 48" Gas Restaurant Range with 36" Charbroiler & Convection Oven
Southbend 448-Series • 194,000 BTU • CSA & NSF ListedEngineered for high-volume kitchens, the Southbend Ultimate Range combines powerful open-top burners, a right-hand charbroiler, full-size convection oven and convenient storage cabinet in one 48" line-ready platform. Heavy-gauge stainless steel construction, front-mounted service controls and lifetime non-clog burners keep you cooking—even in the busiest rush.
Performance & Convenience
- (2) 33,000 BTU patented non-clog cast-iron burners with standard grates—rear grate holds up to a 14" stock pot.

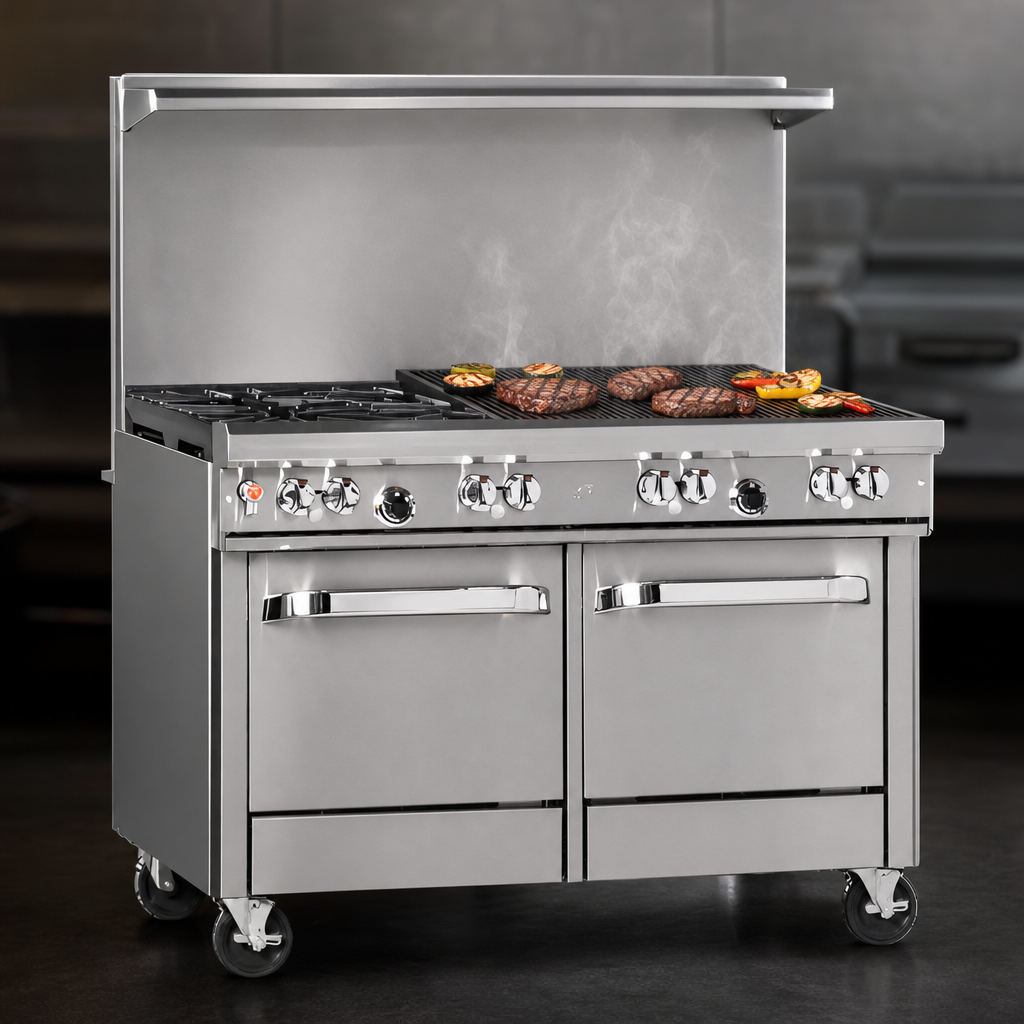

- 36" right-side charbroiler (96,000 BTU) with removable cast-iron grates for steak-house searing power.
- 32,000 BTU convection oven with battery-spark ignition, 175 – 550 °F thermostat & three chrome racks on 5-position rails.
- 18" stainless cabinet base keeps sheet pans, spices and smallware close at hand.
- 22-1/2" flue riser with heavy-duty shelf—ideal for plating, heat lamps or mounting a cheesemelter.
- 4" deep front rail with front-located manual gas shut-off for quick service access.
- Two full-width drip trays slide out for fast clean-up; standing pilots on open burners simplify daily lighting.
- All-stainless front, sides, shelf & 6" adjustable legs for lasting corrosion resistance.
- Factory-installed ¾" gas pressure regulator; 115 V cord & plug for convection fan (5.9 A).
- One-year limited parts & labor warranty backed by Southbend’s nationwide service network.
At-a-Glance Specifications
| Model | 448-AC (2 Burners / 36" Charbroiler / Convection Oven + Cabinet) |
|---|---|
| Total BTU (Natural Gas) | 194,000 BTU (66K burners + 96K charbroiler + 32K oven) |
| Cooking Surface Height | 37" (940 mm) |
| Overall Dimensions (WxDxH) | 48.63" × 34" × 59.5" (1235 × 864 × 1511 mm) |
| Oven Interior (WxDxH) | 26" × 24" × 14" (660 × 610 × 356 mm) |
| Gas Connection | ¾" NPT (min. 7" W.C. NG / 11" W.C. LP) |
| Electrical (convection fan) | 115 V / 60 Hz / 1-φ – 5.9 A, 6' cord & NEMA 5-15P plug |
| Crated Weight | Approx. 735 lb (334 kg) |
| Certifications | CSA, NSF |
Peace-of-Mind Warranty
Covered by Southbend’s 1-year limited parts & labor warranty. View full terms.
Observe local codes and install under a vented hood. Do not use sheet pans to clean the charbroiler, and avoid allowing oversized cookware to overhang the front rail.
