Southbend (Middleby) 436D-3T Ultimate Gas Ranges
Description
Southbend Ultimate 36" Gas Restaurant Range – Full-Width Thermostatic Griddle & Standard Oven
Model 436 Series | 109,000 BTU (Natural Gas) | cCSAus, CSA Flame, CSA Star & NSF CertifiedBuilt for kitchens that expect relentless performance, the Southbend Ultimate 36" Restaurant Range delivers a full-size griddle, a powerful 45 K BTU standard oven and heavy-duty stainless construction in a single, space-saving footprint. Precise thermostatic controls on the ½" thick steel plate let you handle breakfast, lunch and dinner menus without breaking stride, while a battery-spark oven ignition keeps you cooking even when power isn’t available.
Why You’ll Love It

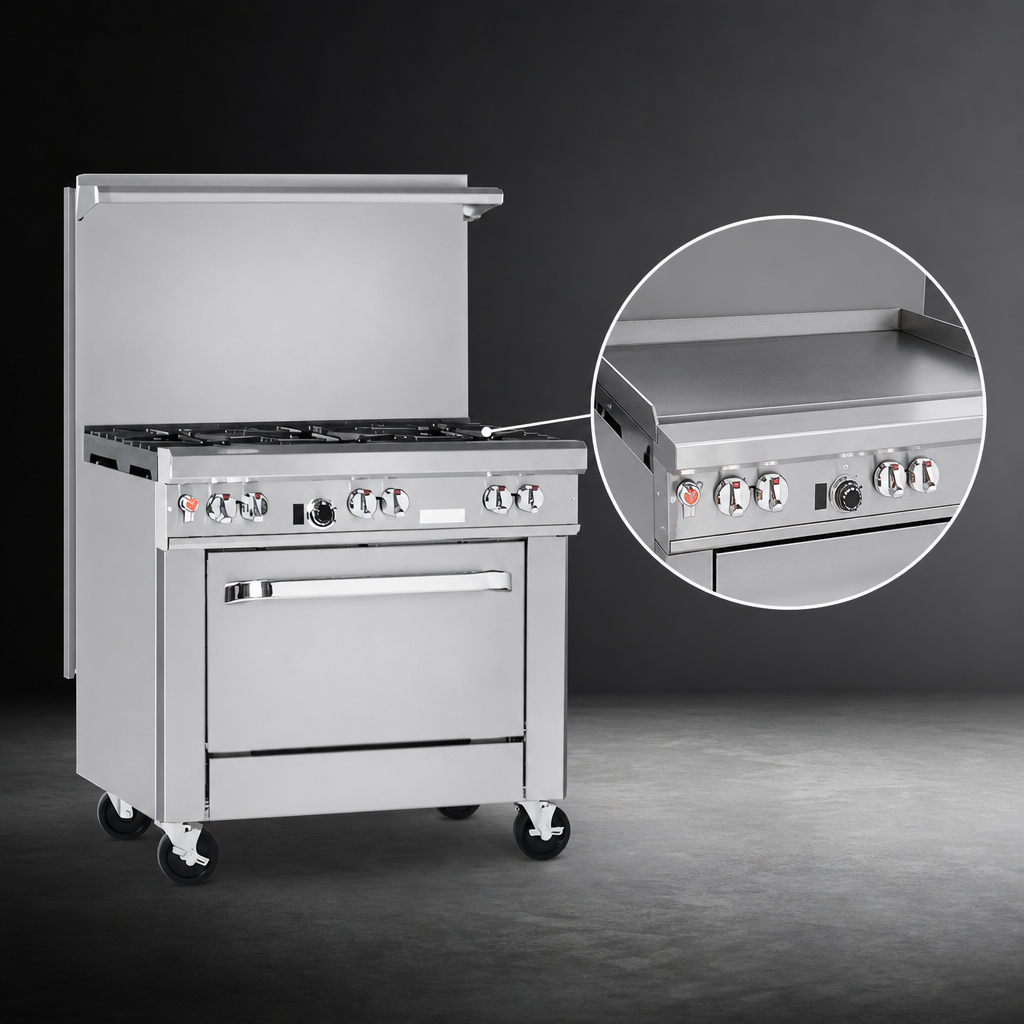

- 36" cold-rolled steel griddle (½" thick) with thermostatic controls for consistent plate temperatures across the entire surface.
- 45,000 BTU standard oven with battery-spark ignition & standing pilot—no electrical hook-up required.
- Rugged stainless steel front, sides, 4" deep front rail, high-shelf & 6" adjustable legs withstand daily commercial abuse.
- 22½" flue riser with integrated heavy-duty shelf keeps plates & smallwares handy.
- Front-mounted manual gas shut-off and factory-installed regulator for safer, simpler installation.
- Porcelain-enameled oven cavity (26" W × 26.5" D × 14" H) cleans up fast; includes one rack with two rack positions.
- One-year parts & labor warranty backed by Southbend’s nationwide service network.
At-a-Glance Specs
| Overall width | 36.5 in (927 mm) |
|---|---|
| Overall depth | 34 in (864 mm) |
| Working height | 37 in (940 mm) to cooking surface |
| Height w/ flue riser | 59.5 in (1,511 mm) |
| Griddle plate area | 36 in × 27 in cooking surface |
| Gas type & total input | Natural Gas, 109,000 BTU/hr ¾" NPT rear connection Min. inlet pressure – 7" W.C. |
| Oven temperature range | 175 °F – 550 °F (79 °C – 288 °C) |
| Oven interior (W × D × H) | 26" × 26.5" × 14" |
| Shipping weight | Approx. 660 lb (300 kg) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1 year parts & labor (see Southbend limited warranty for details) |
For use in commercial kitchens only. Install under a ventilation hood in accordance with local codes. When using oversized cookware (12" Ø or larger), place pots toward the rear of the griddle to protect the front rail components.
