Southbend (Middleby) 436D-3G Ultimate Gas Ranges
Description
Southbend “Ultimate” 36" Gas Restaurant Range – Full-Width Griddle & Standard Oven
Model 436 Series • 109,000 BTU • cCSAus, CSA Flame, CSA Star, NSFEngineered for the pace of a true commercial kitchen, the Southbend Ultimate Range pairs a heavy-duty 36-inch griddle with a full-size gas oven in one space-saving, stainless-steel chassis. Expect quick recovery, even heat distribution and long-term durability service after service.
Key Features

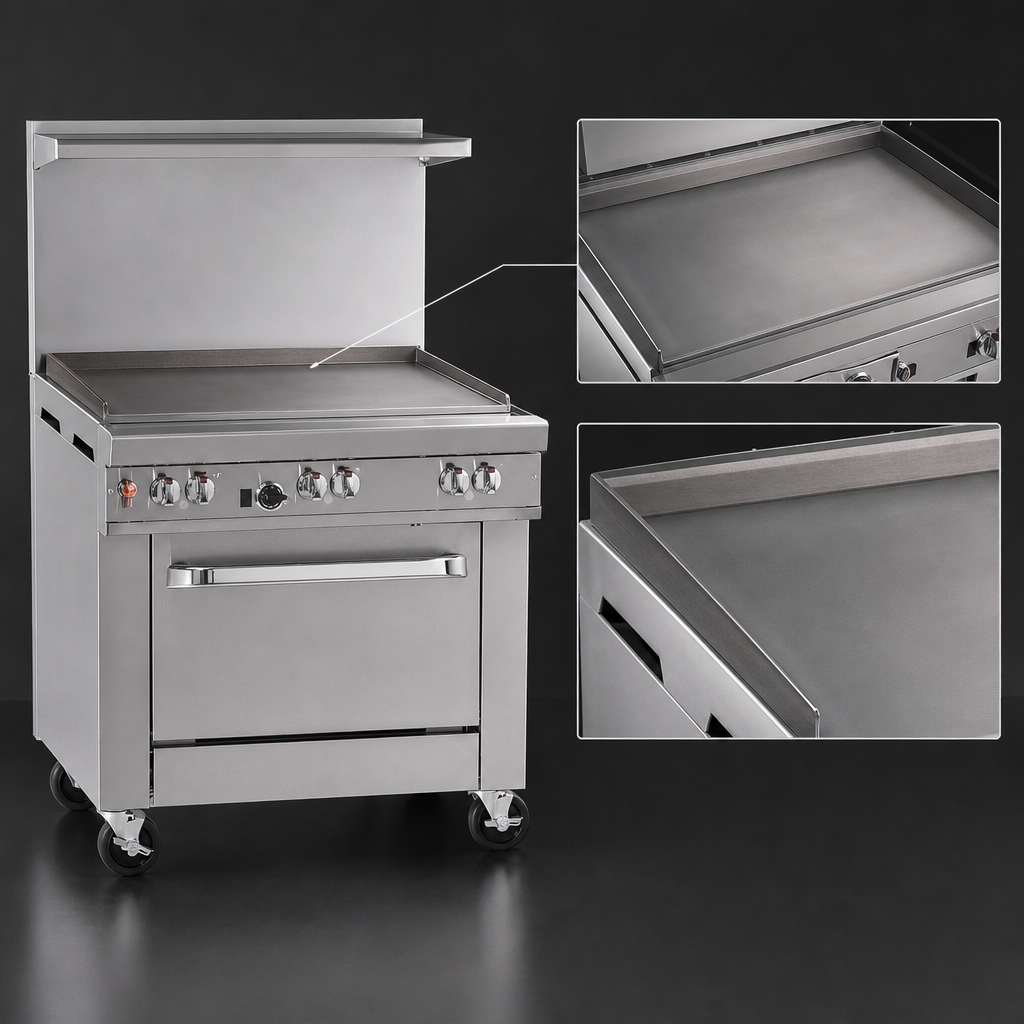

- 36" griddle top – 1/2" cold-rolled steel plate for outstanding heat retention and searing power.
- Manual controls with standing pilot for instant ignition and zone flexibility.
- 45,000 BTU standard oven (175-550 °F) with battery spark ignition; porcelain-enamel cavity wipes clean fast.
- Includes one chrome rack; two position guides hold full-size sheet pans front-to-back or side-to-side.
- 22.5" flue riser with integrated plate shelf keeps finished dishes warm and ready to serve.
- Tough stainless steel front, sides & 4" front rail resist dents, scratches and splashes.
- Front-mounted manual gas shut-off plus factory-installed regulator for safe, simple installation.
- 6" adjustable stainless steel legs for perfect leveling; optional all-swivel casters available.
- Backed by Southbend’s 1-year parts & labor warranty and nationwide service network.
Technical Specifications
| Cooking Surface | 36" W × 27" D griddle (1/2" plate) |
|---|---|
| Griddle Input | 64,000 BTU/hr (natural gas) |
| Oven Input | 45,000 BTU/hr |
| Total Input | 109,000 BTU/hr |
| Oven Interior | 26" W × 26.5" D × 14" H, porcelain enamel |
| Overall Dimensions* | 36.5" W × 34" D × 59.5" H (37" working height) |
| Gas Connection | 3/4" NPT female; min. 7" WC Nat / 11" WC LP |
| Electrical | None required – battery spark ignition |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (details) |
*Height shown with standard 22.5" flue riser.
Popular Factory Options (sold separately)
- All-swivel, front-locking casters
- Extra oven racks
- 3 ft, 4 ft or 5 ft quick-disconnect gas hose with restraining device
- 5" or 10" flue riser (no shelf)
- Stainless cabinet doors for base
