Southbend (Middleby) 436D-3C Ultimate Gas Ranges
Description
Ultimate 36" Gas Restaurant Range with Full-Width Charbroiler & Standard Oven
Southbend | Ultimate Series • Model 4361D • 141,000 BTUGive your kitchen the power to grill, sear and bake from a single footprint. Southbend’s Ultimate 36" range couples a high-output 36" radiant charbroiler with a 45,000 BTU standard oven, all wrapped in a rugged stainless-steel cabinet built for the daily grind of busy restaurants.
Why you’ll love it

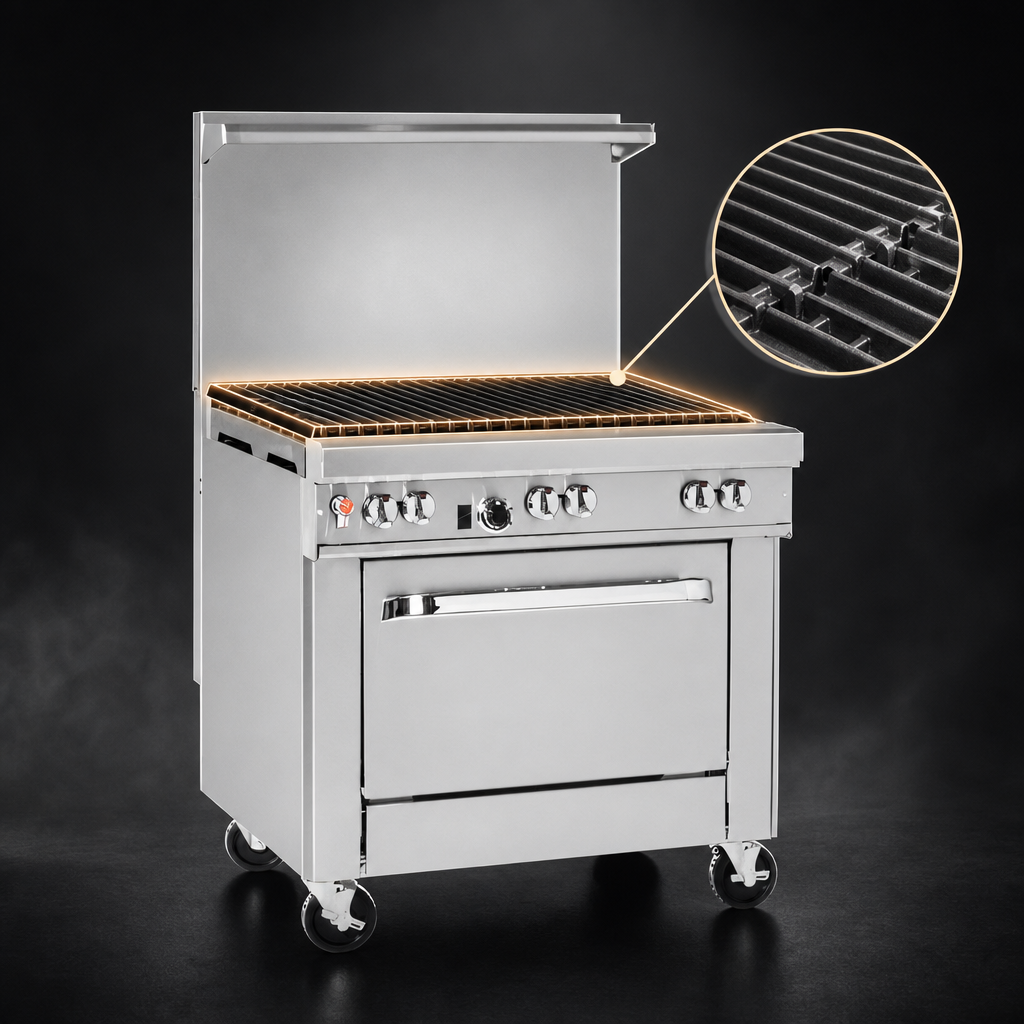

- Full-width 36" charbroiler delivers 96,000 BTU for rapid heat-up and deep, restaurant-quality grill marks.
- Battery-spark oven ignition—no electricity required; keeps you cooking during power outages.
- 22 ½" flue riser with utensil shelf adds convenient over-range storage without taking extra space.
- All-stainless exterior (front, sides, 4" front rail & shelf) resists corrosion and wipes clean fast.
- Front-mounted manual gas shut-off and factory-installed ¾" regulator simplify installation & service.
- Fully porcelain-enamel oven cavity for even baking and easy wipe-down; includes 1 rack with 2 positions.
- 6" adjustable stainless legs—level the unit on uneven floors or swap for optional casters.
- Certified to CSA & NSF standards; backed by a 1-year parts & labor warranty.
At-a-glance specs
| Overall width | 36.5" / 927 mm |
|---|---|
| Overall depth | 34" / 864 mm |
| Height to cooking surface | 37" / 940 mm |
| Height w/ flue riser | 59.5" / 1,511 mm |
| Total BTU input | 141,000 BTU/hr (Natural Gas) |
| Charbroiler | 96,000 BTU, standing pilot, cast-iron radiants, removable drip tray |
| Oven | 45,000 BTU, 175-550 °F thermostat, battery spark ignition |
| Oven interior | 26" W × 26.5" D × 14" H; full-size pans fit both ways |
| Gas connection | ¾" NPT rear (right or left—depends on broiler location) |
| Minimum gas pressure | 7" W.C. Natural • 11" W.C. LP |
| Shipping weight | Approx. 660 lb / 300 kg |
What’s in the box
- Range with 36" charbroiler top & standard oven base
- One oven rack
- 22 ½" flue riser with integrated shelf
- Factory-set NG pressure regulator
- 6" stainless adjustable legs
- Owner’s manual & warranty registration
Peace-of-mind warranty
Southbend covers this unit with a 1-year, on-site parts & labor warranty when serviced by an authorized Southbend agency. See full warranty statement for terms and exclusions.
