Southbend (Middleby) 436C-3G Ultimate Gas Ranges
Description
Ultimate 36" Gas Griddle Restaurant Range — Cabinet Base
Southbend Ultimate Series • 64,000 BTU • cCSAus, CSA Flame, CSA Star, NSFBuilt for high-volume kitchens that demand uncompromising performance, the Southbend Ultimate 36" Griddle Range delivers powerful, even heat on a half-inch steel plate while providing convenient base storage and the durability you expect from a name that has been trusted by chefs since 1898.
Why You’ll Love It
- 64,000 BTU, standing-pilot system ignites instantly and maintains consistent temperatures across the entire 36" plate.

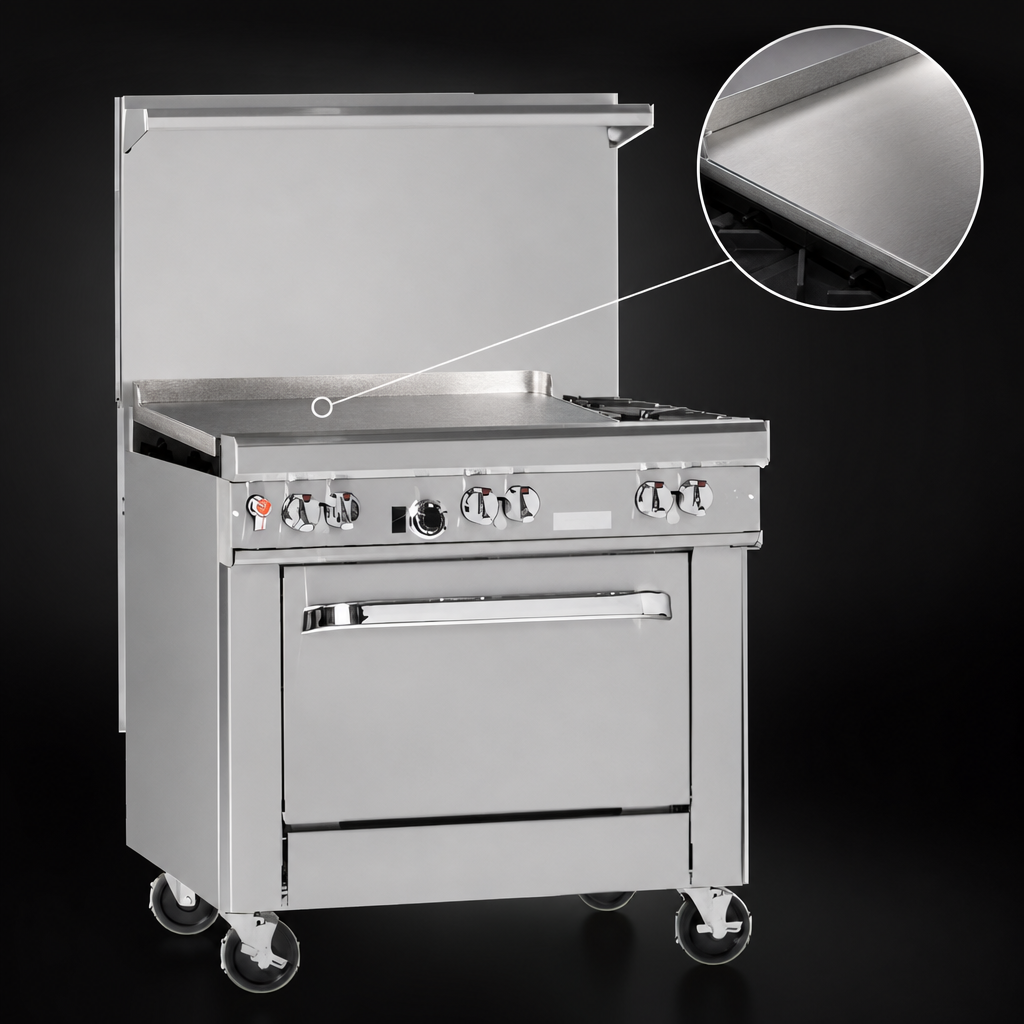

- 1/2" cold-rolled steel griddle seasons quickly and retains heat for superior caramelization and recovery.
- 27" deep cook surface maximises workspace without increasing your line’s footprint.
- 22-1/2" flue riser with integrated shelf keeps plates & spices within easy reach while venting combustion gases safely.
- Stainless-steel construction (front, sides & 4" rail) stands up to daily abuse and wipes clean fast.

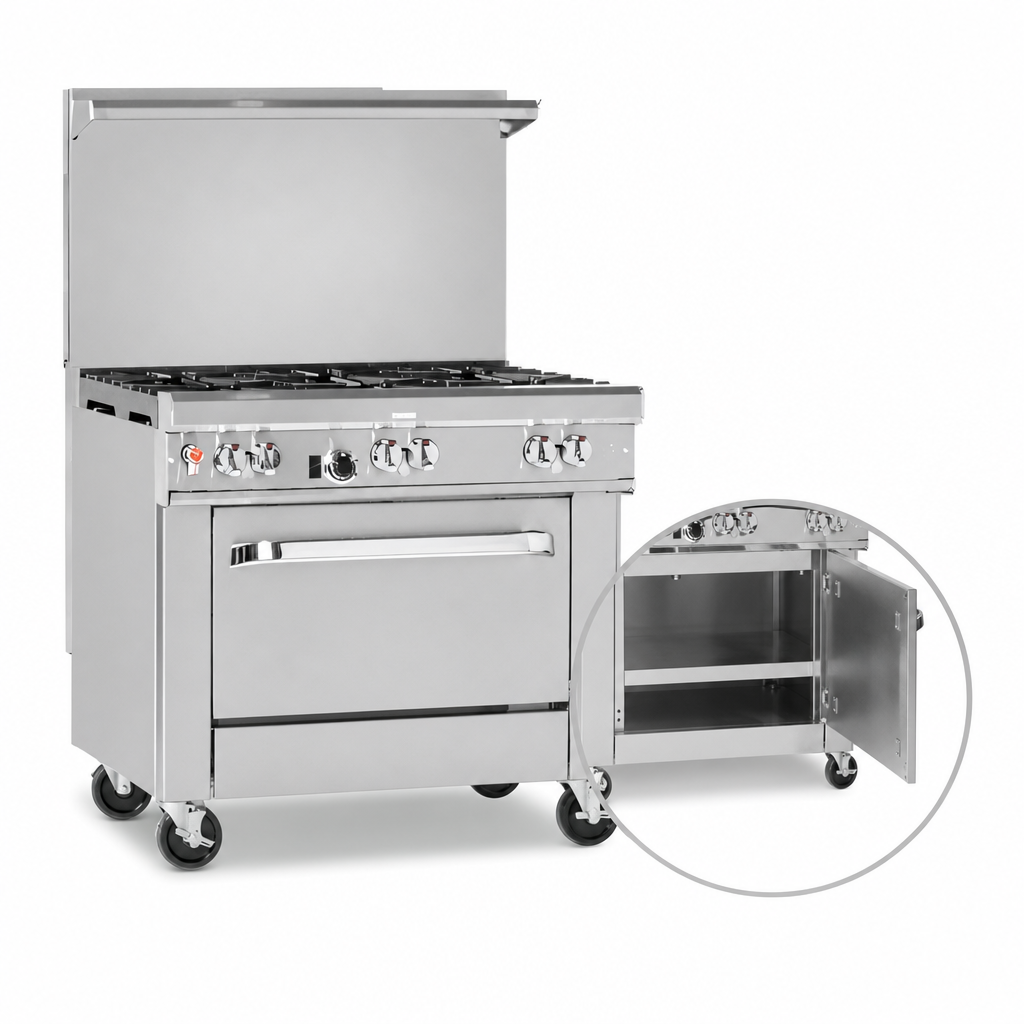

- Full-size cabinet base stores sheet pans, hotel pans or smallwares, reducing clutter on the cook line.
- 6" adjustable stainless legs make leveling simple and allow easy access for floor cleaning.
- Front-mounted 3/4" gas shut-off & factory regulator make installations and service quick.
- One-year parts & labor warranty backed by Southbend’s nationwide service network.
At-a-Glance Specs
| Cook Surface | 36" W × 27" D, 1/2" steel griddle plate |
|---|---|
| Total BTU | 64,000 BTU (Natural or LP) |
| Ignition | Standing pilot |
| Exterior Dimensions | 36.5" W × 34" D × 59.5" H (to top of flue) |
| Cooking Height | 37" |
| Base | Open cabinet (doors optional at no charge) |
| Gas Connection | 3/4" NPT, right-hand side* |
| Minimum Inlet Pressure | 7" W.C. (NAT) • 11" W.C. (LP) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1 year parts & labor |
Popular Factory Options
- Stainless cabinet doors (no-charge upgrade)
- All-swivel locking casters
- 3 ft, 4 ft or 5 ft quick-disconnect gas hose w/ restraining device
- Battery-spark ignition for griddle
*Gas connection ships on the opposite side if the griddle is factory-ordered on the left. Installation under a vented hood is recommended. Unit is intended for commercial use only.
