Southbend (Middleby) 436A-3T Ultimate Gas Ranges
Description
Southbend Ultimate 36" Gas Range with Full-Size Thermostatic Griddle & Convection Oven
Model 436 Ultimate Series | 96,000 BTU | cCSAus, CSA Flame, CSA Star, NSFBuilt for kitchens that demand rock-solid durability and all-day performance, the Southbend Ultimate Series packs a full 36-inch griddle and a powerful convection oven into a single, space-saving footprint. From breakfast rush to late-night service, precise thermostats and even heat distribution keep tickets moving and quality high.
Key Performance Features

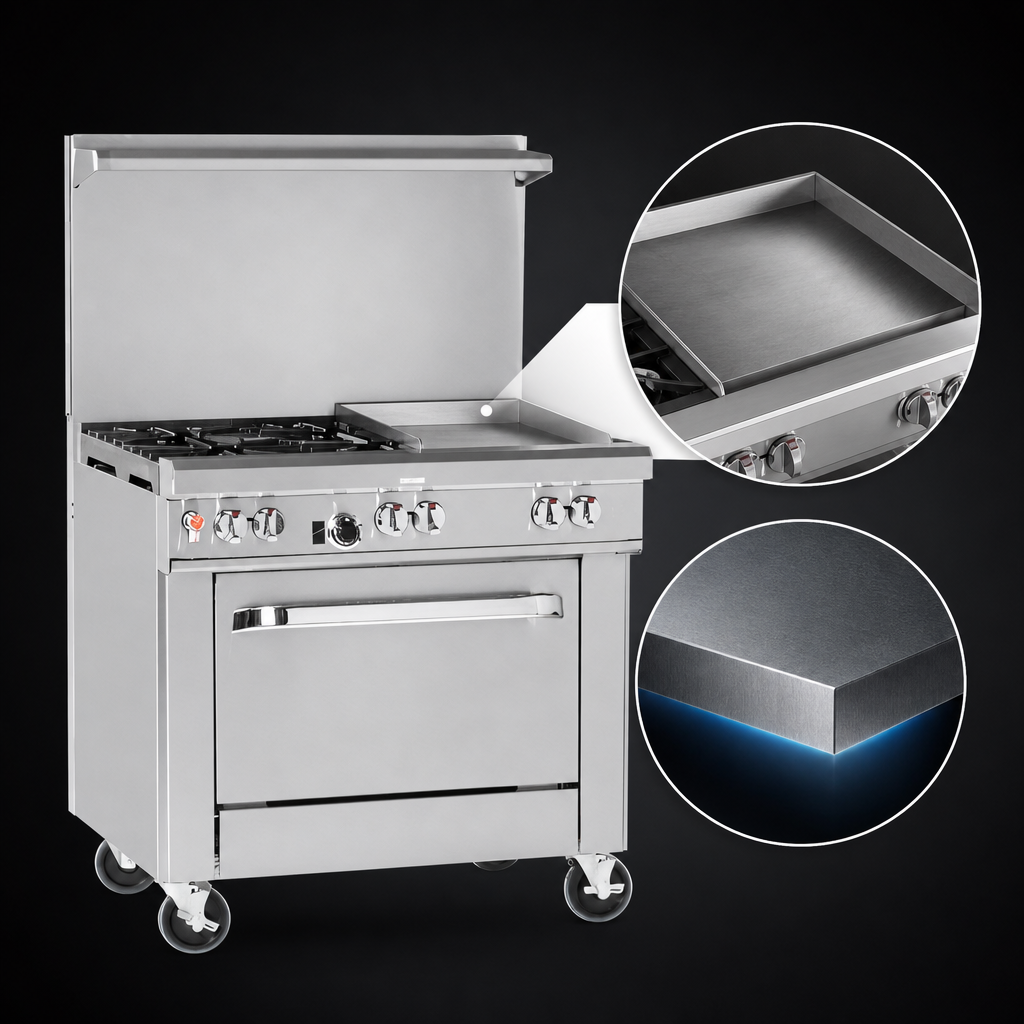

- 36" 1/2" cold-rolled steel griddle with thermostatic controls for consistent searing, sautéing, and holding.
- 96,000 BTU total input (Natural or LP) delivers fast recovery and high production capacity.

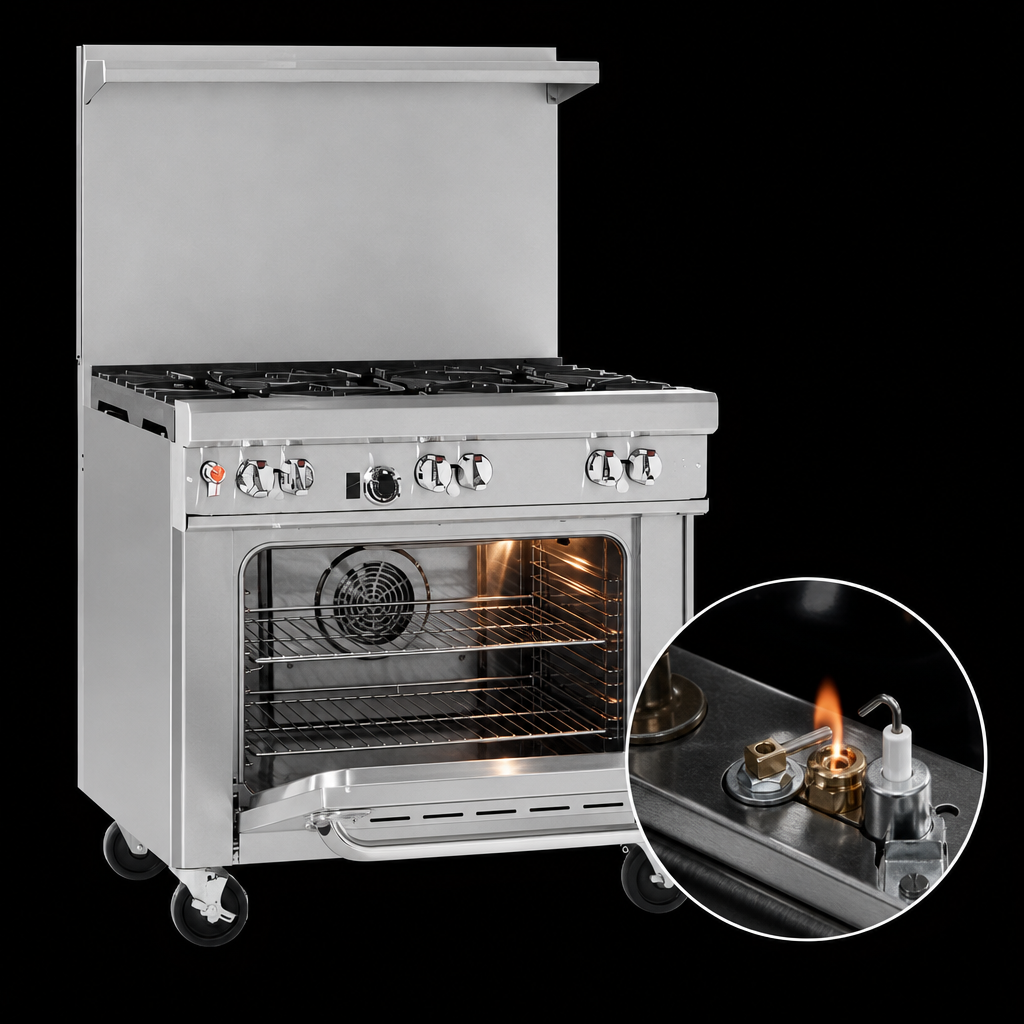

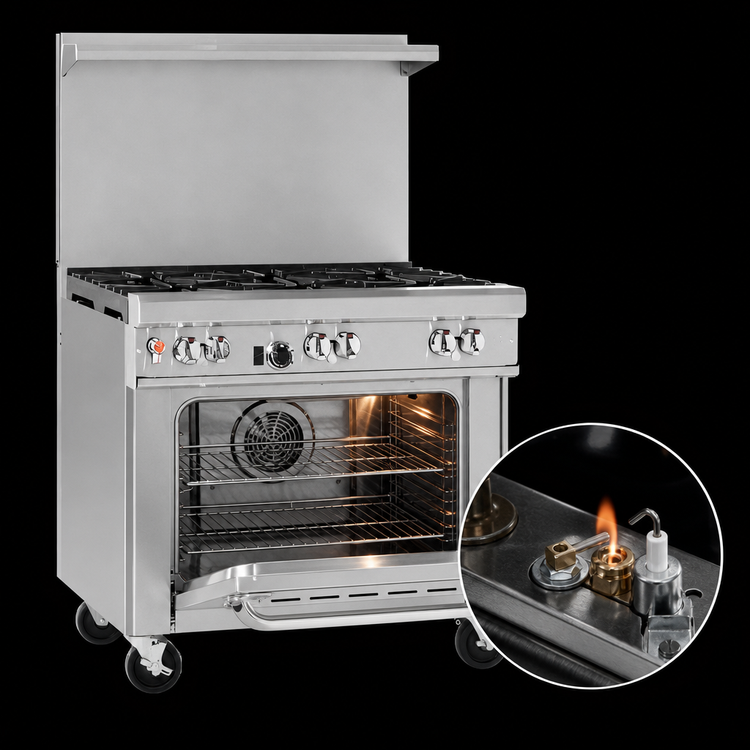

- Battery-spark ignition convection oven (32,000 BTU) with 3 chrome racks / 5 positions and a porcelain-enameled cavity for effortless cleanup.
- 22-1/2" stainless flue riser with integrated heavy-duty shelf — perfect for plating, smallwares, or mise en place.
- Front-mounted 3/4" manual gas shut-off and factory-installed pressure regulator simplify installation and service.
- Stainless steel front, sides, landing rail & 6" adjustable legs stand up to daily abuse and make wipe-downs quick.
- Standing pilots for the griddle; no electrical outlet required on the cooktop.
- 115 V plug-in blower motor keeps oven temps even from corner to corner (only 5.9 A).
- One-year parts & labor warranty backed by Southbend’s nationwide service network.
At-a-Glance Specifications
| Overall Width | 36.5" / 927 mm |
|---|---|
| Overall Depth (with rail) | 42.1" / 1,070 mm |
| Cook Surface Height | 37" / 940 mm |
| Overall Height (to top of riser) | 59.5" / 1,511 mm |
| Griddle Plate | 36" W × 27" D, 1/2" thick cold-rolled steel |
| Oven Interior (WxDxH) | 26" × 24" × 14" (660 × 610 × 356 mm) |
| Total BTU Input | 96,000 BTU/hr (Natural or LP) |
| Gas Inlet | 3/4" NPT (right or left side, opposite griddle) |
| Electrical | 115 V / 60 Hz / 1 ph, 5.9 A, 6' cord & NEMA 5-15 plug |
| Shipping Weight | ≈ 660 lb / 300 kg |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
Ideal Applications
- Breakfast diners & cafes — perfect for pancakes, eggs, and bacon while convection-baking muffins below.
- Casual & full-service restaurants needing a high-output griddle and baking capacity in limited space.
- Food trucks & ghost kitchens where versatility and reliability are paramount.
Need additional oven racks, casters, or salamander mounts? Reach out to our team for compatible accessories and factory-approved options.
