Southbend (Middleby) 436A-3G Ultimate Gas Ranges
Description
Ultimate 36" Gas Restaurant Range with Full-Size 36" Griddle & Convection Oven
Southbend | Ultimate Series | 96,000 BTU Griddle · 32,000 BTU Convection OvenEngineered for the rigors of a high-volume kitchen, the Southbend Ultimate Series range combines a powerhouse 36" steel griddle with a high-performance convection oven— all wrapped in a stainless-steel cabinet that stands up to years of service.
Why you’ll love it

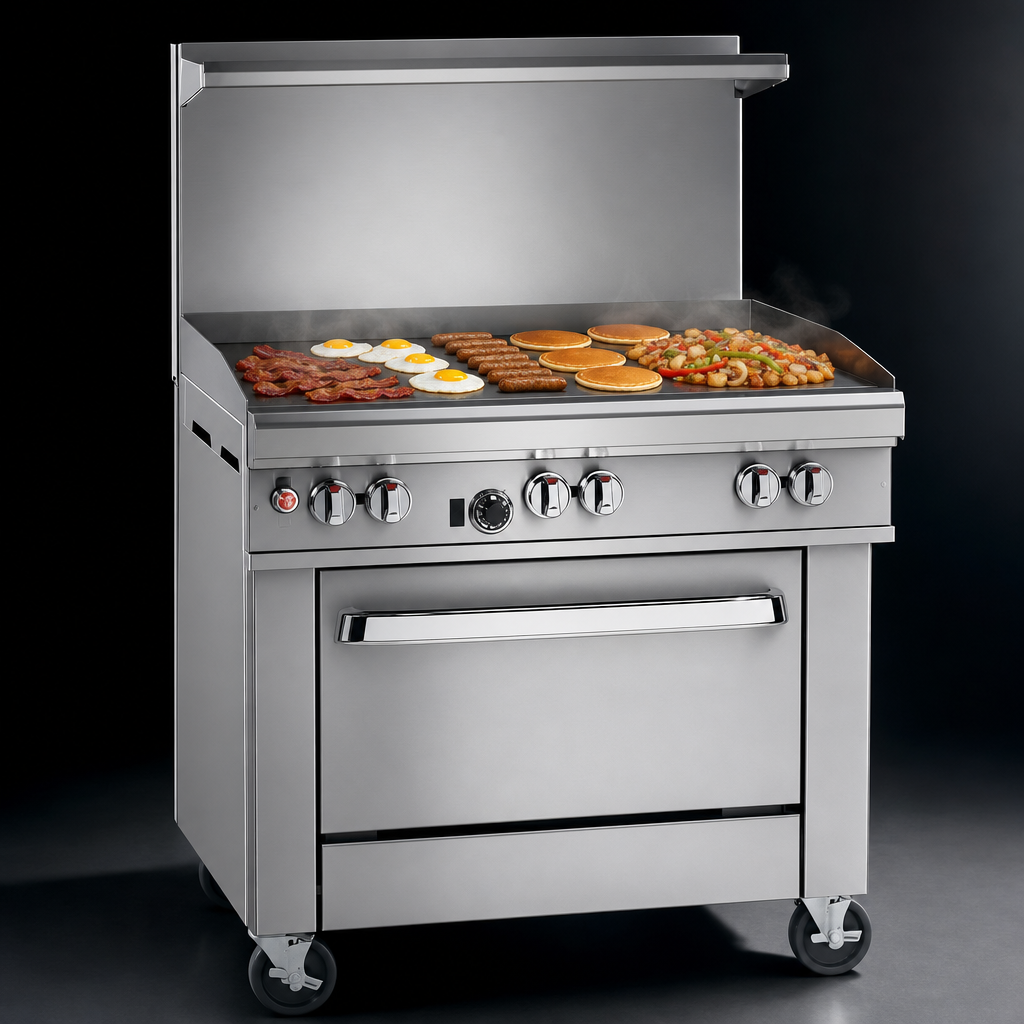

- One-piece 36" × 24" griddle (½" cold-rolled steel) with even heat distribution and a 96,000 BTU output.
- Battery-spark ignition convection oven (32,000 BTU) with 3 racks / 5 positions for fast, even baking & roasting.
- All-stainless exterior (front, sides, 22 ½" flue riser & overshelf) resists corrosion and wipes clean quickly.
- Spring-assisted oven door and fully porcelain-enameled cavity for effortless cleaning.
- Front-mounted manual gas shut-off and factory-installed regulator simplify installation & service.
- 6" adjustable stainless legs for perfect leveling—casters available.
- Certified cCSAus, CSA Flame, CSA Star & NSF for safe, worry-free operation.
At-a-glance specs
| Overall width | 36.5" (927 mm) |
|---|---|
| Overall depth | 42.1" (1,070 mm) – includes oven door handle |
| Cooking surface height | 37" (940 mm) |
| Flue riser height | 22.5" (572 mm) with removable shelf |
| Griddle plate | 36" W × 24" D × ½" thick, manual control, standing pilot |
| Griddle input | 96,000 BTU/hr (Natural or LP) |
| Convection oven input | 32,000 BTU/hr (Natural or LP) |
| Total gas input | 128,000 BTU/hr |
| Oven interior | 14" H × 26" W × 24" D, porcelain enamel, 3 racks / 5 positions |
| Electrical (oven blower) | 115 V / 60 Hz / 1 ph, 5.9 A, 6' cord & NEMA 5-15P plug |
| Gas connection | ¾" FNPT (right or left side—matches griddle location) |
| Warranty | 1-year parts & labor, factory authorized service |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
What’s in the box
- Ultimate Series range with 36" griddle top
- Convection oven base with 3 adjustable racks
- 22 ½" flue riser & integrated overshelf
- 6" stainless steel adjustable legs
- Factory-installed gas pressure regulator & 6' power cord
Popular add-ons (sold separately): swivel casters, quick-disconnect gas hose, salamander mounts, extra oven racks, and flame-failure safety system.
