Southbend (Middleby) 4367D Ultimate Gas Ranges
Description
Southbend Ultimate 36″ Gas Restaurant Range – 4 Pyromax Burners & Standard Oven
Model 436D-PYRO | 205,000 BTU | CSA & NSF ListedBuilt for kitchens that demand blistering heat and rock-solid reliability, the Southbend Ultimate Series packs four patented 40,000 BTU Pyromax burners and a full-size standard oven into a compact 36″ footprint.
Key Performance Features
- Four (4) Pyromax open-top burners deliver 160,000 BTU of instant, even heat.
- Patented three-piece, clog-free burner design with built-in drip ring for easy cleanup.
- Heavy-duty cast-iron grates stand up to daily commercial abuse and accept stock pots up to 14″.

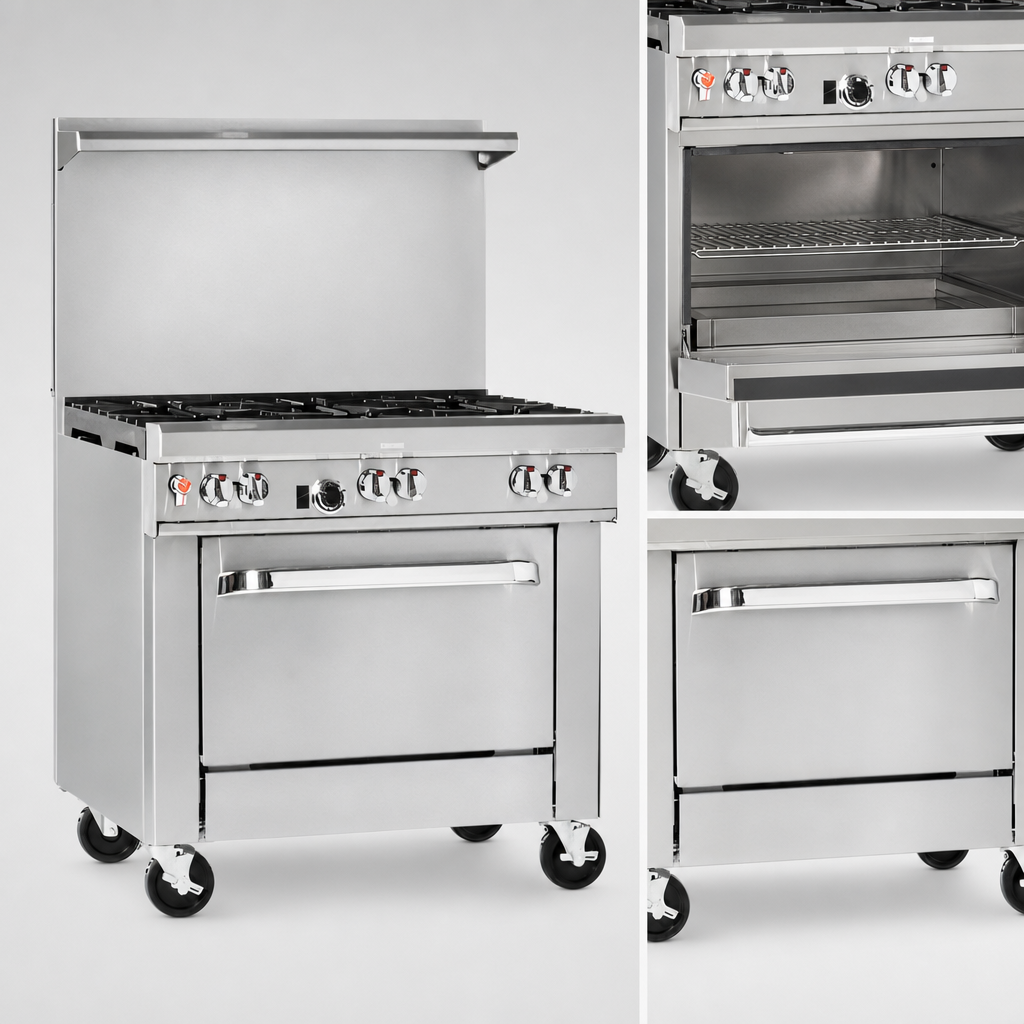

- 45,000 BTU standard oven with battery spark ignition & 175 °F – 550 °F thermostat.
- Porcelain-enameled oven cavity (26″ W × 26.5″ D × 14″ H) for superior heat retention & easy cleaning.
- Includes one removable oven rack with two height positions.
- 22.5″ stainless flue riser with integrated shelf adds convenient pan storage.
- All-stainless front, sides, 4″ rail & shelf resist corrosion and wipe down fast.
- Front-mounted manual gas shut-off & factory-installed 3/4″ regulator for simple installation.
- 6″ adjustable stainless legs level the range on uneven floors.
- Backed by a 1-year parts & labor warranty—nationwide service network.
Why Choose Pyromax Burners?
Pyromax technology couples a high-output 40,000 BTU flame with a lifetime clog-free cast-iron body, slashing boil times while keeping ports clear of food debris. Perfect for rapid stock reductions, wok cooking or any task that needs maximum heat on demand.
Specifications
| Cooktop Width | 36.5″ (927 mm) |
|---|---|
| Overall Depth | 34″ (864 mm) |
| Cooktop Height | 37″ (940 mm) on 6″ legs |
| Overall Height (w/ 22.5″ riser) | 59.5″ (1,511 mm) |
| Total BTU | 205,000 BTU/hr (160k burners + 45k oven) |
| Gas Connection | 3/4″ NPT female, rear |
| Gas Type | Natural Gas (& field convertible to LP with kit) |
| Oven Interior | 26″ W × 26.5″ D × 14″ H |
| Shipping Weight | ≈ 660 lb (300 kg) |
| Certifications | CSA, NSF |
What’s in the Box
- Southbend Ultimate 36″ range with 22.5″ flue riser & shelf
- (1) Adjustable oven rack
- Factory-installed pressure regulator
- User & service manuals
Factory Options & Accessories
- Swivel casters with front locks
- Extra oven racks
- Hot-top plates or rear step-up burners
- Salamander / cheesemelter mounting kits
- 3/4″ quick-disconnect hoses (3-5 ft)
• For floors other than quarry tile, cement or natural stone, consult Southbend prior to installation.
• To avoid heat damage, never let oversized cookware hang over the 4″ front rail.
• Intended for commercial use only—install under a properly vented hood.
