Southbend (Middleby) 4367A Ultimate Gas Ranges
Description
Southbend “Ultimate” 36" Restaurant Range – 4 Pyromax Burners & Convection Oven
Model 436A-P | 192,000 BTU | CSA & NSF CertifiedEngineered for high-volume kitchens that refuse to compromise on speed or consistency, the Southbend Ultimate 36" Range pairs four patented 40 kBTU Pyromax™ burners with a full-size gas convection oven. From rapid stir-fries on top to perfectly even baking below, this single footprint delivers the power and versatility chefs demand every shift.
Why You’ll Love It
- 4 Pyromax™ open burners (40 kBTU each) – high-output, three-piece, easy-clean design with built-in port-protection drip rings.

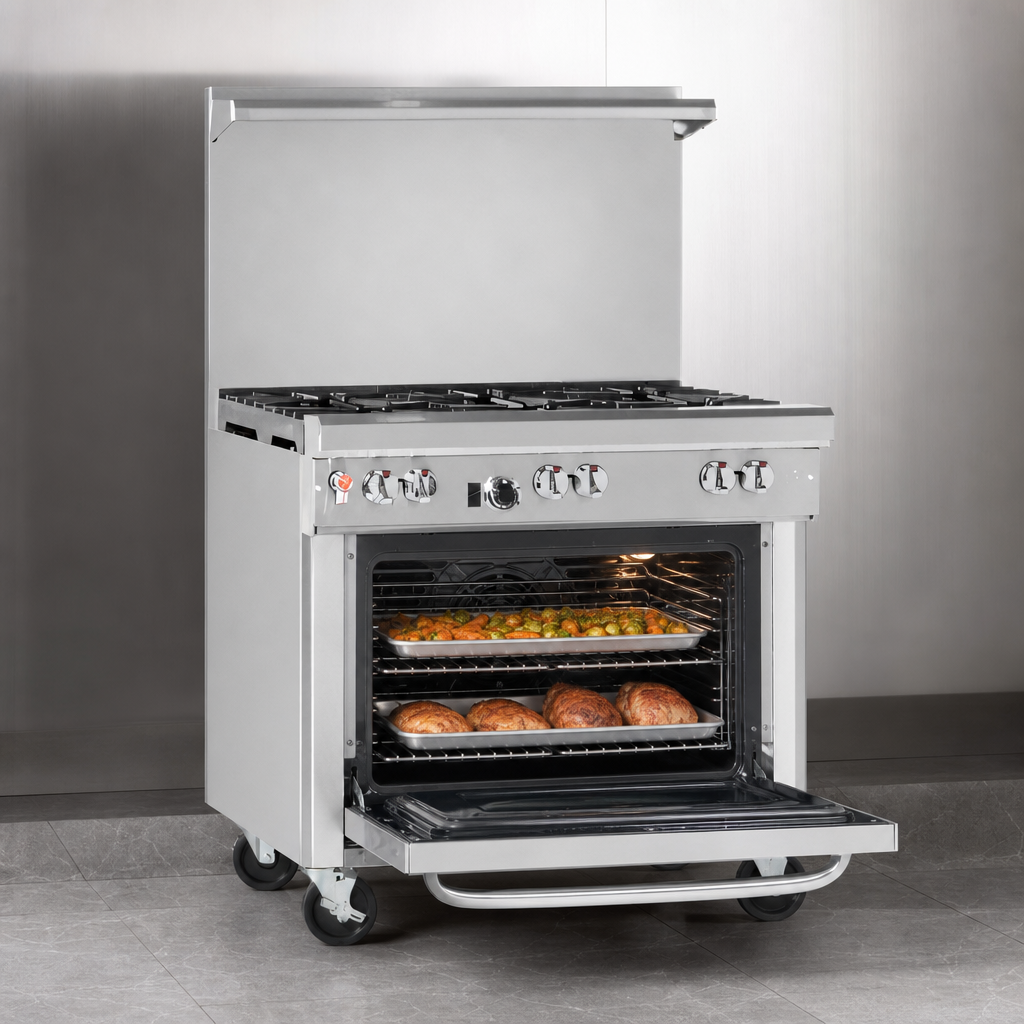

- Full-size convection oven – 32 kBTU burner, battery-spark ignition, 175-550 °F thermostat, ½ HP blower and three chrome racks with 5 positions.
- Durable construction – stainless-steel front, sides, 4" front rail, 22½" flue riser with heavy-duty shelf and 6" adjustable stainless legs.
- Operator-friendly controls – front-mounted manual gas shut-off plus standing pilots for instant burner lighting.
- Easy clean-up – six removable cast-iron grates and a one-piece crumb tray under the cooktop.
- Factory-installed regulator & 1-year parts / labor warranty for a truly plug-and-cook experience.
Performance & Utility
| Overall width / depth / height | 36.5" W × 42.13" D × 59.5" H (to flue shelf) |
|---|---|
| Cooking height | 37" |
| Total BTU (Natural Gas) | 192,000 BTU – 160,000 BTU top + 32,000 BTU oven |
| Gas connection | ¾" NPT (female); 7" W.C. minimum inlet pressure |
| Electrical (oven blower) | 115 V, 1 ph, 5.9 A – 6' cord & 3-prong plug included |
| Oven cavity (WxDxH) | 26" × 24" × 14" – holds full-size sheet pans both ways |
| Certifications | CSA, NSF 🔥 |
What’s in the Box
- Range with 22½" flue riser & storage shelf
- (6) heavy cast-iron top grates (rear accepts up to 14" stock pots)
- (3) chrome oven racks
- Factory pressure regulator
- User, installation & warranty documentation
Popular Add-Ons (sold separately)
- Quick-disconnect gas hose kits (3 ft – 5 ft, ANSI Z21.69 compliant)
- All-swivel or locking caster sets
- Extra oven racks
- Shelves or mounts for salamanders & cheesemelters
Warranty & Support
Covered by Southbend’s 1-year limited parts & labor warranty.
Full details and authorized service locator: southbendnc.com/service-and-parts
- Install under a vented hood and on non-combustible flooring or 6" legs/casters.
- Use rear positions for cookware larger than 12" Ø to protect the front rail components.
- Minimum clearances: 0" sides & rear to non-combustible surfaces; 10" to combustibles.
