Southbend (Middleby) 4366C Ultimate Gas Ranges
Southbend (Middleby) 4366C Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4366C Ultimate Gas Ranges
Description

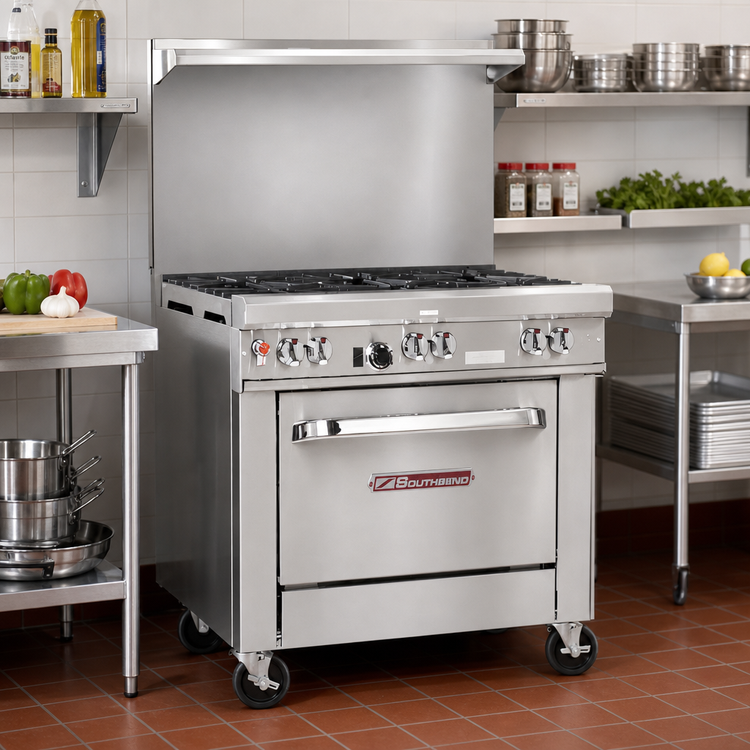

Ultimate 36" Gas Restaurant Range – 3 Star/Sauté + 2 Pyromax Burners
Southbend (Middleby) • Split-Top Option 6 • Model 436C-6Built for kitchens that demand serious fire-power in a compact footprint, the Southbend Ultimate 36" Restaurant Range pairs the precision of three 33 K BTU star burners with the raw heat of two 40 K BTU Pyromax burners. A durable stainless cabinet base, heavy-duty 22½" flue riser with shelf, and industry-leading 1-year parts & labor warranty make this range a workhorse you can rely on every shift.
Why You’ll Love It

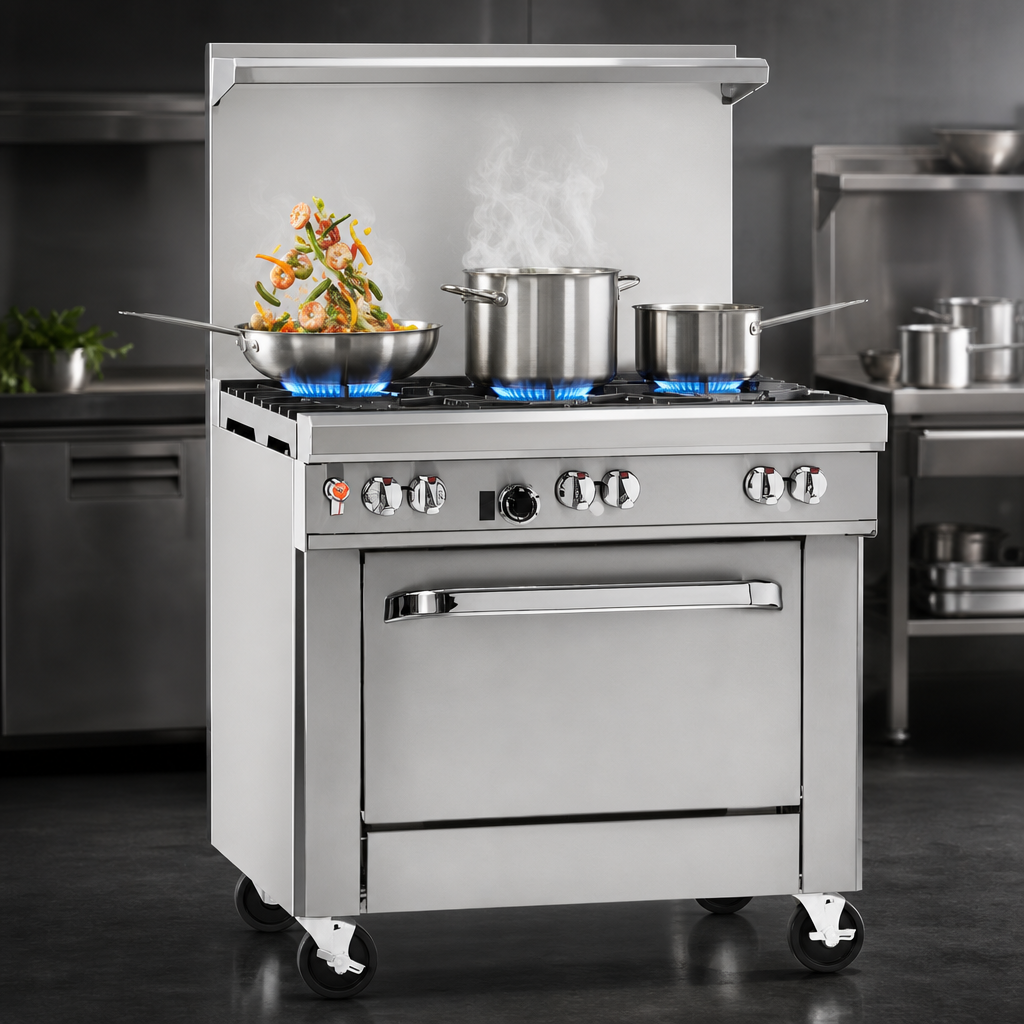

- 179,000 BTU total output for rapid searing, high-volume sautéing, and large-pot boiling.
- 3 × 33 K BTU star/sauté burners up front deliver even, edge-to-edge heat and superb pan control.
- 2 × 40 K BTU patented Pyromax burners in back—ideal for wok or stock-pot work.
- Six removable, cast-iron grates (rear sections accept 14" stock pots) for effortless cleaning.
- 27" deep cooking surface and a 4" stainless front rail keep plates and utensils within reach.
- Stainless steel front, sides, cabinet base, and flue-shelf stand up to the harshest kitchens.
- Front-mounted manual gas shut-off plus factory-installed regulator for safe, simple hookup.
- 6" stainless, adjustable legs level the range on any surface (casters optional).
- Standing pilots on open burners—no power required.
- Certified CSA & NSF for worry-free code compliance.
At-a-Glance Specs
| Cooking Width | 36.5" (927 mm) |
|---|---|
| Overall Depth | 34.0" (864 mm) |
| Cook-Top Height | 37.0" (940 mm) |
| Total Height w/ Riser | 59.5" (1511 mm) |

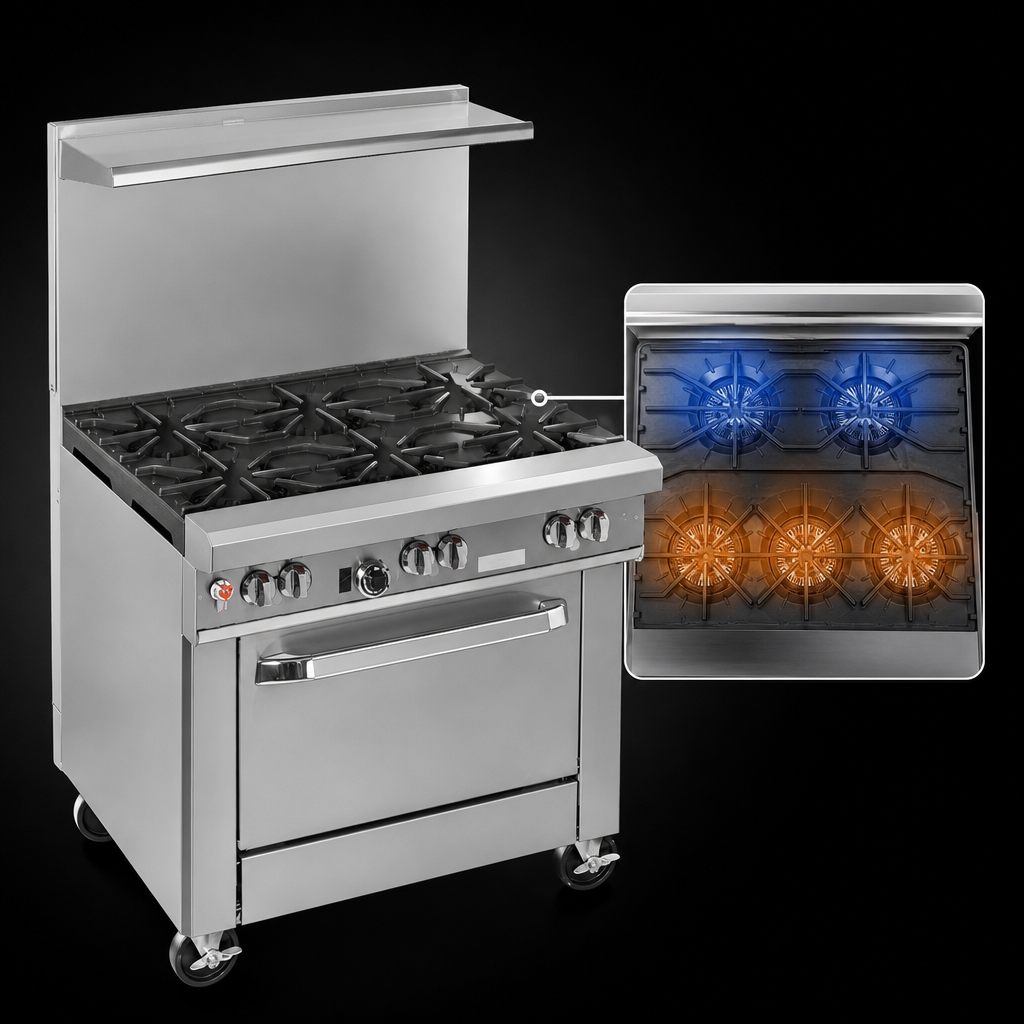

| Burner Configuration | 3 Star/Sauté (front) + 2 Pyromax (rear) |
| BTU Rating (Star Burners) | 33,000 BTU each |
| BTU Rating (Pyromax) | 40,000 BTU each |
| Total BTU Input | 179,000 BTU/hr |
| Base Type | Stainless cabinet (doors optional at no charge) |
| Gas Connection | ¾" NPT female, rear — factory regulator included |
| Minimum Inlet Pressure | 7" WC Natural, 11" WC LP (field-convertible) |
| Warranty | 1-year parts & labor, nationwide service network |
| Certifications | CSA, NSF |
Built to Last
- One-piece, lift-off drip tray spans the full width for fast, thorough clean-up.
- Coved-corner porcelain oven liner on optional bases—choose convection, standard, or hybrid electric if you ever upgrade.
- 22½" flue riser doubles as a sturdy staging shelf for pans and seasonings.
Peace-of-Mind Warranty
Southbend backs every Ultimate range with a full 1-year parts and labor warranty, supported by an extensive network of authorized service agencies across North America. Full warranty terms available at southbendnc.com.
