Southbend (Middleby) 4365D Ultimate Gas Ranges
Description

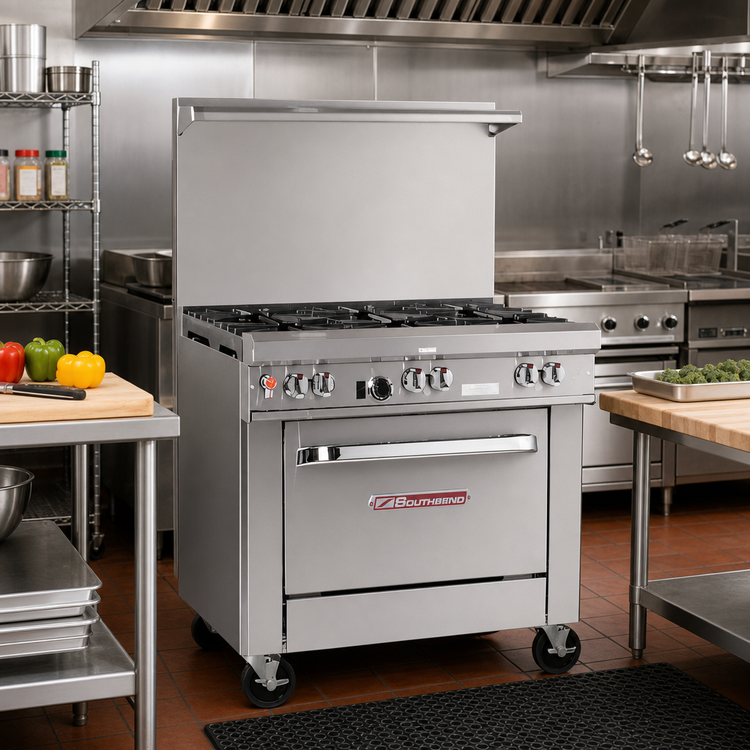

Southbend Ultimate 36" Restaurant Range
3 × 33 K Non-Clog Front Burners • 2 × 40 K Pyromax Rear Burners • Standard Gas OvenEngineered for the busiest commercial kitchens, the Southbend Ultimate 36" Restaurant Range delivers a blistering 224,000 BTU of total cooking power, unmatched durability, and the flexible burner layout chefs need to move from gentle sautés to rolling boils in seconds. Stainless steel construction, CSA & NSF approvals, and a full 1-year parts & labor warranty make this range a workhorse you can count on service after service.
Why This Range Rocks

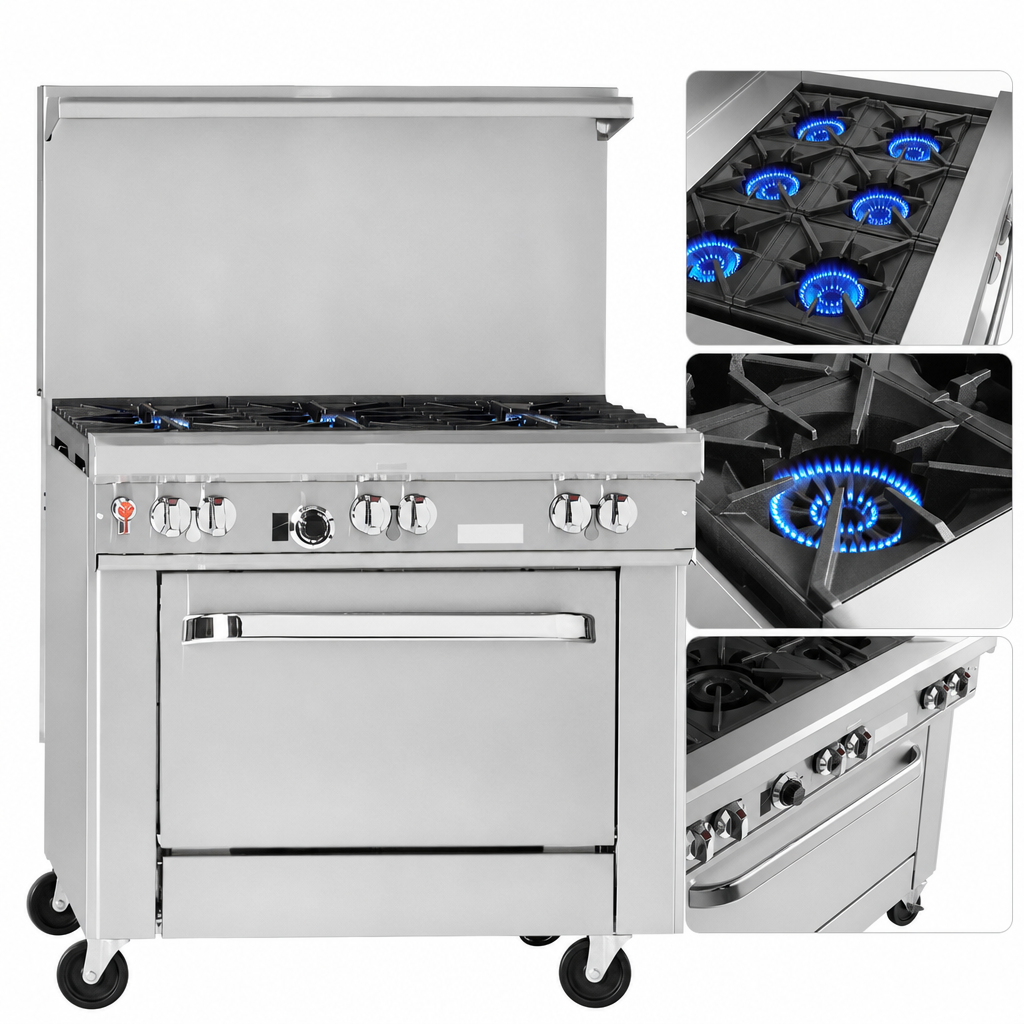

- Burner combo built for speed – three 33 K BTU patented clog-free cast-iron burners up front for rapid sautéing, plus two 40 K BTU Pyromax power burners in back for stockpots up to 14".

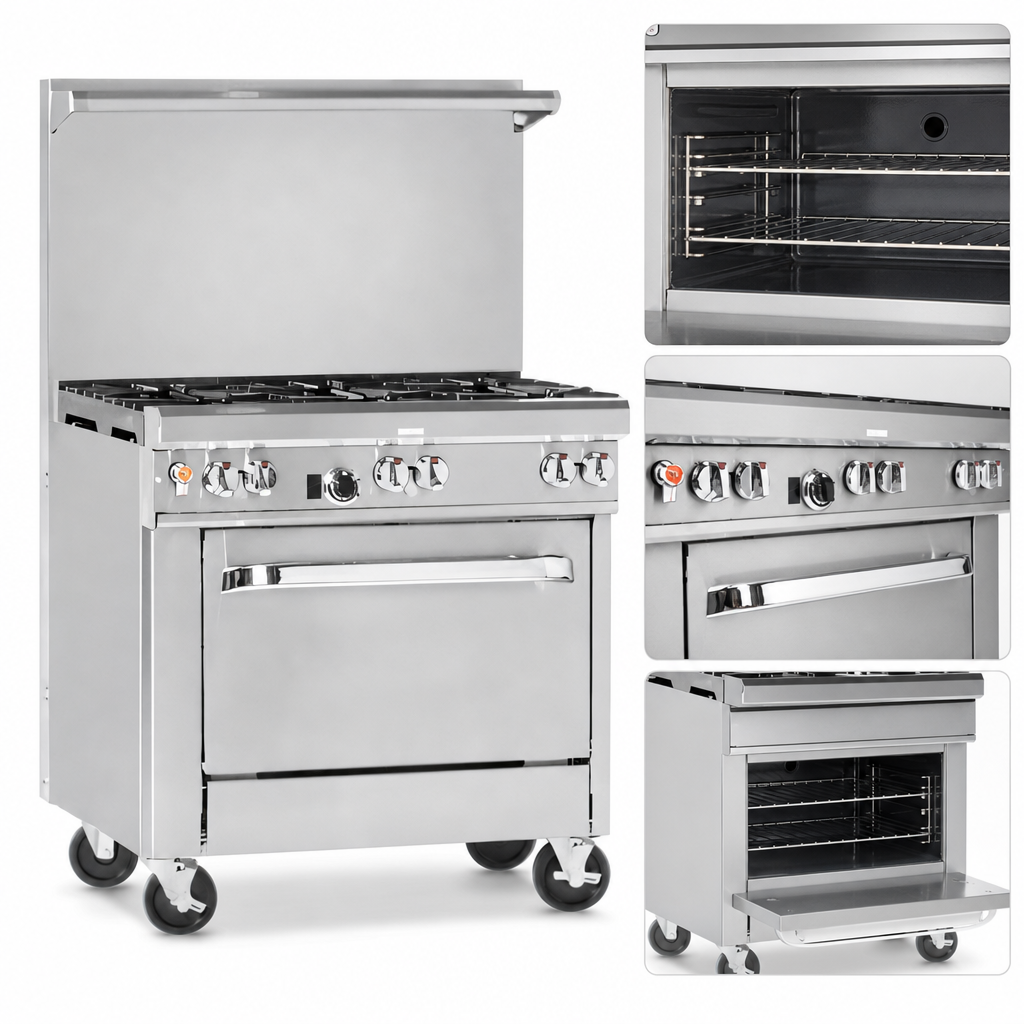

- Standard 45 K BTU oven with battery-spark ignition, 175 °F–550 °F thermostat, porcelain-enameled cavity, and one adjustable rack.
- All-stainless exterior (front, sides, rail, shelf, 22-1/2" flue riser) resists corrosion and wipes clean fast.
- Six removable heavy-duty cast-iron grates create a seamless 27"-deep cooking surface.
- Front-mounted main gas shut-off for quick, safe service access.
- Factory-installed regulator and 6" adjustable stainless legs included.
- Fully assembled & tested in the USA; CSA & NSF listed.
At-a-Glance Specs
| Model | Ultimate 436-D (custom burner mix) |
|---|---|
| Overall Width | 36.5" (927 mm) |
| Overall Depth | 34" (864 mm) – to front rail |
| Work-surface Height | 37" (940 mm) |
| Height w/ Flue Riser | 59.5" (1,511 mm) |
| Open Burners | 3 × 33 K BTU non-clog + 2 × 40 K BTU Pyromax (standing pilots) |
| Oven | Standard gas; 45 K BTU; 26" W × 26.5" D × 14" H cavity |
| Total Input | 224,000 BTU/hr (natural gas) |
| Gas Connection | 3/4" NPT (right rear); min. inlet 7" W.C. NAT |
| Electrical | 1 × 115 V/60/1, 5.9 A (battery spark & oven light) |
| Rack Positions | 2-position side rails, 1 rack included |
| Construction | Stainless front/sides, welded frame, cast-iron grates |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see warranty statement) |
Popular Add-Ons (ship separately)
- Rear step-up burners or hot-top plates
- Extra oven racks
- 5" or 10" flue risers, casters, or quick-disconnect hose kits
- Wall-mount salamander or cheesemelter brackets
