Southbend (Middleby) 4365C Ultimate Gas Ranges
Description
Southbend Ultimate 36" Gas Restaurant Range
3 Non-Clog Burners (front) + 2 Pyromax Burners (rear) | Cabinet Base | 179,000 BTUBuilt for kitchens that demand serious fire power, the Southbend Ultimate 36" range pairs the quick-response precision of patented non-clog burners with the brute heat of Pyromax high-output burners—all in a rugged, all-stainless package that’s ready for the rush.
Key Performance Features
- Total output: 179,000 BTU/hr for high-volume sautéing, searing and stock-pot work.

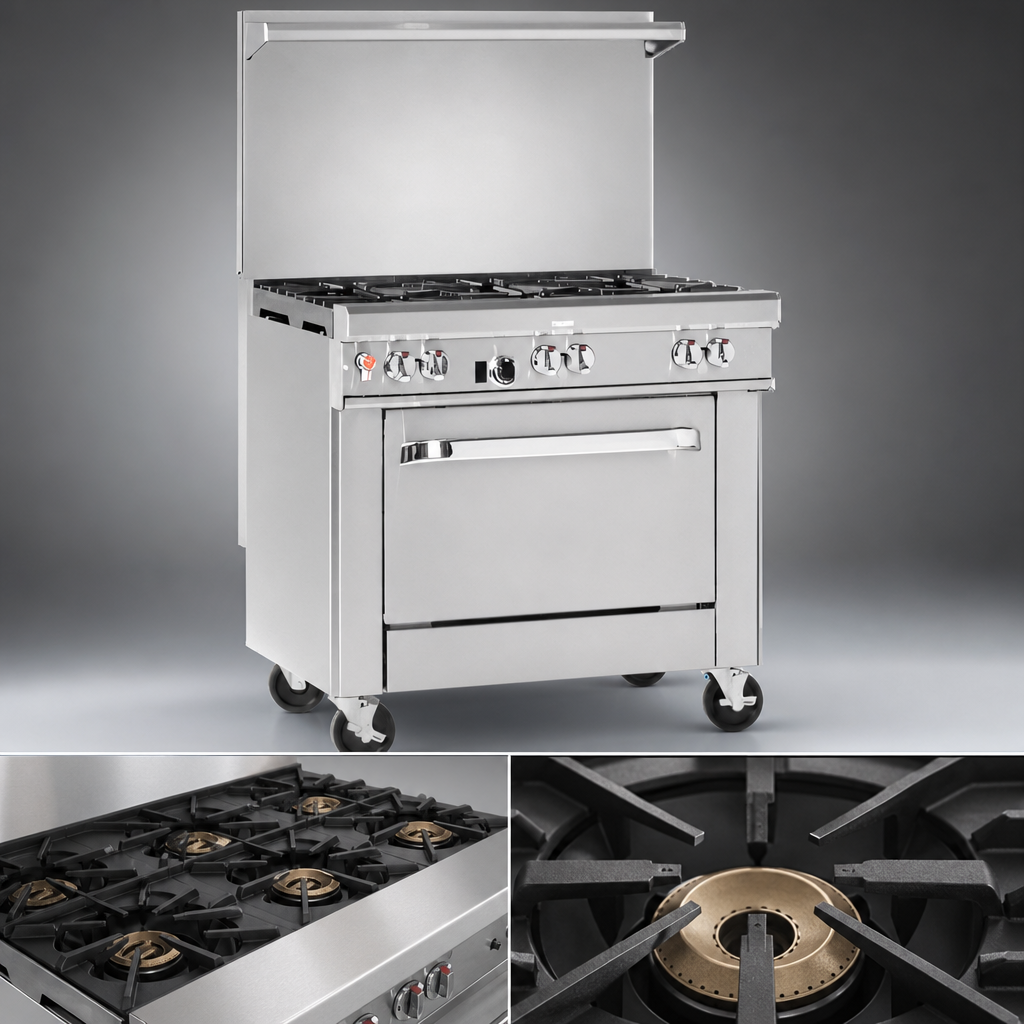

- (3) 33,000 BTU lifetime non-clog cast-iron burners in the front row for fast, even heat.
- (2) 40,000 BTU Pyromax rear burners—Southbend’s highest open-top output—with built-in drip rings that protect ports.
- (6) removable heavy-duty grates; rear grates accept stock pots up to 14" in diameter.

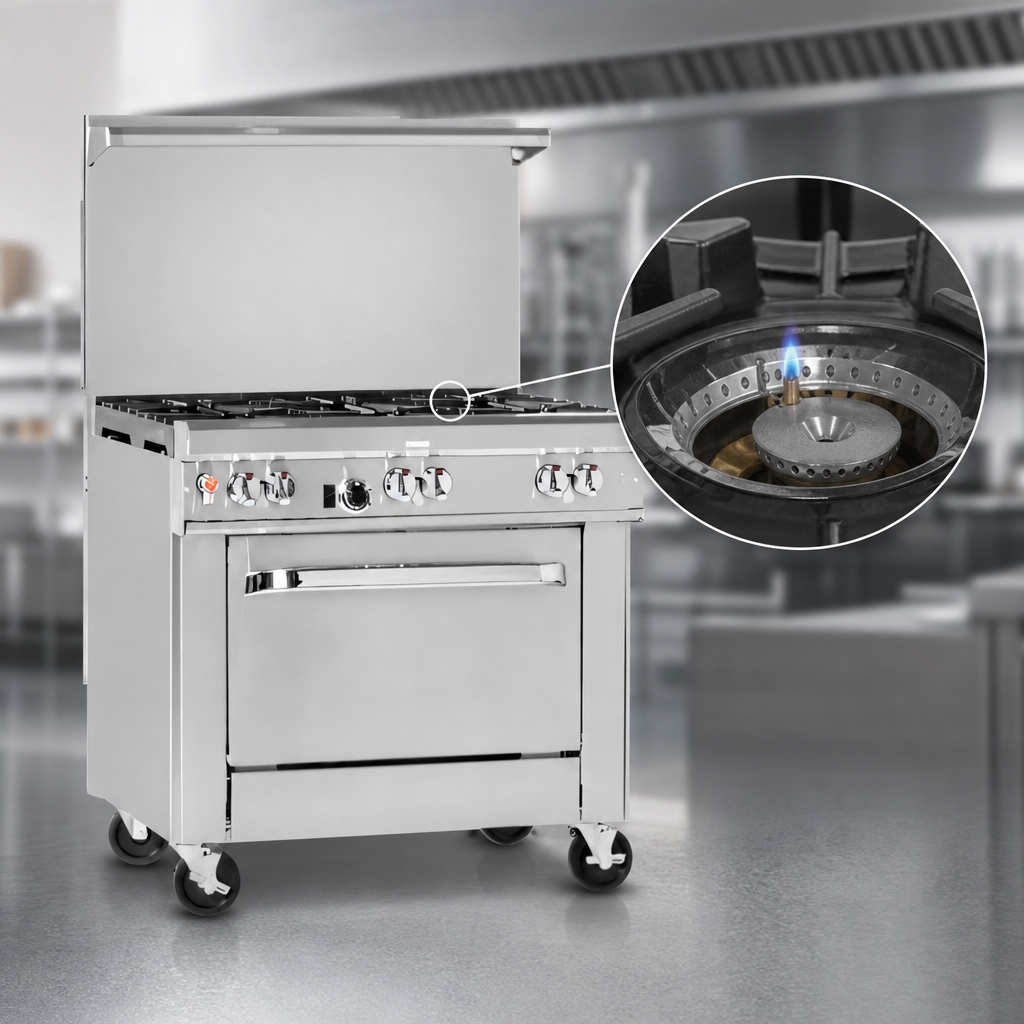

- Standing pilots on all open burners for instant ignition.
- Front-mounted manual gas shut-off for the entire range simplifies service.
Built to Last
- Stainless steel front, sides, 4" front rail, shelf and 22 ½" flue-riser—easy to keep spotless.
- One-piece, full-width drip tray pulls out for quick clean-up.
- 6" stainless steel adjustable legs level the unit on any surface (casters optional).
Smart Storage
- Spacious stainless steel cabinet base keeps hotel pans, lids and smallwares close at hand.
- No-charge factory option for hinged cabinet doors—just request at time of order.
Technical Specifications
| Model / Series | Ultimate 36" (5-Burner Option 5) |
|---|---|
| Overall Width | 36.5" (927 mm) |
| Overall Depth | 34" (864 mm) |
| Cooking Surface Height | 37" (940 mm) |
| Overall Height (with 22 ½" riser) | 59.5" (1511 mm) |
| Burner Configuration | (3) 33 k BTU non-clog front | (2) 40 k BTU Pyromax rear |
| Total BTU | 179,000 BTU/hr (Natural Gas) |
| Gas Connection | 3/4" NPT (rear) |
| Operating Pressure | Natural Gas 7" W.C. | LP 11" W.C. |
| Ignition | Standing pilot (open burners) |
| Base | Stainless steel cabinet (doors optional at no charge) |
| Adjustable Legs | 6" stainless steel |
| Certifications | CSA Gas, NSF |
| Warranty | 1-year limited parts & labor |
