Southbend (Middleby) 4365A Ultimate Gas Ranges
$7,794.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) 4365A Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4365A Ultimate Gas Ranges
$7,794.00
Unit price
/
Unavailable
Description
Southbend “Ultimate” 36" Restaurant Range
3 × 33 K BTU Non-Clog Burners + 2 × 40 K BTU Pyromax Burners | Convection Oven | 211,000 BTUBuilt for kitchens that never slow down, the Southbend Ultimate 36" range delivers extreme top-end power, rock-solid durability, and the baking consistency only a true convection oven can provide—all in one space-saving footprint.
Key Features
- Five-burner power platform:
- (3) 33,000 BTU lifetime non-clog cast-iron burners up front
- (2) 40,000 BTU patented Pyromax high-output burners in the rear—perfect for woks & stock pots
- 27" deep cooking surface with six removable heavy-duty cast-iron grates

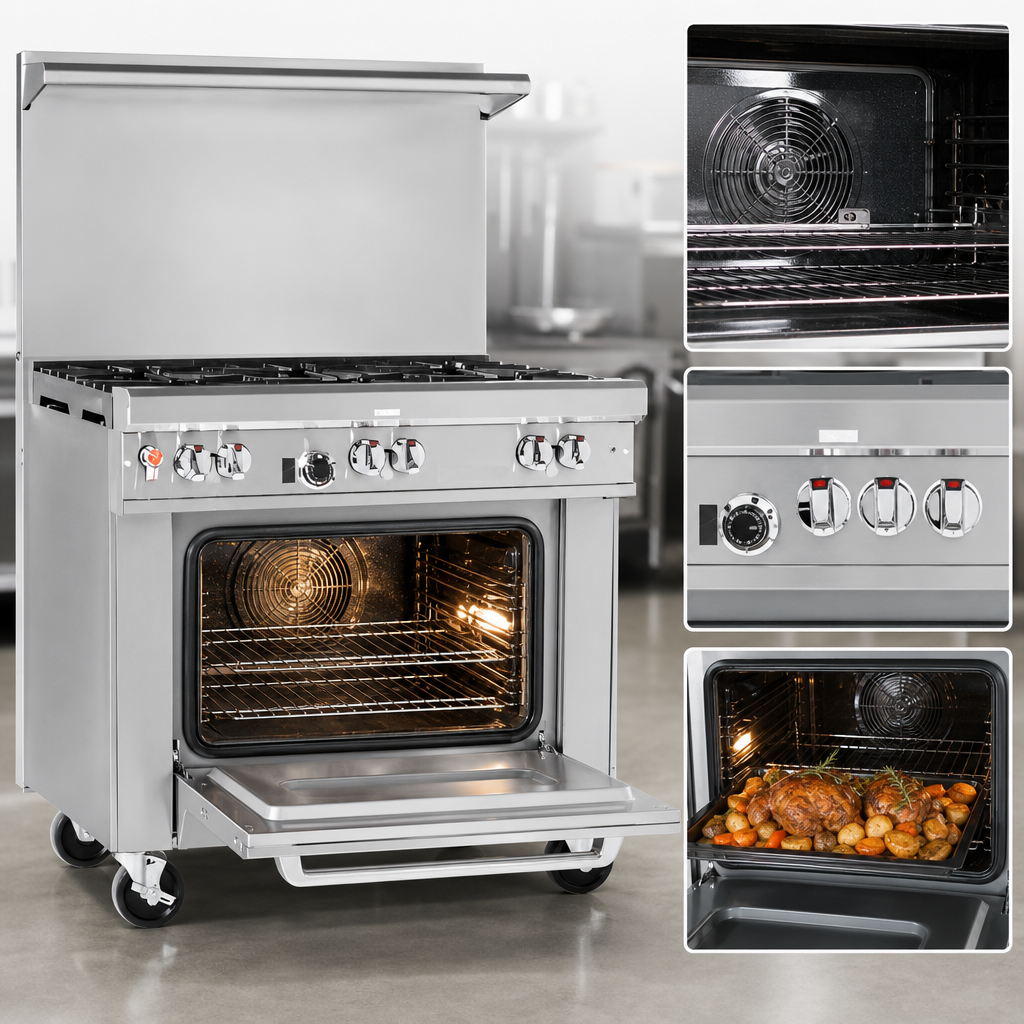

- Battery-spark ignition convection oven (32,000 BTU) with 5-position rack guides & (3) nickel-plated racks
- Wide 4" stainless front rail plus 22.5" flue riser/shelf for extra plating & pan storage
- One-piece drip tray, standing pilots, & front-mounted manual gas shut-off for fast serviceability
- All-stainless front, sides, riser shelf & 6" adjustable legs—built to thrive in the busiest line
- Factory-installed regulator; 115 V cord & plug powers the convection fan (5.9 A)
- Certified CSA & NSF; includes a 1-year parts & labor warranty
Performance You Can Count On
- 211,000 BTU total output annihilates ticket times during peak rush.
- Rear burners hold stock pots up to 14" Ø—no need for a separate stock range.
- Convection fan blankets the porcelain-enameled cavity for even, edge-to-edge bakes from 175–550 °F.
- Spring-assisted door and coved corners make cleaning painless at the end of shift.
Technical Specifications
| Model | 436A-5B (Ultimate Series) |
|---|---|
| Overall Width | 36.5" / 927 mm |
| Overall Depth | 42.13" / 1,070 mm (incl. flue riser) |
| Work-surface Height | 37" / 940 mm |
| Flue Riser Height | 22.5" with heavy-duty storage shelf |
| Total BTU (Natural Gas) | 211,000 BTU/hr |
| Open Top Burners | (3) 33 K BTU non-clog & (2) 40 K BTU Pyromax |
| Oven Type | Gas convection, 32 K BTU with battery spark ignition |
| Oven Interior (H × W × D) | 14" × 26" × 24" (porcelain enamel) |
| Racks Included | 3 (five rack positions) |
| Gas Inlet | 3/4" NPT (min. 7" WC NG) |
| Electrical (fan) | 115 V / 60 Hz / 1 ph, 5.9 A, 6′ cord & 3-prong plug |
| Certifications | CSA, NSF |
Need LP gas or additional accessories (casters, salamander mounts, etc.)? Contact our team for a custom quote.
What Ships in the Box
- Southbend Ultimate 36" range (configured as listed above)
- (3) Oven racks
- Factory pressure regulator
- 22.5" stainless flue riser with integrated shelf
- 6" adjustable stainless legs
- Owner’s manual & warranty documentation
Important: For optimal performance and to protect front-rail components,
place cookware 12" Ø or larger on the rear burners only. Install on quarry tile, cement, or
natural-stone flooring—or consult the factory for alternatives.
Commercial use only – not intended for household installation.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
36.5in
Depth
43.6in
Shipping Weight
660.0lbs
Vent
backriser with hi-shelf
Top
(5) open burners
Base
(1) convection oven
Exterior Finish
stainless steel front & sides
Specifications
Ultimate Restaurant Range, gas, 36", (3) non-clog burners front, (2) pyromax burners rear, standard grates, standing pilot, (1) convection oven with battery spark ignition, includes (3) racks, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 211,000 BTU, CSA, NSF
