Southbend (Middleby) 4364D Ultimate Gas Ranges
Description

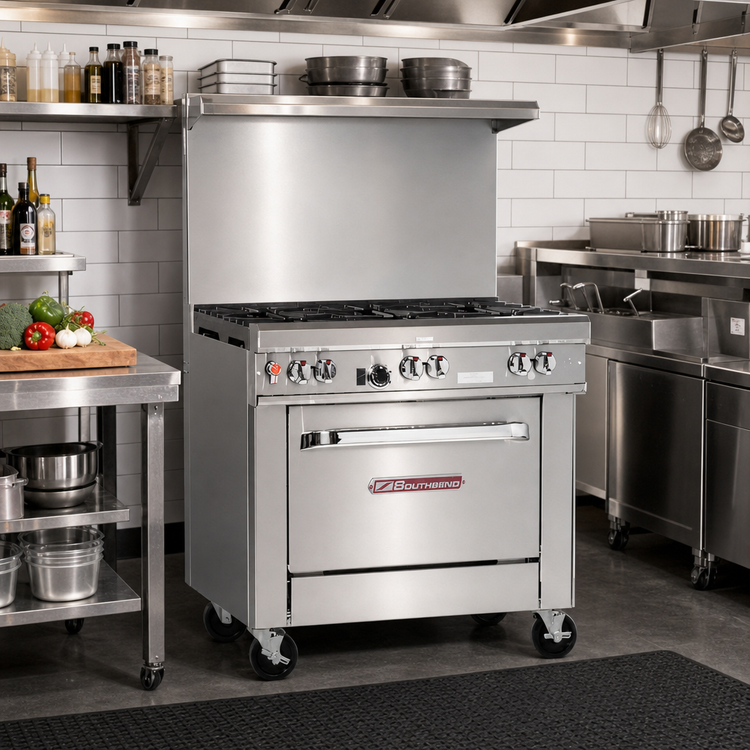

Southbend Ultimate 36" Gas Restaurant Range – Split 6-Burner + Standard Oven
Model 436D-SS | 243,000 BTU | CSA & NSF CertifiedBuilt for kitchens that refuse to compromise, Southbend’s Ultimate Series delivers the heavy-duty performance chefs demand all day, every day. This 36-inch model pairs a powerful split open-top configuration with a full-size standard oven, all wrapped in easy-to-clean stainless steel for years of rock-solid service.
-

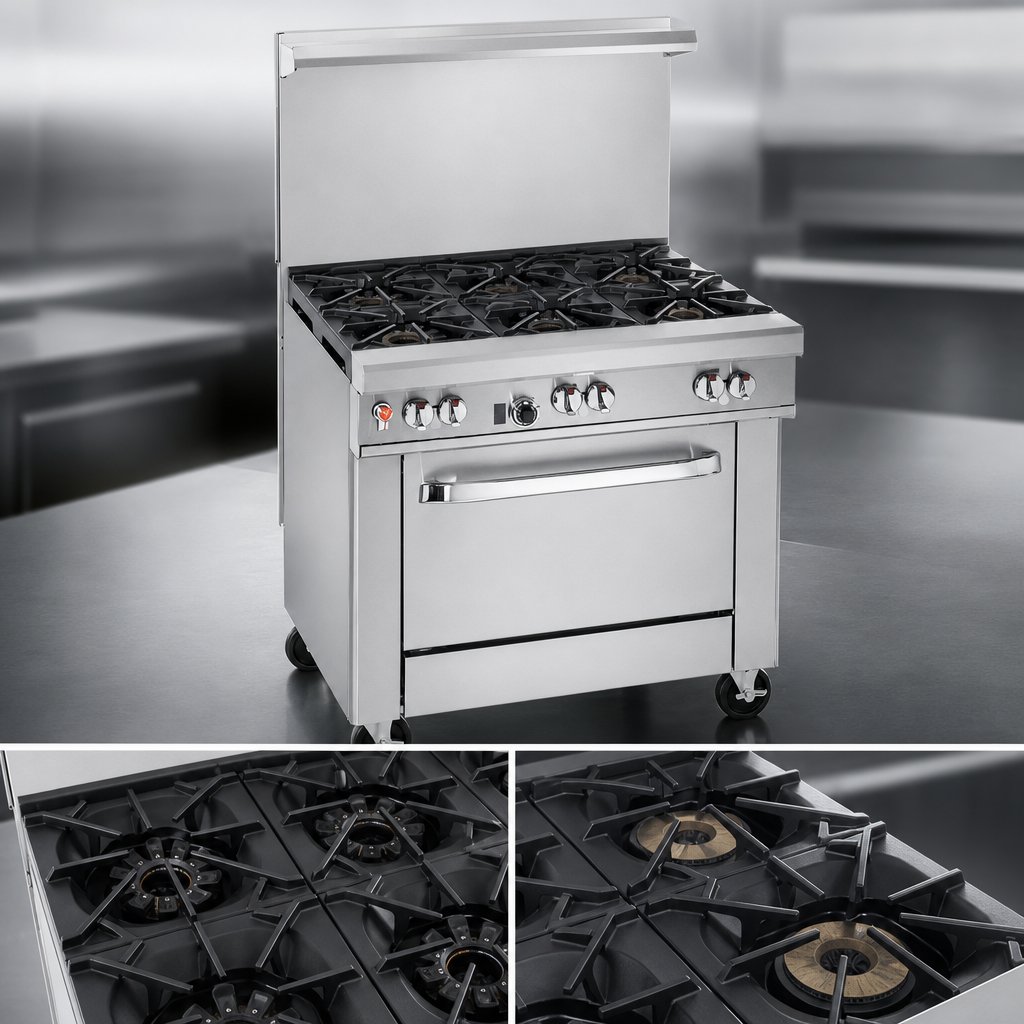

Six 33,000 BTU open burners (total 198,000 BTU)
• Front: three cast-iron Star/Sauté burners for fast, even heat

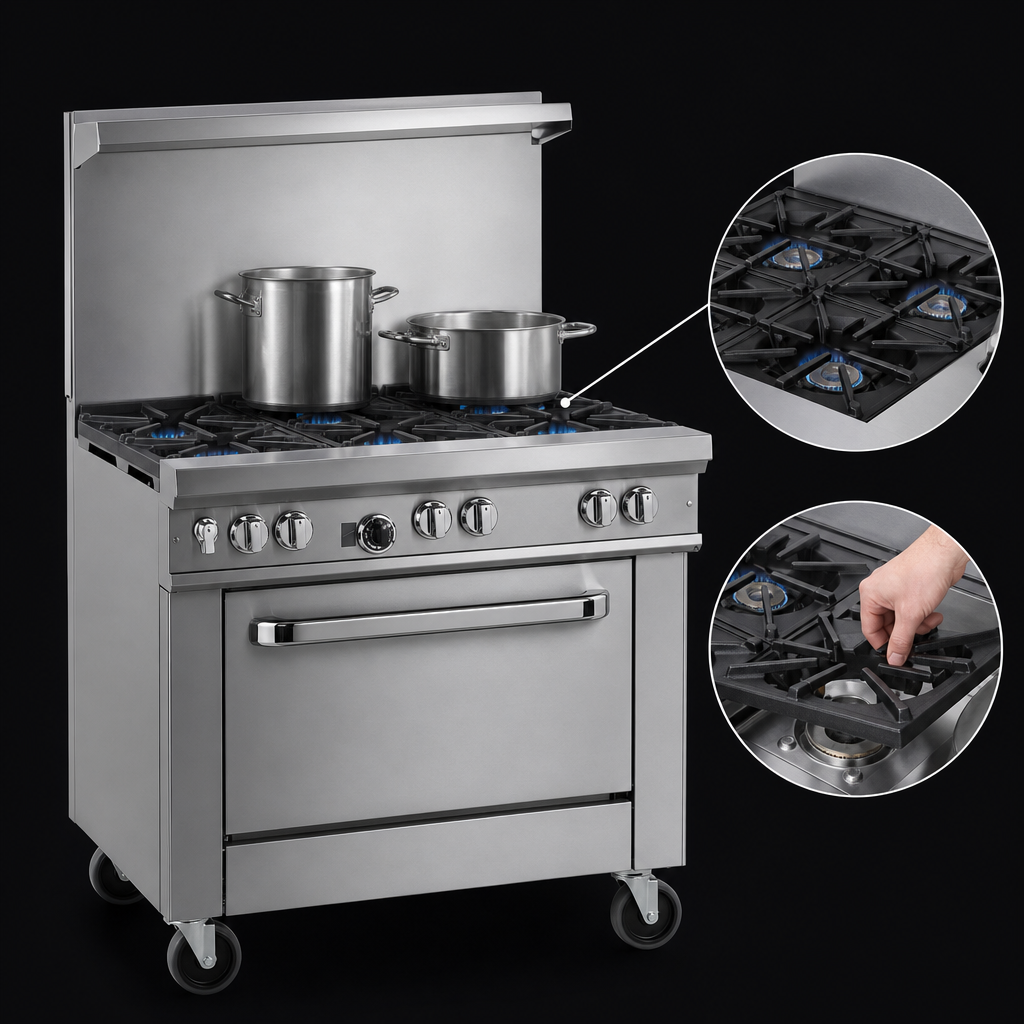

• Rear: three lifetime Non-Clog burners built to resist grease blockages - Removable, heavy-duty cast-iron grates – 27" deep surface fits stock pots up to 14"
- Standing pilots with a front-mounted manual gas shut-off for immediate control
- 45,000 BTU standard oven with battery spark ignition
• 175 °F – 550 °F thermostat • Porcelain-enameled cavity • One rack, two positions - 22.5" flue riser with full-width plating & utensil shelf
- Stainless steel front, sides, shelf & 6" adjustable legs – no-charge factory-installed regulator
- Total output: 243,000 BTU (natural gas) – 3/4" NPT rear connection
- Certified to CSA & NSF standards; backed by a 1-year parts & labor warranty
Technical Specifications
| Exterior width | 36.5" (927 mm) |
|---|---|
| Exterior depth | 34" (864 mm) |
| Cooking surface height | 37" (940 mm) |
| Overall height (to flue top) | 59.5" (1,511 mm) |
| Oven interior (W × D × H) | 26" × 26.5" × 14" (660 × 673 × 356 mm) |
| Burner rating | 6 × 33,000 BTU (open top) |
| Oven rating | 45,000 BTU (standard oven) |
| Total gas input | 243,000 BTU/hr |
| Gas inlet | 3/4" NPT (rear, factory regulator included) |
| Clearance to non-combustibles | 0" sides & rear |
| Shipping weight | Approx. 660 lb (300 kg) |
Need casters, additional oven racks, or other options? Contact us for factory-installed accessories and quick ship lead-times.
