Southbend (Middleby) 4364D-2GR Ultimate Gas Ranges
Description

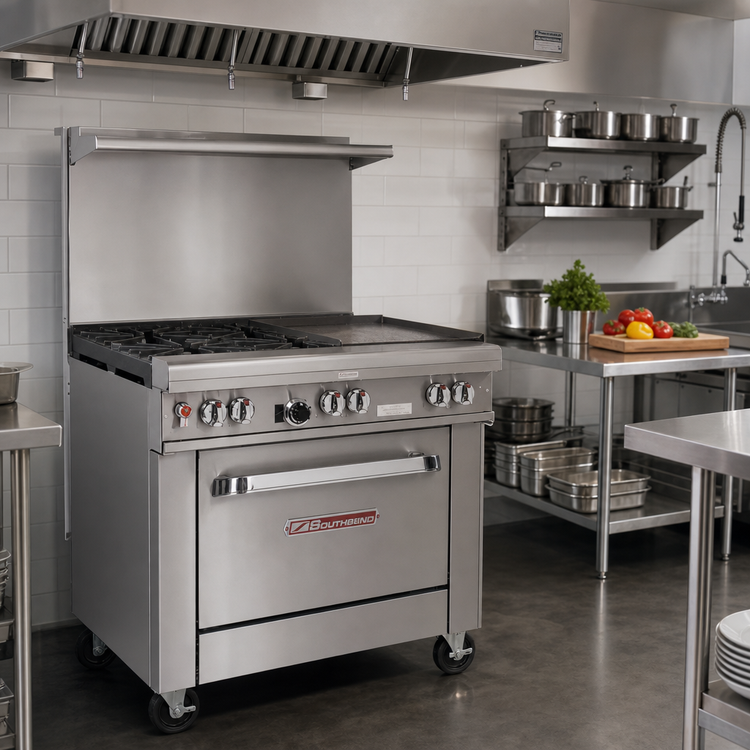

Southbend Ultimate 36" Gas Restaurant Range – 24" Right-Side Griddle & Standard Oven
159,000 BTU | Star/Sauté & Non-Clog Burners | cCSAus, CSA Flame, CSA Star, NSFBuilt for chefs who demand rugged power and day-in, day-out dependability, the Southbend Ultimate™ 36" Restaurant Range combines two high-performance open burners with a spacious 24" griddle and a full-size standard oven, all wrapped in a stainless-steel chassis that stands up to the toughest kitchens.
Key Features

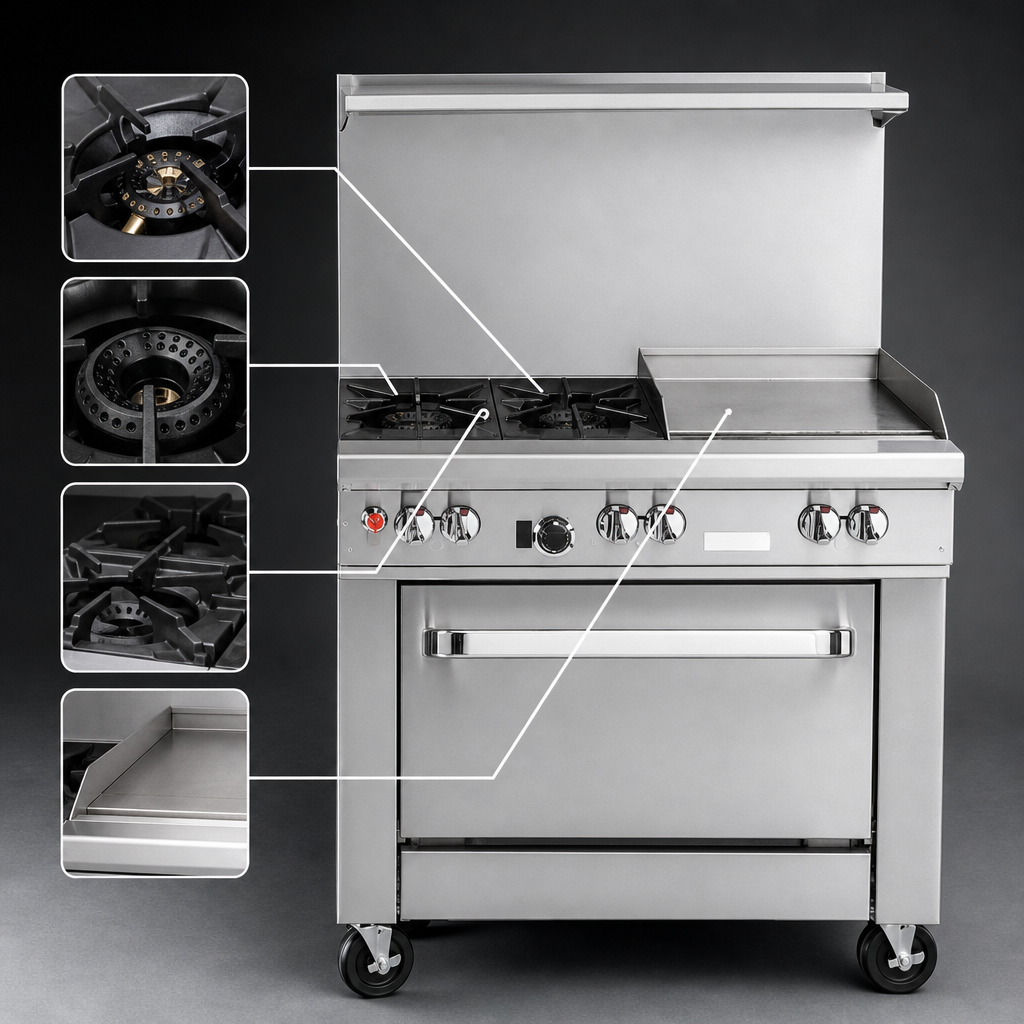

- Top configuration: (1) 33,000 BTU Star/Sauté burner (front) + (1) 33,000 BTU non-clog burner (rear)
- 24" right-hand griddle, ½" cold-rolled steel plate, manual controls, 64,000 BTU input

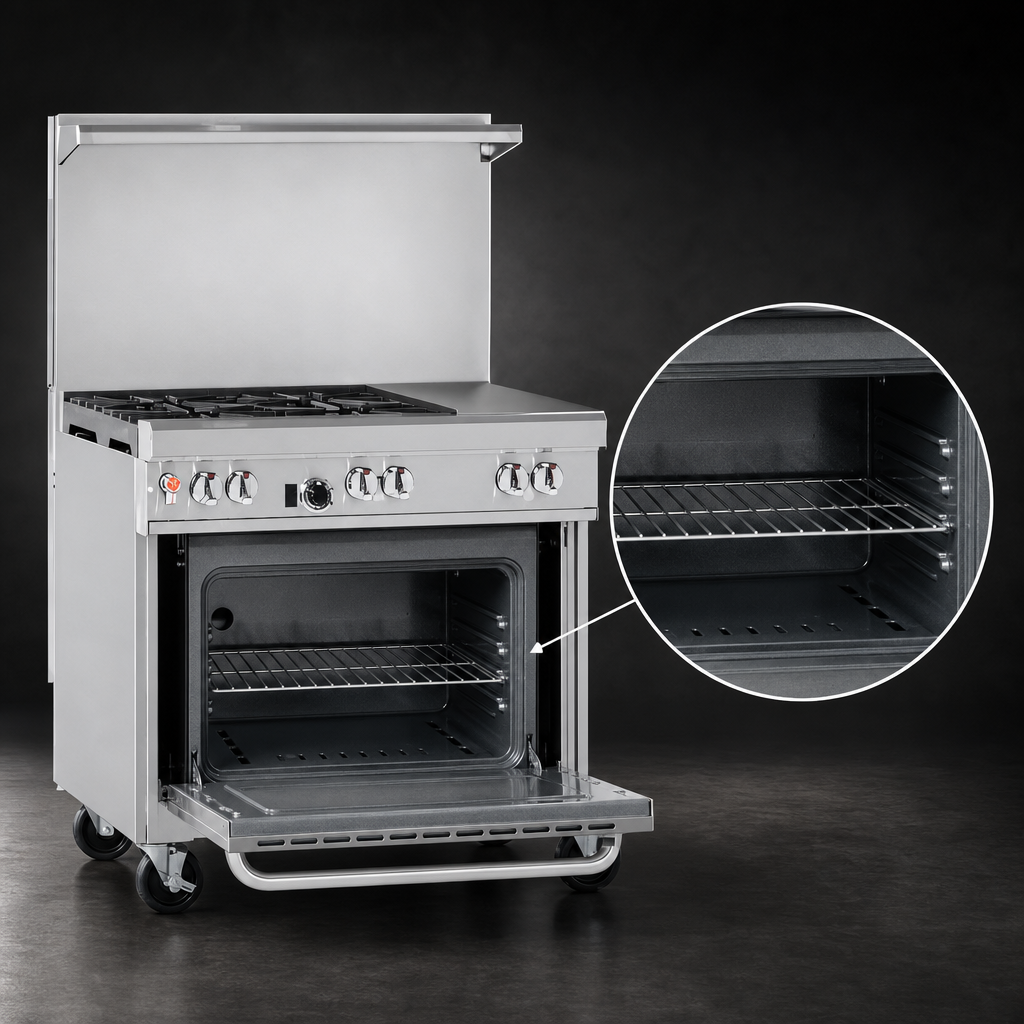

- Full-size standard oven, 45,000 BTU, 175 – 550 °F thermostat, battery-spark ignition
- Includes 1 heavy-duty oven rack with 2 rack positions
- 22½" flue riser with integrated heavy-duty shelf—perfect for keeping plates warm
- 4" wide stainless front rail with front-mounted manual gas shut-off for entire range
- Six-point removable cast-iron grate system accepts stock pots up to 14" Ø
- Stainless-steel front, sides, shelf & 6" adjustable legs for easy cleaning and leveling
- Total input: 159,000 BTU/hr (natural or LP—field convertible with factory regulator)
- Standing pilots for open burners; battery-spark ignition for oven base
- 1-year limited parts & labor warranty
At-a-Glance Specs
| Exterior width | 36.5" / 927 mm |
|---|---|
| Exterior depth | 34" / 864 mm (to front rail) |
| Cooking height | 37" / 940 mm |
| Overall height (to top of flue) | 59.5" / 1,511 mm |
| Oven cavity (W × D × H) | 26" × 26.5" × 14" (660 × 673 × 356 mm) |
| Gas connection | ¾" NPT (rear, opposite griddle) |
| Minimum supply pressure | Natural 7" WC | LP 11" WC |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Shipping weight | Approx. 660 lb / 300 kg |
Why Chefs Choose Ultimate™
- Maximum versatility – sauté, stock-pot boil, griddle, bake & roast in one 36" footprint.
- Unmatched durability – full porcelain oven interior, stainless exterior, heavy cast components.
- Easy serviceability – front-mounted gas shut-off & lift-off burner grates reduce downtime.
- Energy-dense burners deliver even heat distribution and lifetime clog-free performance.
Need financing? Middleby Equipment Financing can turn this purchase into simple, fixed monthly payments.
• Install under a properly sized vent hood.
• For non-quarry tile floors, contact factory for leg/caster recommendations.
• Avoid cookware larger than 12" Ø on the front rail to prevent heat damage.
• Commercial use only—warranty void in residential applications.
