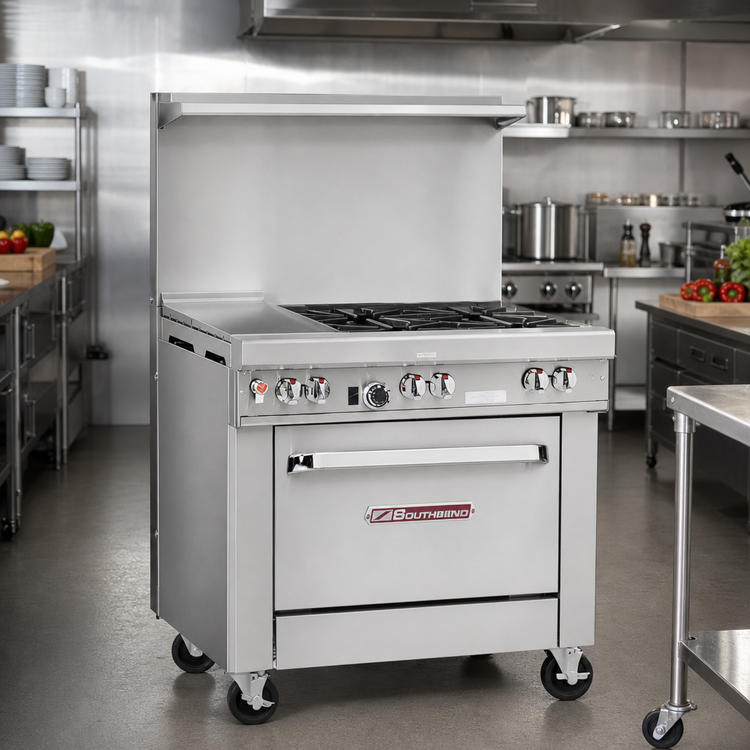

Southbend Ultimate 36-Inch Gas Restaurant Range with 4 Open Burners, Left 12-Inch Griddle and Standard Oven

Standing Pilot, Battery Spark Ignition, Stainless Steel Exterior

Built for versatile line cooking, this 36-inch gas range combines four burners, a left-side griddle, and a standard oven in a rugged stainless steel chassis.

  • 36-inch commercial gas range with a 4-burner top, left 12-inch griddle, and standard oven base.
  • 195,000 BTU total output for demanding restaurant line performance.
  • Standing pilot top burners and battery spark oven ignition for dependable operation.
  • Stainless steel front, sides, and shelf with 6-inch adjustable legs for durability.
  • Includes one oven rack and a 22.5-inch flue riser with shelf.
  • Standard oven temperature range from 175°F to 550°F.

Overall Dimensions:

36.5"W x 34.0"D x 59.5"H

Product Weight:

660.0 lb

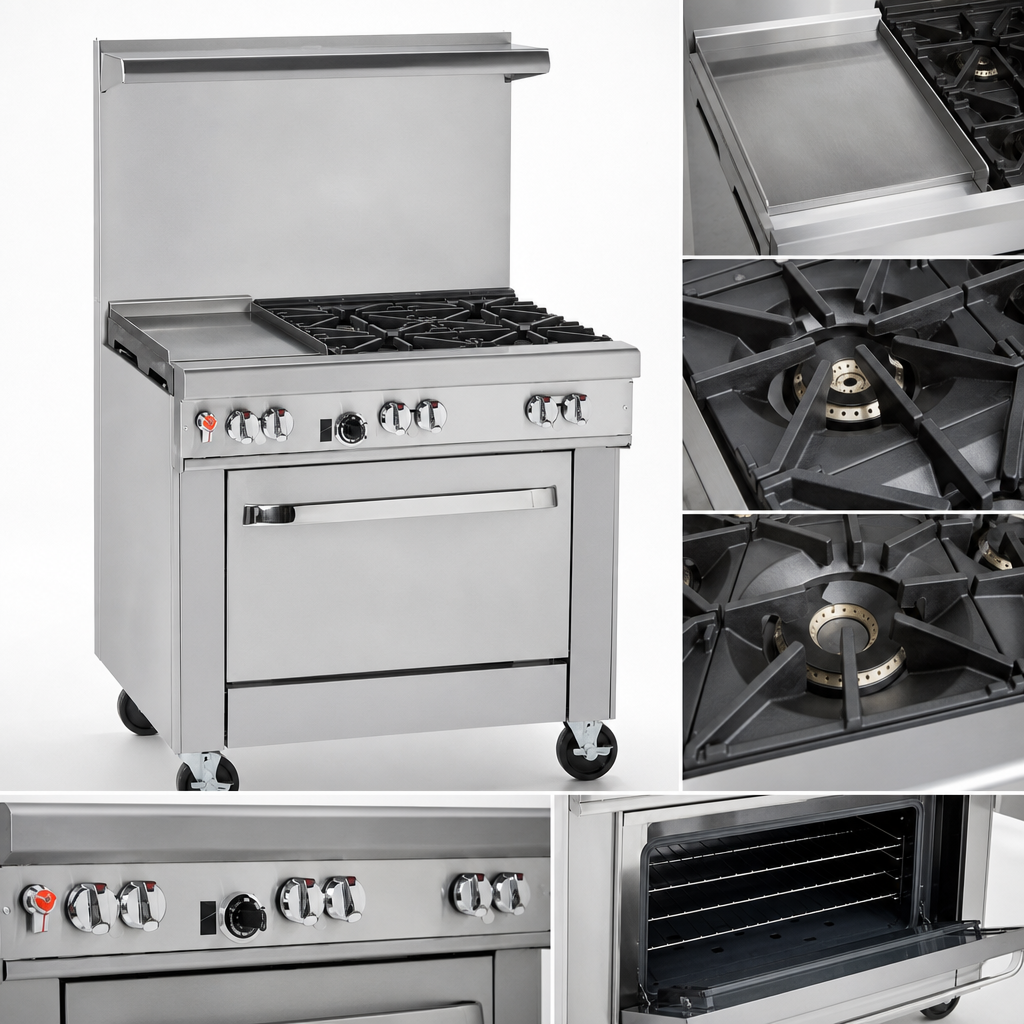

4-Burner Open Top With Left Griddle

Two front star/sauté burners and two non-clog burners are paired with a 12-inch left griddle for flexible cooking options.

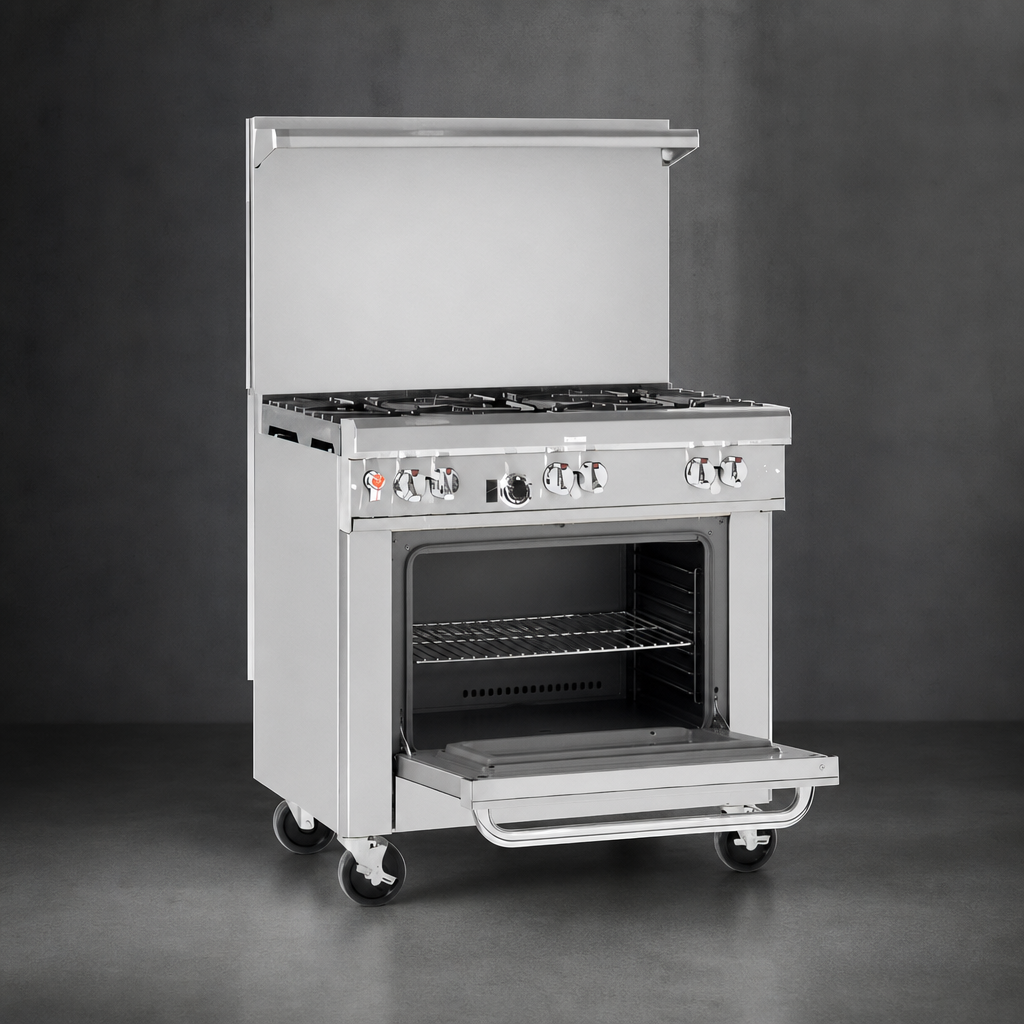

Standard Oven Base

Single standard oven includes one rack and a thermostat range of 175°F to 550°F.

Ignition System

Open-top burners use a standing pilot, and the oven base uses battery spark ignition.

Stainless Steel Construction

Stainless steel front, sides, and shelf are built for durability and easier cleanup.

Flue Riser With Shelf

A 22.5-inch flue riser with shelf adds rear workspace above the range.

Factory-Installed Gas Controls

Factory-installed regulator and front-located manual gas shut-off are included.

Adjustable Legs

6-inch stainless steel adjustable legs are standard for installation and leveling.

Porcelain Enamel Oven Interior

The standard oven features a double-sided porcelain enamel cavity with coved corners for easier cleaning.

Type Commercial Gas Range
Style Open Burner / Griddle
Installation Type Floor Model
BTU 195,000 BTU
Gas Type Natural Gas
Material Stainless Steel
Interior Finish Porcelain Enamel
Temperature Range 175°F to 550°F
Cooking Surface Width 36 Inches
Cooking Surface Depth 27 Inches
Shipping Width 37 Inches
Shipping Depth 34 Inches
Shipping Height 60 Inches
Shipping Weight 660 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes a standard oven with one rack, a 22.5-inch flue riser with shelf, and 6-inch adjustable legs.
The open-top burners use a standing pilot, and the oven base uses battery spark ignition.
The standard oven ranges from 175°F to 550°F.
The range is rated at 195,000 BTU.
It includes a 1-year limited parts and labor warranty.
