Southbend (Middleby)  |  Ultimate  |  SKU: 4364C

Southbend (Middleby) 4364C Ultimate Gas Ranges

$6,235.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

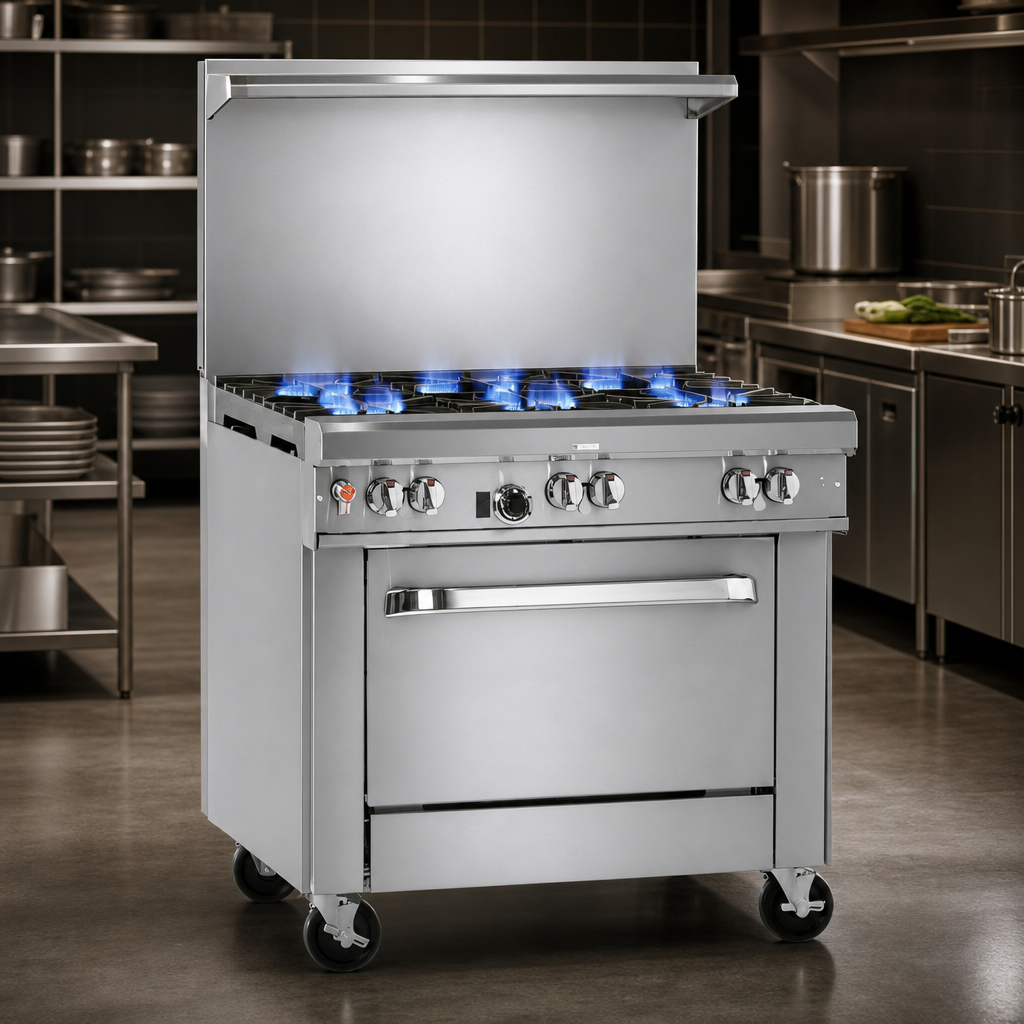

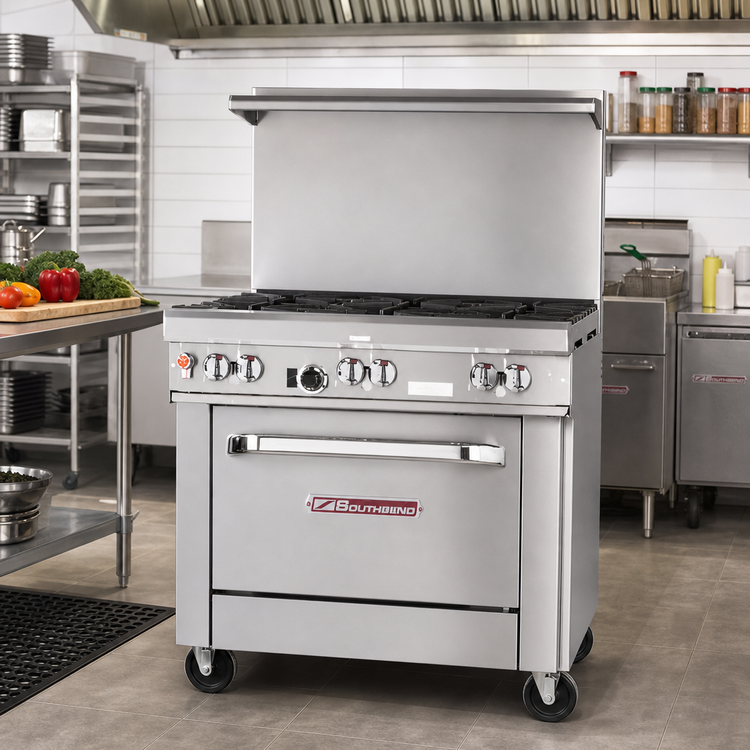

Southbend Ultimate 36″ Gas Restaurant Range – Split-Burner, Cabinet Base

Model 436C – (3) 33,000 BTU Star/Sauté Burners + (3) 33,000 BTU Non-Clog Burners

Built for high-volume kitchens that refuse to compromise on power or durability, the Southbend Ultimate 36″ Range delivers 198,000 BTU of cooking muscle, a space-saving stainless cabinet base, and the rugged construction chefs have trusted since 1898.

Key Features & Benefits

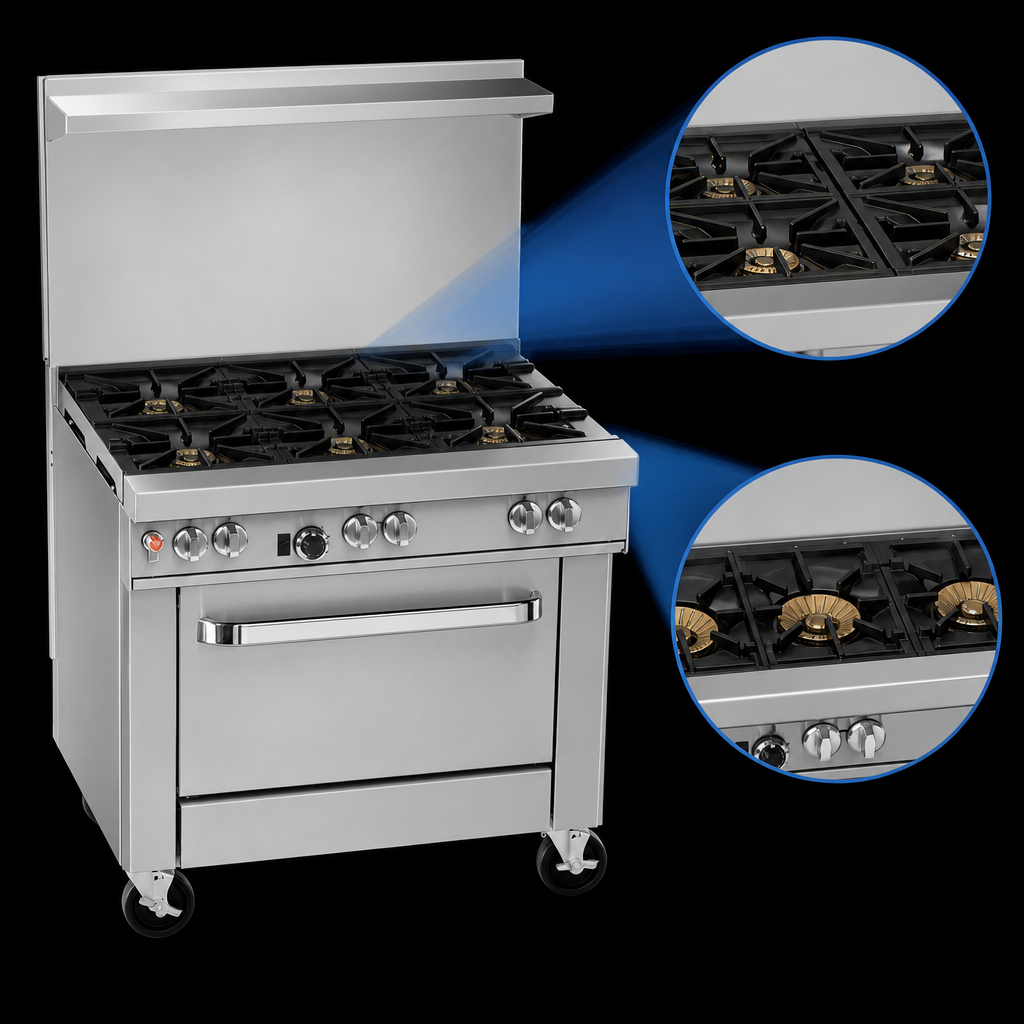

  • Split-burner top: rapid-response 33 k star/sauté burners in front, clog-free 33 k open burners in rear.
  • Six removable, cast-iron grates—rear positions hold stock pots up to 14″.
  • 4″ deep stainless front rail keeps plating tools and pans within reach.
  • 22.5″ flue riser with built-in stainless shelf for warming plates or small wares.
  • Stainless steel front, sides, shelf & 6″ adjustable legs stand up to the busiest line.
  • Front-mounted manual gas shut-off and factory-installed regulator for quick service access.
  • Standing pilots for instant ignition; no electrical hook-up required.
  • Open stainless cabinet base adds convenient dry storage and keeps floor space clear.
  • Certified NSF & CSA for commercial food-service operations.
  • Backed by a 1-year limited parts & labor warranty from Southbend.

Technical Specifications

Overall Width 36.5″ (927 mm)
Overall Depth 34″ (864 mm)
Cooking Height 37″ (940 mm) to cooktop  |  59.5″ (1 511 mm) with flue/shelf
Total BTU Input 198,000 BTU/hr (Natural or LP*)
Burner Configuration (3) 33 k BTU star/sauté front  |  (3) 33 k BTU non-clog rear
Cooking Surface 27″ deep, six cast-iron grates (removable drip tray below)
Base Type Stainless steel open cabinet (optional doors available)
Flue Riser 22.5″ high with heavy-duty stainless shelf
Gas Connection 3/4″ NPT, rear; min. inlet 7″ W.C. NAT / 11″ W.C. LP
Ignition Standing pilots (no electricity required)
Certifications CSA, NSF
Warranty 1-Year parts & labor (see Southbend warranty policy)

*LP conversion kit available—please specify at time of order.

Important Commercial Use Notes
  • Oversized cookware (12″ dia.+) should be used on rear burners to prevent excess heat on the front rail.
  • Range must be installed under a vented hood and on non-combustible or approved flooring.
  • This appliance is engineered for professional kitchens only; household use voids all warranties.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

36.5in

Depth

34.0in

Shipping Weight

660.0lbs

Vent

backriser with hi-shelf

Top

(6) open burners

Base

(1) cabinet

Exterior Finish

stainless steel front & sides

Specifications

Ultimate Restaurant Range, gas, 36", (3) star/sauté burners in front, (3) non-clog burners, standard grates, standing pilot, cabinet base, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 198,000 BTU, CSA, NSF
