Southbend (Middleby)  |  Ultimate  |  SKU: 4364C-2TR

Southbend (Middleby) 4364C-2TR Ultimate Gas Ranges

$8,578.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

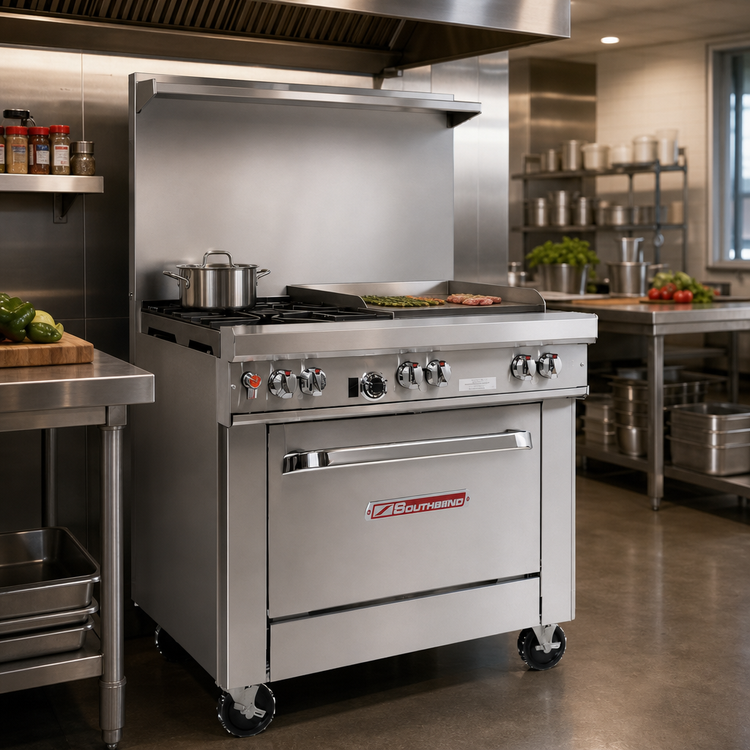

Southbend Ultimate 36" Restaurant Range — 24" Thermostatic Griddle & Cabinet Base

Natural Gas • 114,000 BTU • Model 436-36C-T24

Built for high-volume kitchens that demand precision and durability, this 36" Southbend Ultimate Range pairs two powerful open burners with a right-side 24" griddle, giving chefs the flexibility to sauté, sear, and grill in one rugged workstation.

Key Features

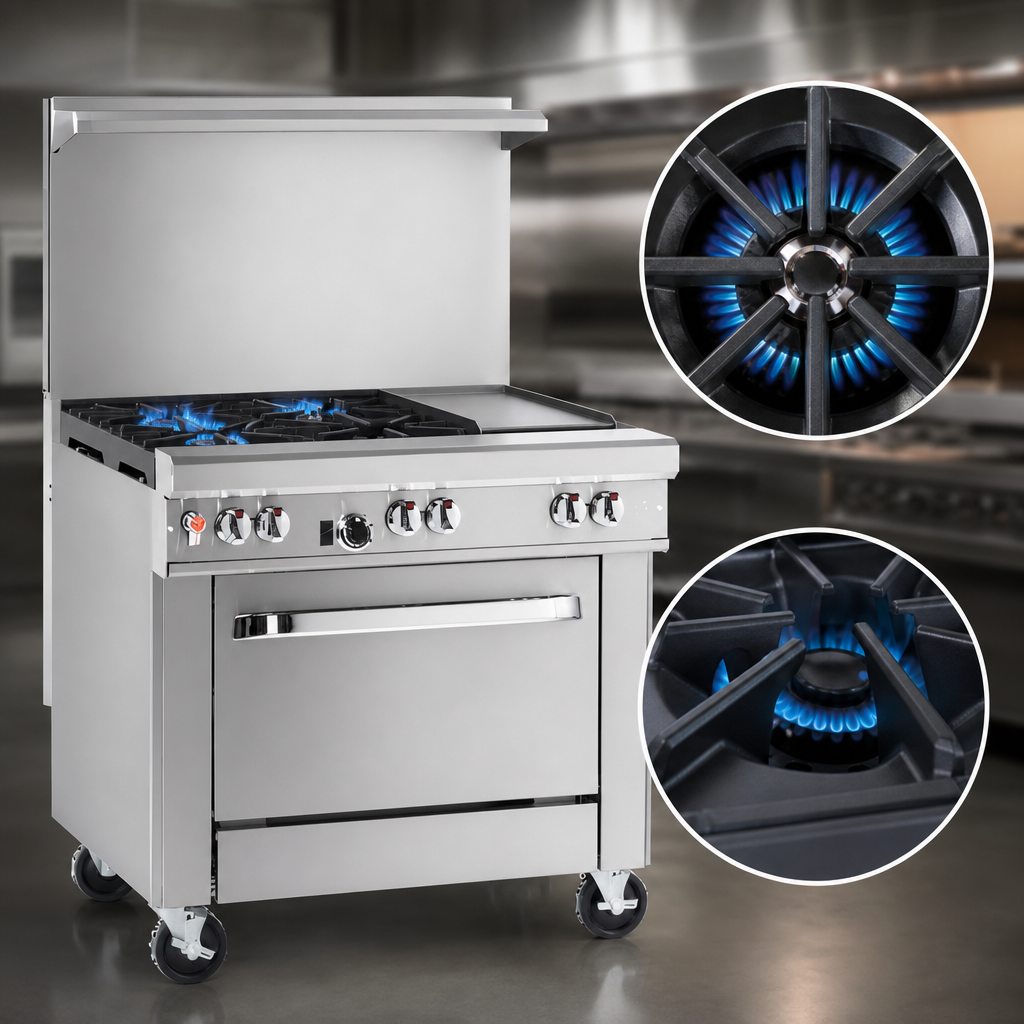

  • (1) 33,000 BTU cast-iron Star/Sauté burner (front) delivers even, high-heat coverage for rapid sauté work.
  • (1) 33,000 BTU clog-free cast-iron non-clog burner (rear) handles stockpots up to 14".
  • 24" right-side griddle, ½" cold-rolled steel plate, thermostatically controlled 175-550 °F for consistent results.
  • Front-mounted master gas shut-off and standing pilots for quick, reliable ignition.
  • 22½" flue riser with heavy-duty shelf provides extra plating and pan storage space.
  • All-stainless front, sides, 4" rail & shelf; one-piece full-width drip tray for fast clean-up.
  • Storage-ready cabinet base sits on 6" adjustable stainless legs.

Performance Specifications

Total Input 114,000 BTU/hr (Natural Gas)
Open Burners 2 total — 1 Star/Sauté (33 kBTU) + 1 Non-clog (33 kBTU)
Griddle 24" W × 27" D plate, 48 kBTU, thermostatic 175-550 °F
Gas Connection ¾" NPT (rear, factory regulator included) • Min. 7" W.C. NG / 11" W.C. LP
Cooking Surface Height 37"
Overall Dimensions 36.5" W × 34" D × 59.5" H (to top of flue)
Clearances 0" sides & rear to non-combustible • 10" to combustible
Shipping Weight ≈ 660 lb
Certifications cCSAus • CSA Flame • CSA Star • NSF

Built to Outlast the Rush

  • Lifetime clog-free cast-iron burner design minimizes downtime.
  • Battery-spark ignition ready for add-on bases and accessories.
  • Coved-corner flue and drip tray simplify nightly cleaning.
  • Front-serviceable components speed routine maintenance.
  • Backed by a 1-year parts & labor warranty from Southbend.

Factory Options

  • 5" or 10" flue riser (without shelf)
  • Swivel casters with front locks
  • No-charge cabinet doors
  • Rear step-up or wavy grates
  • ¾" quick-disconnect hose kits (3-5 ft)
Important: This appliance is intended for commercial use only. For non-quarry tile floors or cookware 12" + in diameter, follow Southbend installation and use guidelines—damage from improper setup or oversized pans is not covered by warranty.

Warranty

1-year limited parts & labor. See full terms at southbendnc.com/service-and-parts.

Need Financing?

Ask about Middleby | Centra Funding to turn this purchase into manageable monthly payments.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

36.5in

Depth

34.0in

Shipping Weight

660.0lbs

Vent

backriser with hi-shelf

Exterior Finish

stainless steel front & sides

Base

(1) cabinet

Top

(2) open burners, (1) 24" griddle with thermostats

Plate Thickness

.500" = 1/2"

Specifications

Ultimate Restaurant Range, gas, 36", (1) star/sauté burner in front, (1) non-clog burner, standard grates, (1) 24" griddle right, thermostatic controls, standing pilot, cabinet base, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 114,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
