Southbend (Middleby) 4364C-2GR Ultimate Gas Ranges
Description
Ultimate 36" Gas Restaurant Range – Right-Side 24" Griddle, 2-Burner Top & Cabinet Base
Southbend | Model 436C-2B-24GBuilt for kitchens that never compromise, the Southbend Ultimate Series delivers the durability, power and flexibility chefs demand. This 36" model pairs a high-output 24" griddle with two heavy-duty open burners and a spacious cabinet base—giving you sauté, sear, and grill capabilities in one rock-solid unit.
Why You’ll Love It
- 114,000 BTU total input for fast recovery and consistent heat.
- (1) 33,000 BTU Star/Sauté burner in front for even flame distribution.
- (1) 33,000 BTU lifetime non-clog cast-iron burner in rear.

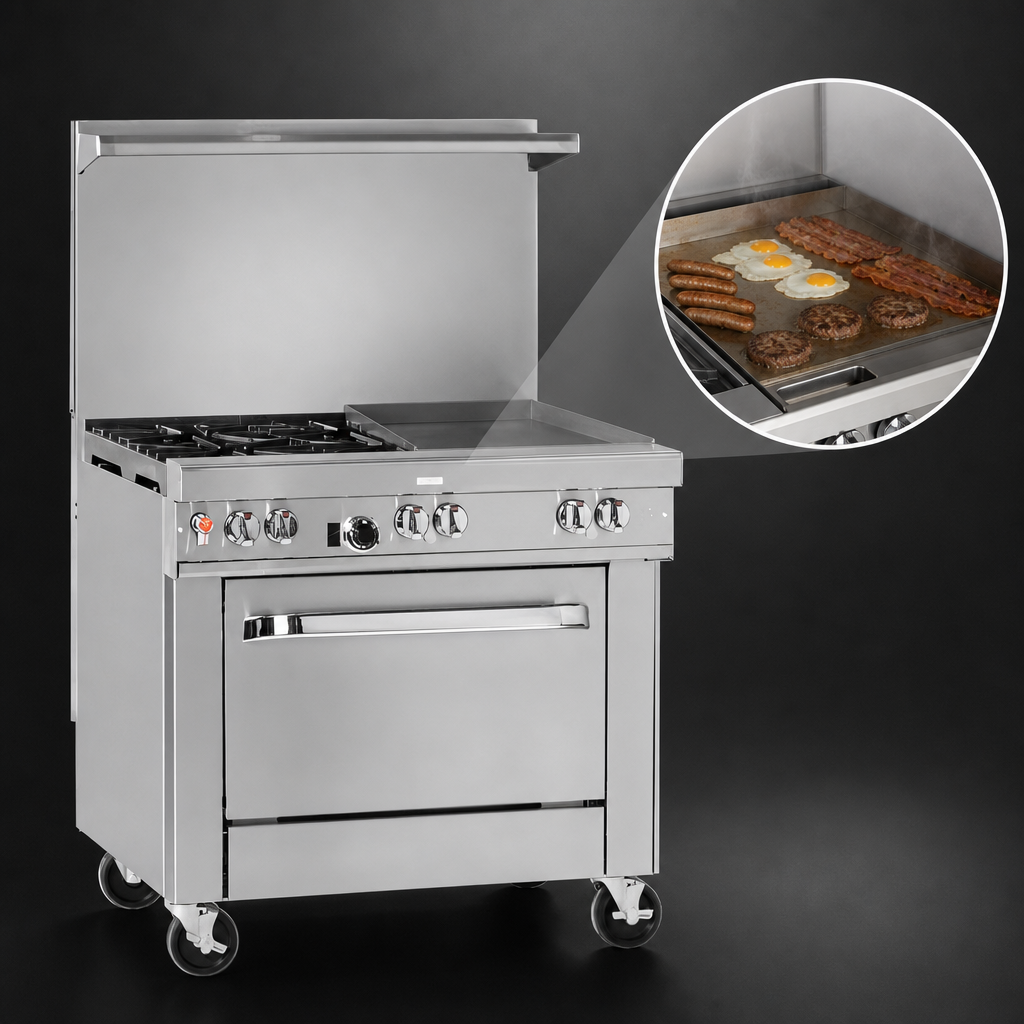

- 24" manual ½" thick cold-rolled steel griddle (48,000 BTU) on the right side.
- One-piece, 27" deep cooking surface with removable drip tray for quick clean-ups.
- 22½" flue riser with heavy-duty plate shelf—ideal for holding pans & seasonings.
- All-stainless front, sides, shelf & 6" adjustable legs withstand daily punishment.
- Front-mounted gas shut-off and factory-installed regulator simplify installation.
- Standing pilots for open burners & griddle keep start-ups fast and reliable.
- Open cabinet base provides convenient, ventilated storage; doors supplied at no charge on request.
- cCSAus, CSA Flame, CSA Star & NSF listed for gas safety and sanitation.
At-a-Glance Specs
| Exterior width | 36.5" (927 mm) |
|---|---|
| Exterior depth | 34" (864 mm) |
| Work-top height | 37" (940 mm) |
| Overall height w/ riser | 59.5" (1,511 mm) |
| Total BTU input | 114,000 BTU/hr (Natural Gas or LP) |
| Gas connection | ¾" NPT (rear, right side) Min. inlet pressure: 7" W.C. NAT / 11" W.C. LP |
| Cooking surface | 27" deep cast-iron grate area + 24" x 24" griddle |
| Griddle plate | ½" thick cold-rolled steel, manual controls |
| Base type | Open stainless cabinet (door kit included) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (see details below) |
Popular Add-Ons (sold separately)
- Swivel casters with front locks
- 5" or 10" flue risers (without shelf)
- Quick-disconnect gas hose kits (3', 4' or 5')
- Shelf-mounted salamander or cheesemelter
One-year limited parts & labor warranty when installed by a Southbend-authorized service agency. Warranty applies to commercial installations only and is subject to standard terms, including proper utility connections and routine maintenance.
