Southbend (Middleby)  |  Ultimate  |  SKU: 4364C-1G

Southbend (Middleby) 4364C-1G Ultimate Gas Ranges

$6,788.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

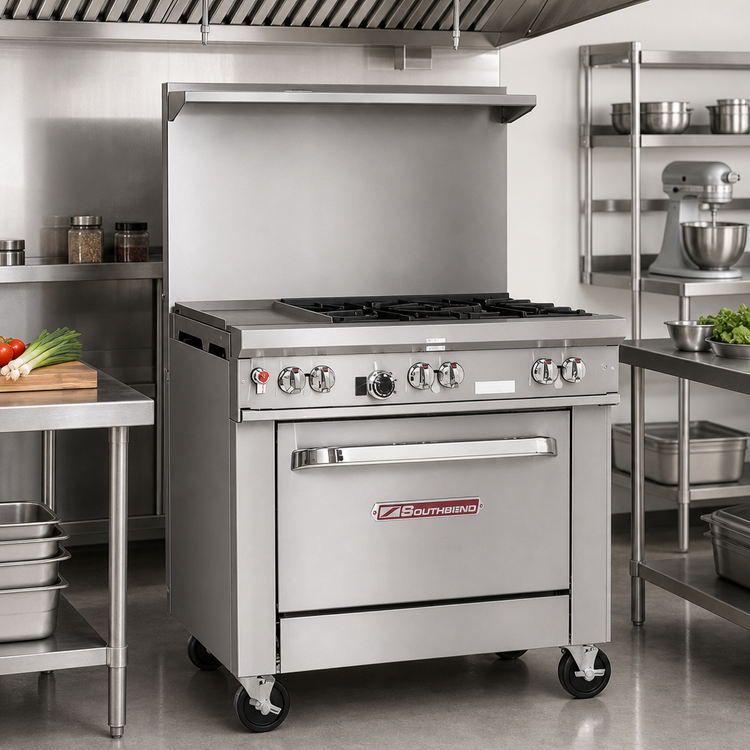

Southbend Ultimate 36" Gas Restaurant Range

2 Star/Sauté + 2 Non-Clog Burners • 12" Left-Side Griddle • Cabinet Base

Built for chefs who demand power, versatility and rugged durability, the Southbend Ultimate 36" Restaurant Range combines high-performance open burners with a precision 12" griddle—all in a space-saving footprint that keeps your kitchen running at full speed.

Why You’ll Love It

  • 150,000 BTU total output handles every ticket rush with ease.

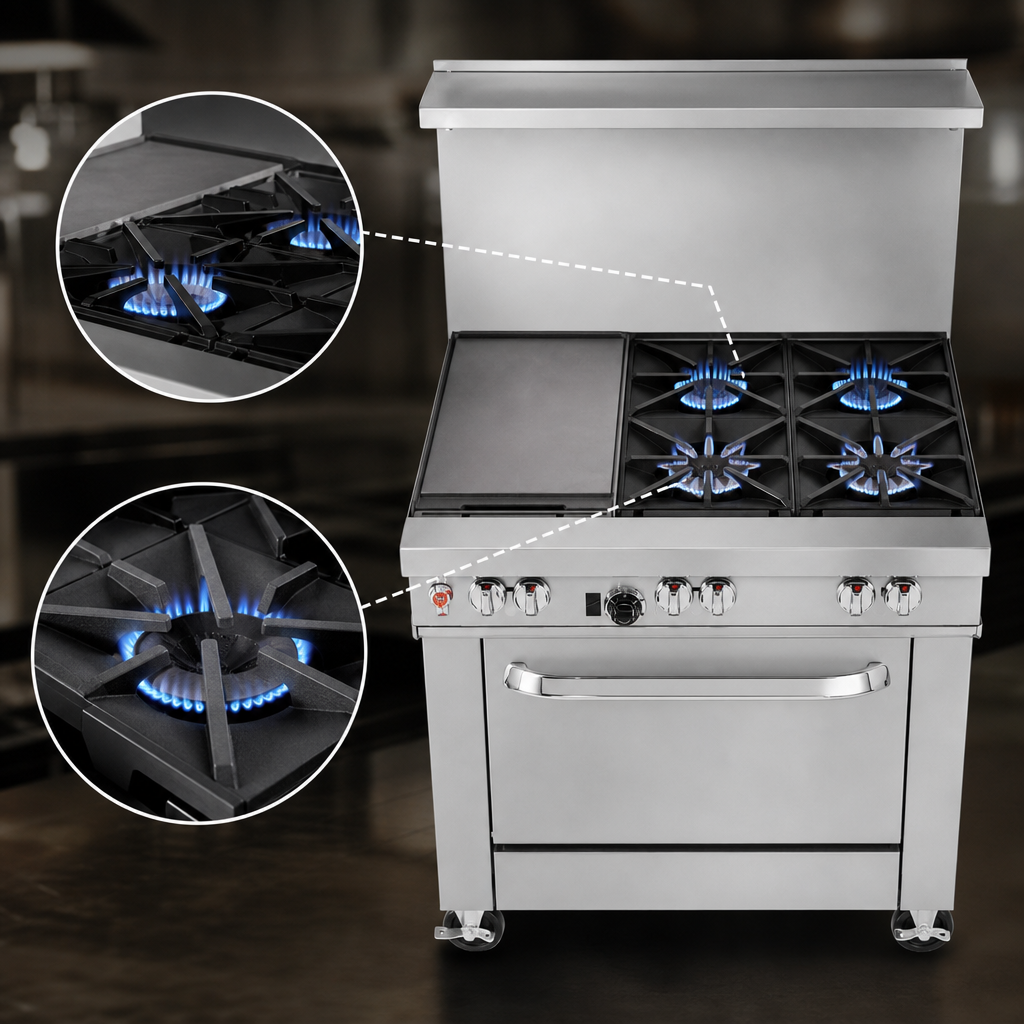

  • Split burner layout: (2) 33 k BTU star/ sauté burners up front for rapid searing, plus (2) 33 k BTU non-clog burners in back for stock pots and sauces.

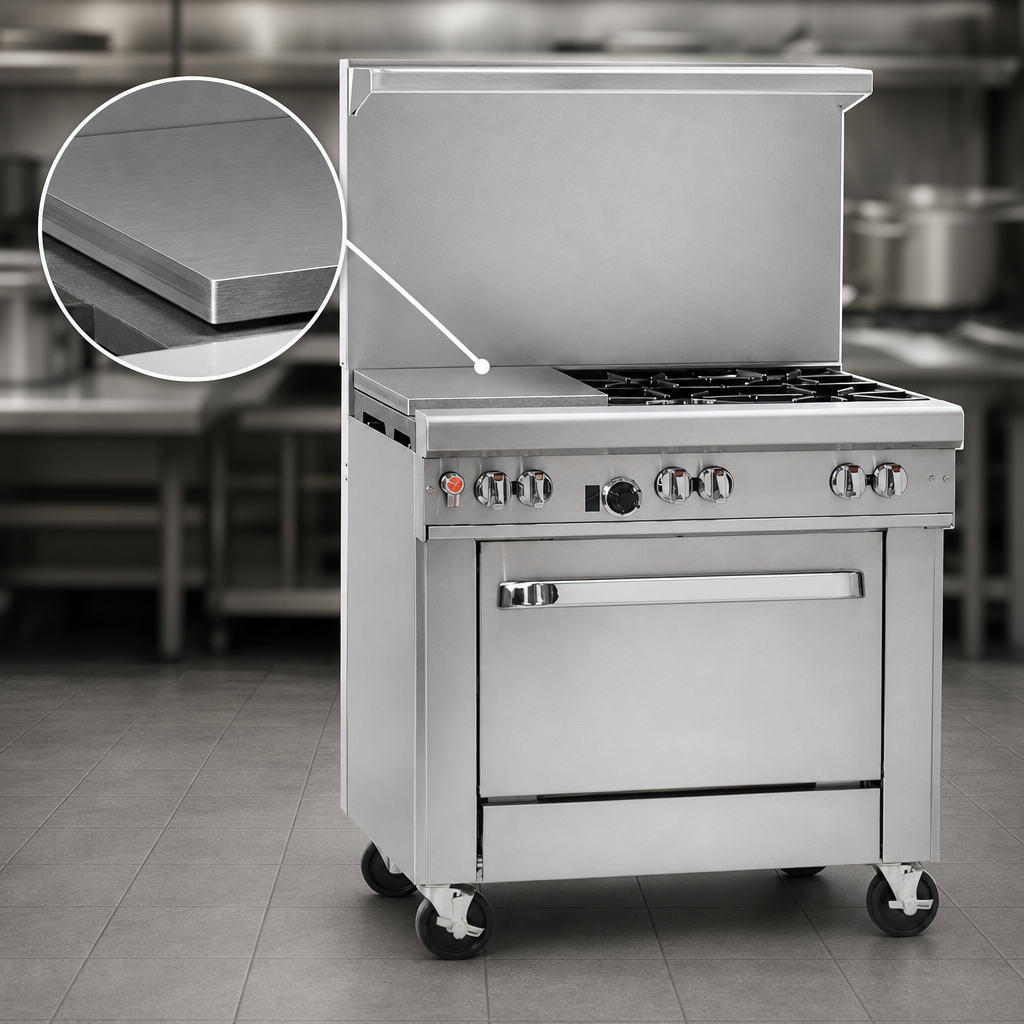

  • 12" manual griddle (18 k BTU) with ½" cold-rolled steel plate—perfect for eggs, smash burgers or tortillas.
  • One-piece cast-iron grates lift off for fast cleaning; rear grates hold stock pots up to 14".
  • 22½" flue riser with heavy-duty stainless shelf adds convenient plating or small-ware storage.
  • Stainless steel front, sides, riser shelf & 6" adjustable legs stand up to the toughest commercial kitchens.
  • Front-mounted gas shut-off valve and factory-installed ¾" regulator simplify installation and service.
  • Standing pilots on open tops for instant ignition—no electrical hook-up required.
  • cCSAus, CSA Flame, CSA Star & NSF certified for worry-free code compliance.
  • Backed by Southbend’s 1-year parts & labor warranty.

Specifications

Manufacturer Southbend (a Middleby brand)
Series / Model Ultimate 36" Restaurant Range – custom 4-Burner + 12" Griddle
Overall Dimensions 36.5" W × 34" D × 59.5" H (with riser)
Cooking Height 37"
Open Burners (2) Star/Sauté 33 k BTU (front) + (2) Non-clog 33 k BTU (rear)
Griddle 12" left-side, manual control, 18 k BTU, ½" steel plate
Total Input 150,000 BTU/hr (natural gas)
Gas Connection ¾" FNPT, 7" W.C. minimum inlet pressure (Natural)
Base Type Stainless steel cabinet (doors optional at no charge)
Included 22½" stainless flue riser & shelf, 6" stainless adjustable legs, factory regulator
Certifications cCSAus, CSA Flame, CSA Star, NSF
Warranty 1-year parts & labor – full commercial coverage

Popular Add-Ons (Sold Separately)

  • Swivel casters (front locking)
  • Cabinet doors for base
  • Extra grate sections or oven racks
  • Quick-disconnect gas hose kits (3', 4', or 5')
Installation Reminder: This heavy-duty range is intended for commercial use under a properly vented hood. Minimum rear & side clearances: 0" to non-combustible construction, 10" to combustible. Use on 6" legs or casters when installed on combustible floors.

Need financing? Middleby Financing offers fast credit decisions and affordable fixed payments—ask your rep for details.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

36.5in

Depth

34.0in

Shipping Weight

660.0lbs

Vent

backriser with hi-shelf

Plate Thickness

.500" = 1/2"

Top

(4) open burners, (1) 12" griddle

Exterior Finish

stainless steel front & sides

Base

(1) cabinet

Specifications

Ultimate Restaurant Range, gas, 36", (2) star/sauté burners in front, (2) non-clog burners, standard grates, (1) 12" griddle left, standing pilot, cabinet base, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 150,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
