Southbend (Middleby) 4364A-2TR Ultimate Gas Ranges
Description

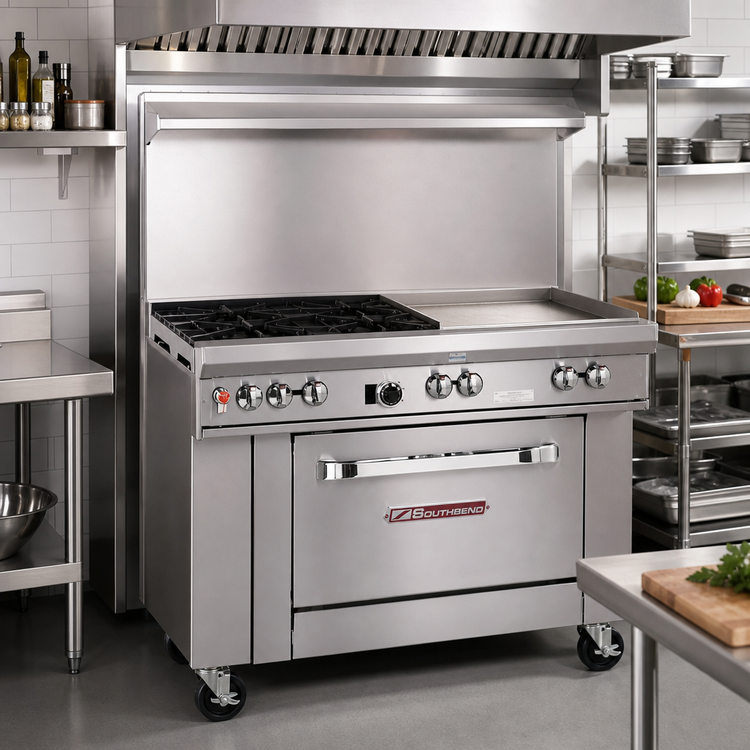

Southbend “Ultimate” 36" Gas Restaurant Range – 24" Thermostatic Griddle & Convection Oven
146,000 BTU | Star/Sauté & Non-Clog Burners | cCSAus, CSA Flame, CSA Star, NSFEngineered for high-volume kitchens that refuse to compromise on versatility or durability, the Southbend Ultimate Range combines powerful open-top cooking, a precision-controlled griddle, and a full-size convection oven in one 36" footprint. Rugged stainless-steel construction, industry-leading burner technology, and chef-friendly ergonomics make this the workhorse you’ll rely on day after day.
Highlights at a Glance
- 36" wide commercial range with 37" high cooking surface

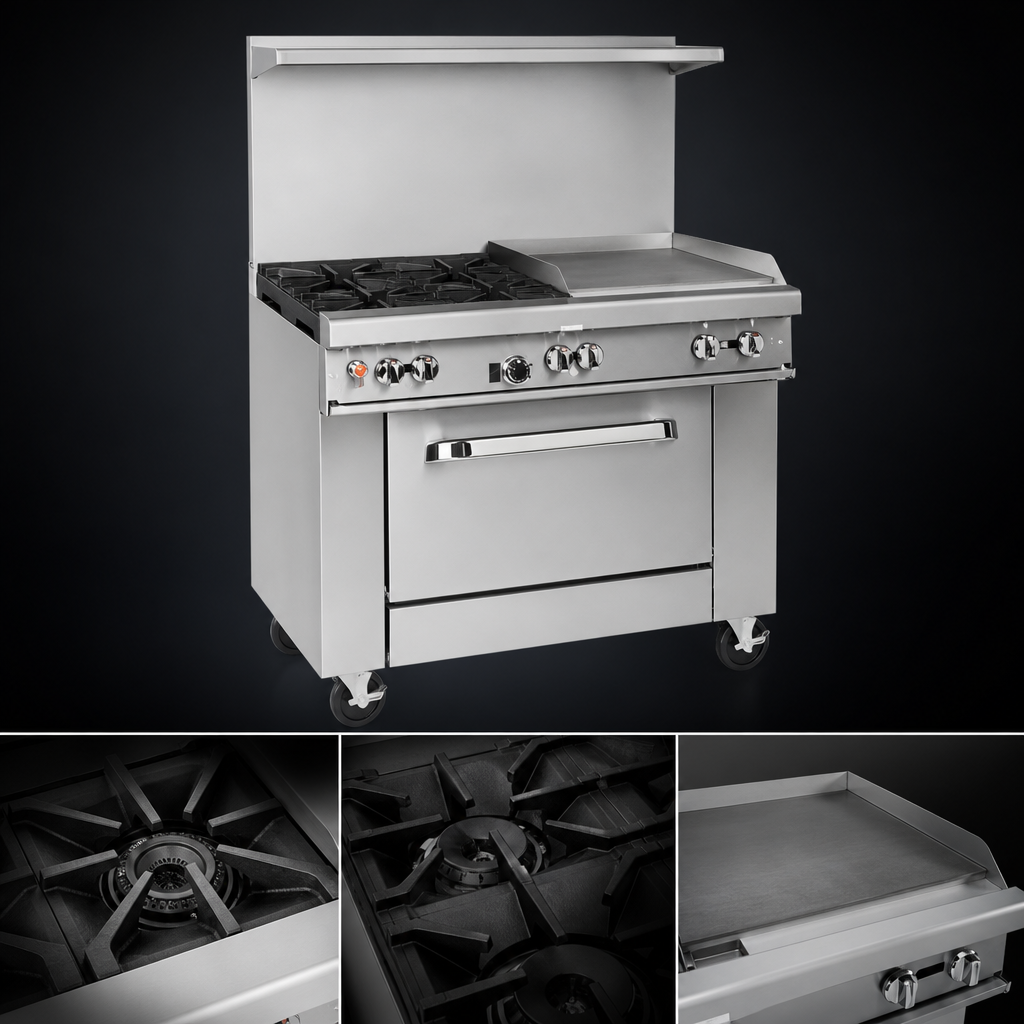

- Cooktop configuration:
- (1) 33,000 BTU cast-iron Star/Sauté burner – front
- (1) 33,000 BTU non-clog burner – rear
- (1) 24" × 27" thermostatic griddle (½" cold-rolled plate) – right side
- Standard cast-iron grates support stock pots up to 14"

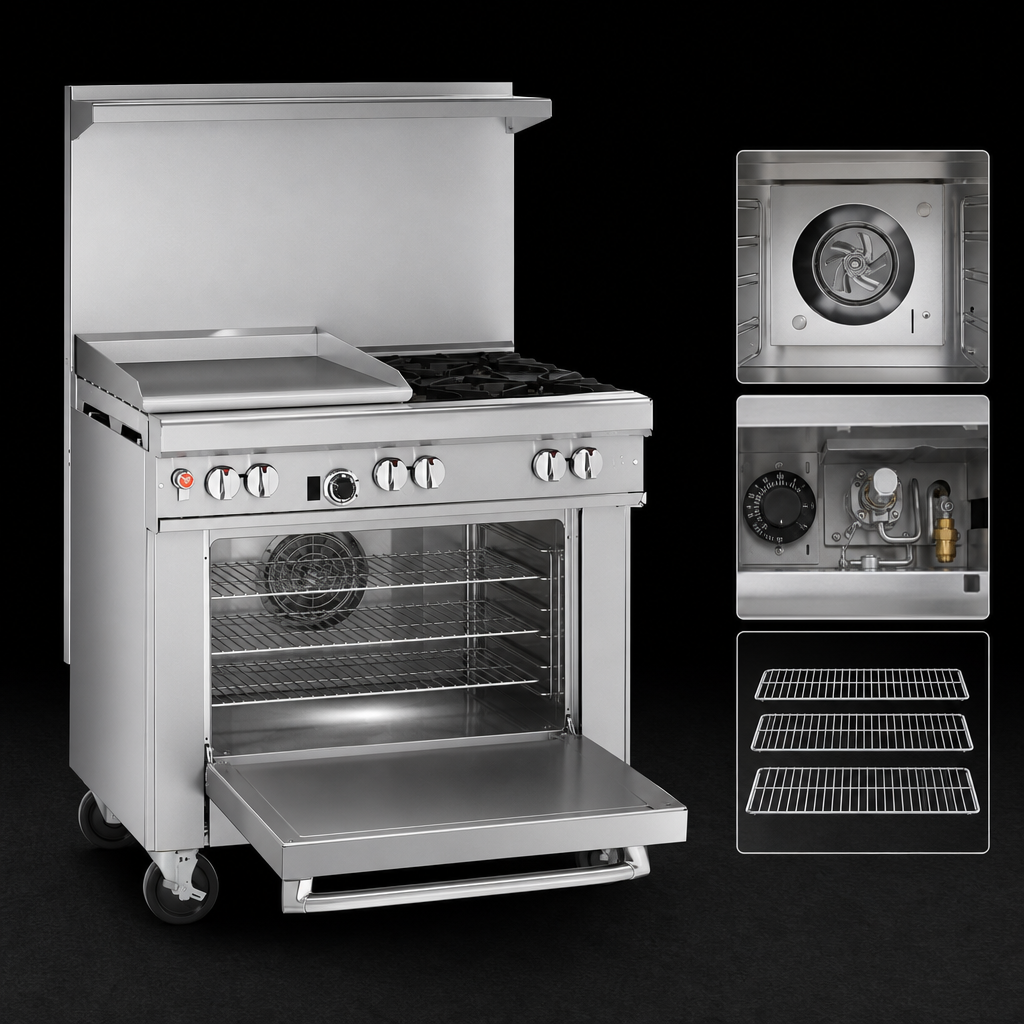

- Battery-spark 32,000 BTU convection oven (175 °F – 550 °F) with three racks & five positions
- 22½" flue riser with reinforced utensil shelf
- Front-mounted manual gas shut-off & standing pilots for open burners
- Factory-installed regulator and 6" adjustable stainless legs
- All stainless-steel front, sides, rail & shelf for easy cleaning and long life
- 1-year parts & labor warranty backed by Southbend’s nationwide service network
Built-In Performance Advantages
- Total cooktop input: 146,000 BTU/hr
- Even flame distribution from patented star burner design
- Thermostatic griddle delivers repeatable sear zones from breakfast to late-night service
- High-efficiency ½ HP convection fan shortens cook times and improves browning
- Porcelain-enameled, coved-corner oven cavity for superior airflow & easy cleanup
Technical Specifications
| Exterior width | 36.5" (927 mm) |
|---|---|
| Exterior depth (incl. handle) | 42.13" (1,070 mm) |
| Cooking surface depth | 27" |
| Cooking height | 37" |
| Open burners | (1) Star/Sauté • (1) Non-clog |
| Griddle plate | 24" W × 27" D • ½" thick • Thermostatic |
| Oven interior (W × D × H) | 26" × 24" × 14" • porcelain-enameled |
| Rack positions | 5 (3 racks included) |
| Gas connection | ¾" NPT female (opposite the griddle) |
| Gas type / input | Natural gas • 146,000 BTU/hr (field convertible to LP) |
| Electrical (fan) | 115 V / 60 Hz / 1-ph • 5.9 A • 6' cord & plug |
| Shipping weight | ≈ 660 lb (300 kg) |
| Certifications | cCSAus • CSA Flame • CSA Star • NSF |
| Warranty | 1 year parts & labor |
