Southbend (Middleby) 4364A-2GR Ultimate Gas Ranges
Description

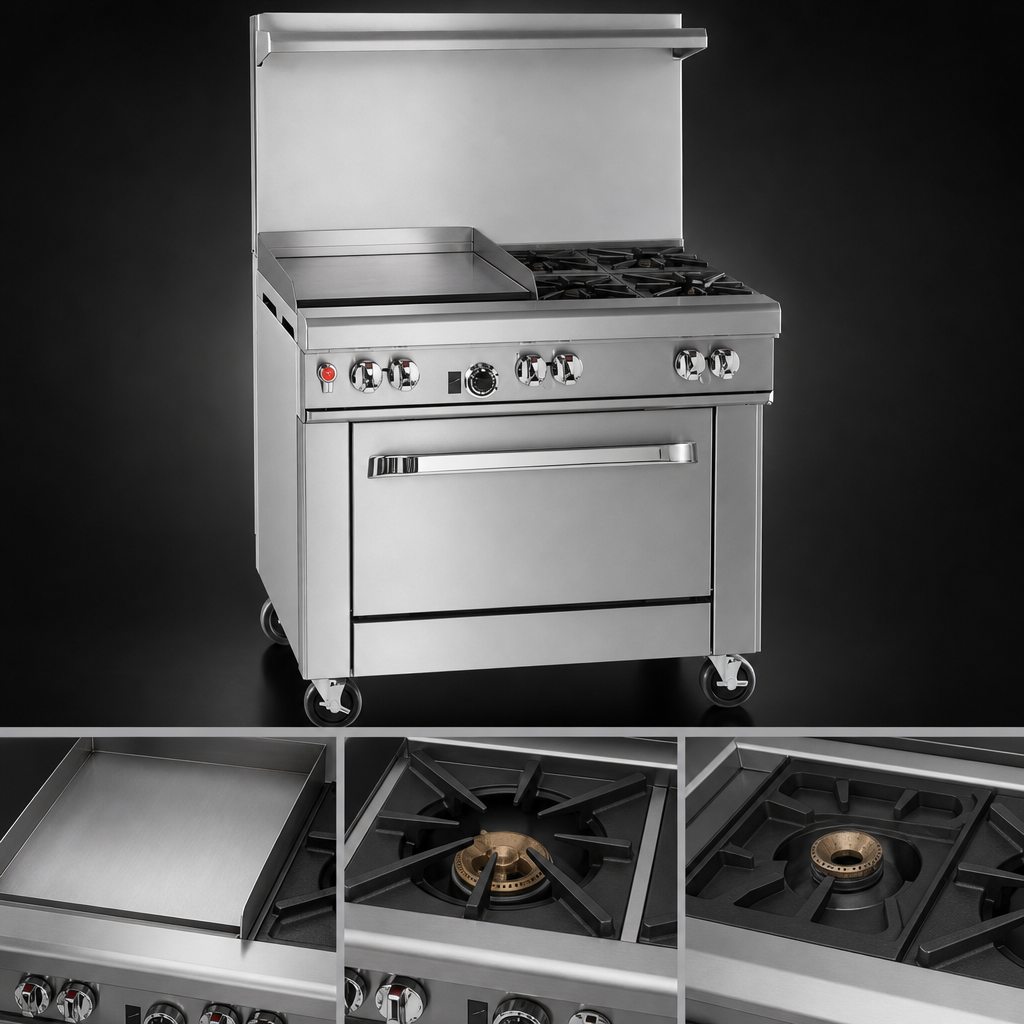

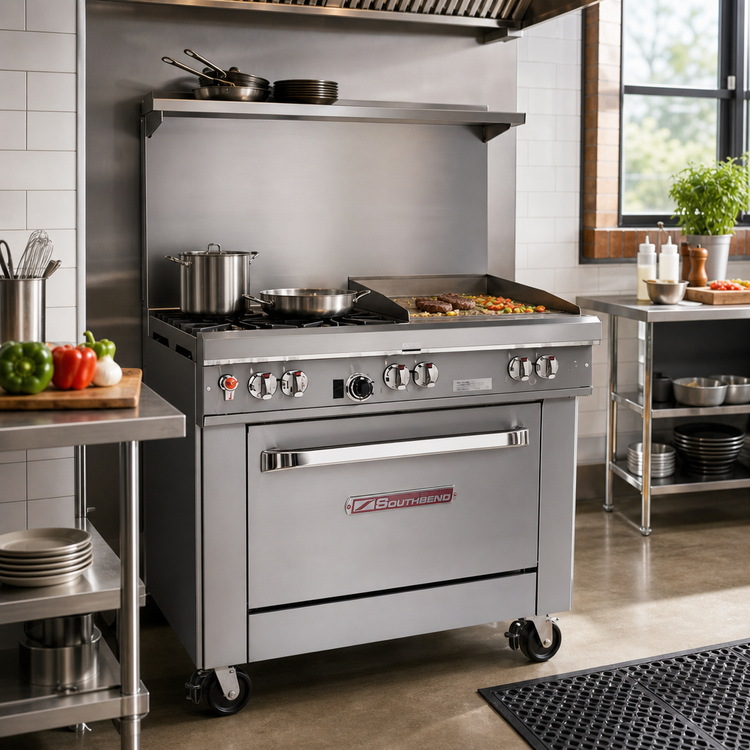

Ultimate 36" Gas Restaurant Range with 24" Right-Side Griddle & Convection Oven
Southbend – Ultimate Series • 146,000 BTU • cCSAus | CSA Flame | NSFBuilt for kitchens that never slow down, the Southbend Ultimate 36" range delivers the durability chefs trust and the versatility today’s menus demand. A powerful open-burner section, high-output griddle and full-size convection oven come together in a single, stainless-steel workhorse that’s ready for anything from all-day breakfast to seared steaks and baked desserts.
Why You’ll Love It

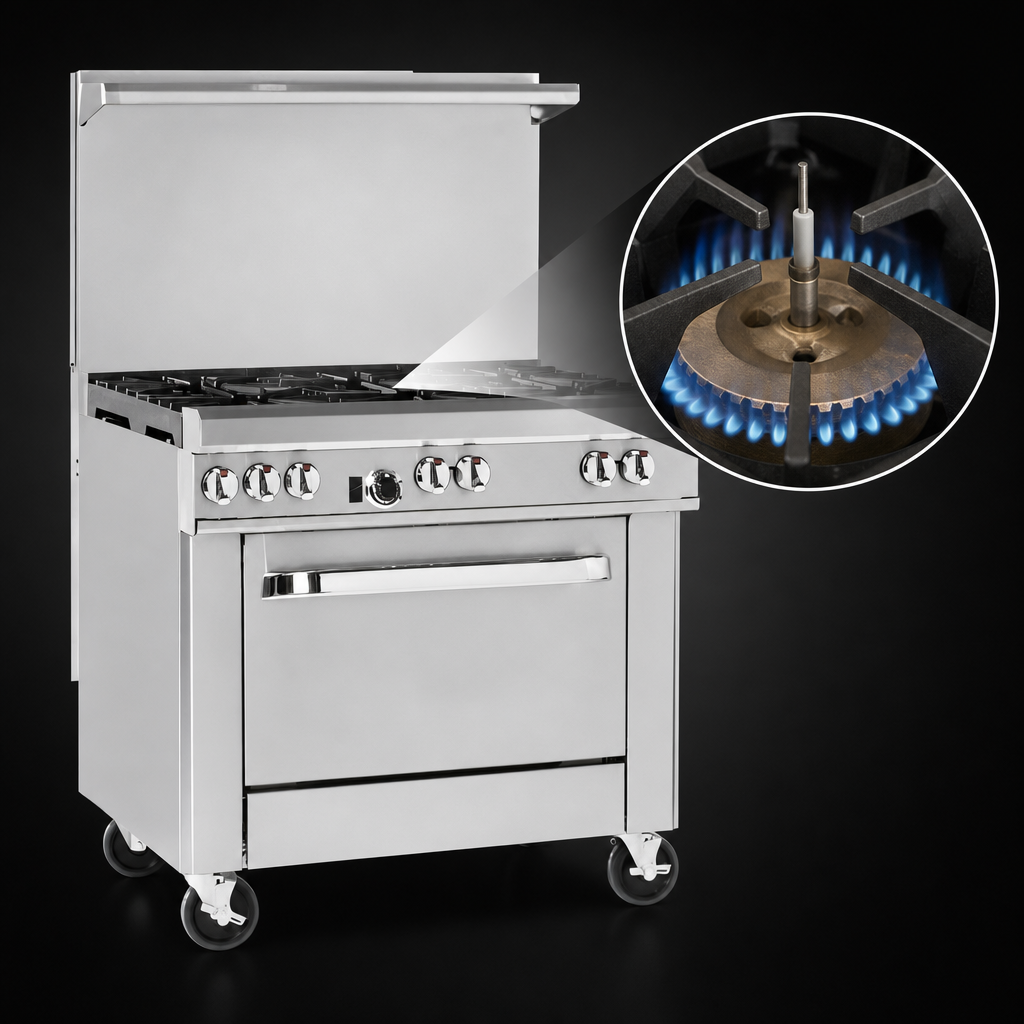

- Two heavy-duty open burners (left 12") – front 33 K BTU star/sauté burner for rapid heat & even pan coverage, rear 33 K BTU non-clog burner for stock pots up to 14".
- 24" right-side griddle – ½" thick cold-rolled steel plate, quick recovery for breakfast favorites, burgers and more.
- 32 K BTU convection oven – battery-spark ignition, 175-550 °F thermostat and fan-forced airflow eliminate hot/cold spots; fits full-size sheet pans both directions and ships with 3 adjustable racks.
- All-stainless exterior – front, sides, 4" rail, high-shelf and 6" adjustable legs wipe clean and resist corrosion.
- 22½" flue riser with integrated shelf keeps plating warmers and smallwares within arm’s reach.
- Front-mounted master gas shut-off & factory regulator streamline installation and daily operation.
- Removable one-piece drip tray makes end-of-shift clean-up fast and mess-free.
- 1-year parts & labor warranty backed by Southbend’s nationwide service network.
Technical Specifications
| Overall width | 36.5" (927 mm) |
|---|---|
| Overall depth | 42.13" (1 070 mm) — including convection base |
| Cook-top height | 37" |
| Overall height (with riser) | 59.5" |
| Open burners | 1 × 33 K BTU star/sauté (front) & 1 × 33 K BTU non-clog (rear) |
| Griddle plate | 24" W × 27" D × ½" thick cold-rolled steel, 48 K BTU input |
| Oven capacity | 26" W × 24" D × 14" H (full-size pans fit both ways) |
| Total gas input | 146,000 BTU/hr – Natural gas (field convertible to LP) |
| Gas connection | ¾" NPT female, min. 7" W.C. (NAT) |
| Electrical | 115 V / 60 Hz / 1 Φ, 5.9 A, 6' cord & 3-prong plug (convection fan) |
| Shipping weight | Approx. 660 lb (300 kg) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
Included with Your Range
- Three nickel-plated oven racks with five-position side rails
- 22½" stainless shelf/riser
- Factory-installed pressure regulator
- 6" adjustable stainless-steel legs
- User, installation & warranty documentation
Popular Upgrades (sold separately)
- Swivel locking casters
- Extra oven racks
- 10" or 5" flue riser options
- Quick-disconnect gas hose kits
Peace-of-Mind Warranty
Southbend backs this Ultimate Series range with a one-year limited parts & labor warranty. Full details and service terms are available at Southbend Service & Parts.
