Southbend (Middleby) 4364A-2CR Ultimate Gas Ranges
Description

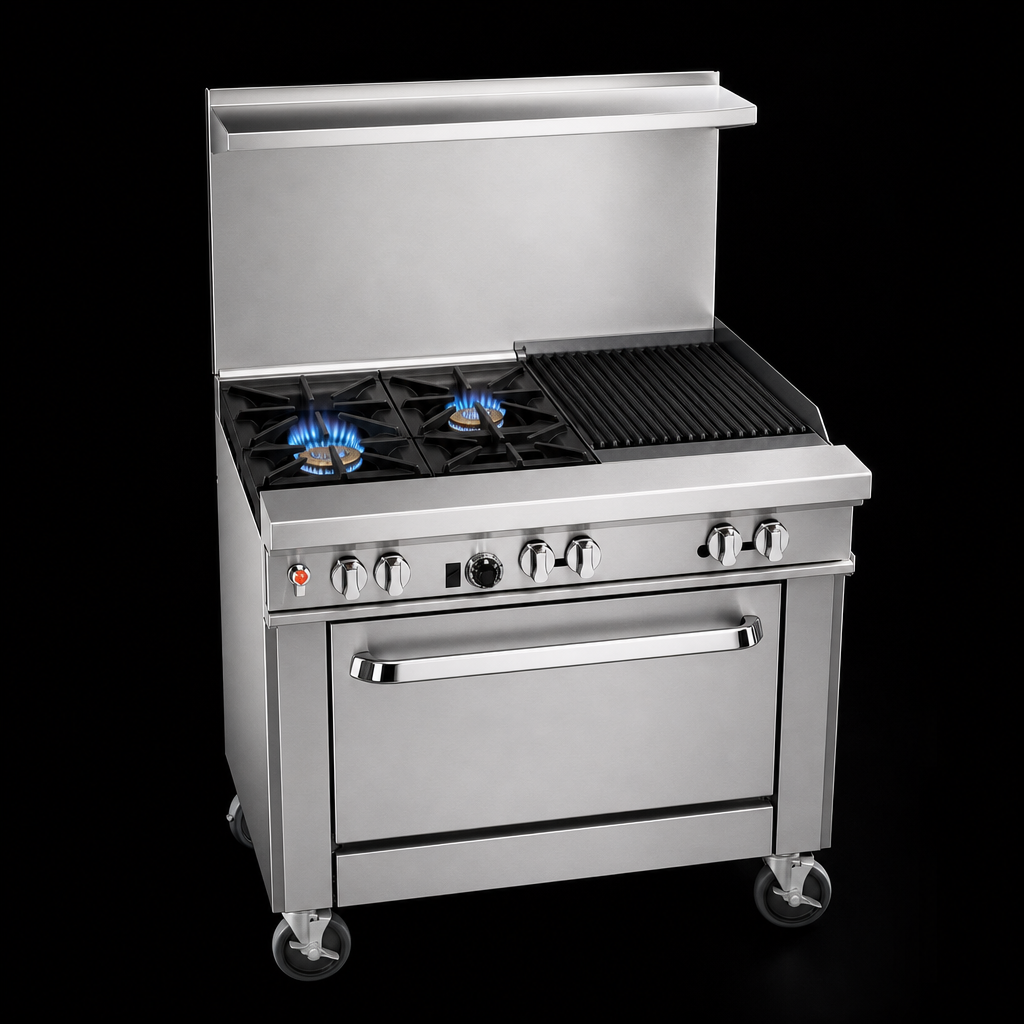

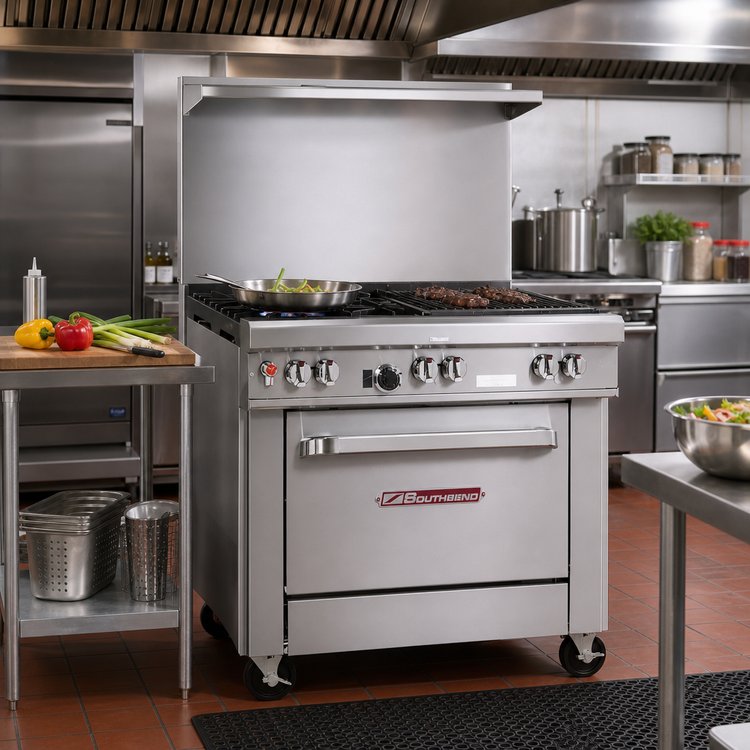

Southbend Ultimate 36" Restaurant Range – Star/Sauté & Non-Clog Burners, 24" Right-Side Charbroiler & Convection Oven
Model 436 Series | 162,000 BTU | Natural GasPack the firepower of a full cookline into just 36 inches. Southbend’s Ultimate Range combines two high-performance open burners, a steak-house ready charbroiler and a full-size convection oven—all wrapped in a stainless-steel cabinet built for demanding commercial kitchens.
Why You’ll Love It

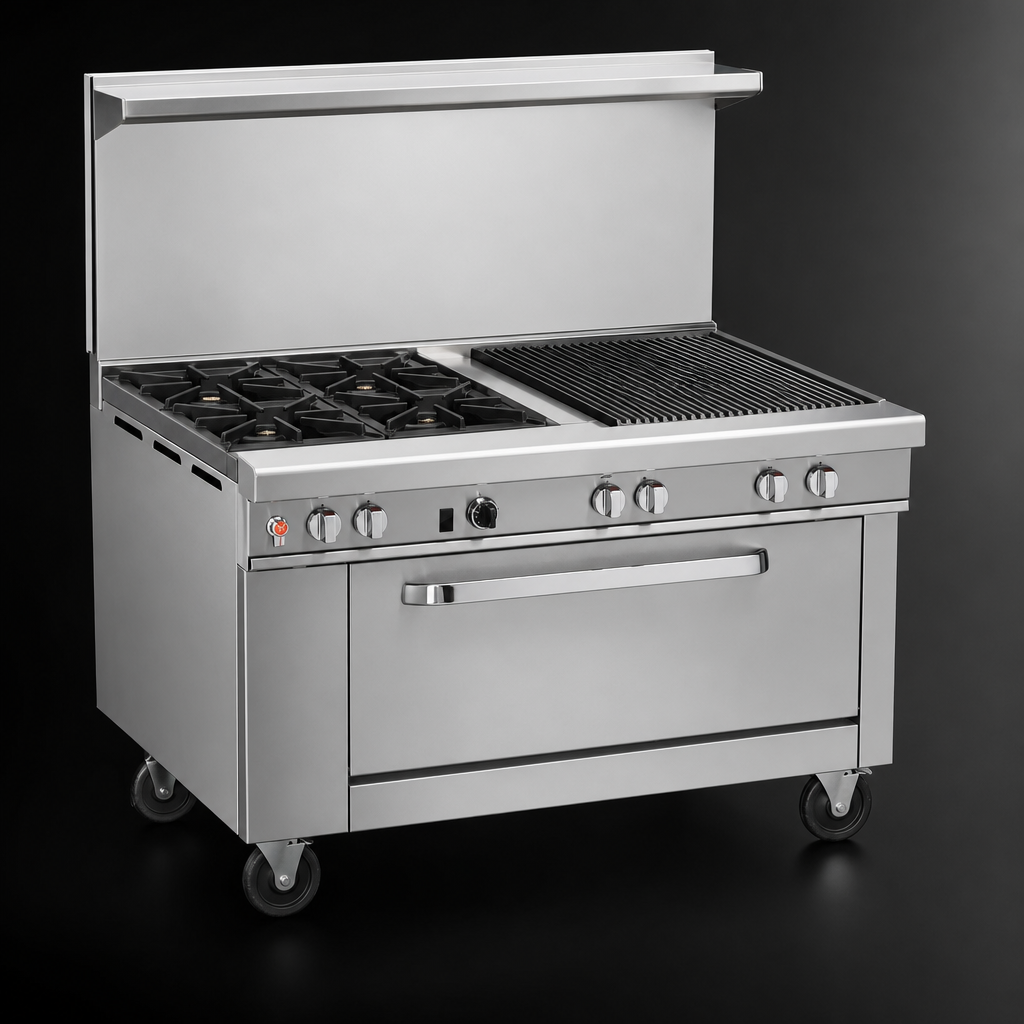

- 24" Cast-Iron Charbroiler (Right) — 64,000 BTU for perfect grill marks and smoky flavor.
- Versatile Open Top — (1) 33 K BTU Star/Sauté burner for rapid, even pan heat and (1) 33 K BTU lifetime non-clog burner for stocks, sauces and large pots up to 14".
- 32 K BTU Convection Oven — Battery-spark ignition, 175–550 °F thermostat and three chrome racks (5 positions) handle full-size sheet pans front-to-back or side-to-side.
- Built-In Storage Shelf — 22.5" flue riser doubles as a heavy-duty rail for spices, pans or plating trays.
- Operator Friendly — Front gas shut-off valve, standing pilots on top components and a factory-installed pressure regulator.
- All Stainless Exterior — Front, sides, landing rail and shelf resist corrosion and wipe clean fast.
- 6" Adjustable Stainless Legs — Level the unit quickly or add optional casters for easy mobility.
- CSA-Gas & NSF listed for safety and sanitation.
- Backed by Southbend’s 1-year parts & labor warranty and nationwide authorized service network.
Technical Specifications
| Overall width | 36.5" (927 mm) |
|---|---|
| Overall depth (w/ handle) | 42.1" (1,070 mm) |
| Cooking surface depth | 27" |
| Work height | 37" |
| Total input | 162,000 BTU/hr |
| Open burners | (1) Star/Sauté 33 K BTU | (1) Non-Clog 33 K BTU |
| Charbroiler | 24" cast iron, 64 K BTU |
| Oven type | Convection, 32 K BTU, battery spark |
| Oven interior (W × D × H) | 26" × 24" × 14" |
| Temperature range | 175–550 °F |
| Gas connection | 3/4" NPT (right rear) |
| Electrical (oven fan) | 115 V / 60 Hz / 1-ph, 5.9 A, 6’ cord & plug |
| Shipping weight | ≈ 660 lb (300 kg) |
Looking for griddle, hot-top or additional burner configurations? The Ultimate Series is fully customizable—contact us for a quote.
- Keep cookware larger than 12" on the rear burner to prevent excess heat on the front rail.
- Never cover the charbroiler grates with sheet pans while burners are lit—heat reflection can damage components.
- Install under a properly vented hood on a non-combustible floor or use the supplied 6" legs.
