Southbend (Middleby)  |  Ultimate  |  SKU: 4364A-1G

Southbend (Middleby) 4364A-1G Ultimate Gas Ranges

$10,670.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

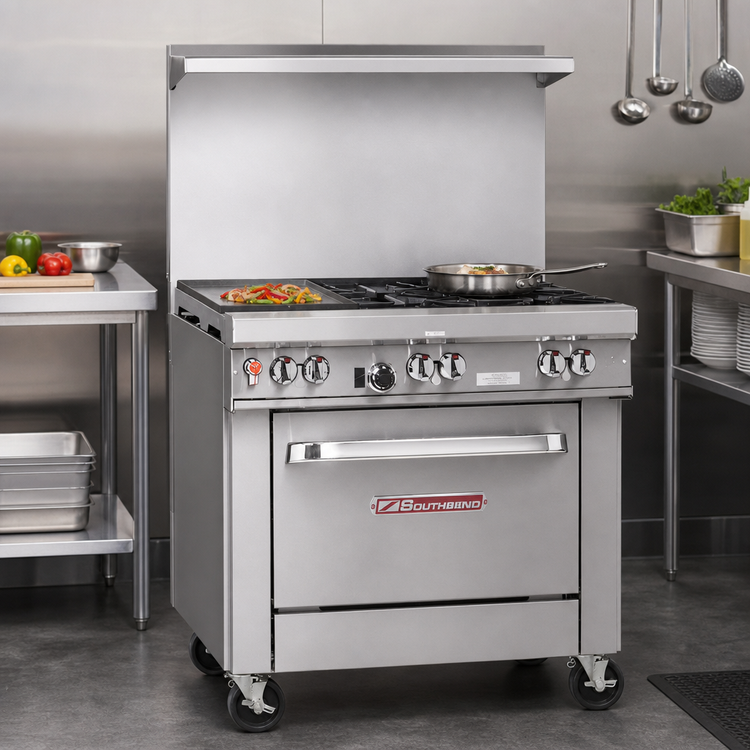

Southbend Ultimate 36" Gas Restaurant Range – 4 Burners, 12" Griddle & Convection Oven (182,000 BTU)

Model 436A-Split Top | Natural or LP Gas

Built for chefs who refuse to compromise, the Southbend Ultimate 36" range marries high-output open burners, a precision 12" griddle and a full-size convection oven into one rugged, stainless-steel workhorse. From rapid sautéing to all-day roasting, this range does it all—while reclaiming valuable line space.

Key Features
  • (2) 33,000 BTU cast-iron star/sauté burners in the front row for instant, even heat.
  • (2) 33,000 BTU lifetime non-clog burners in the rear—perfect for stock pots up to 14".

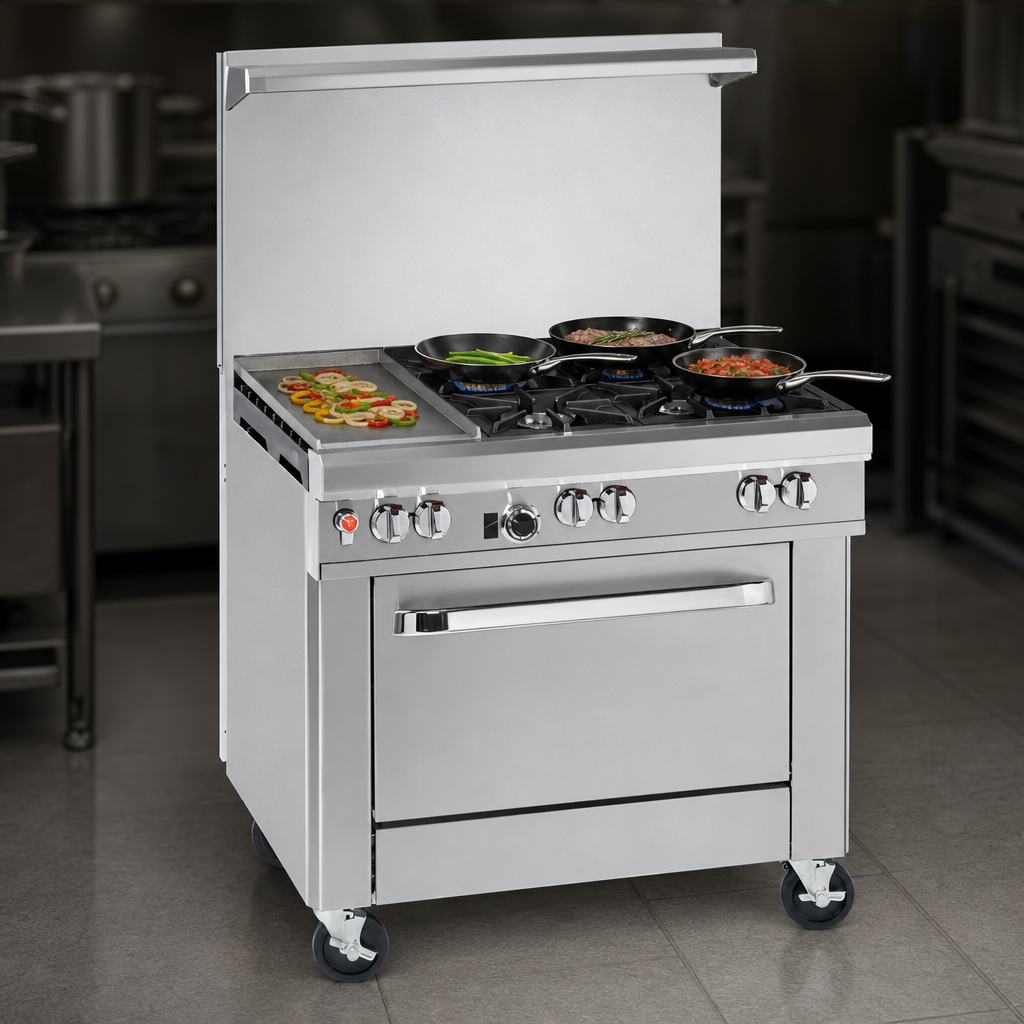

  • Left-side 12" griddle with ½" cold-rolled steel plate, 18,000 BTU for breakfast, searing and finishing.

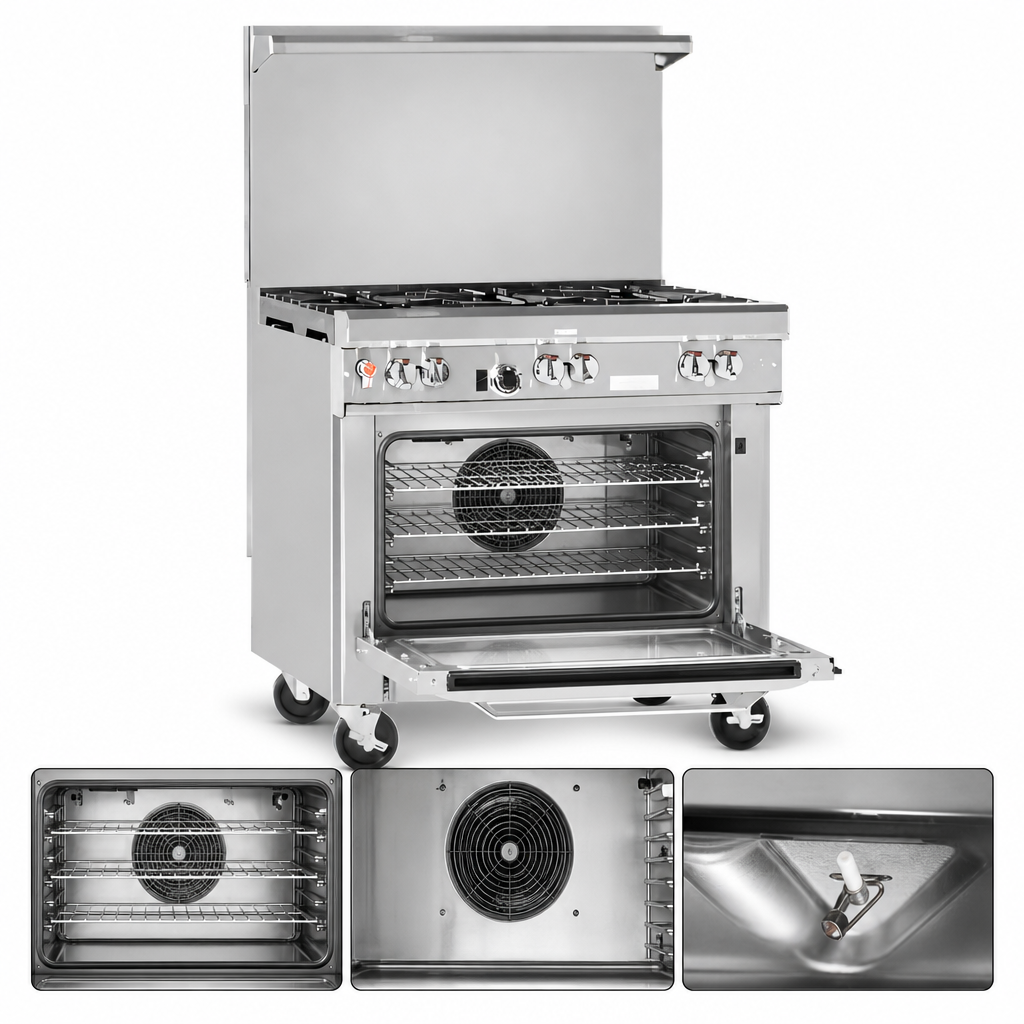

  • 32,000 BTU convection oven base with battery spark ignition, 175–550 °F thermostat and three chrome racks included.
  • 27" deep cook surface at an ergonomic 37" height plus a 4" stainless front rail.
  • 22½" flue riser with heavy-duty shelf keeps plates and pans warm and ready.
  • All-stainless front, sides, flue shelf and 6" adjustable legs for superior durability and easy sanitation.
  • Front-mounted manual gas shut-off and factory-installed pressure regulator simplify service.
  • Standing pilots for open burners—no electricity needed on the top section.
  • Certified cCSAus, CSA Flame, CSA Star & NSF for commercial safety and sanitation.
Performance Ratings
Total Input 182,000 BTU/hr
Open Burners (2) Star 33 K + (2) Non-Clog 33 K BTU
Griddle Section 12" wide, 18 K BTU, ½" steel plate
Convection Oven 32 K BTU, 175–550 °F, 5-position rack guides, 3 racks
Utilities & Connections
Gas Inlet ¾" NPT (opposite the griddle placement)
Inlet Pressure 7" W.C. Natural | 11" W.C. LP
Electrical (oven fan) 115 V / 60 Hz / 1 ph, 5.9 A, 6' cord & plug
Dimensions & Weight
Width 36.5" (927 mm)
Depth 42.13" (1,070 mm)
Cooktop Height 37" (940 mm)
Height w/ Riser 59.5" (1,511 mm)
Oven Cavity 26" W × 24" D × 14" H
Shipping Weight ≈ 660 lb (300 kg)

Looking for a different burner or griddle layout? Southbend’s Ultimate series offers dozens of field-proven configurations—just ask!

Warranty

Includes Southbend’s one-year limited parts & labor warranty, backed by a nationwide network of authorized service agencies.

Installation Note: This appliance is for commercial use only and must be installed under a properly sized ventilation hood. For non-quarry tile floors or when using oversized cookware (12" +), follow Southbend guidelines to avoid premature component damage.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

36.5in

Depth

43.6in

Shipping Weight

660.0lbs

Vent

backriser with hi-shelf

Plate Thickness

.500" = 1/2"

Base

(1) convection oven

Exterior Finish

stainless steel front & sides

Top

(4) open burners, (1) 12" griddle

Specifications

Ultimate Restaurant Range, gas, 36", (2) star/sauté burners front, (2) non-clog burners, standard grates, (1) 12" griddle left, standing pilot, (1) convection oven with battery spark ignition, includes (3) racks, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 182,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
