Southbend (Middleby) 4363D-2TR Ultimate Gas Ranges
Description
Ultimate 36" Gas Restaurant Range – 24" Right-Side Thermostatic Griddle & Star Burners
Southbend / Middleby • 159,000 BTU • cCSAus, CSA Flame, CSA Star, NSFBuilt for serious, high-volume kitchens, the Southbend Ultimate Series packs heavy-duty power and rugged reliability into a space-saving 36 inch footprint. A pair of 33,000 BTU cast-iron Star/Sauté burners sits beside a precision-controlled 24 inch thermostatic griddle, all riding above a 45,000 BTU standard oven base. From rapid sauté work to all-day breakfast service, this range delivers the versatility your line needs to keep orders moving.
Why You’ll Love It
- Two 33,000 BTU Star burners — cast-iron design spreads flame evenly for consistent, edge-to-edge pan heat.

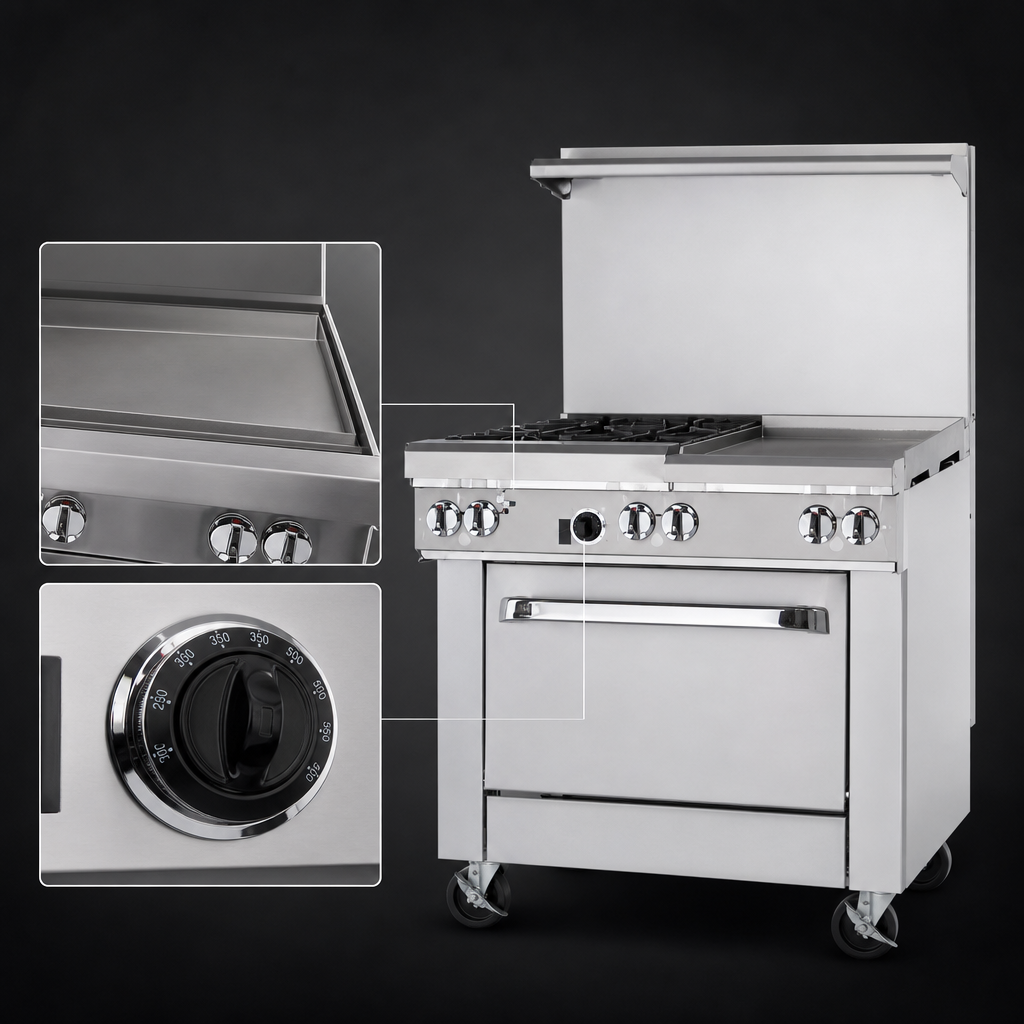

- 24" right-hand thermostatic griddle — ½" cold-rolled steel plate maintains set temps from 175-550 °F for precise searing, browning and holding.
- Standard oven base with battery-spark ignition eliminates the need for an electrical hook-up.
- 22 ½" flue riser with integrated shelf keeps platters and smallwares within easy reach.
- All-stainless front, sides, shelf and 6" adjustable legs stand up to daily wear and simplify wipe-downs.
- Front-mounted manual gas shut-off lets you cut fuel to the entire range instantly for safety or service.
- Factory pressure regulator included for fast, code-compliant installation.
- Backed by a 1-year parts & labor warranty and a nationwide network of Southbend authorized service agencies.
Performance & Utility
| Overall width | 36 in / 914 mm |
|---|---|
| Cook-top height | 37 in / 940 mm |
| Star burners (qty 2) | 33,000 BTU each (standing pilot) |
| Griddle plate | 24 in W × 27 in D, ½ in steel, thermostatic control |
| Oven capacity | 26 in W × 26.5 in D × 14 in H | fits full-size sheet pans both ways |
| Oven output | 45,000 BTU | 175-550 °F thermostat |
| Total input | 159,000 BTU/hr (natural or LP convertible*) |
| Gas connection | ¾ in NPT (rear, right-hand side) |
| Certification | cCSAus, CSA Flame, CSA Star, NSF |
| Included | 1 oven rack, 22 ½ in flue shelf, factory regulator, user manual |
*Minimum inlet pressure: 7" W.C. natural gas / 11" W.C. LP.
