Southbend (Middleby)  |  Ultimate  |  SKU: 4363D-2GR

Southbend (Middleby) 4363D-2GR Ultimate Gas Ranges

$7,271.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

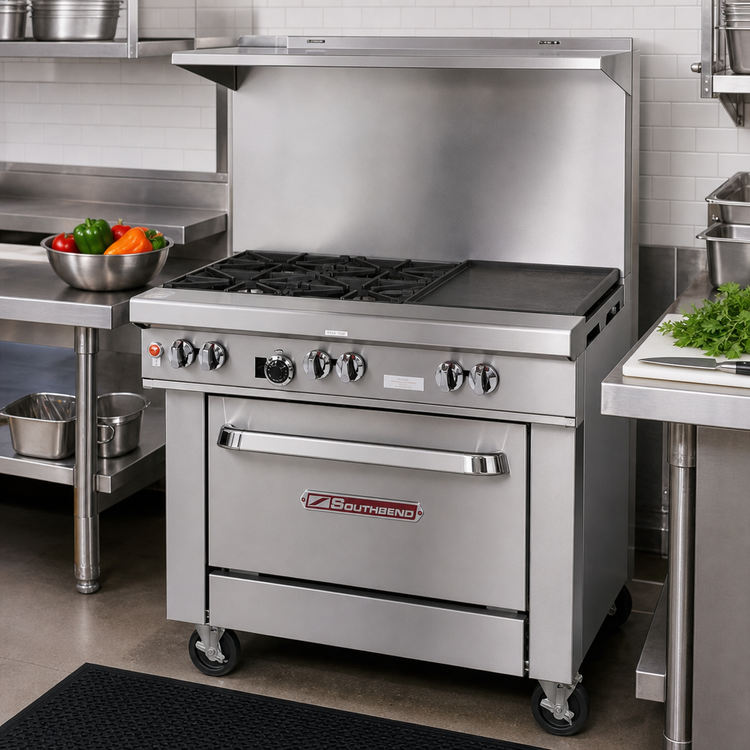

Southbend “Ultimate” 36" Gas Restaurant Range

2 Star/Sauté Burners • 24" Right-Side Griddle • Standard Oven Base

Engineered for demanding, high-volume kitchens, the Southbend Ultimate Range combines heavy-duty construction with the flexible cooking surface chefs need to keep every ticket on time.

Why It Belongs On Your Line

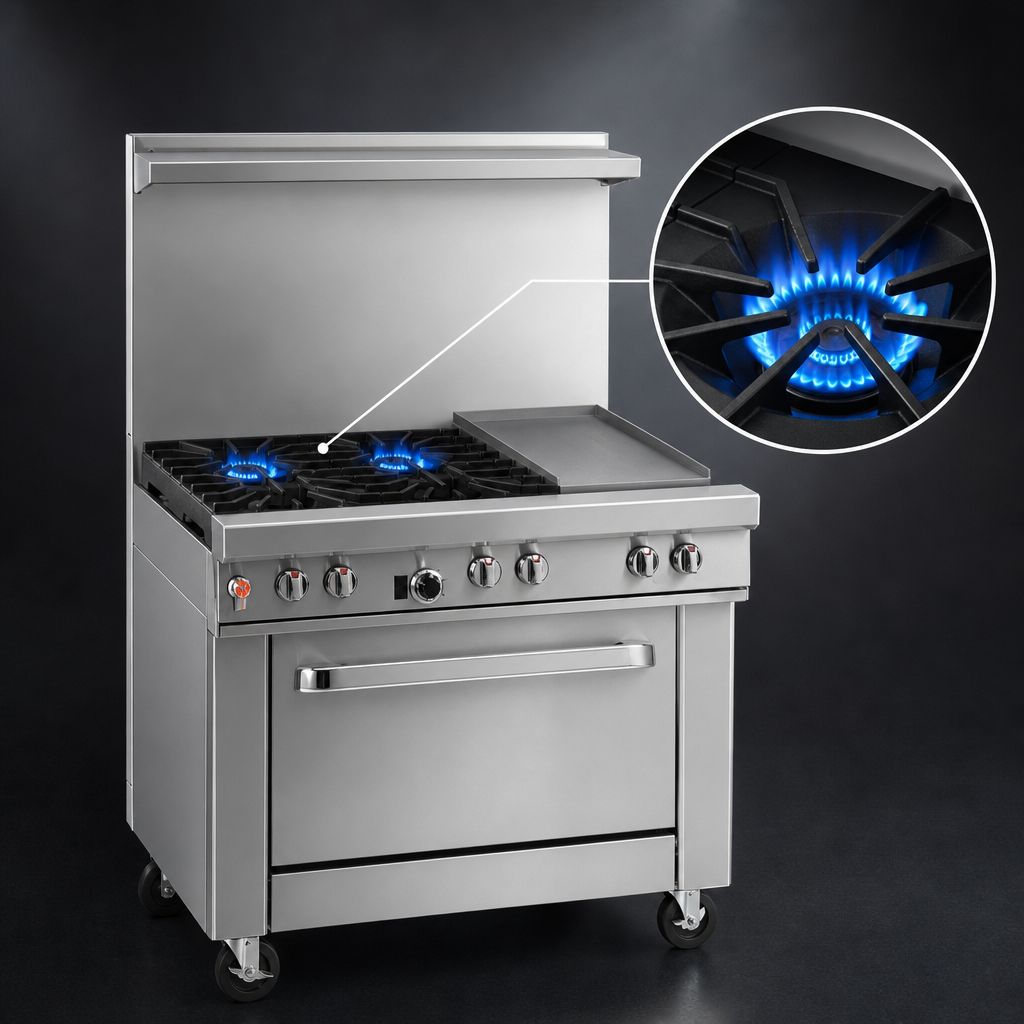

  • Multi-zone cooking power: two 33,000 BTU star/sauté burners plus a 24" griddle let you sear, sauté, and smash-burger all at once.

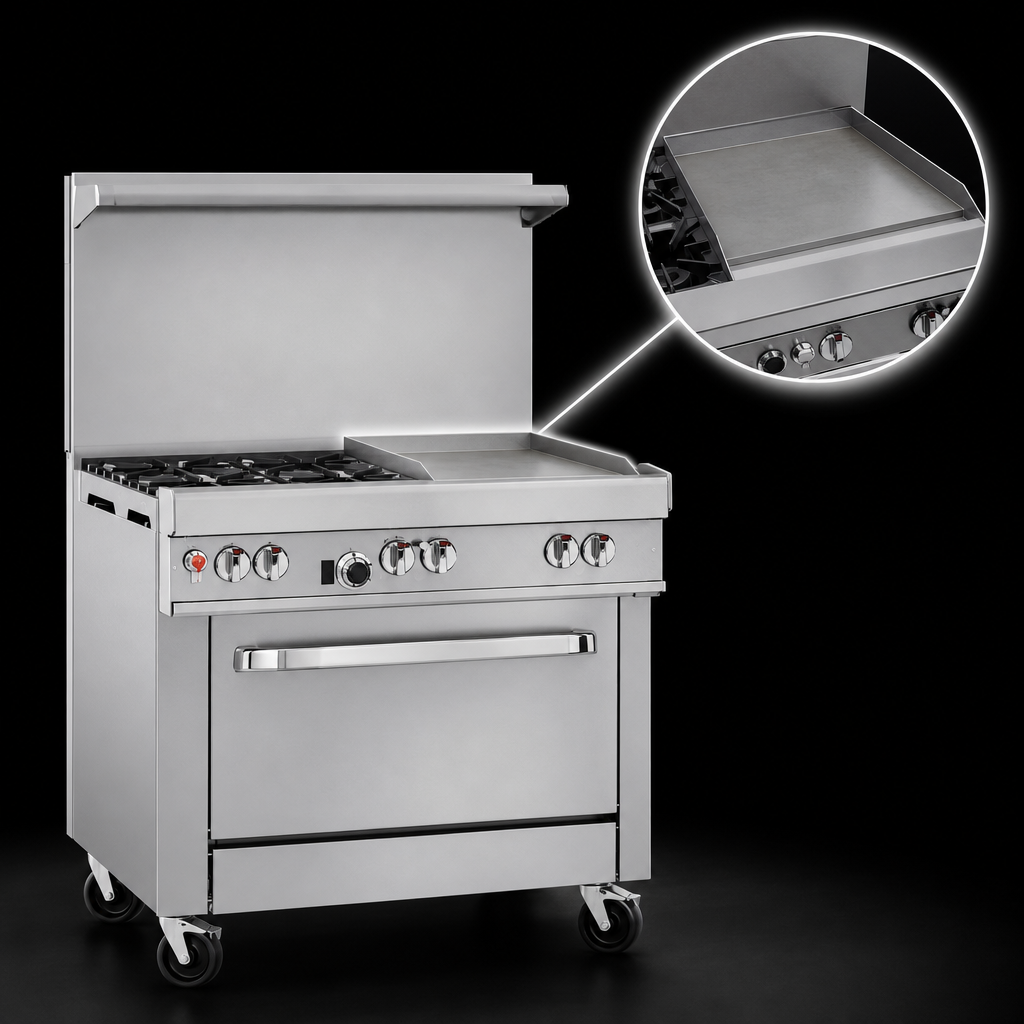

  • 1⁄2" cold-rolled steel griddle plate (right-side mounted) distributes heat evenly and recovers fast between batches.
  • 45,000 BTU standard oven with battery-spark ignition; fits full-size sheet pans front-to-back or side-to-side.
  • Quick-access front gas shut-off and factory-installed pressure regulator for safe, simple installation.
  • 22.5" flue riser with integrated shelf keeps plates, seasonings, and smallwares within easy reach.
  • All-stainless exterior (front, sides, shelf & 4" rail) stands up to daily scrubbing and harsh commercial cleaners.
  • 6" stainless adjustable legs simplify leveling on uneven floors (casters optional).
  • Standing pilots on open burners for instant ignition; battery-spark ignition on the oven reduces service calls.
  • Certified & backed by Southbend: NSF, CSA Flame, CSA Star, cCSAus listed with a 1-year parts & labor warranty.

Specifications

Cooking surface width 36.5" (927 mm)
Overall depth 34" (864 mm)
Height to cooking surface 37" (940 mm)
Height with flue riser 59.5" (1 511 mm)
Open top burners (2) star/sauté, 33,000 BTU each
Griddle section 24" W, 1⁄2" plate, right-side, 64,000 BTU input
Oven type / capacity Standard bake, 45,000 BTU; 26" W × 26.5" D × 14" H interior, 1 rack (2 positions)
Total input 159,000 BTU/hr (natural gas)
Gas connection 3⁄4" NPT (left rear), min. supply 7" W.C. Natural
Construction Stainless front, sides, shelf & rail; cast-iron grates
Certifications NSF, CSA Flame, CSA Star, cCSAus
Warranty 1-year parts & labor (see Southbend terms)
Important: Install under a vented hood with a 3⁄4" gas supply line. For non-quarry tile floors, contact Southbend for approved mounting solutions. Avoid letting cookware overhang the 4" front rail to prevent heat damage.

Need financing? Middleby Equipment Financing lets you turn this range into low, predictable monthly payments.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

36.5in

Depth

34.0in

Shipping Weight

660.0lbs

Plate Thickness

.500" = 1/2"

Vent

backriser with hi-shelf

Exterior Finish

stainless steel front & sides

Top

(2) open burners, (1) 24" griddle

Base

(1) standard oven

Specifications

Ultimate Restaurant Range, gas, 36", (2) star/sauté burners, standard grates, (1) 24" griddle right, standing pilot, (1) standard oven with battery spark ignition, includes (1) rack, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 159,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
