Southbend (Middleby)  |  Ultimate  |  SKU: 4363D-2CR

Southbend (Middleby) 4363D-2CR Ultimate Gas Ranges

$8,951.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

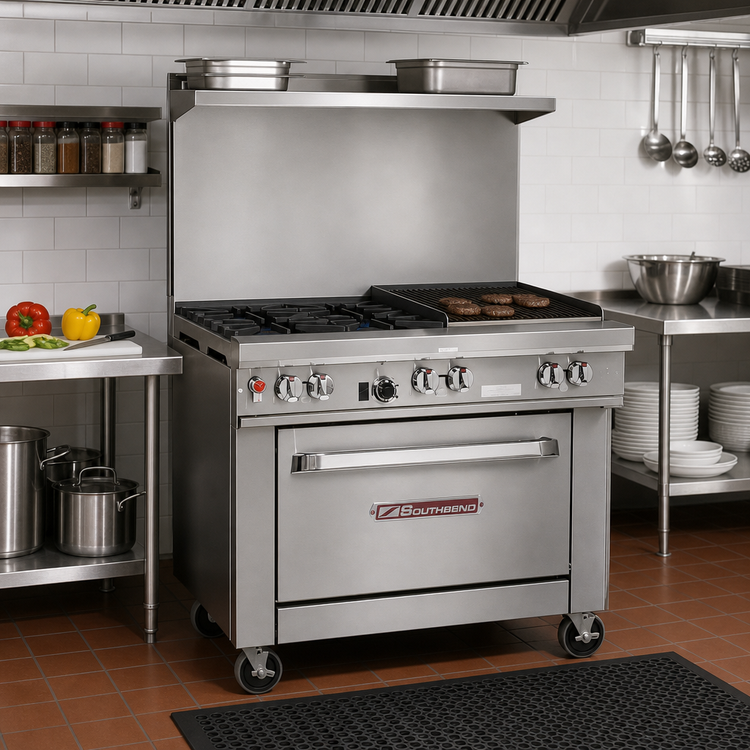

Southbend “Ultimate” 36" Gas Restaurant Range – Star Burners, 24" Charbroiler & Standard Oven

Model 4361D • 175,000 BTU • CSA & NSF Listed

Purpose-built for high-volume kitchens that demand versatility and rugged reliability, the Southbend Ultimate 36" Restaurant Range pairs blazing-hot star burners with a steak-house-quality charbroiler and a full-size standard oven – all in one, stainless-steel workhorse.

Key Performance Features

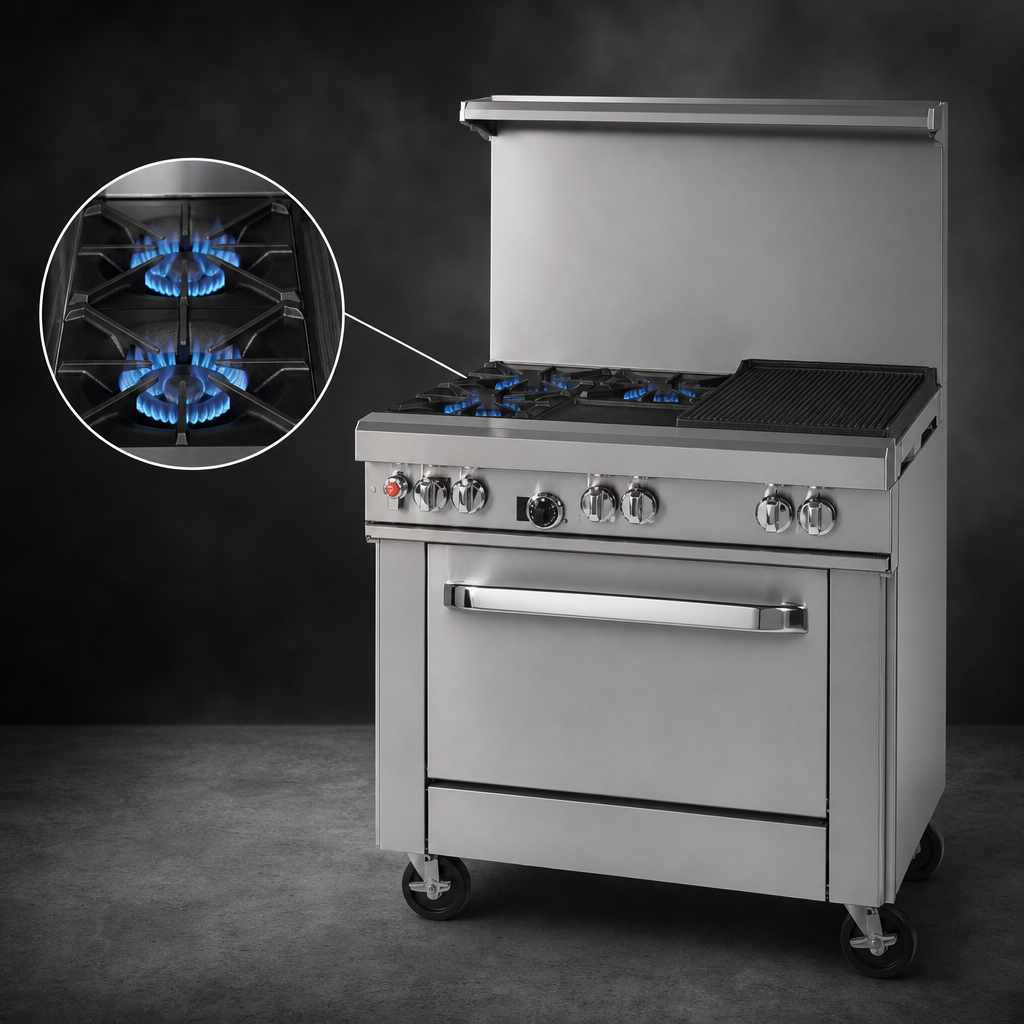

  • (2) 33,000 BTU cast-iron Star/Sauté burners deliver even, edge-to-edge flame for rapid sautéing, stock work and sauce prep.
  • 24" right-side charbroiler (64,000 BTU) with heavy-duty cast-iron grates – perfect for steaks, burgers and vegetables.
  • 45,000 BTU standard oven with battery spark ignition; 175 – 550 °F thermostat and porcelain enamel cavity for easy wipe-down.
  • Includes 1 oven rack with two position rails; full-size sheet pans fit side-to-side or front-to-back.
  • 22 ½" flue riser with integrated plate shelf keeps hot pans within arm’s reach.
  • 4" deep stainless front rail plus one-piece drip tray for fast, tool-free cleaning.
  • Front-mounted manual gas shut-off and factory pressure regulator simplify installation and service.
  • All-stainless front, sides and shelf; 6" adjustable stainless legs for level placement on uneven floors.

At-a-Glance Specifications

Overall width 36.5" / 927 mm
Overall depth 34" / 864 mm
Cook-surface height 37" / 940 mm
Overall height (with riser) 59.5" / 1,511 mm
Total BTU input 175,000 BTU/hr (Natural or LP)
Open burners (2) 33,000 BTU star burners
Charbroiler 24" – 64,000 BTU
Oven Standard, 45,000 BTU; 26"W x 26.5"D x 14"H cavity
Gas connection ¾" NPT rear, 7" WC (Nat) / 11" WC (LP) minimum inlet
Electrical None required – battery ignition
Certifications CSA, NSF
Warranty 1-year parts & labor (see Southbend warranty details)

Why Choose the Southbend Ultimate Range?

  • Consolidates sauté, grill and bake functions into a 36" footprint – ideal for line-cooks working a tight line.
  • Cast-iron components retain heat and stand up to constant punishment in busy kitchens.
  • No external power hookup needed; keep cooking during power interruptions.
  • Backed by Middleby and Southbend’s nationwide parts & service network.
Important Installation & Use Notes
  • Unit must be installed under a code-compliant ventilating hood.
  • Charbroiler is for non-combustible locations only; follow local codes.
  • Avoid covering charbroiler grates with sheet pans while burners are lit – damage is not covered by warranty.
  • Use cookware 12" or larger on rear burners to prevent excess heat at the front rail.
  • Commercial use only – not for household applications.

Need flexible payment options? Middleby Equipment Financing can turn this purchase into low, fixed monthly payments.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

36.5in

Depth

34.0in

Shipping Weight

660.0lbs

Base

(1) standard oven

Exterior Finish

stainless steel front & sides

Vent

backriser with hi-shelf

Top

(2) open burners, (1) 24" charbroiler

Specifications

Ultimate Restaurant Range, gas, 36", (2) star/sauté burners, standard grates, (1) 24" charbroiler right, standing pilot, (1) standard oven with battery spark ignition, includes (1) rack, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 175,000 BTU, CSA, NSF
