Southbend (Middleby) 4363D-1G Ultimate Gas Ranges
Description

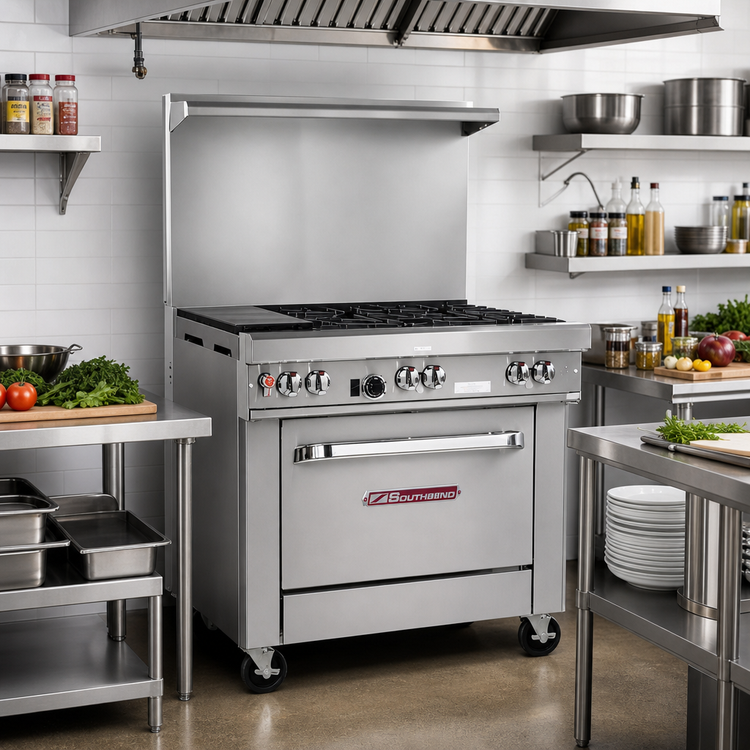

Southbend “Ultimate” 36" Gas Restaurant Range
4 Star/Sauté Burners • 12" Left-Side Griddle • Standard Oven • 195,000 BTUBuilt for high-volume kitchens that refuse to compromise on versatility or durability, the Southbend Ultimate Series 36" range pairs powerful star burners with a heavy-duty griddle and a full-size oven—all wrapped in easy-to-clean stainless steel.
Key Features & Benefits

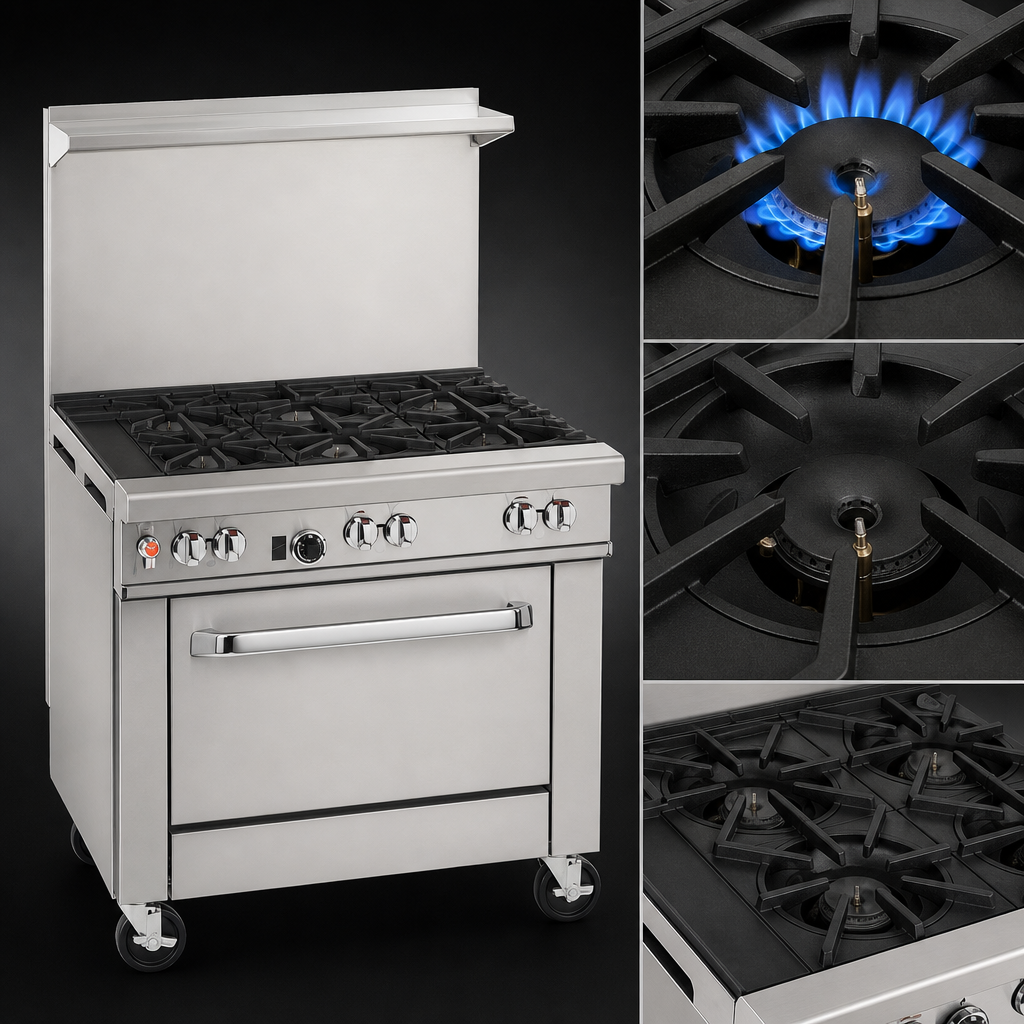

- Four 33,000 BTU patented cast-iron star/sauté burners deliver even flame distribution for precision sautéing or rapid boils.

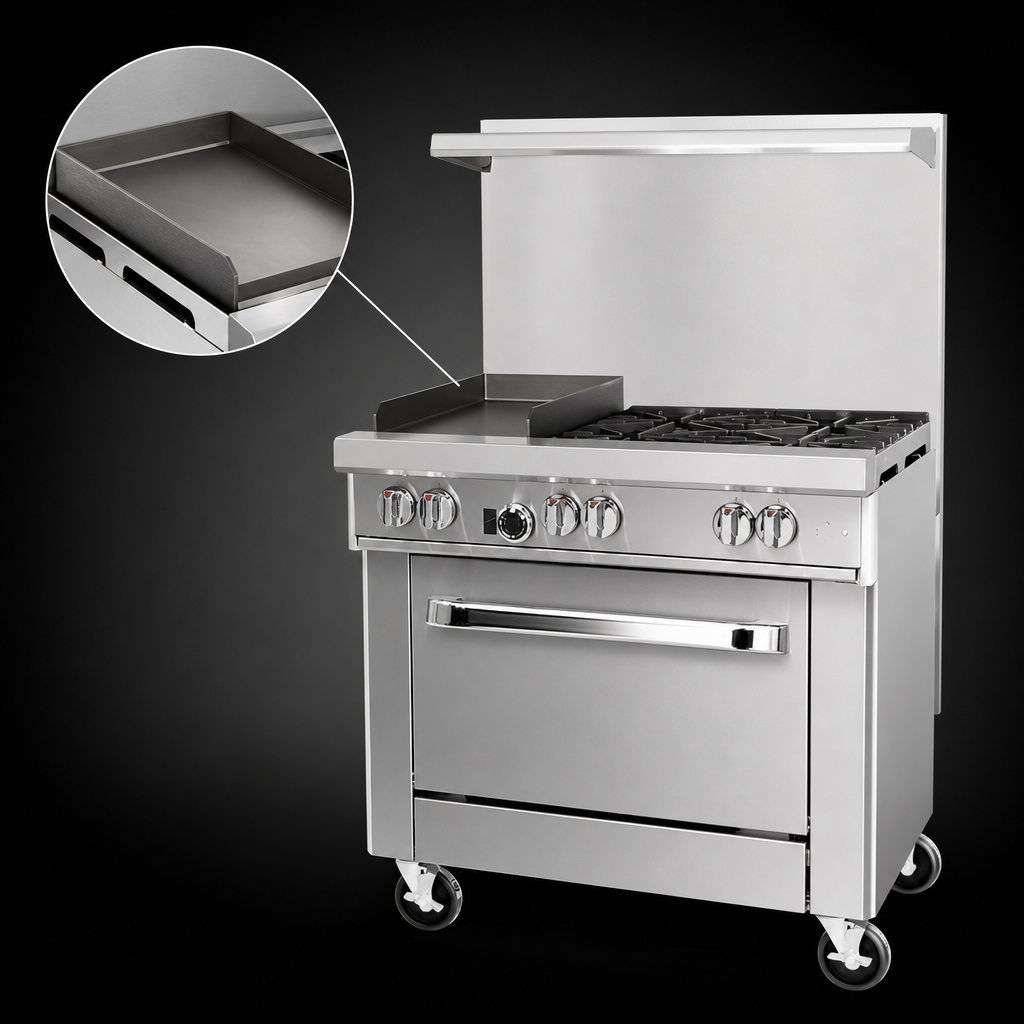

- 12" left-mounted griddle (18,000 BTU) with ½" cold-rolled steel plate—ideal for breakfast items, smash burgers and more.
- 45,000 BTU standard oven with battery-spark ignition; porcelain-enameled cavity simplifies clean-up and resists corrosion.
- 22 ½" flue riser with integrated heavy-duty shelf—perfect for keeping plated dishes warm or storing smallwares.
- 6" stainless steel adjustable legs let you level the range on uneven floors.
- Front-mounted manual gas shut-off plus factory-installed regulator for quick, code-compliant installation.
- One removable rack included; oven fits full-size sheet pans both ways.
- cCSAus, CSA Flame, CSA Star & NSF certified for use in commercial kitchens.
- Covered by Southbend’s 1-year parts & labor warranty.
Performance at a Glance
| Total Input | 195,000 BTU/hr (Natural Gas) |
|---|---|
| Open Burners | 4 × 33,000 BTU star/sauté burners |
| Griddle | 12" left side, 18,000 BTU, ½" steel plate |
| Oven | Standard, 45,000 BTU, 175 °F – 550 °F thermostat, battery-spark ignition |
| Cooking Surface Height | 37" |
| Overall Dimensions (W × D × H) | 36.5" × 34" × 59.5" (with flue riser) |
| Oven Interior (W × D × H) | 26" × 26.5" × 14" |
| Gas Connection | ¾" NPT, Natural Gas, 7" W.C. minimum inlet pressure |
| Electrical | None required (oven spark is battery powered) |
| Construction | Stainless steel front, sides, 4" front rail & shelf; removable cast-iron grates |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
Included with Your Range
- (1) oven rack with two-position side rails
- Factory-installed pressure regulator
- Standing pilots for open top burners
- Comprehensive user & installation manual
Note: Minimum 10" clearance from combustible surfaces (rear & sides); installation under a vented hood is recommended. Oversized cookware (12" Ø or larger) should be used on rear burners to prevent excess heat on the front rail.
