Southbend (Middleby) 4363C Ultimate Gas Ranges
Description
Southbend Ultimate Series 36" Gas Restaurant Range – 6 Star/Sauté Burners, Cabinet Base
Model 436C-Star | 198,000 BTU | CSA & NSF CertifiedBuilt for kitchens that run at full throttle, the Southbend Ultimate 36" range delivers chef-driven performance with six high-output star/sauté burners, a rugged stainless exterior and the flexible open-cabinet base you need for skillets, sheet pans and stock pots. If you demand maximum power in a compact footprint, this is the range that keeps tickets moving.
Key-Performance Features

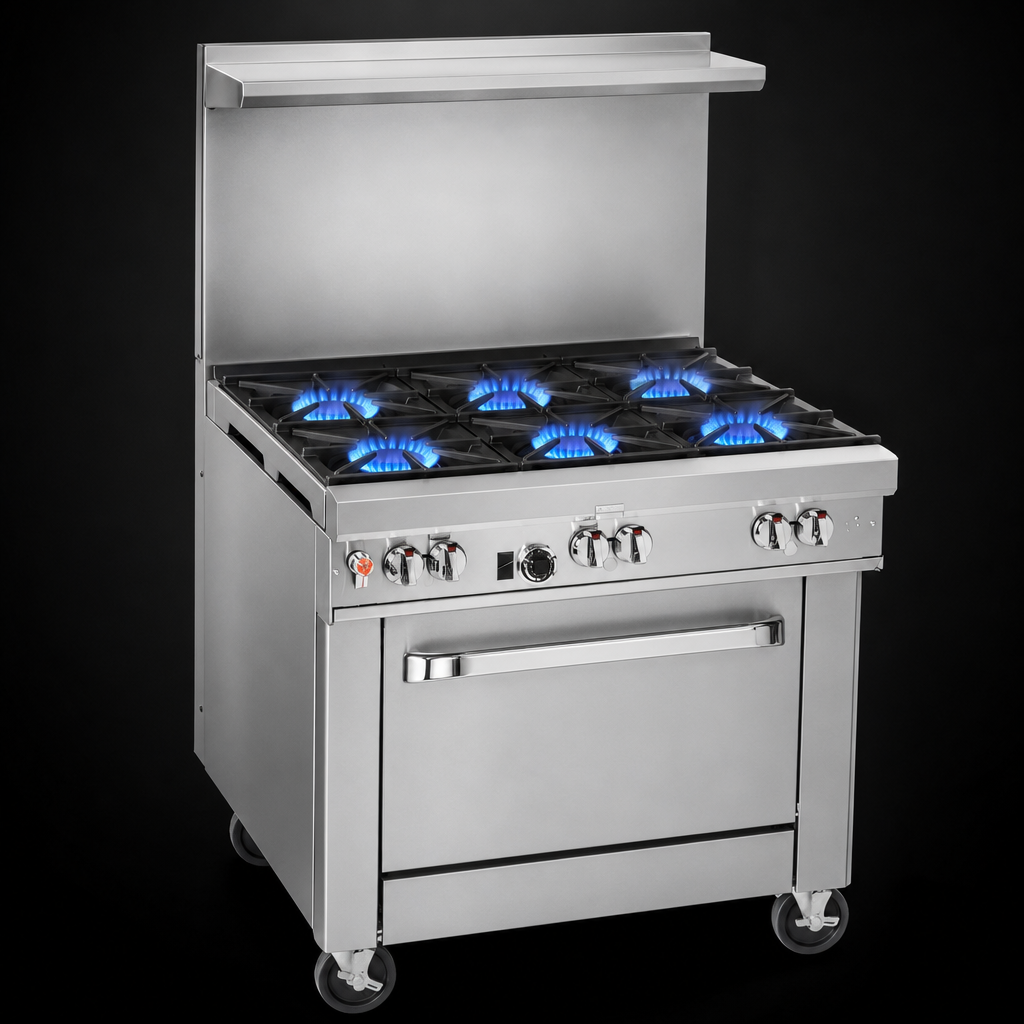

- Six (6) patented cast-iron star/sauté burners—33,000 BTU each for even, edge-to-edge heat (total 198,000 BTU).

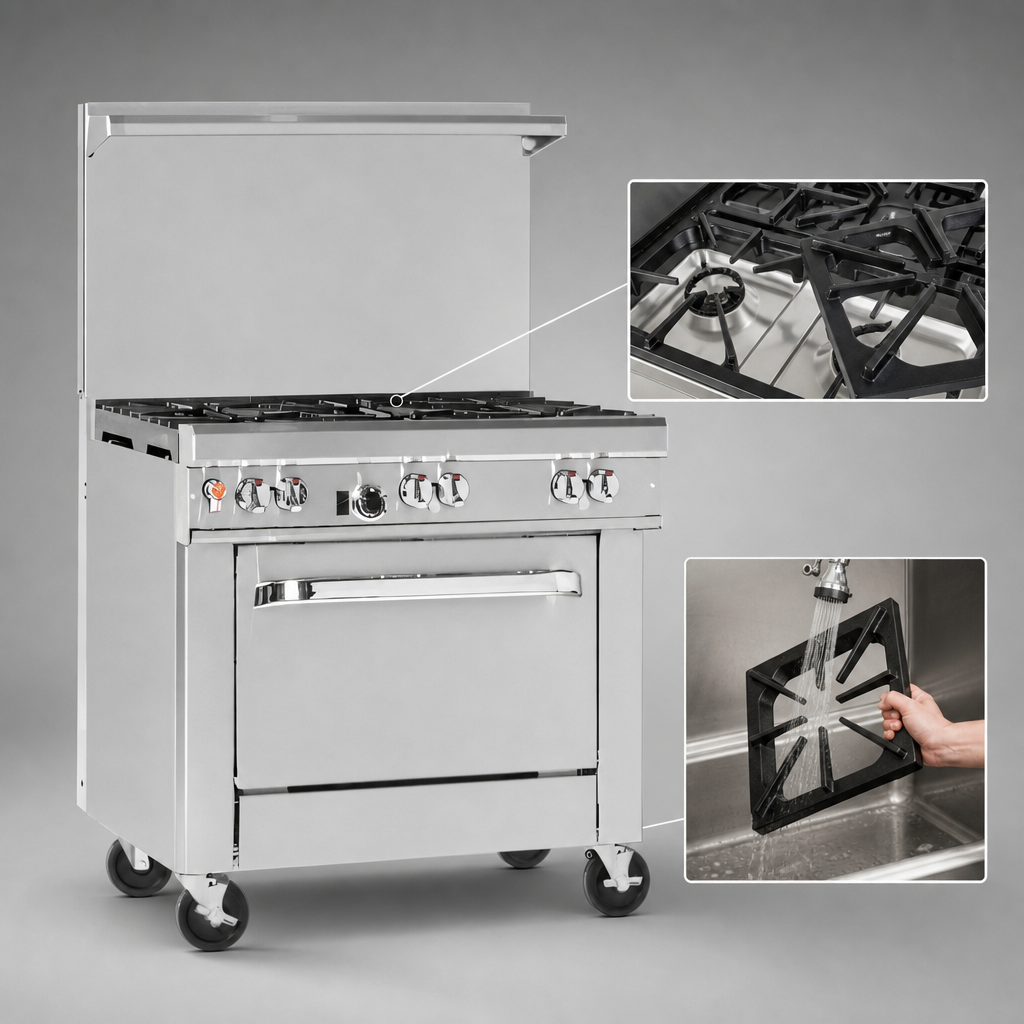

- Extra-wide 27" deep cooking surface with removable cast-iron grates; rear grates accept up to a 14" stock pot.
- Standing pilots for instant burner ignition; front-mounted manual shut-off controls the entire range at once.
- 22 ½" flue riser with heavy-duty integrated shelf—perfect for holding plates, spice pans or smallwares.
- Open cabinet base (doors optional at no charge) keeps sheet pans or small equipment within arm’s reach.
- Factory-installed pressure regulator and ¾" NPT rear gas connection simplify installation.
- Battery-spark ignition ready for optional oven or hot-top bases should you expand in the future.
Built to Survive the Rush
- Full stainless-steel front, sides, control panel and 4" rail resist corrosion and wipe clean fast.
- One-piece drip tray spans the entire width—slides out for quick end-of-shift cleanup.
- 6" stainless adjustable legs level the unit on uneven floors; optional locking casters available.
- Backed by Southbend’s 1-year parts & labor warranty and nationwide authorized service network.
Ideal Applications
- Independent & chain restaurants
- Hotel banquet and production kitchens
- High-volume food trucks & ghost kitchens
- Catering commissaries
Technical Specifications
| Model | 436C-Star (Ultimate Series) |
|---|---|
| Cooking Surface | 36 ½" W x 27" D (37" H to burner grates) |
| Overall Dimensions (with 22 ½" flue) |
36 ½" W x 34" D x 59 ½" H |
| Burners | 6 cast-iron star/sauté, 33,000 BTU each |
| Total Input | 198,000 BTU/hr (Natural or LP—field convertible) |
| Gas Connection | ¾" NPT female (rear, right-hand side) |
| Base | Stainless open cabinet (center-opening doors optional) |
| Shipping Weight | ≈ 600 lb / 272 kg |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see warranty tab for details) |
Important Notes
Use oversized cookware (12" Ø or larger) on the rear grates only to avoid overheating the front rail.
