Southbend (Middleby) 4363C-2TR Ultimate Gas Ranges
Description
Southbend “Ultimate” 36" Gas Restaurant Range
2 Star/Sauté Burners • 24" Thermostatic Griddle (Right) • Cabinet BaseBring Southbend’s legendary power and durability to the line with a compact, highly-configurable range that pairs two 33,000 BTU star/sauté burners with a precision-controlled 24" griddle. From searing steaks to finishing breakfast service, the Ultimate series keeps pace with the busiest kitchens while the all-stainless exterior looks great shift after shift.
Why you’ll love it
- 114,000 BTU total output (Natural Gas).

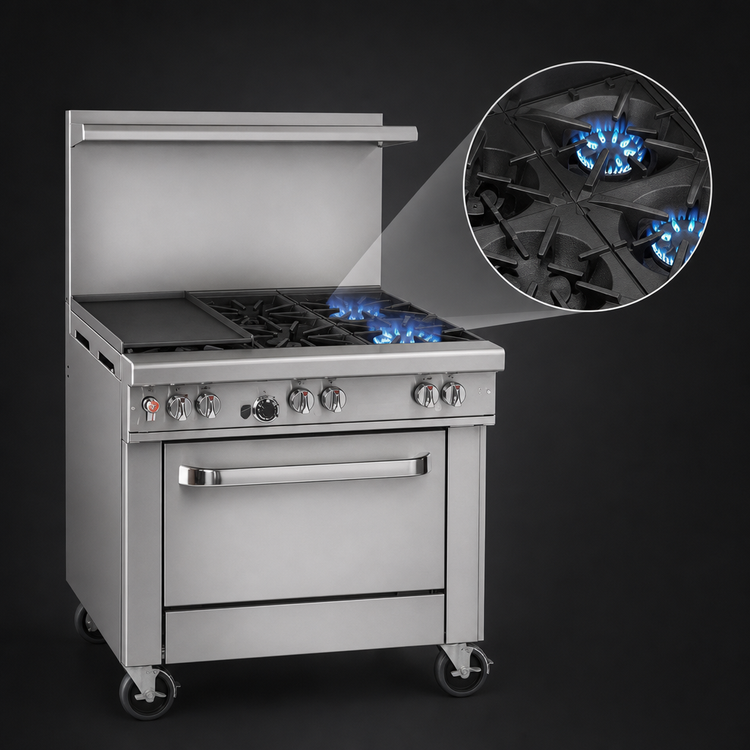

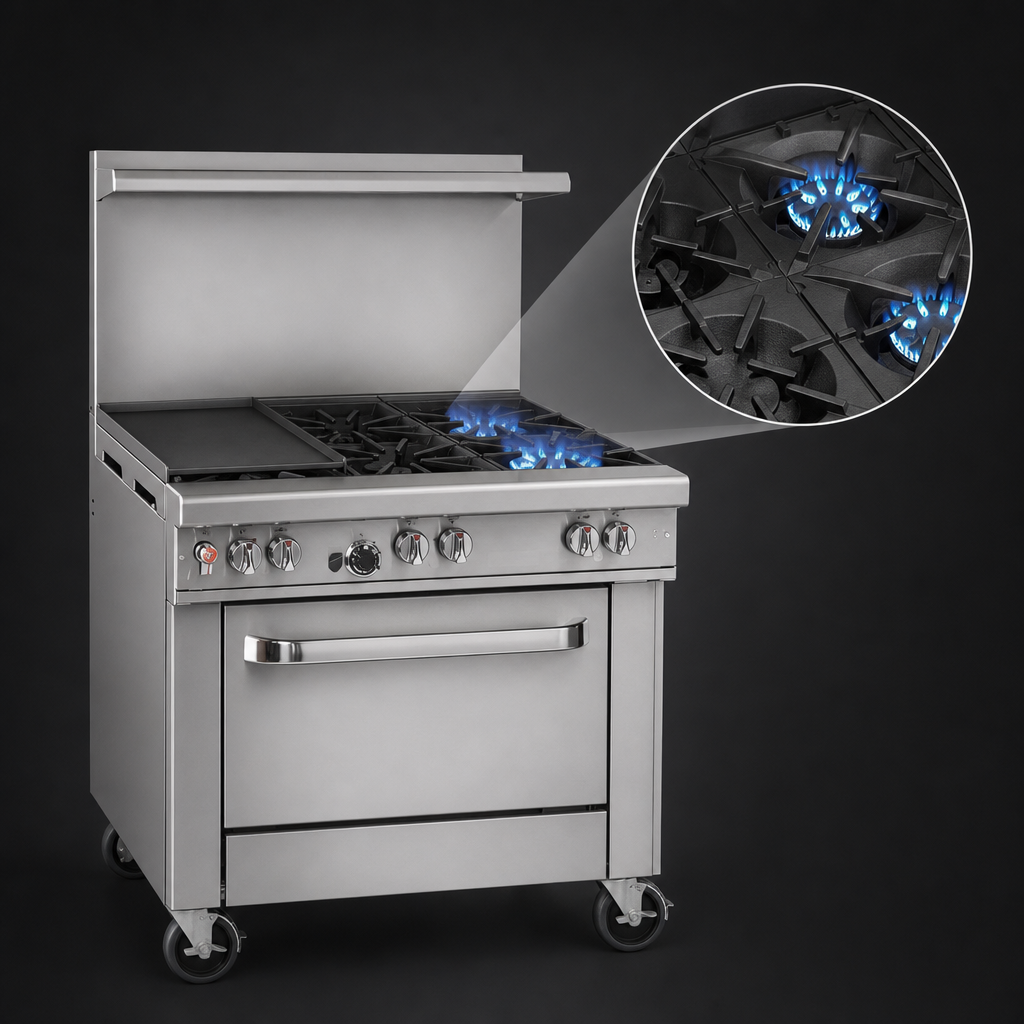

- (2) 33,000 BTU cast-iron star/sauté burners for even flame distribution & quick heat-up.

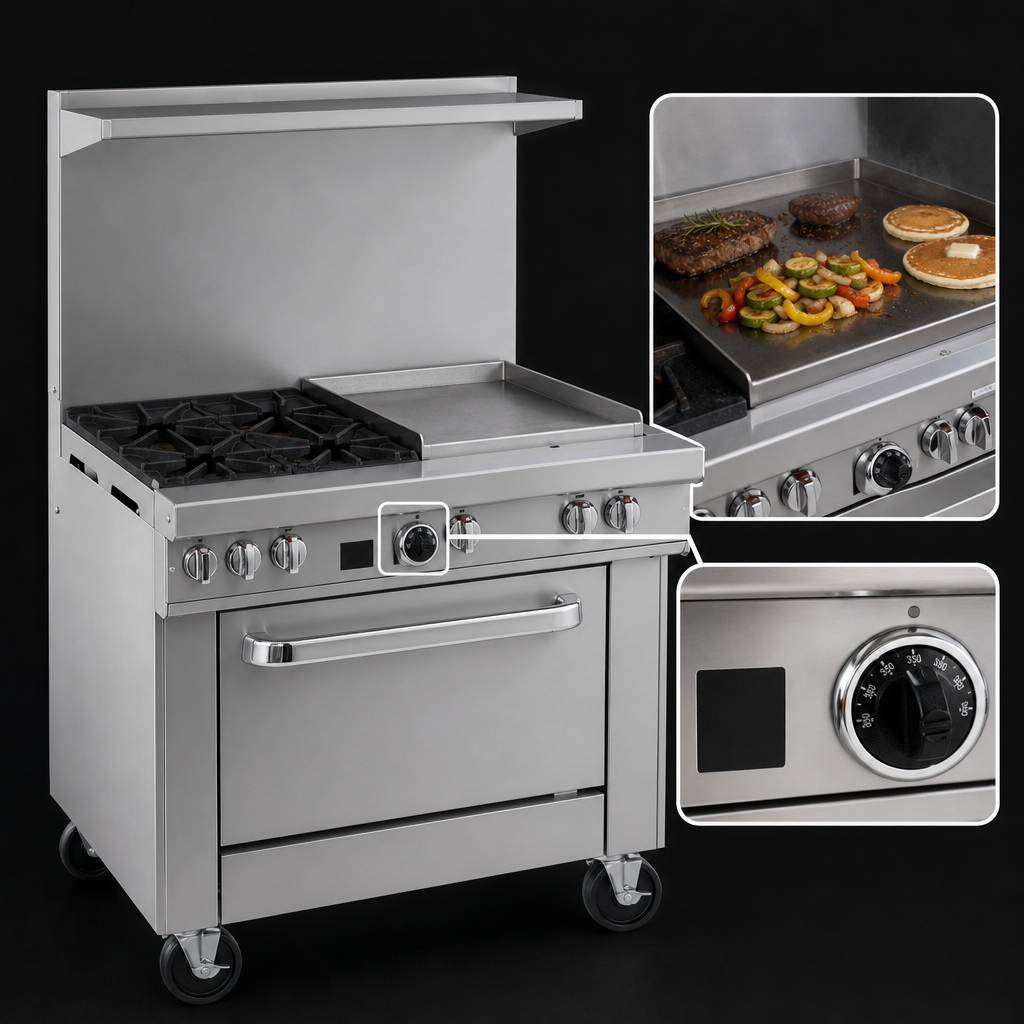

- 24" wide, 1/2" thick cold-rolled steel griddle (right-side) with thermostatic controls for precise 175 °F – 550 °F cooking.
- Stainless steel front, sides, 4" front rail & high-strength shelf on a 22-1/2" flue riser.
- Full stainless cabinet base for convenient pan or small-wares storage (swing doors available at no charge).
- Front-mounted manual gas shut-off & factory-installed pressure regulator for fast service access.
- 6" stainless steel adjustable legs accommodate uneven floors and simplify cleaning under the unit.
- Standing pilots on open burners for instant ignition; battery-spark ignition available as an option.
- cCSAus, CSA Flame, CSA Star & NSF listed for commercial kitchen compliance.
Technical Specifications
| Model | Ultimate 436C-2S24GT-N (Natural Gas) |
|---|---|
| Total BTU | 114,000 BTU/h |
| Open Burners | (2) Star/Sauté – 33,000 BTU each |
| Griddle | 24" W × 27" D plate, thermostatic, 48,000 BTU |
| Cooking Surface Height | 37" (940 mm) |
| Overall Width | 36 ¹⁄₂" (927 mm) |
| Overall Depth | 34" (864 mm) |
| Flue Riser/Shelf | 22 ¹⁄₂" high, stainless, with heavy-duty utensil shelf |
| Base | Stainless cabinet (doors optional) |
| Gas Connection | 3/4" NPT (rear), 7" W.C. min. Natural Gas – LP convertible |
| Clearances | 0" sides & rear to non-combustible walls; 10" to combustible |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year limited parts & labor |
*BTU ratings shown for Natural Gas. For LP configuration or additional options (casters, doors, salamander mounts, etc.) please contact us.
What’s in the box
- Range fully assembled with 6" adjustable legs
- Factory-installed gas pressure regulator
- Removable drip tray & standard cast-iron grates
- User & installation manual
- Southbend start-up checklist
Covered by Southbend’s industry-leading Ultimate Range warranty. Full terms available at southbendnc.com/service-and-parts .
