Southbend (Middleby) 4363C-2GR Ultimate Gas Ranges
Description
Southbend Ultimate 36" Gas Restaurant Range – 2 Star Burners & 24" Right-Side Griddle
Model 436 Series | 114,000 BTU total | Cabinet BaseBuilt for the busiest commercial kitchens, the Southbend Ultimate 36" range combines two high-performance star/sauté burners with a spacious 24" steel griddle. Heavy-duty stainless construction, a convenient cabinet base and an integrated flue-mounted shelf deliver the rugged reliability and workflow efficiency chefs expect from Southbend.
Why you’ll love it
- Blistering power – 114,000 BTU total: two 33 k BTU star burners plus a 48 k BTU griddle for rapid recovery and consistent heat.

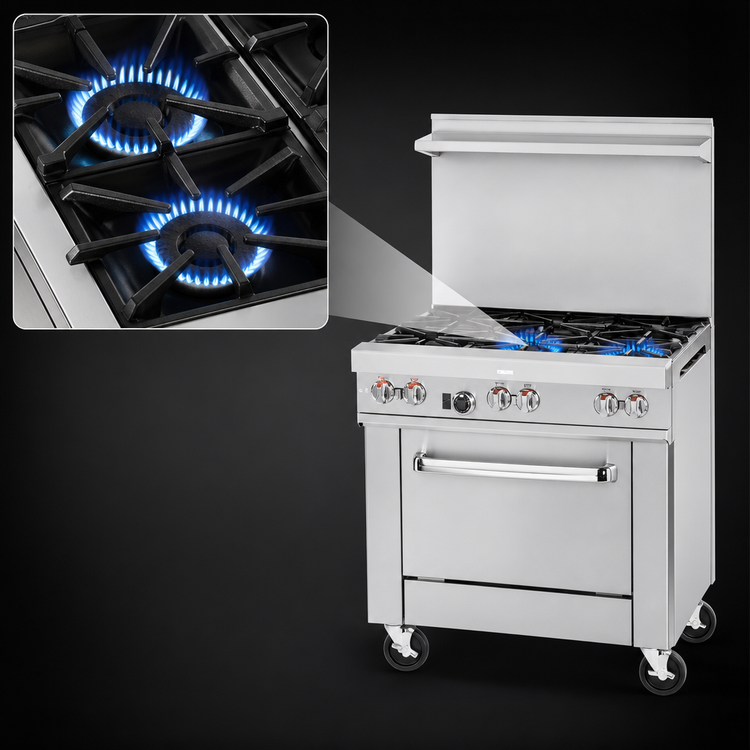

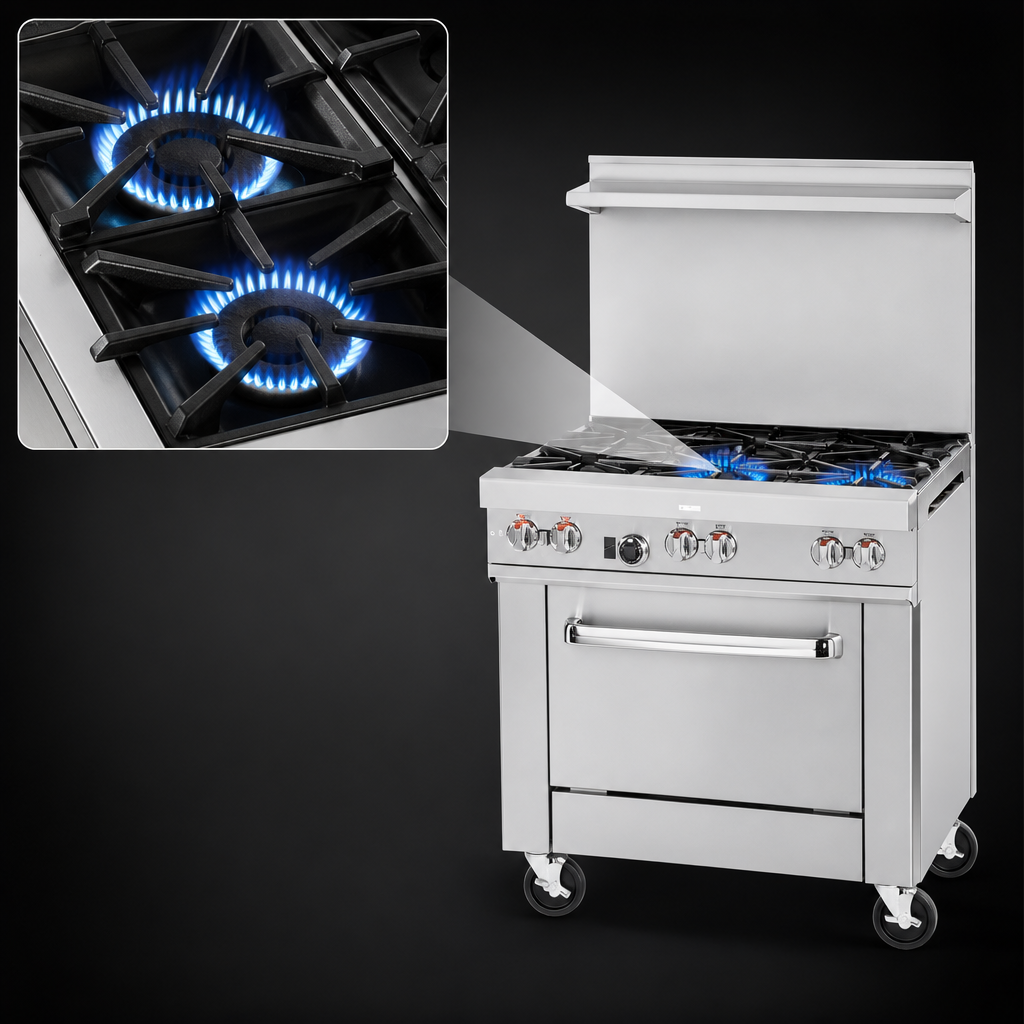

- Even, versatile flame – patented cast-iron star burners spread heat uniformly across pans and hold stock pots up to 14" in diameter.

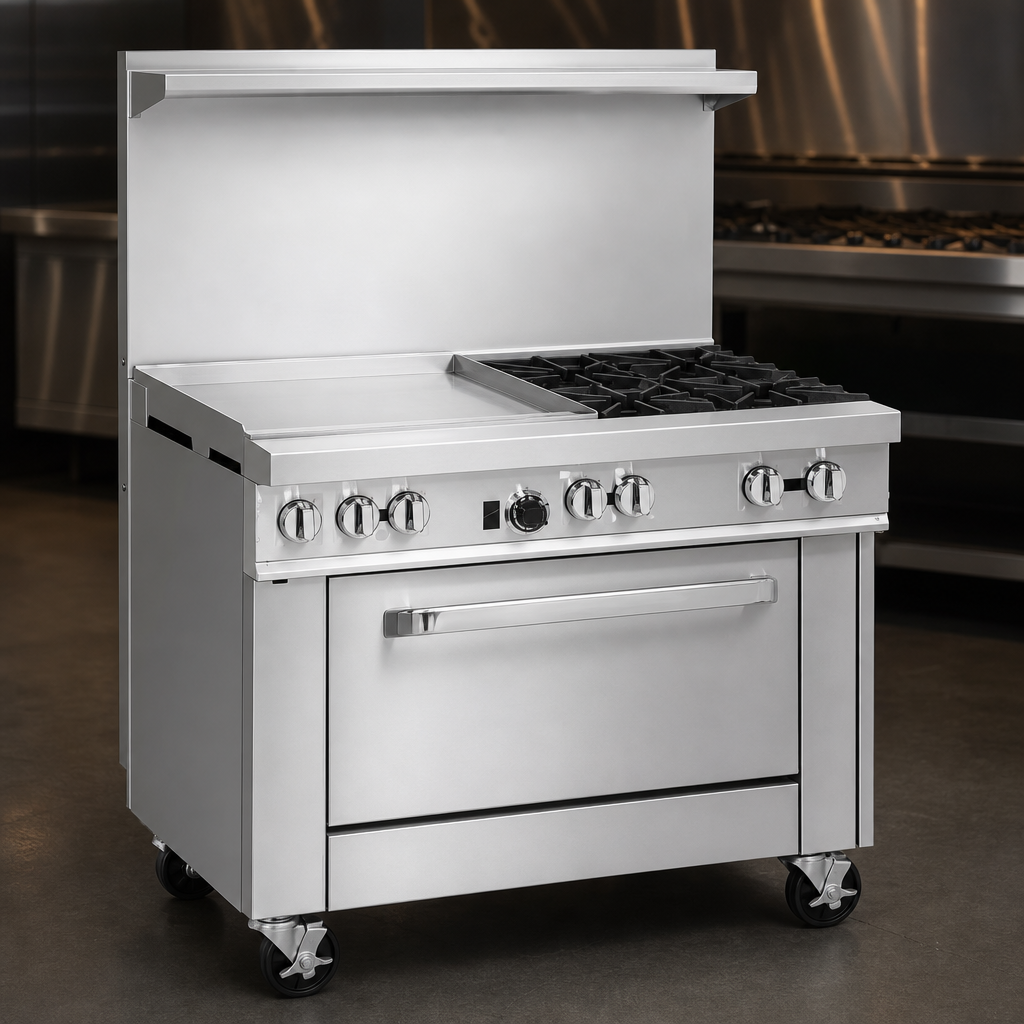

- 1/2" thick cold-rolled steel griddle – 24" wide cooking surface is perfect for burgers, breakfast, sauté work and more.
- 27" deep cooktop – gives you extra elbow room without increasing overall footprint.
- Integrated storage – open cabinet base keeps sheet pans, utensils or smallwares close at hand (doors available at no charge).
- Front-mounted main gas shut-off and standing pilots for quick, safe ignition throughout the shift.
- 22.5" flue riser with stainless shelf adds extra staging space for spices, squeeze bottles or plating.
- All-stainless exterior (front, sides, rail & shelf) plus 6" adjustable legs for easy cleaning underneath.
- Factory-installed pressure regulator & ¾" rear gas connection simplify installation.
- cCSAus, CSA Flame, CSA Star & NSF listed for peace-of-mind compliance.
At-a-glance specs
| Cooktop configuration | (2) 33 k BTU star/sauté burners (1) 24" griddle, 48 k BTU (right side) |
|---|---|
| Total input (natural gas) | 114,000 BTU/hr |
| Cooking surface depth | 27" |
| Overall width × depth | 36.5" × 34" (928 × 864 mm) |
| Working height | 37" to cooktop; 59.5" to top of flue shelf |
| Gas connection | ¾" NPT (left side when griddle is on right) |
| Required inlet pressure | Natural 7" W.C. | LP 11" W.C. |
| Base | Stainless cabinet (open, field-install doors optional) |
| Construction | Stainless steel front, sides, 4" rail, shelf & 6" adjustable legs |
| Certifications | NSF, cCSAus, CSA Flame & Star |
| Origin | Made in USA |
| Warranty | 1-year parts & labor (commercial) |
Common accessories (sold separately)
- Stainless cabinet doors
- All-swivel locking casters
- ¾" quick-disconnect hose & restraining kit (3-, 4- or 5-ft)
- Chef-mounted salamander or cheesemelter
- Rear step-up burner grate
Intended for commercial use only. Installation under a properly sized vent hood and in accordance with local codes is required.
