Southbend (Middleby) 4363A-2TR Ultimate Gas Ranges

Southbend Ultimate 36" Restaurant Range – 24" Thermostatic Griddle & Convection Oven

Engineered for demanding commercial kitchens, the Southbend Ultimate 36" gas range combines high-output star burners, a full-size thermostatic griddle, and a high-performance convection oven in one durable, space-saving workstation.

Why You’ll Love It

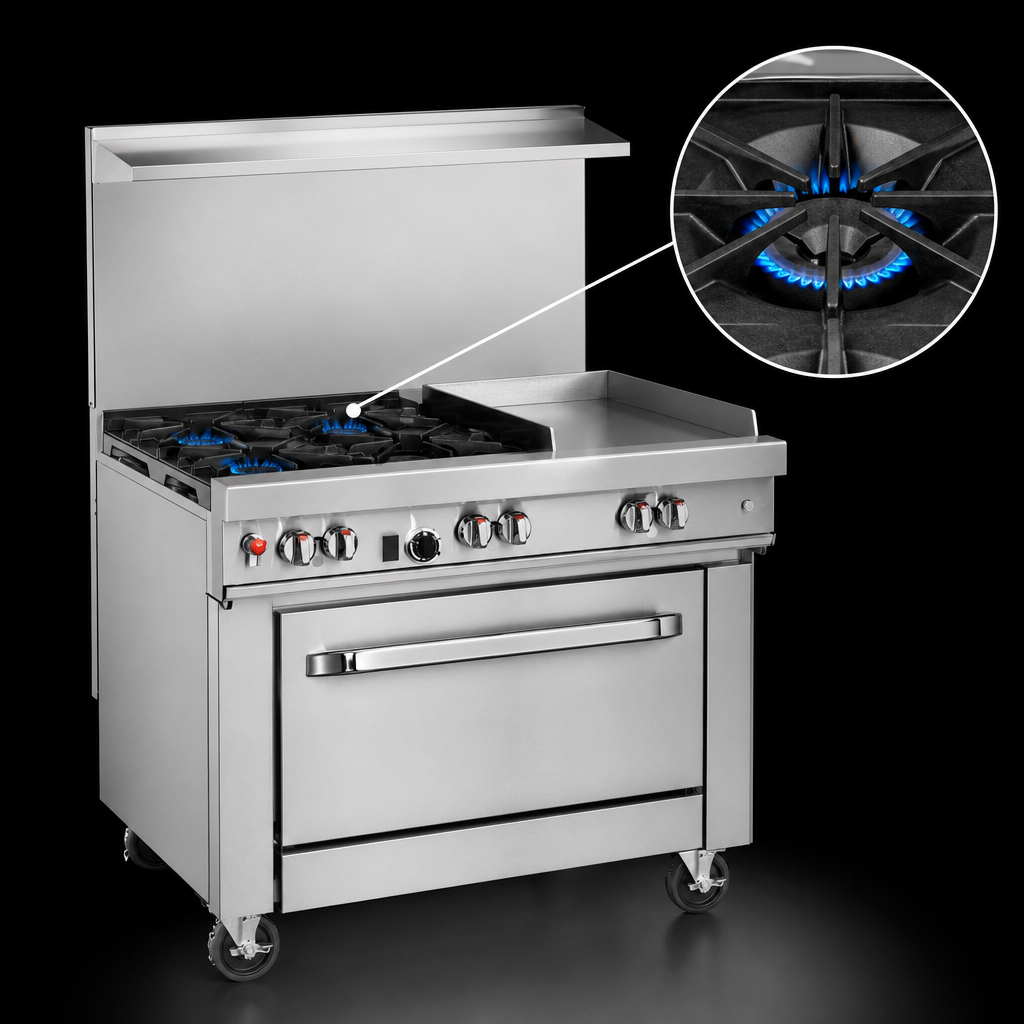

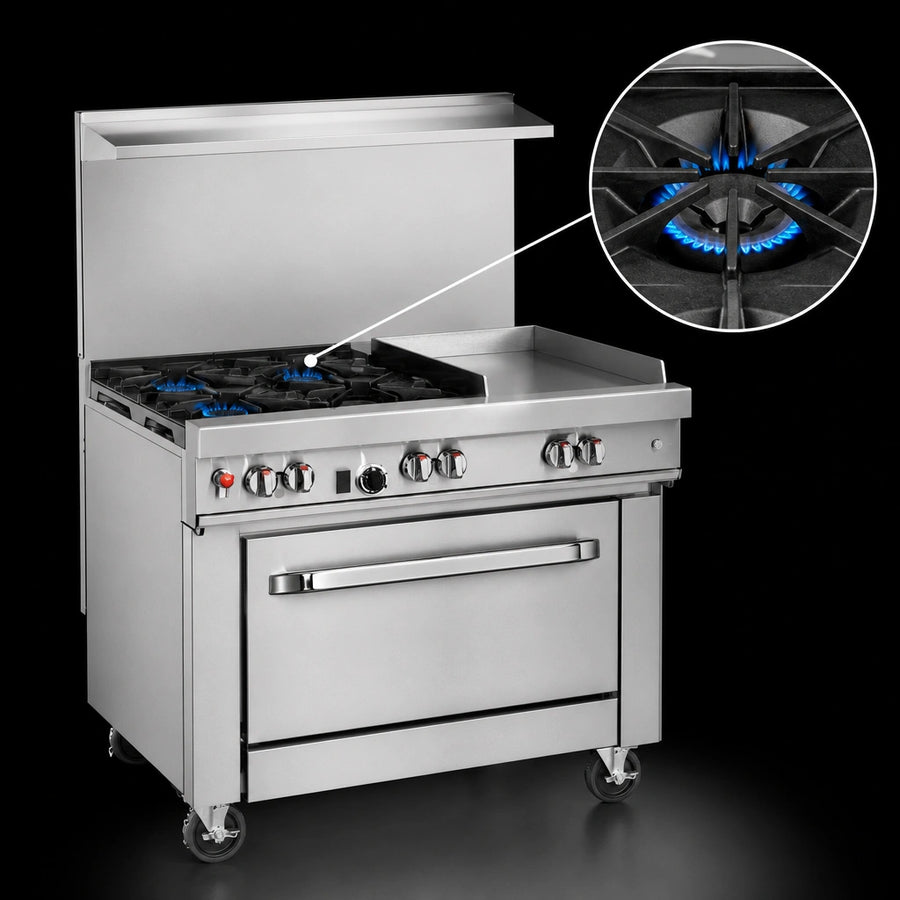

• Multi-Task Cooking Power – Two 33,000 BTU cast-iron star/ sauté burners deliver immediate, even heat that’s perfect for pans up to 14".

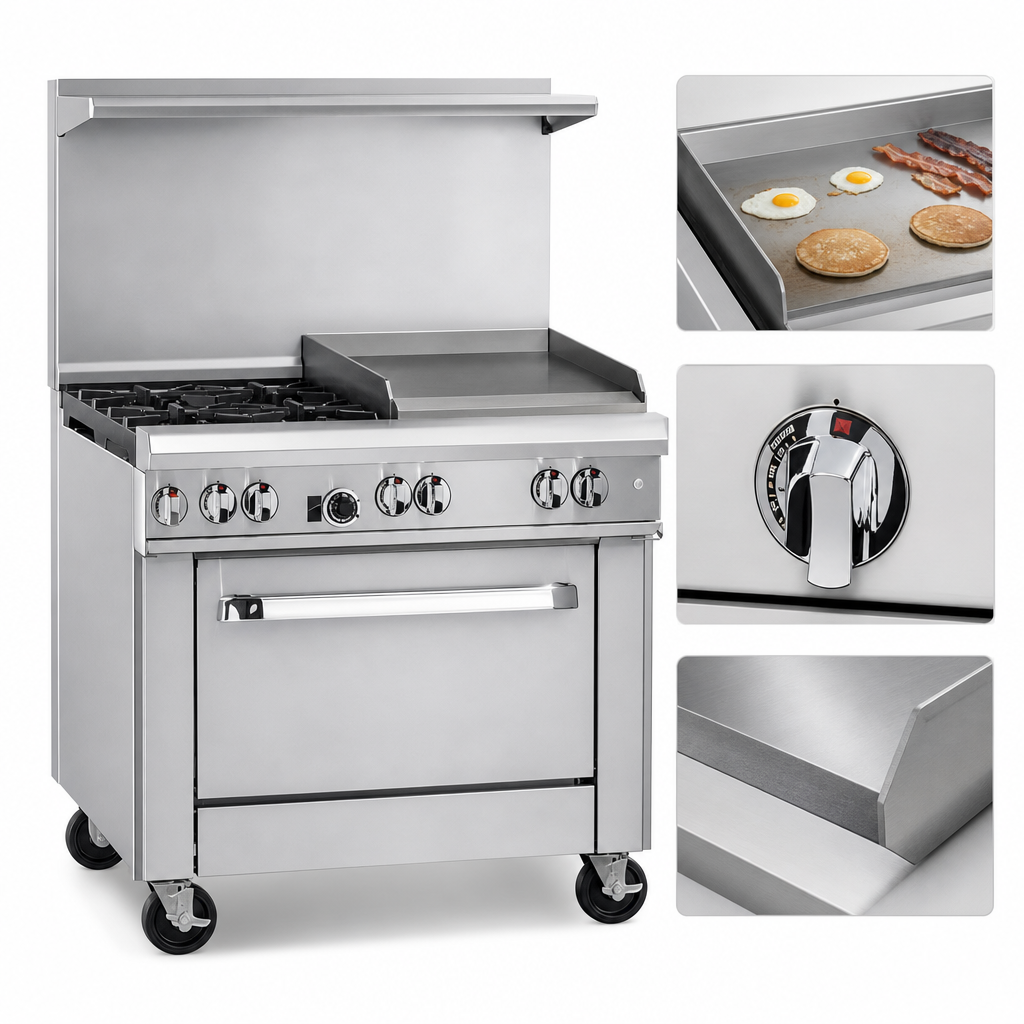

• 24" Right-Side Griddle – ½" cold-rolled steel plate with precise thermostatic controls (175-550 °F) handles breakfast to sear-finish dinner menus.
• High-Efficiency Convection Oven – 32,000 BTU chamber with battery-spark ignition, forced-air circulation, and three adjustable racks for uniform baking and roasting.
• Rugged Construction – Stainless steel front, sides, shelf, and 22-½" flue riser withstand daily abuse while keeping cleanup fast.
• Easy Serviceability – Front-located manual gas shut-off, factory-installed regulator, and standing pilots simplify maintenance and start-up.
• Certified & Supported – cCSAus, CSA Flame & Star, NSF listed and backed by a 1-year parts & labor warranty.

Product Details

• Overall input: 146,000 BTU/hr (natural gas)
• Cooking height: 37" with 4" stainless front rail
• Battery-spark ignition on convection base; standing pilots on open burners
• Six removable cast-iron top grates (rear accepts up to 14" stock pots)
• Spring-assisted oven door with porcelain-enameled, coved-corner cavity
• 6" stainless steel adjustable legs for easy leveling or cleaning underneath
• Factory-installed 3/4" pressure regulator & 6' 115 V cord set (5.9 A) for oven blower

At-a-Glance Specs

Peace-of-Mind Warranty

Southbend covers this Ultimate series range for one year on parts and labor, when serviced by an authorized Southbend agency. Full terms available at southbendnc.com/service-and-parts.
