Southbend (Middleby)  |  Ultimate  |  SKU: 4363A-1G

Southbend (Middleby) 4363A-1G Ultimate Gas Ranges

$10,675.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Ultimate 36" Gas Restaurant Range – 4 Star/Sauté Burners, 12" Left-Side Griddle & Convection Oven

Southbend 436 Series • 182,000 BTU • Natural or LP Gas

Engineered for demanding commercial kitchens, the Southbend Ultimate 36" Range packs a powerful sauté system, a space-saving griddle and a high-efficiency convection oven into a single, stainless-steel workhorse. Whether you’re searing, sautéing or baking, this range delivers the speed, consistency and durability chefs rely on every service.

Why you’ll love it

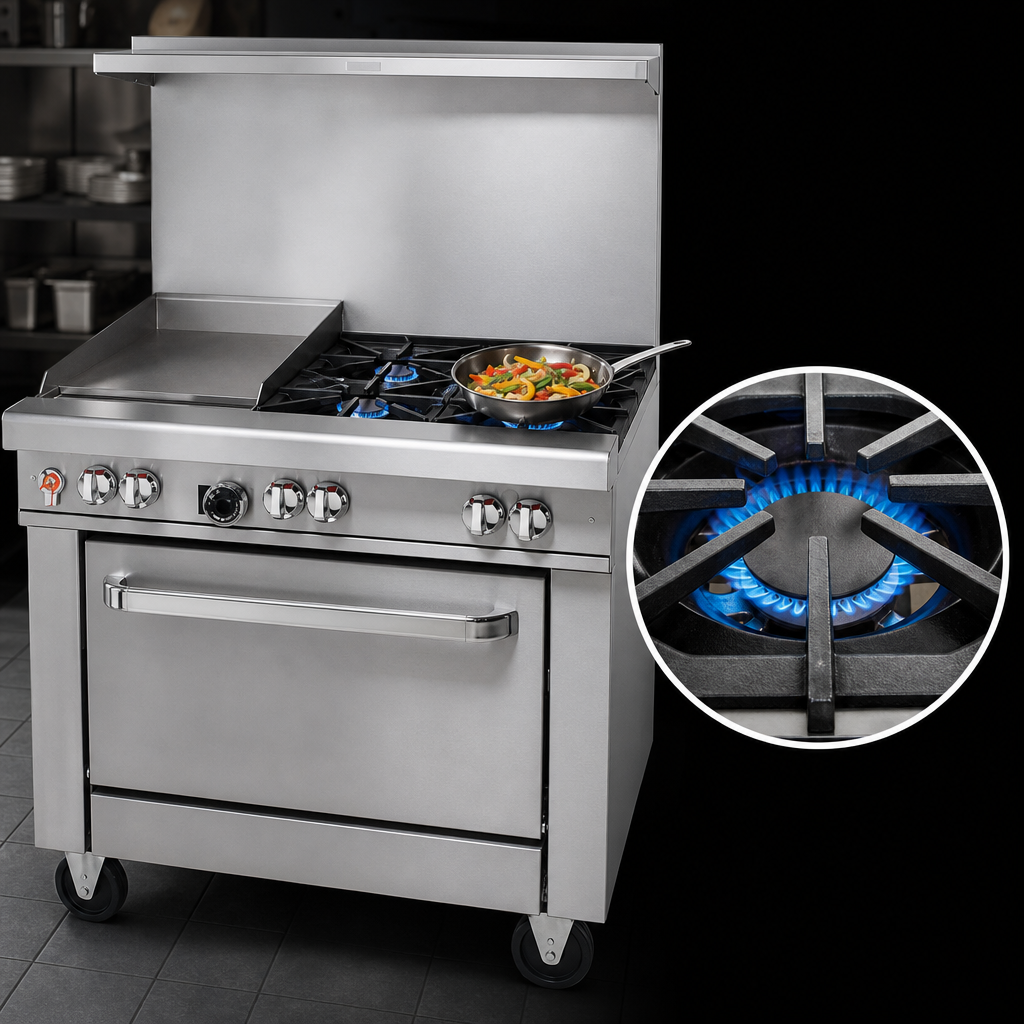

  • Four 33,000 BTU cast-iron star burners for fast, even heat and precise sauté control.

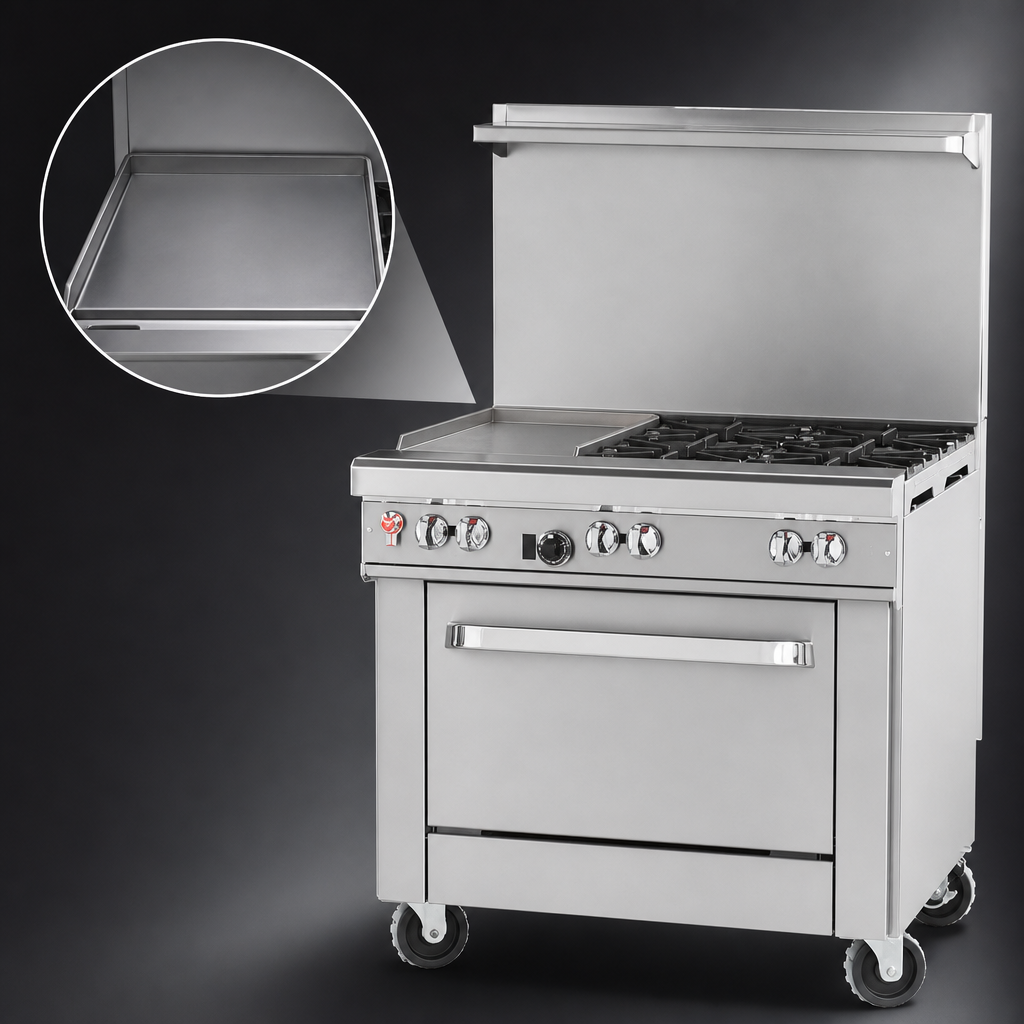

  • 12" wide, ½" thick cold-rolled steel griddle (left-side) – perfect for breakfast items, smash burgers or stir-fry.
  • 32,000 BTU convection oven with battery-spark ignition and three nickel-plated racks (five positions) for uniform baking and roasting.
  • 22½" flue riser with heavy-duty shelf keeps pans and seasonings within easy reach.
  • Stainless-steel front, sides and shelf plus 6" adjustable legs for superior durability and hygiene.
  • Front-mounted ¾" manual gas shut-off and factory-installed regulator simplify installation and daily operation.
  • Standing pilots on open burners for instant lighting; battery spark ignition on the oven saves on utility costs.
  • Backed by Southbend’s 1-year limited parts & labor warranty and supported across North America.

Performance at a glance

Total Input 182,000 BTU/hr
Open Top 4 × 33,000 BTU star/sauté burners (cast iron)
Griddle 12" wide, 18,000 BTU; ½" steel plate
Oven 32,000 BTU convection; 175 – 550 °F thermostat; 115 V fan motor

Dimensions & utilities

Exterior (W × D × H) 36.5" × 42.13" × 59.5" (to top of flue)
Cooking Surface Height 37"
Oven Cavity (W × D × H) 26" × 24" × 14"
Gas Connection ¾" NPT (rear, opposite griddle side)
Minimum Inlet Pressure Natural 7" W.C. • LP 11" W.C.
Electrical 115 V / 60 Hz / 1-ph, 5.9 A, 6' cord & plug (oven fan & ignition)
Shipping Weight Approx. 660 lb

Certifications

  • cCSAus, CSA Flame & CSA Star gas safety approvals
  • NSF listed for sanitation

Includes Southbend’s 1-year limited parts & labor warranty. Full policy & exclusions.

Important: Intended for commercial use only. Install under a vented hood with 10" minimum clearance to combustible materials on sides and rear. Oversized cookware (12"+) should be used on rear grates to avoid heat damage to the front rail.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

36.5in

Depth

43.6in

Shipping Weight

660.0lbs

Vent

backriser with hi-shelf

Plate Thickness

.500" = 1/2"

Base

(1) convection oven

Exterior Finish

stainless steel front & sides

Top

(4) open burners, (1) 12" griddle

Specifications

Ultimate Restaurant Range, gas, 36", (4) star/sauté burners, standard grates, (1) 12" griddle left,standard grates, standing pilot, (1) convection oven with battery spark ignition, includes (3) racks, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 182,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
