Southbend (Middleby) 4362D Ultimate Gas Ranges

Southbend Ultimate 36" Gas Restaurant Range

Give your kitchen the rock-solid performance chefs have trusted since 1898. The Southbend Ultimate 36" Range packs six high-efficiency, lifetime non-clog burners and a 45 kBTU standard oven into a rugged, all-stainless body—perfect for high-volume restaurants that demand power, consistency, and easy clean-up.

Cooktop Highlights

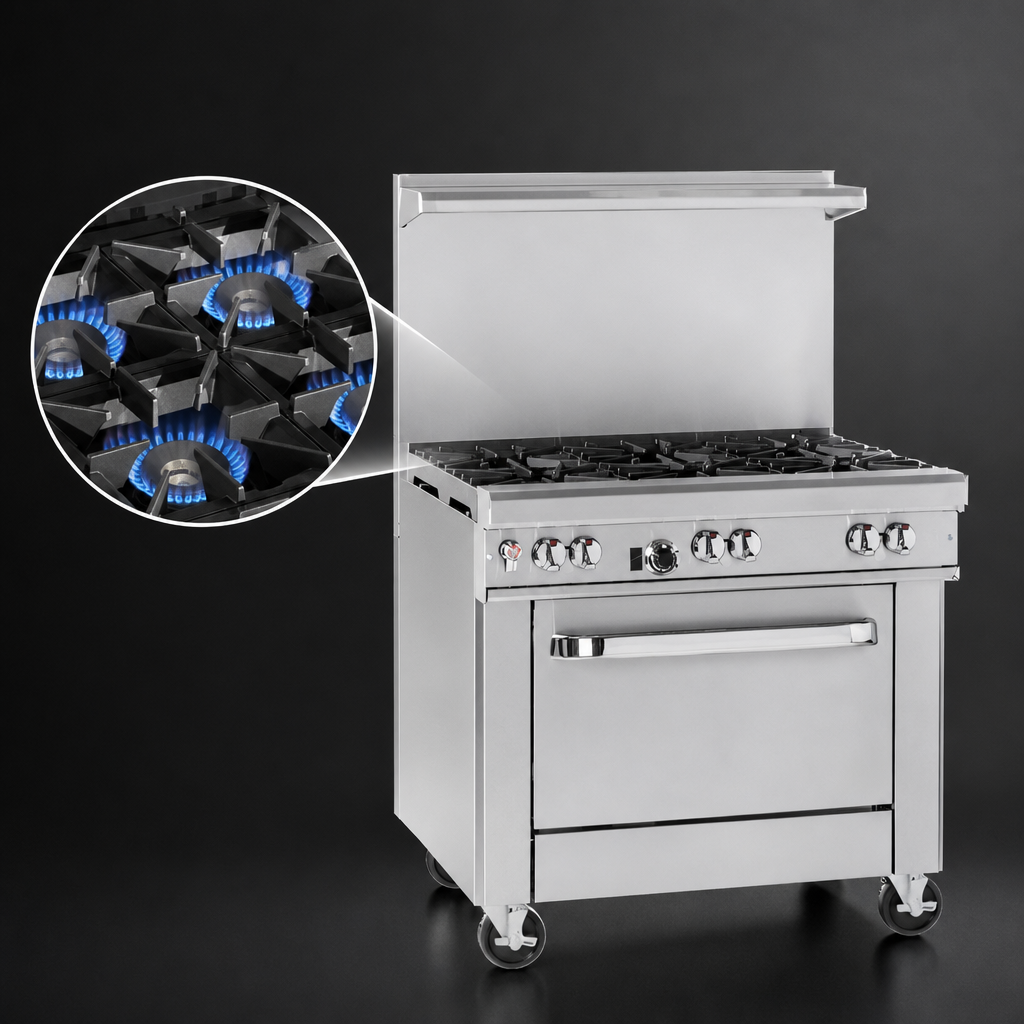

• (6) 27,000 BTU non-clog cast-iron burners – 162 kBTU total

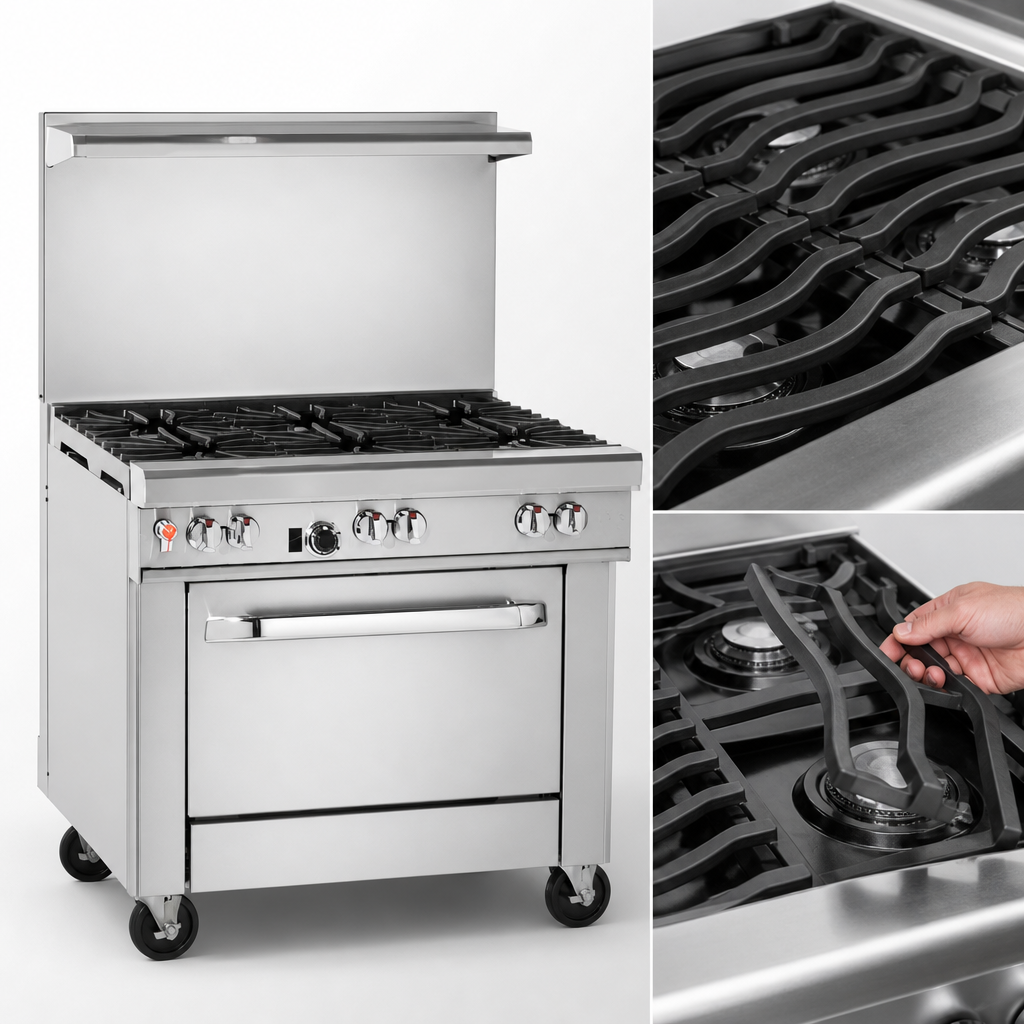

• Wavy cast-iron grates maximize pan contact and let you slide pots effortlessly across the 27"-deep surface
• Standing pilots for instant lighting; front-mounted manual gas shut-off for full-range safety
• Removable one-piece drip tray for fast, edge-to-edge clean-up

Oven & Base

• 45,000 BTU standard oven with battery-spark ignition—no external power cord required
• 14"H x 26"W x 26.5"D porcelain-enameled cavity resists corrosion and wipes clean
• Includes one heavy-duty rack with two-position side rails
• Spring-assisted door and full insulation for even bake results up to 550 °F

Built to Last

• Stainless steel front, sides, shelf, and 22.5" flue riser with integrated utensil shelf
• 6" adjustable stainless legs allow simple leveling or optional casters
• Factory-installed 3/4" regulator; front rail is a full 4" deep for plating or resting pans
• CSA & NSF certified for commercial kitchens
• Backed by Southbend’s 1-year parts & labor warranty

At-a-Glance Specs

• Install under a properly vented hood.  • For cookware 12" Ø or larger, place pots on rear burners to avoid excess heat at the front rail.  • Commercial use only; not for residential installation.
