Southbend (Middleby) 4362D-2TR Ultimate Gas Ranges
Description

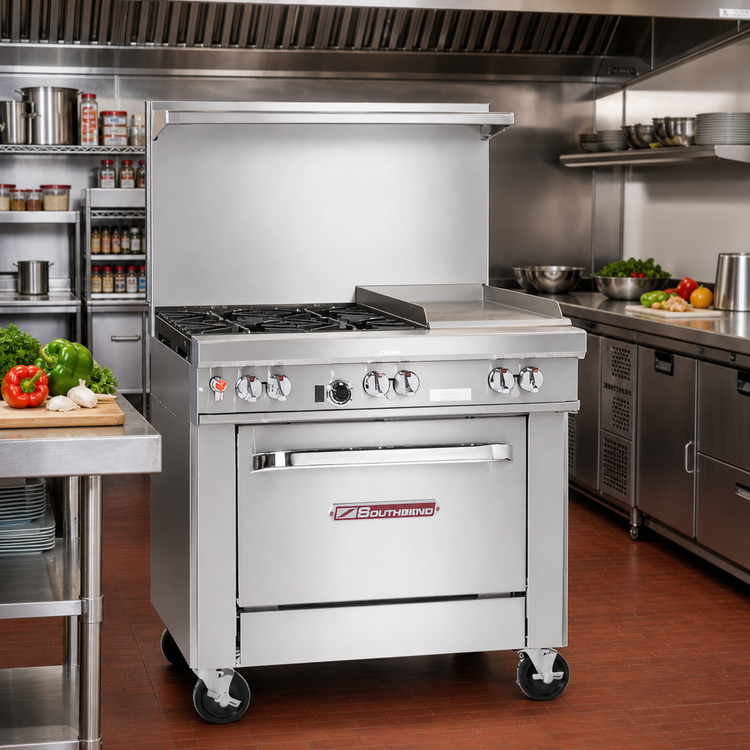

Southbend “Ultimate” 36″ Gas Restaurant Range
2 Non-Clog Burners • 24″ Right-Side Griddle • Standard Oven BaseEngineered for high-volume kitchens that demand versatile performance in a compact footprint, the Southbend Ultimate 36″ Restaurant Range (model 436-2NC-24G) combines powerful open-top cooking, a full-size griddle, and a battery-spark standard oven—all wrapped in heavy-gauge stainless steel that’s built to thrive on the cookline.
Key Features
- (2) 27 k BTU patented non-clog burners with standing pilots—built to resist grease & food debris.
- Wavy cast-iron grates let you slide pans effortlessly across the entire top.

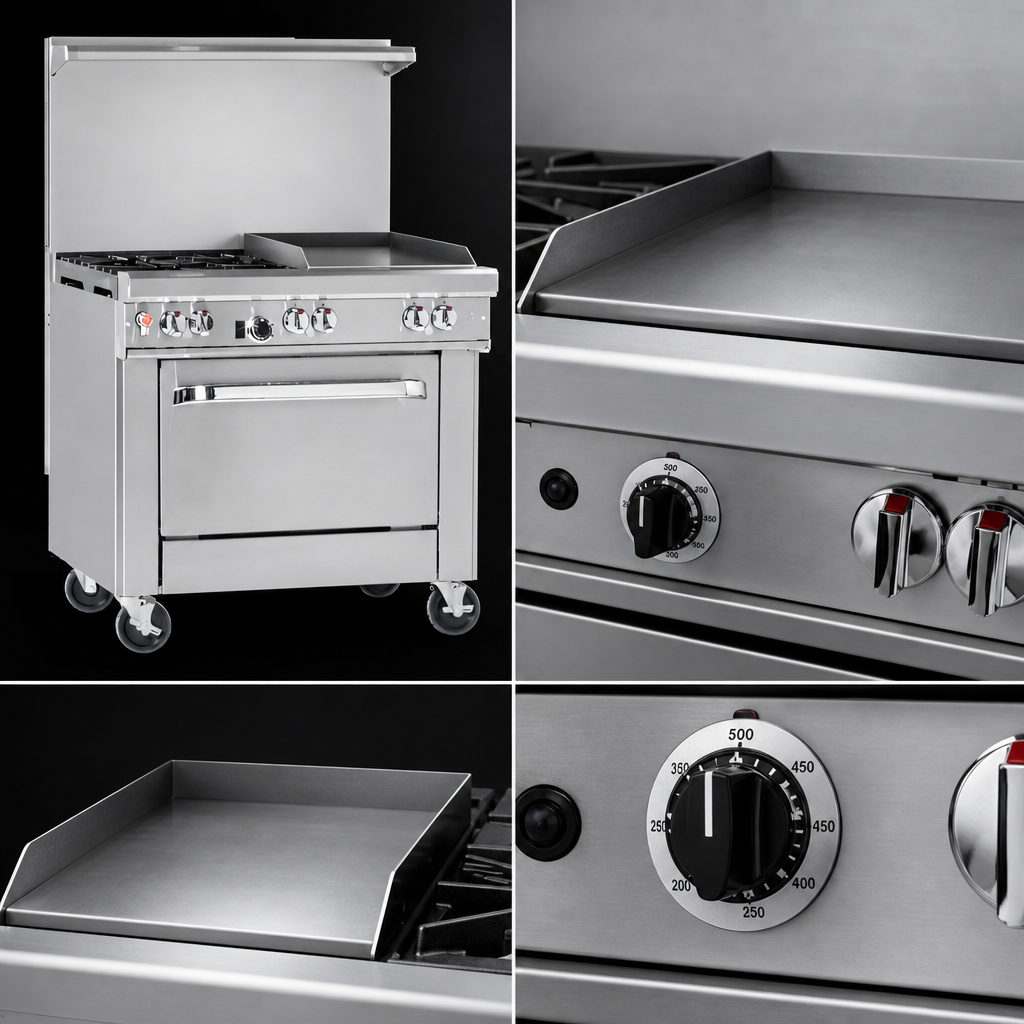

- 24″ griddle (½″ cold-rolled steel) on the right side with precise thermostatic controls 175 °F-550 °F (79 °C-288 °C).
- 45 k BTU standard oven with battery-spark ignition, porcelain-enameled cavity, and one adjustable rack.
- Integrated 22½″ flue riser & heavy-duty stainless shelf—perfect for resting pans and smallwares.
- Front-mounted manual gas shut-off for the entire range.
- 4″ deep stainless front rail doubles as a plating shelf.
- 6″ adjustable stainless legs for fast leveling on uneven floors.
- Total input: 147,000 BTU/hr; ¾″ rear gas connection with factory-installed regulator.
- Certified: cCSAus, CSA Flame, CSA Star, NSF.
- Backed by Southbend’s 1-year parts & labor warranty.
At-a-Glance Specs
| Overall width | 36 in (927 mm) |
|---|---|
| Depth (front rail → rear) | 34 in (864 mm) – includes 27″ cooking surface |
| Cooking height | 37 in (940 mm) |
| Top configuration | (2) open burners, 24″ griddle right |
| Griddle plate | ½″ cold-rolled steel, thermostatic |
| Oven interior (WxDxH) | 26″ × 26.5″ × 14″ (660 × 673 × 356 mm) |
| Gas input | 147,000 BTU/hr |
| Gas connection | ¾″ NPT (rear, opposite griddle) |
| Electrical | None required (battery spark oven ignition) |
| Ship weight | Approx. 660 lb (300 kg) |
Why Choose Southbend’s Ultimate Series?
- Lifetime non-clog burners reduce downtime and service calls.
- Modular design lets you swap tops or add matching salamanders & cheesemelters later.
- Industry-leading service network and quick-ship replacement parts keep you cooking.
- Certified for commercial use and ready for installation under a vented hood.
