Southbend (Middleby) 4362D-2GR Ultimate Gas Ranges
Description

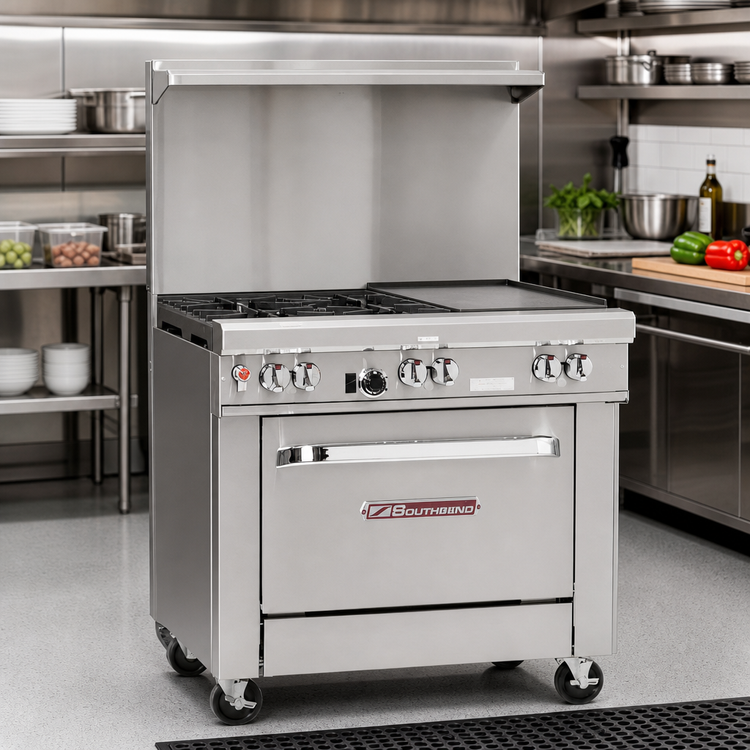

Southbend Ultimate 36″ Gas Restaurant Range w/ 24″ Right-Side Griddle & Standard Oven – 147,000 BTU
Model 436D-2G24 • Natural Gas • Wavy GratesCombine high‐output open burners, a full-size griddle and a rugged standard oven in one 36-inch footprint. Southbend’s Ultimate Series is engineered for demanding commercial kitchens that can’t compromise on power, versatility or longevity.
Key Advantages
- 147,000 BTU total input delivers rapid recovery and all-day performance

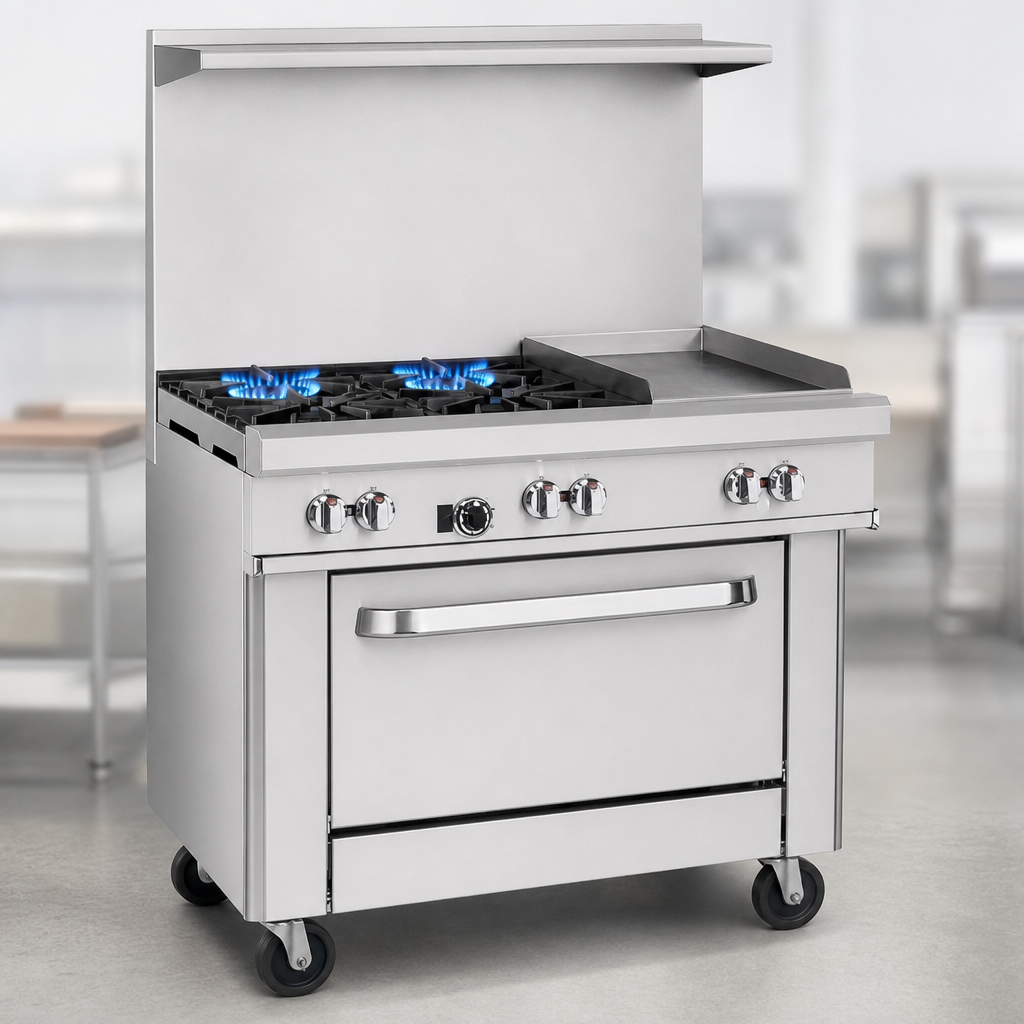

- (2) 27 k BTU non-clog open burners with patented wavy cast-iron grates for superior pan stability
- 1/2″-thick 24″ steel griddle (48 k BTU) on the right—perfect for breakfast, burgers & finishing
- 45 k BTU standard oven with battery spark ignition; ships with 1 rack (2 positions)
- Standing pilots on open burners for instant lighting
- 22 ½″ stainless flue riser with heavy-duty storage shelf keeps plates & pans warm
- All-stainless front, sides & 4″ front rail plus 6″ adjustable stainless legs
- Front-mounted manual gas shut-off for the entire range
- Factory-installed ¾″ regulator; 7″ W.C. Natural gas inlet (field convertible to LP)
- Certifications: cCSAus, CSA Flame, CSA Star & NSF
- Backed by a 1-year limited parts & labor warranty
Specification Snapshot
| Overall width | 36.5″ (927 mm) |
|---|---|
| Overall depth | 34″ (864 mm) |
| Overall height (cooktop / top of riser) | 37″ / 59.5″ (940 / 1,511 mm) |
| Cooking surface depth | 27″ (686 mm) |
| Open burners | (2) 27 k BTU non-clog cast-iron |
| Griddle section | 24″ W × 27″ D, 1/2″ plate, 48 k BTU |
| Oven interior (W × D × H) | 26″ × 26.5″ × 14″ (660 × 673 × 356 mm) |
| Oven BTU / Temp range | 45 k BTU • 175 °F – 550 °F |
| Total BTU input | 147 k BTU/hr |
| Gas connection | ¾″ NPT (rear), regulator included |
| Electrical | None—battery spark ignition (AAA batteries) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1 year parts & labor |
Durability You Can Count On
- Double-sided porcelain-enamel oven cavity with coved corners for easy cleanup and even airflow
- Spring-assisted oven door stays balanced and closes softly to protect gaskets & hinges
- Rear grate sections support stock pots up to 14″ without sacrificing burner efficiency
- One-piece removable drip tray spans the entire range top for fast, thorough cleaning
What’s in the Box
- (1) Oven rack
- Pressure regulator (factory installed)
- 6″ Stainless adjustable legs
- User, installation & warranty documentation
Need extra oven racks, casters or a salamander mount? Let us know before checkout and we’ll add any Southbend factory options to your order. Full warranty details available on the Southbend Service & Parts page.
