Southbend Ultimate 36-Inch Commercial Gas Range with 2 Open Burners, 24-Inch Charbroiler and Standard Oven

Stainless Steel, Standing Pilot, 163,000 BTU, 22.5-Inch Flue Riser with Shelf

A versatile 36-inch range that combines open burners, a charbroiler, and a standard oven in one durable stainless steel footprint.

  • Combines 2 open burners, a 24-inch charbroiler, and a standard oven in one 36-inch platform.
  • Standing pilot burners and battery spark oven ignition support dependable everyday operation.
  • Wavy cast iron grates help maximize usable top space while supporting heavy cookware.
  • Stainless steel front, sides, shelf, and 6-inch adjustable legs are built for busy commercial kitchens.
  • Includes a 22.5-inch flue riser with shelf and one oven rack.
  • 163,000 BTU total input delivers the heat needed for high-volume service.

Overall Dimensions:

36.5"W x 34.0"D x 59.5"H

Product Weight:

660.0 lb

2 Non-Clog Open Burners

The cooktop includes two standing-pilot open burners for reliable heat on the range top.

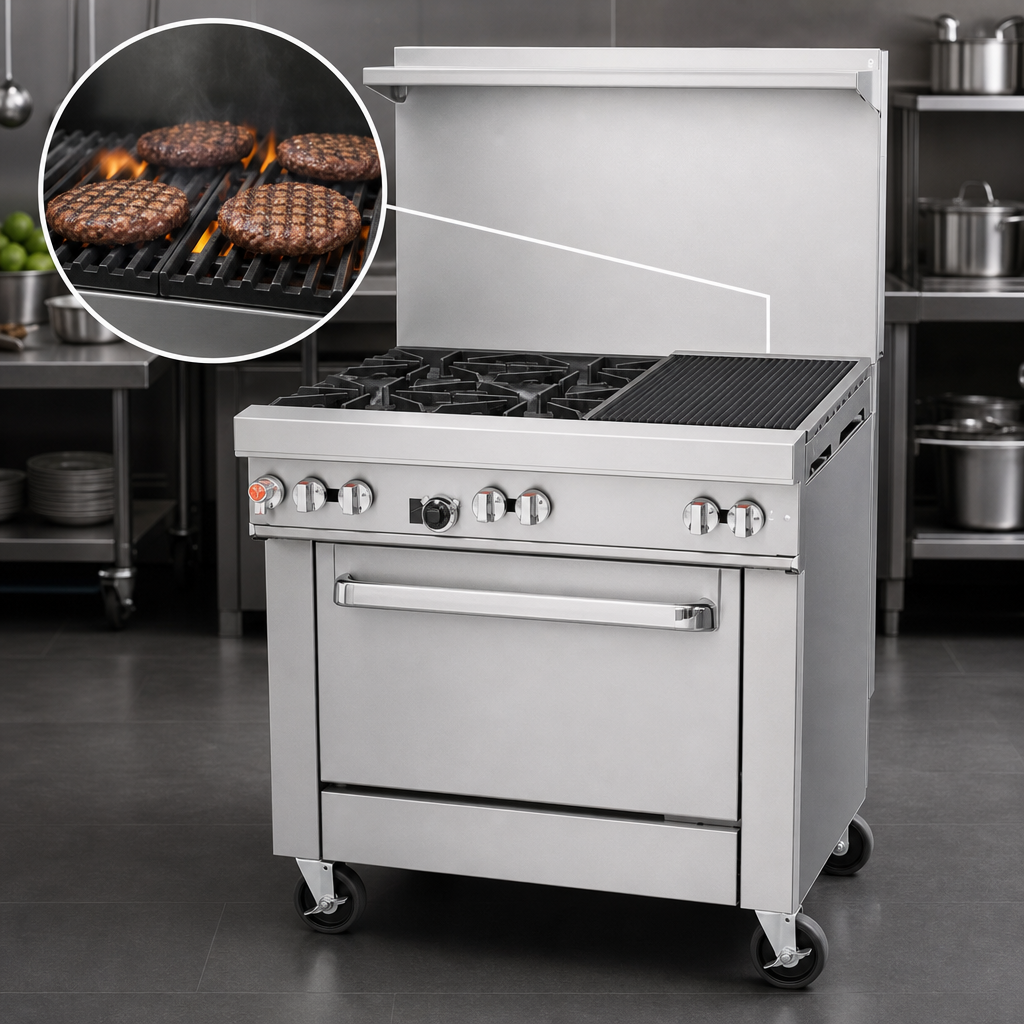

24-Inch Charbroiler

An integrated charbroiler adds grilling capability without taking up extra kitchen space.

Standard Oven Base

The range includes one standard oven with battery spark ignition, a thermostat range of 175°F to 550°F, and one oven rack.

Wavy Cast Iron Grates

Wavy grates provide a durable cooking surface and allow full use of the range top.

Stainless Steel Construction

Stainless steel front, sides, and shelf help the unit stand up to commercial use.

Porcelain Enamel Oven Interior

The oven cavity uses a double-sided porcelain enamel interior for easier cleaning and corrosion resistance.

22.5-Inch Flue Riser with Shelf

The standard backriser includes a heavy-duty shelf for additional holding or staging space.

Factory-Installed Regulator and Manual Shut-Off

A factory-installed regulator and front-located manual gas shut-off support installation and service.

6-Inch Adjustable Legs

Stainless steel adjustable legs help with leveling and floor clearance.

Type Gas Range
Style Ultimate
Installation Type Floor Model
Compartments 1
Cooking Surface Width 36 Inches
Cooking Surface Depth 27 Inches
Temperature Range 175°F to 550°F
BTU 163,000 BTU
Material Stainless Steel
Finish Stainless Steel
Interior Finish Porcelain Enamel
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes 2 open burners, a 24-inch charbroiler, one standard oven, one oven rack, a 22.5-inch flue riser with shelf, and 6-inch adjustable legs.
The open burners use standing pilot ignition, and the oven uses battery spark ignition.
The standard oven is rated from 175°F to 550°F.
The oven interior measures 14 inches high by 26 inches wide by 26.5 inches deep.
The product includes a 1-year limited parts and labor warranty.
