Southbend (Middleby) 4362D-1G Ultimate Gas Ranges
Description
Southbend “Ultimate” 36" Gas Restaurant Range
(4) Non-Clog Burners • 12" Left-Side Griddle • Standard OvenBuilt for kitchens that never slow down, the Southbend Ultimate Series packs open-top performance, griddle versatility and oven capacity into a single, heavy-duty 36" platform. From flash-sauté to all-day searing and baking, this range delivers 171,000 total BTU of dependable, even heat in a stainless-steel chassis that’s ready for the rush.
Why You’ll Love It

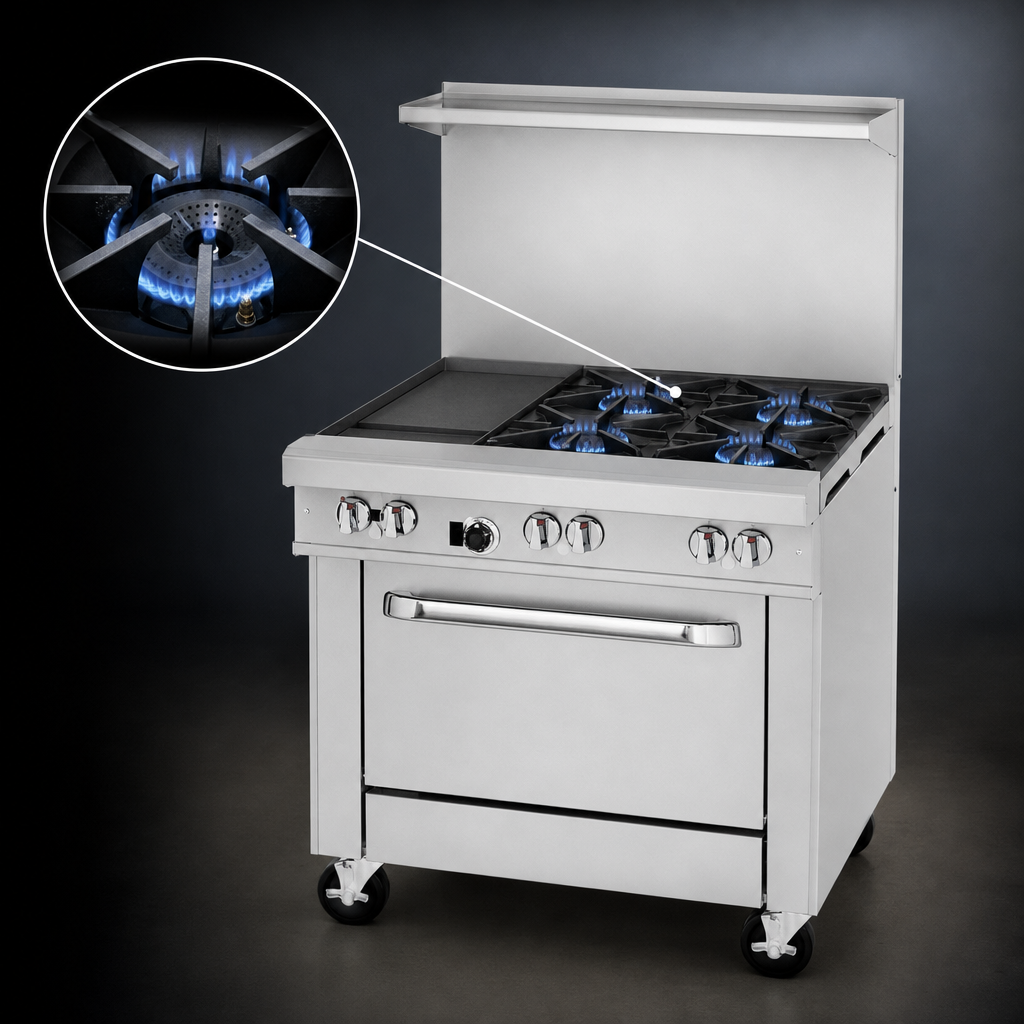

- Four 27,000 BTU non-clog burners with lifetime-cast iron heads and wavy grates for full-surface pan stability.
- 12" griddle (½" steel) on the left side—perfect for eggs, pancakes and quick-sear menu items.
- 45,000 BTU standard oven with battery-spark ignition, 175-550 °F thermostat and porcelain interior for easy cleanup.
- 22½" flue riser with integrated plate shelf keeps cookware warm and organized.
- Stainless steel front, sides, shelf and 4" front rail resist corrosion and wipe down fast.
- 6" adjustable stainless legs for level placement on uneven floors.
- Factory-installed ¾" gas regulator and front-located shut-off simplify installation and service.
- cCSAus, CSA Flame, CSA Star & NSF listed for wide code acceptance.
Power & Capacity
- Open burners: 4 × 27,000 BTU (natural) non-clog design
- Griddle: 18,000 BTU — 12" W × 27" D cold-rolled steel plate
- Oven: 45,000 BTU standard bake cavity, includes 1 rack / 2 positions
- Total input: 171,000 BTU/hr
Built to Last
- One-piece removable drip tray spans entire cooktop for quick crumb & grease removal.
- Double-sided porcelain oven liner with coved corners prevents corrosion and speeds wipe-downs.
- Counter-balanced, spring-assisted oven door stands up to constant opening and closing.
- Heavy-duty cast-iron grate tops accommodate stock pots up to 14" in diameter.
Specifications
| Overall width | 36.5" (927 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cooktop height | 37" (940 mm) |
| Height w/ flue riser & shelf | 59.5" (1,511 mm) |
| Oven interior (WxDxH) | 26" × 26.5" × 14" |
| Total BTU input | 171,000 BTU/hr |
| Gas connection | ¾" NPT (rear, factory regulator included) |
| Ignition | Standing pilot (top) | Battery spark (oven) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (factory authorized service network) |
- Install under a properly sized vent hood; maintain 10" side/rear clearance from combustibles.
- For non-quarry tile floors, contact Southbend for approved leg/caster solutions.
- Limit cookware larger than 12" Ø to the rear burners to avoid heat build-up on the front rail.
