Southbend (Middleby) 4362C Ultimate Gas Ranges
$6,722.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) 4362C Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4362C Ultimate Gas Ranges
$6,722.00
Unit price
/
Unavailable
Description

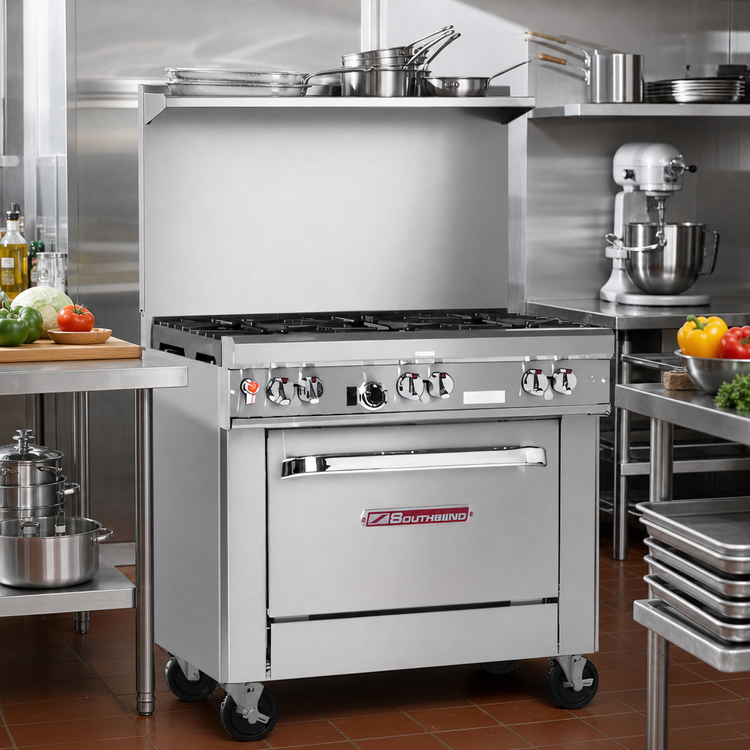

Southbend Ultimate 36″ Gas Restaurant Range – 6-Burner w/ Wavy Grates & Cabinet Base
Model 436C-WAV | 162,000 BTU | CSA & NSF CertifiedEngineered for the busiest kitchens, the Southbend Ultimate Series 36″ range delivers high-output performance, rugged all-stainless construction and chef-friendly features in a space-saving footprint.
Key Features

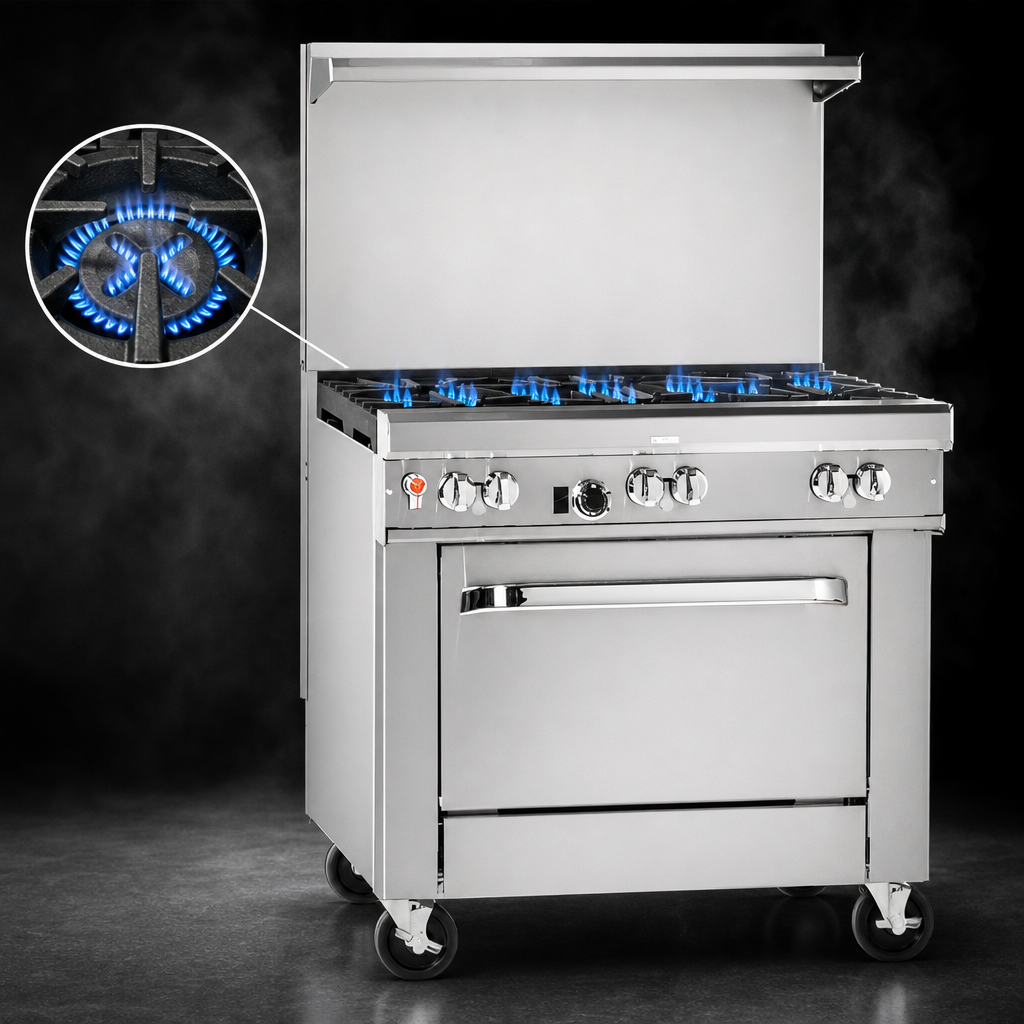

- Six (6) patented, lifetime non-clog cast-iron burners – 27,000 BTU each (162,000 BTU total)

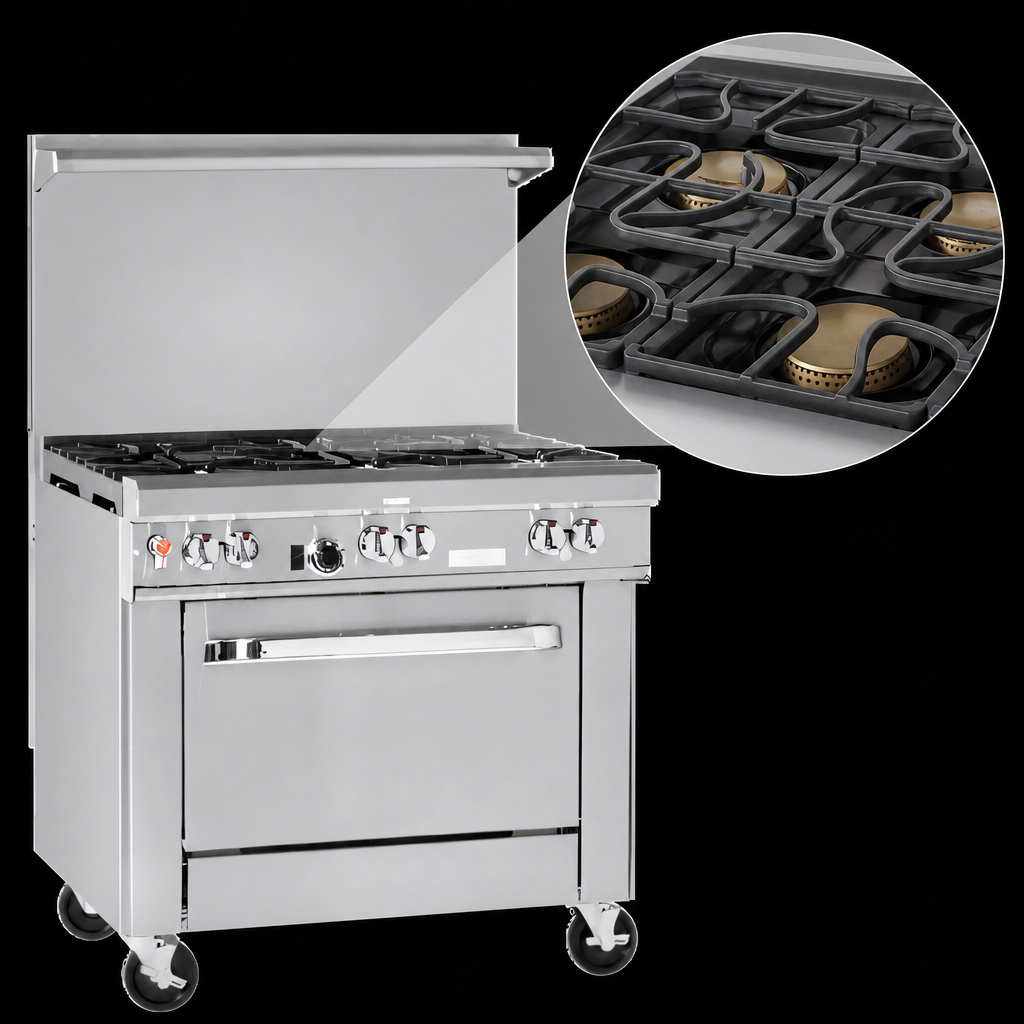

- Exclusive cast-iron wavy grates let you slide cookware across the entire top without lifting
- Rear grates support stock pots up to 14″ diameter for high-volume production
- 22 ½″ flue riser with heavy-duty shelf keeps pans warm and workspace clear
- 4″ deep stainless front rail stays cool and doubles as a plating shelf
- Front-mounted manual gas shut-off and factory-installed regulator simplify installation & service
- Standing pilots for instant ignition – no electrical hookup required for cooktop
- Stainless cabinet base offers convenient, easy-to-clean dry storage (optional center-opening doors at no charge)
- 6″ adjustable stainless legs; optional all-swivel casters available
- One-piece removable drip tray for fast cleanup
- 1-year limited parts & labor warranty backed by Southbend’s nationwide service network
Specifications
| Overall Width | 36.5″ (927 mm) |
|---|---|
| Overall Depth | 34″ (864 mm) • 27″ deep cooking surface |
| Cooking Top Height | 37″ (940 mm) |
| Overall Height (to flue shelf) |
59.5″ (1,511 mm) |
| Open Burners | 6 × 27,000 BTU non-clog (Natural) | 24,000 BTU each on LP |
| Total Input | 162,000 BTU/hr (Natural Gas) |
| Gas Connection | ¾″ NPT female (rear); min. inlet 7″ W.C. NAT / 11″ W.C. LP; pressure regulator included |
| Base | Stainless steel storage cabinet |
| Exterior Finish | Stainless steel front, sides, flue riser & shelf |
| Certifications | CSA Flame, CSA Sanitation, NSF |
| Warranty | 1-year parts & labor (see Southbend Limited Warranty) |
Need casters, salamander mounts or other customizations? Contact us for a tailored quote.
For commercial use only. To prevent heat damage, avoid letting oversized cookware hang over the front rail and always install the range beneath a properly vented hood.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
36.5in
Depth
34.0in
Shipping Weight
660.0lbs
Vent
backriser with hi-shelf
Top
(6) open burners
Base
(1) cabinet
Exterior Finish
stainless steel front & sides
Specifications
Ultimate Restaurant Range, gas, 36", (6) non-clog burners, wavy grates, standing pilot, (1) cabinet base, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 162,000 BTU, CSA, NSF
