Southbend (Middleby) 4362C-2TR Ultimate Gas Ranges
Southbend (Middleby) 4362C-2TR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4362C-2TR Ultimate Gas Ranges
Description
Southbend Ultimate 36" Gas Restaurant Range – 2 Burners & 24" Thermostatic Griddle
102,000 BTU | Cabinet Base | cCSAus, CSA Flame & Star, NSFBuilt for operators who refuse to compromise, the Ultimate Series packs heavy-duty power, premium construction and versatile cooking zones into just 36 inches of line space. Slide stockpots over wavy grates, sear on a precision-controlled griddle and keep pans close in the stainless cabinet base—all on one rugged platform that needs zero electricity.
Key Performance Features

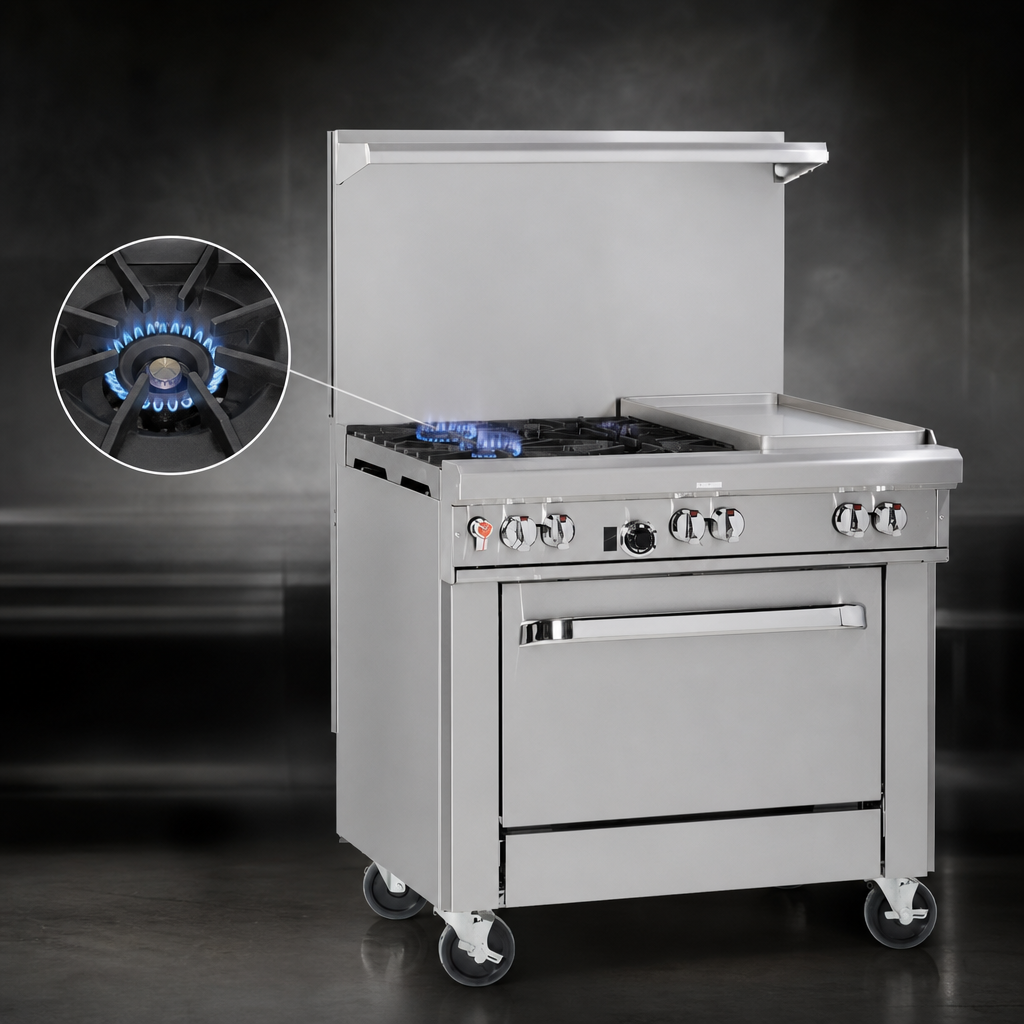

- 2 × 27,000 BTU non-clog open burners – lifetime cast iron heads with standing pilots

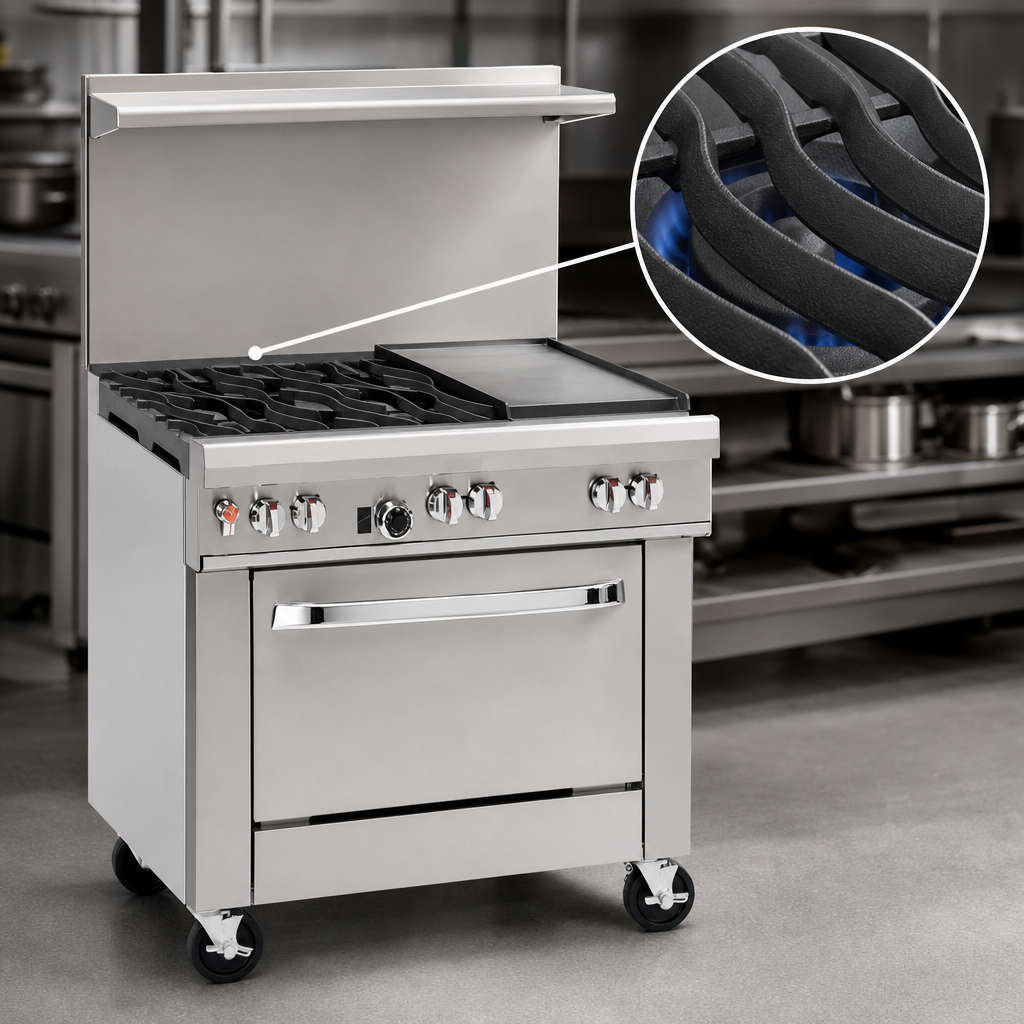

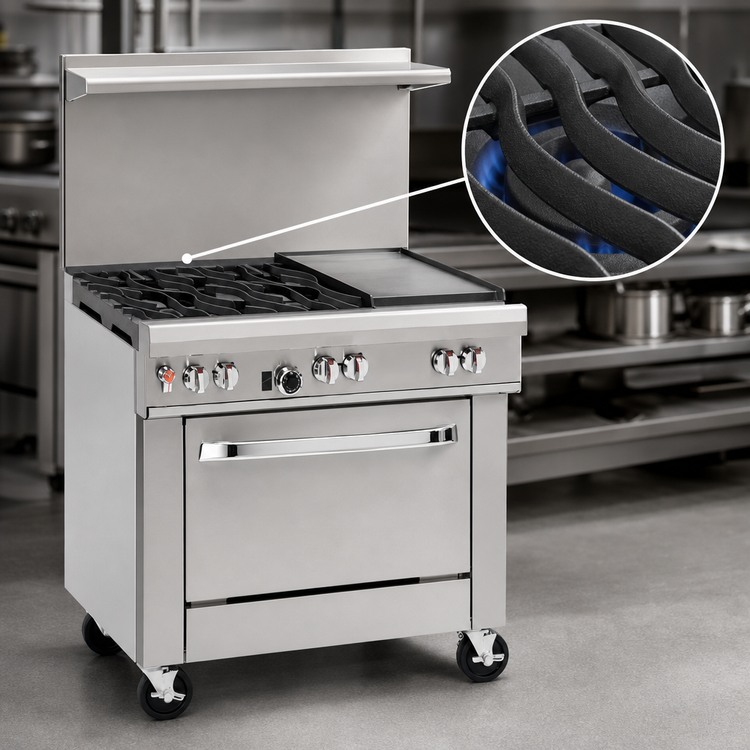

- Exclusive wavy cast iron grates let cookware glide across the entire top
- Right-side 24" griddle, ½" cold-rolled steel plate, 48,000 BTU with thermostatic range 175–550 °F
- Total input: 102,000 BTU/h (natural gas; LP convertible)
- Front-mounted ¾" NPT shut-off & factory pressure regulator for fast hook-up
- 22½" stainless flue riser with heavy-duty shelf for plating & mise en place
Engineered for the Long Haul
- All-stainless front, sides, 4" rail & shelf resist corrosion and clean easily
- 27" deep cooking surface accommodates full-size pans front-to-back
- Full-width removable drip tray simplifies grease management
- 6" adjustable stainless steel legs—required for combustible floor installs
- Backed by Southbend’s 1-year parts & labor warranty
Specifications
| Exterior width | 36.5" (927 mm) |
|---|---|
| Exterior depth | 34" (864 mm) |
| Cooking height | 37" (940 mm) |
| Overall height (to shelf) | 59.5" (1511 mm) |
| Open burners | 2 × 27,000 BTU cast iron, non-clog |
| Griddle | 24" right, ½" plate, 48,000 BTU, thermostatic |
| Total input | 102,000 BTU/h |
| Gas connection | ¾" NPT female, left rear (opposite griddle) |
| Min. inlet pressure | 7" W.C NAT / 11" W.C LP |
| Utility requirements | No electrical hookup required |
| Shipping weight | ≈ 660 lb (300 kg) |
| Certifications | NSF, cCSAus, CSA Flame & Star |
What’s Included
- Factory-installed pressure regulator
- Wavy cast iron grate set
- Full-width drip tray
- 22½" flue riser with storage shelf
- 6" adjustable stainless steel legs
Popular Options
- Stainless cabinet doors (no charge)
- All-swivel casters with front locks
- 5" or 10" flue risers
- ¾" quick-disconnect hose & restraining kit
- Salamander or cheesemelter mounts
Ask about Middleby Equipment Financing—quick online approval with fixed monthly payments keeps cash flow strong.
