Southbend (Middleby) 4362C-2GR Ultimate Gas Ranges
Description
Southbend Ultimate 36" Restaurant Range – 2 Burner / 24" Griddle (Right-Side)
102,000 BTU | Natural or LP Gas | Cabinet Base with High-Shelf Flue RiserBuilt for kitchens that demand versatility in a compact footprint, the Southbend Ultimate Series 36" range pairs two patented open burners with a full 24" steel griddle. Heavy-gauge stainless steel construction, industry-leading certifications and a rock-solid one-year warranty make this the last range you’ll worry about for a long time.
At a Glance

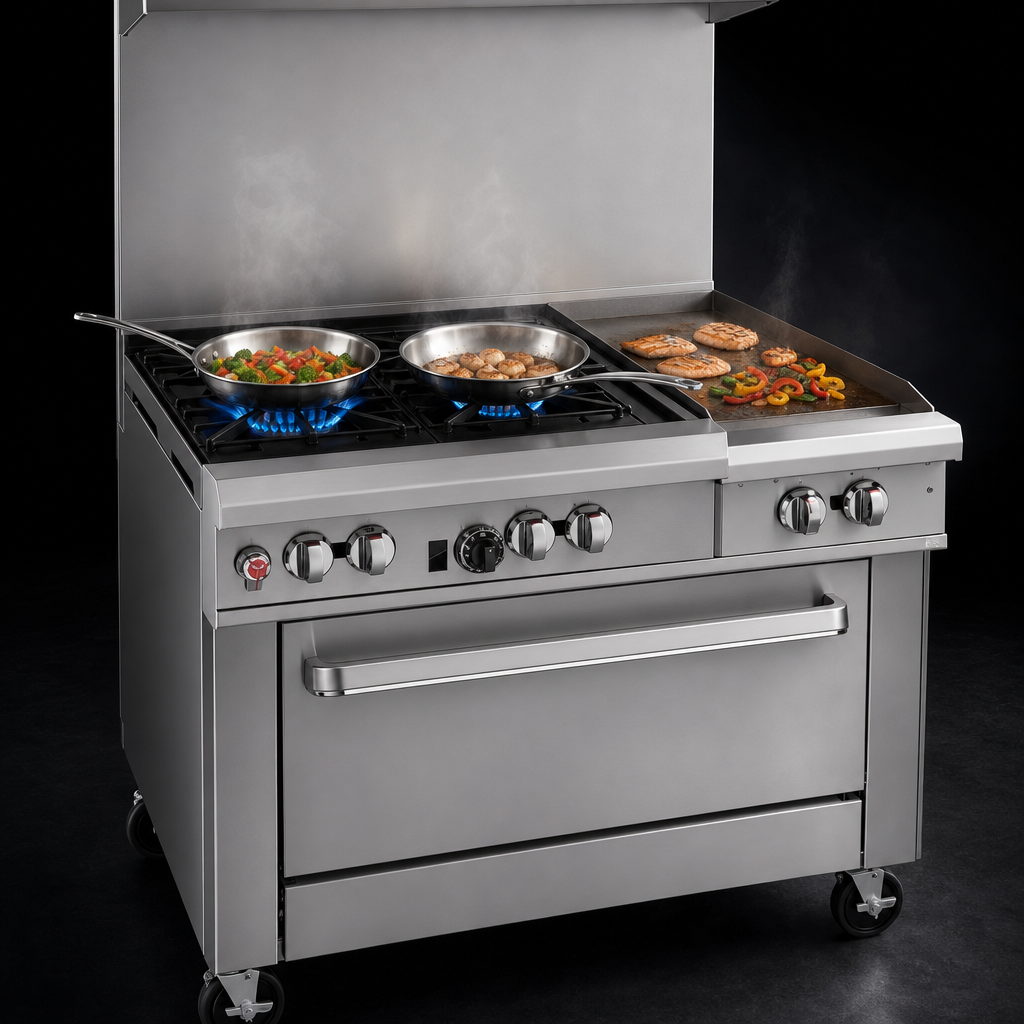

- 102,000 BTU total output: (2) 27,000 BTU non-clog burners + 48,000 BTU griddle
- Wavy cast-iron grates deliver full-surface pan support and faster heat transfer

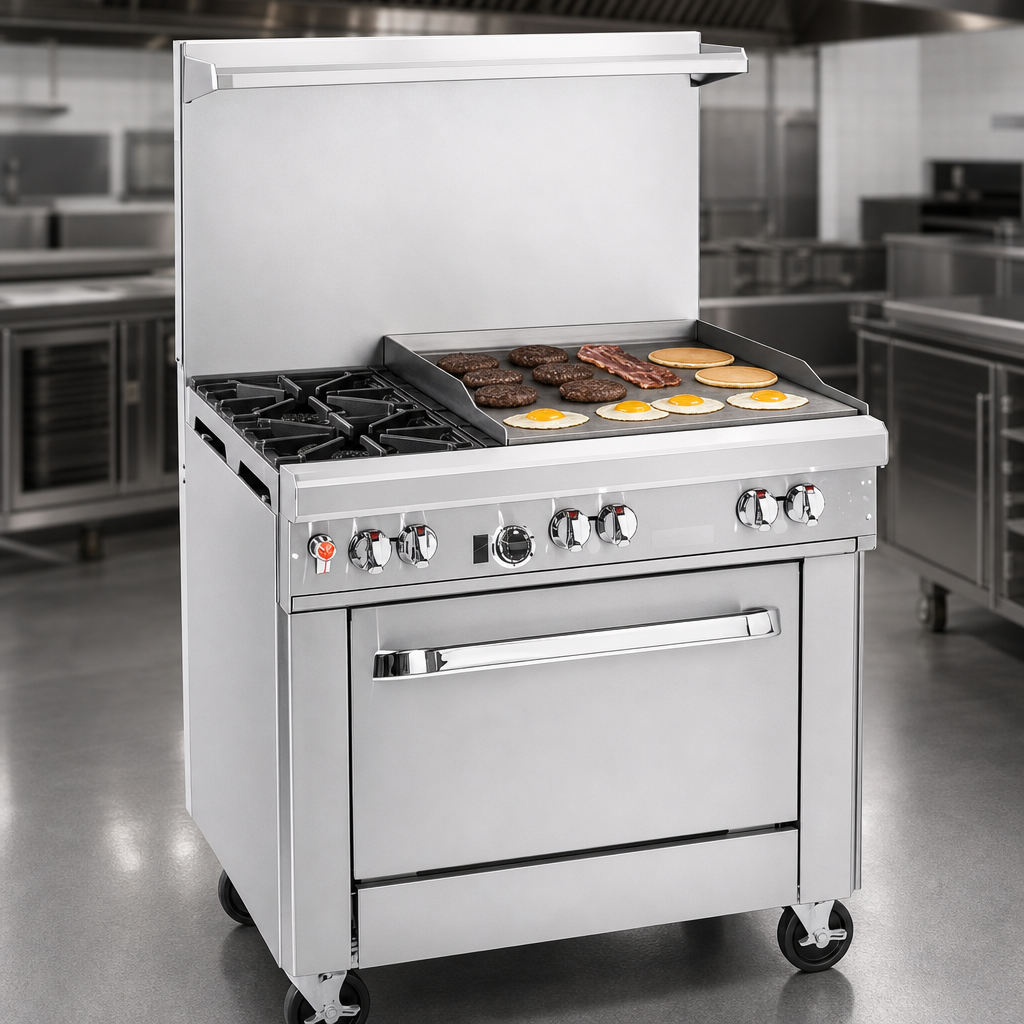

- 24" right-side griddle with ½" cold-rolled steel plate for all-day searing & breakfast duty
- Open cabinet base keeps sheet pans, stock pots or hotel pans within arm’s reach (optional doors available)
- 22½" stainless flue riser with heavy-duty shelf for spices, utensils or small equipment
- Front-mounted manual gas shut-off and factory pressure regulator for quick, code-compliant hook-up
- 6" adjustable stainless legs for a perfectly level cook line and easy sanitation underneath
- cCSAus • CSA Flame • CSA Star • NSF listed
What Makes Wavy Grates Better?
- Bowled profile cradles the flame for improved burner efficiency
- Allows 14" stock pots to sit anywhere on the top without tipping
- One-piece cast-iron sections lift off for rapid sink-side cleaning
Technical Specifications
| Exterior width | 36" (914 mm) |
|---|---|
| Cooking surface height | 37" (940 mm) |
| Top configuration | (2) open burners with wavy grates | 24" manual griddle (right) |
| Base | Open cabinet w/ 22½" high-shelf flue riser |
| Total input | 102,000 BTU/hr |
| Gas connection | ¾" NPT (side opposite griddle) |
| Clearances | 0" sides & rear to non-combustible | 10" to combustibles |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (factory authorized service network) |
Included with Purchase
- Factory-installed pressure regulator
- Standing pilots for each open burner
- Removable full-width drip tray
- User, installation & service manual
Commercial use only – not for household installation.
