Southbend (Middleby) 4362C-2CR Ultimate Gas Ranges
Description
Southbend Ultimate 36" Gas Restaurant Range – 2 Burners & 24" Charbroiler
Model 436C-2NCR24 • 118,000 BTU • CSA & NSF CertifiedBuilt for high-volume kitchens, the Ultimate Series delivers legendary Southbend durability with the power chefs demand. This 36-inch configuration pairs two clog-free open burners with a full 24-inch charbroiler, all atop a stainless cabinet base—giving you a compact powerhouse that sautés, boils and char-grills at the same time.
Highlights

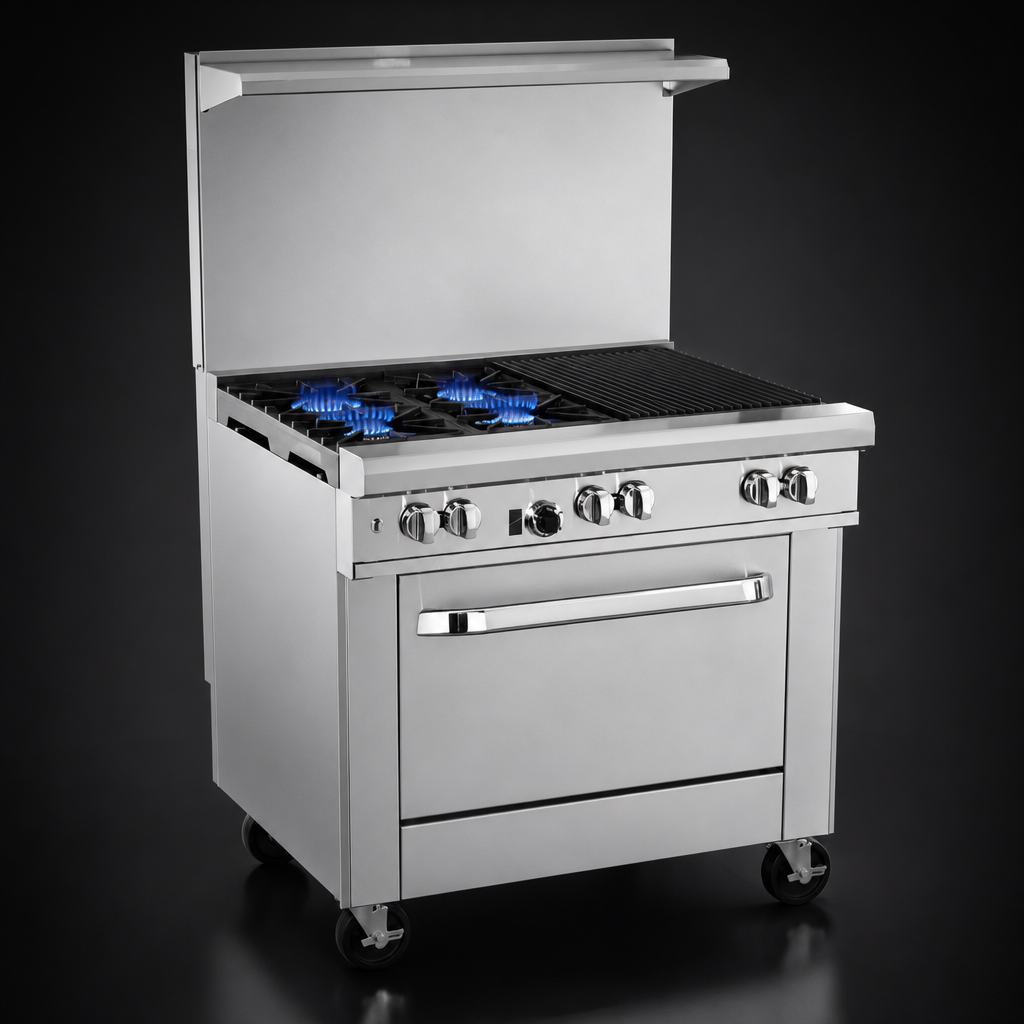

- (2) 27,000 BTU non-clog open burners with wavy cast-iron grates for maximum pan contact and easy pot movement.

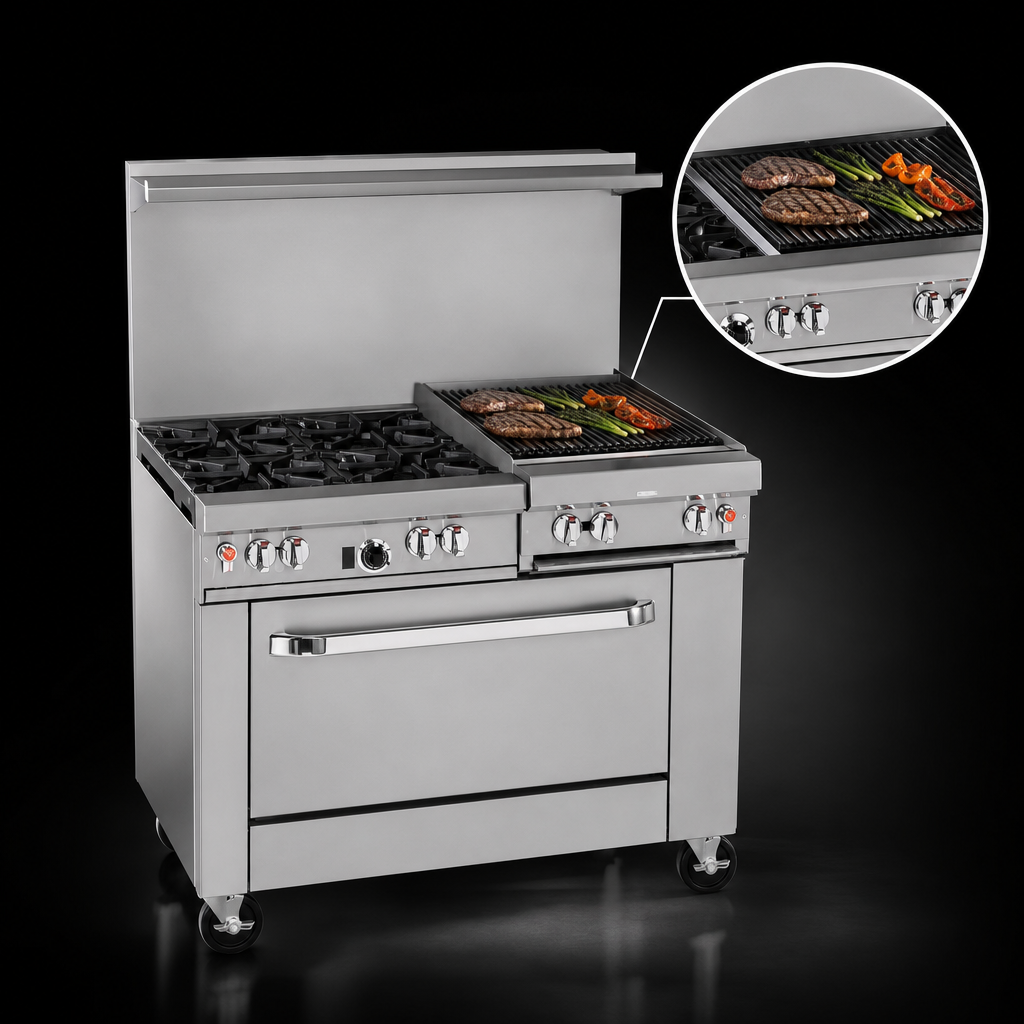

- (1) 24" right-side charbroiler with cast-iron radiants for even heat and signature grill marks.
- Total input: 118,000 BTU/hr with dependable standing pilots.
- Front-mounted manual gas shut-off and factory-installed pressure regulator simplify service.
- 22.5" stainless flue riser with heavy-duty shelf keeps plates, spices or squeeze bottles within reach.
- All-stainless front, sides, shelf and 6" adjustable legs resist corrosion and make cleanup fast.
- Roomy stainless cabinet base stores sheet pans, utensils or dry goods (doors available at no charge).
Why Operators Love It
Patented burners stay clog-free for life, while the wavy grate design allows you to slide cookware across the top without lifting. The integrated charbroiler brings flame-kissed flavor to steaks, seafood and veggies—perfect for boosting menu versatility without adding another footprint.
Specifications
| Width | 36.5" (927 mm) |
|---|---|
| Depth | 34" (864 mm) |
| Cooking surface height | 37" (940 mm) on 6" legs |
| Gas connection | ¾" NPT female (min. 7" W.C. NG / 11" W.C. LP) |
| Open burners | (2) 27 kBTU, standing pilot |
| Charbroiler section | 24" wide, cast-iron grates |
| Total BTU | 118,000 BTU/hr (natural gas) |
| Base type | Stainless steel cabinet (doors optional) |
| Construction | Stainless front, sides, shelf & flue riser |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor |
Optional Accessories
- Stainless cabinet doors (no-charge)
- All-swivel locking casters
- ¾" quick-disconnect gas hose (3-, 4- or 5-ft) with restraining device
- Rear step-up burners or hot-top plate (replaces 2 burners)
- Salamander or cheesemelter mounting kits
Warranty & Service
Covered by Southbend’s one-year parts and labor warranty and supported nationwide by authorized service agencies.
- If installed on flooring other than quarry tile, cement or natural stone, consult Southbend for approved options.
- Limit oversized cookware (12" dia. or larger) to the rear burner to prevent excess front-rail heat.
- Never place sheet pans over charbroiler grates while burners are on—this can cause irreparable damage not covered under warranty.
