Southbend (Middleby) 4362A Ultimate Gas Ranges
$8,281.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) 4362A Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4362A Ultimate Gas Ranges
$8,281.00
Unit price
/
Unavailable
Description

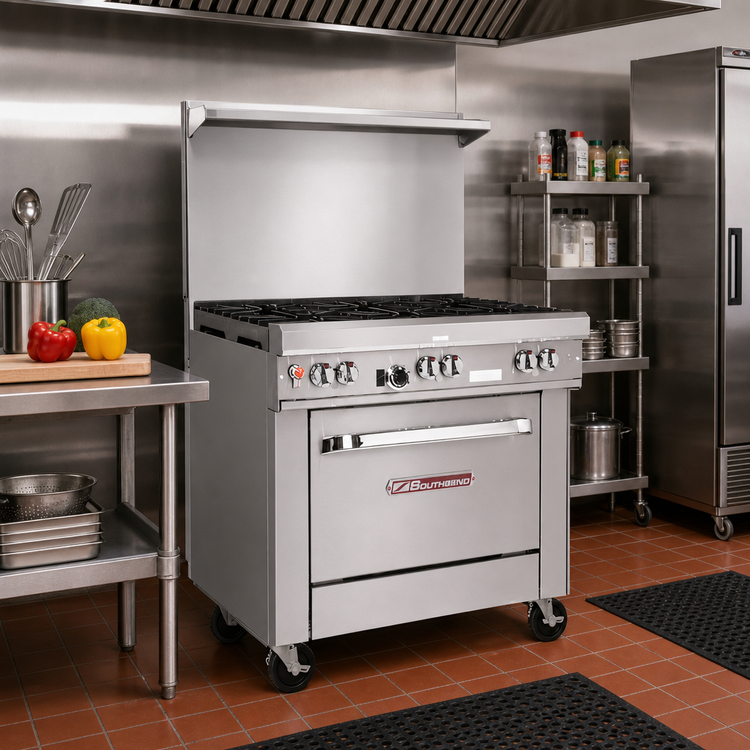

Southbend Ultimate Series 36" Gas Restaurant Range
6 × Non-Clog Burners • Wavy Grates • Convection Oven • 194,000 BTUBuilt for kitchens that never slow down, the Southbend Ultimate 36" Range delivers uncompromising power, consistency and cleanability in a single space-saving footprint. From rapid sauté service to all-day stock production, this heavy-duty workhorse keeps the heat on your menu—not on your chef.
Why You’ll Love It

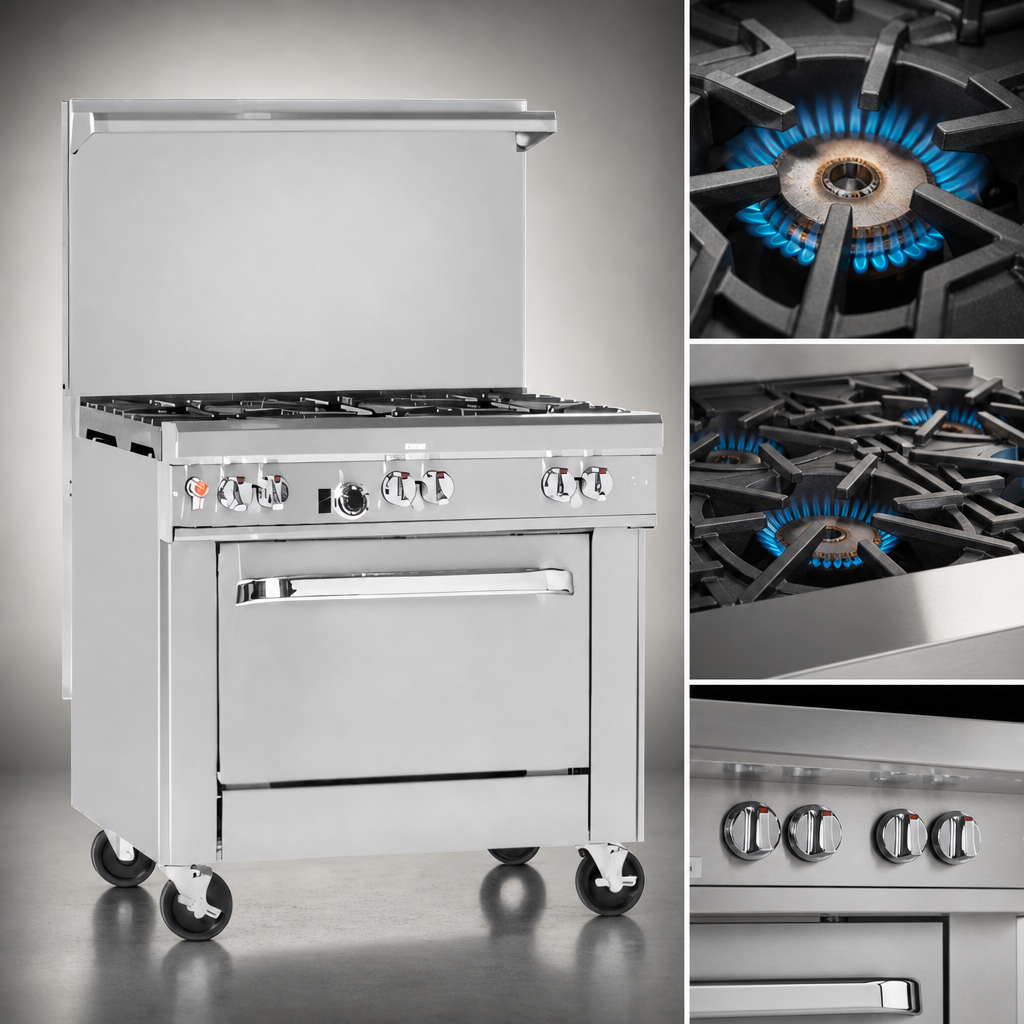

- Six 27 K BTU non-clog burners—patented one-piece cast iron design prevents grease build-up and downtime.

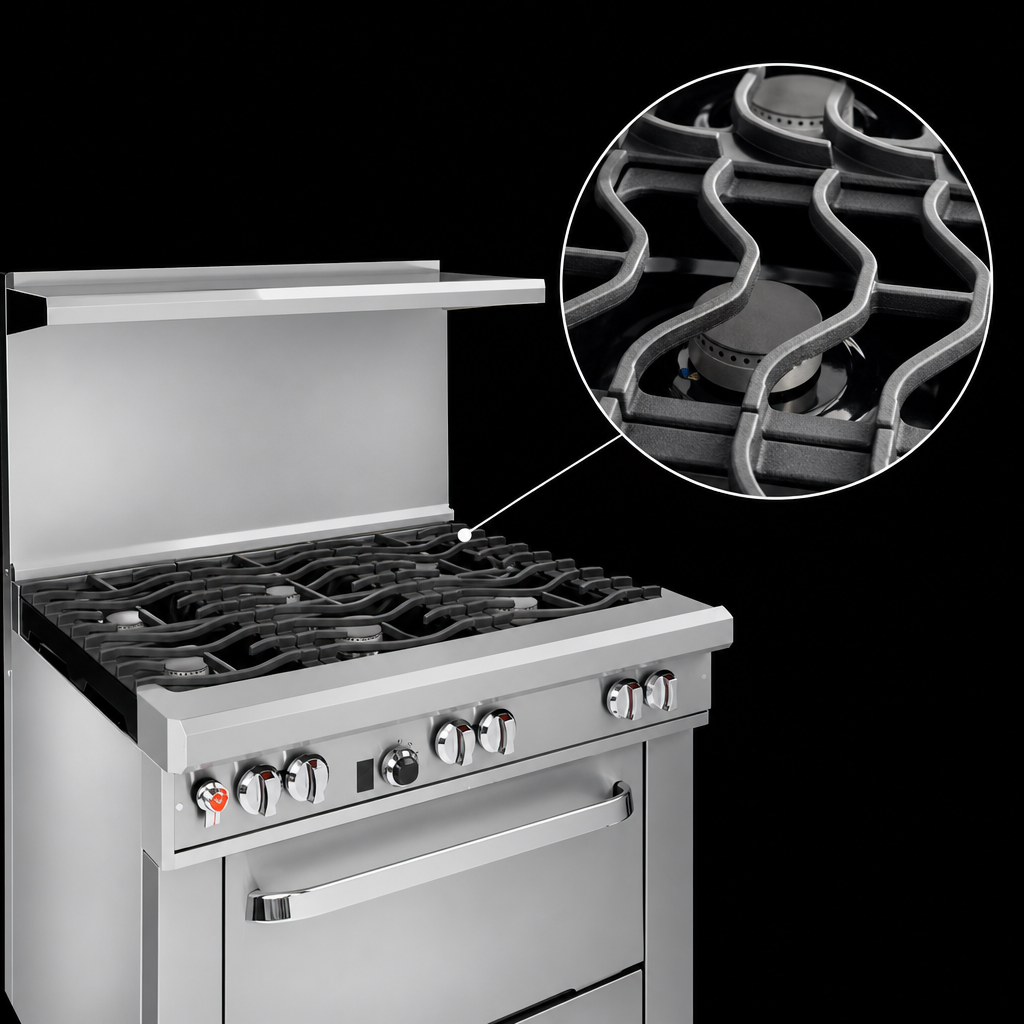

- Wavy cast-iron grates maximize pan contact and let you slide pots across the entire top without lifting.
- 32 K BTU convection oven with battery-spark ignition, 3 heavy-duty racks and a porcelain-enameled cavity for even, easy-clean baking.
- Stainless steel front, sides, 22 ½" flue riser w/ shelf & 6" adjustable legs stand up to daily abuse and simplify sanitation.
- Front-mounted manual gas shut-off and factory-installed pressure regulator for quick, code-compliant installs.
- CSA & NSF certified for gas safety and food-service sanitation.
- 1-year limited parts & labor warranty backed by Southbend’s nationwide service network.
Power & Performance
- Total input: 194,000 BTU/hr
- Standing pilots on all open burners for instant lighting
- Rear grates accept stock pots up to 14" Ø
- Full-width removable drip tray for fast clean-ups
Convection Oven Benefits
- Interior: 14"H × 26"W × 24"D – fits full-size sheet pans either direction
- 5 rack positions let you optimize airflow for any product
- 175 °F – 550 °F thermostat range
- 115 V plug (6' cord, 5.9 A) — no hard-wiring required
Technical Specifications
| Model | Ultimate 436A-WAVY (Gas) |
|---|---|
| Cooktop Width | 36.5" (927 mm) |
| Overall Depth † | 42.1" (1 070 mm) |
| Cooking Height | 37" (940 mm) |
| Overall Height w/ Riser | 59.5" (1 511 mm) |
| Total BTU Input | 194,000 BTU/hr (162 K top • 32 K oven) |
| Gas Connection | ¾" NPT, min. 7" W.C. (Nat) / 11" W.C. (LP) |
| Electrical (Oven Fan) | 115 V, 1-ph, 5.9 A, 6' cord & NEMA 5-15P |
| Oven Racks (Std.) | 3 heavy-duty, removable |
| Certifications | CSA Flame, CSA Sanitation, NSF |
| Warranty | 1 year parts & labor (see Southbend terms) |
†Depth includes handle. Installation under a vented hood is recommended.
Popular Accessories (Sold Separately)
- All-swivel locking caster kit
- ¾" quick-disconnect hose (3–5 ft)
- Extra oven racks
- Salamander or cheesemelter mounts
Important: For commercial use only. If installing on flooring other than quarry tile,
or when using cookware 12" Ø and larger, follow Southbend’s installation and oversized-cookware guidelines
to maintain warranty coverage.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
36.5in
Depth
43.6in
Shipping Weight
660.0lbs
Vent
backriser with hi-shelf
Top
(6) open burners
Base
(1) convection oven
Exterior Finish
stainless steel front & sides
Specifications
Ultimate Restaurant Range, gas, 36", (6) non-clog burners, wavy grates, standing pilot, (1) convection oven with battery spark ignition, includes (3) racks, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 194,000 BTU, CSA, NSF
