Southbend (Middleby) 4362A-2TR Ultimate Gas Ranges
Description
Southbend “Ultimate” 36" Gas Restaurant Range
2 Open Burners • 24" Thermostatic Griddle (Right-Side) • Convection Oven BaseBuilt in Fuquay-Varina, NC, the Southbend Ultimate Range packs true heavy-duty performance into a 36" footprint. Two lifetime-guaranteed non-clog burners with wavy grates share the cooktop with a full-service, 1/2"-thick 24" griddle, while a high-performance convection oven turns out consistent, evenly-baked results below. From breakfast rush to dinner service, this single station delivers 134,000 BTU of dependable, energy-efficient firepower.
Why It Belongs on Your Line
- True Commercial Output – 134,000 BTU total: 54K open top, 48K griddle, 32K convection oven.

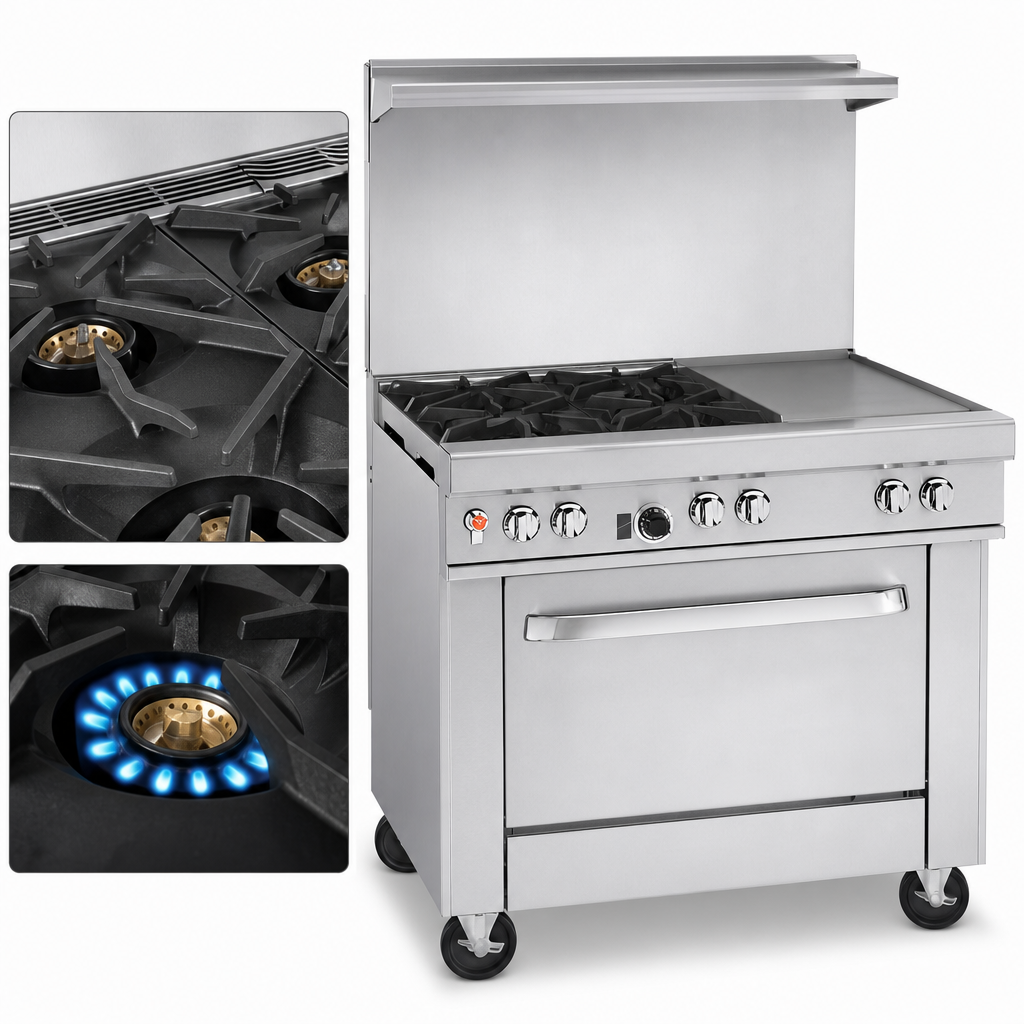

- 2 × 27,000 BTU Non-Clog Burners with patented ports and wavy cast-iron grates that cradle round-bottom pots and let you slide pans across the entire surface.

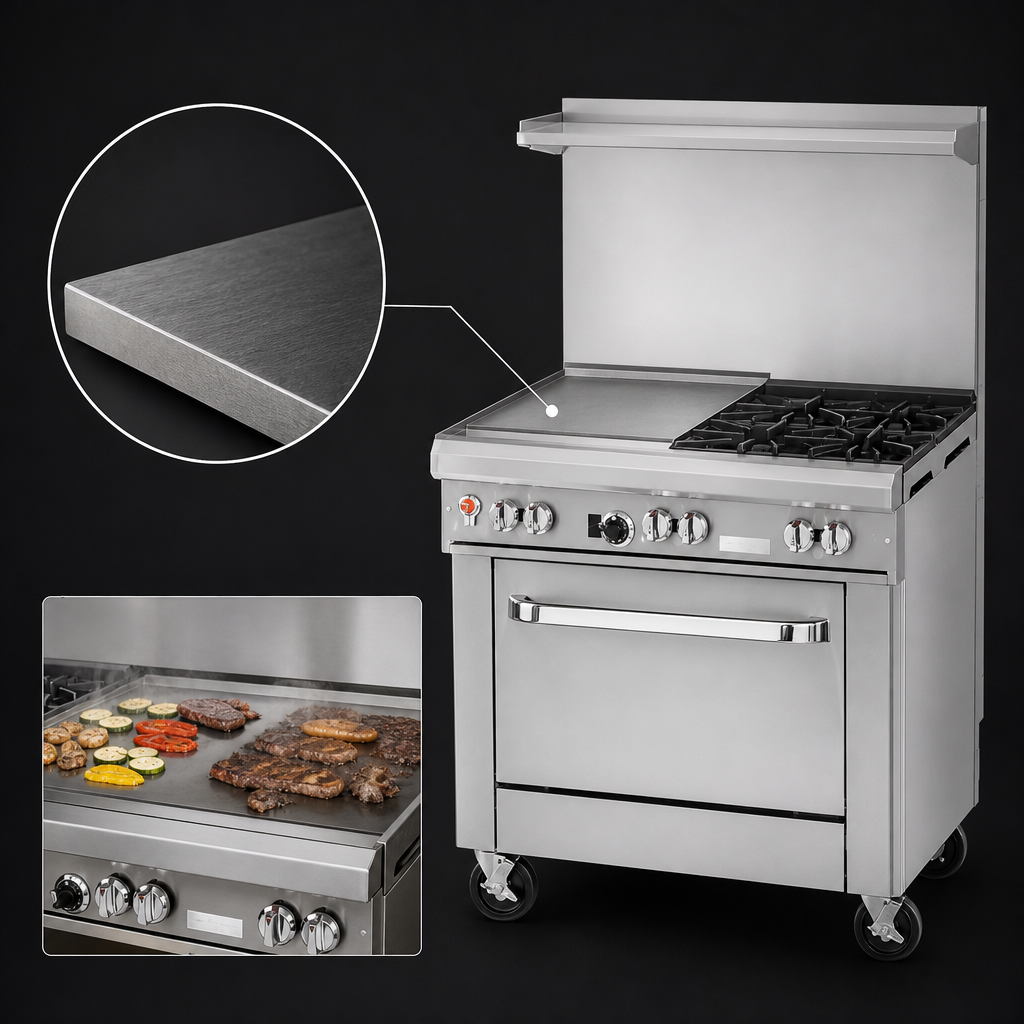

- 24" Thermostatic Griddle (right-hand) in 1/2" cold-rolled steel; 175-550 °F range for precise searing, breakfast, or finishing.
- Battery-Spark Convection Oven evenly circulates heat with a 1/2 hp fan; three nickel-plated racks on five positions fit full-size pans either direction.
- All Stainless Exterior – front, sides, 4" front rail, backsplash shelf & 22-1/2" flue riser stand up to daily scrub-downs.
- Front Gas Shut-Off & Factory Regulator simplify service and installation; 3/4" rear connection.
- 6" Adjustable Stainless Legs (casters optional) meet health-code clearance on combustible floors.
- Certified cCSAus, CSA Flame, CSA Star & NSF for gas safety and sanitation.
Technical Specifications
| Model | Ultimate 436-Series (36") – 2 B / 24G / Convection |
|---|---|
| Total BTU (Natural Gas) | 134,000 BTU/hr |
| Open Burners | 2 × 27,000 BTU non-clog, standing pilots |
| Griddle Section | 24" W • 48,000 BTU • Thermostatic 175-550 °F • 1/2" plate |
| Oven | Convection • 32,000 BTU • Battery spark ignition • 175-550 °F |
| Oven Interior (WxDxH) | 26" × 24" × 14"† porcelain enamel |
| Exterior Dimensions (WxDxH) | 36.5" × 42.1" × 59.5" (to riser top) |
| Cooking Height | 37" |
| Gas Connection | 3/4" NPT (rear), min. 7" WC NG / 11" WC LP |
| Electrical | 115 V, 1 φ, 5.9 A, 6' cord & 3-prong plug (convection fan only) |
| Included Racks | 3 nickel-plated, removable |
| Warranty | 1 year parts & labor (factory authorized service) |
† Fits full-size sheet pans both directions.
Popular Add-Ons (Sold Separately)
- All-swivel locking casters
- Quick-disconnect gas hose (3', 4' or 5')
- Extra oven racks
- Cheesemelter or salamander mounts
Compliance & Care
- Intended for commercial kitchens only; install under a vented hood per local code.
- For non-quarry tile floors, consult factory for approved installation method.
- Limit oversized (≥12") cookware to the rear grates to avoid excess front-rail heat.
