Southbend (Middleby) 4362A-1G Ultimate Gas Ranges
Description

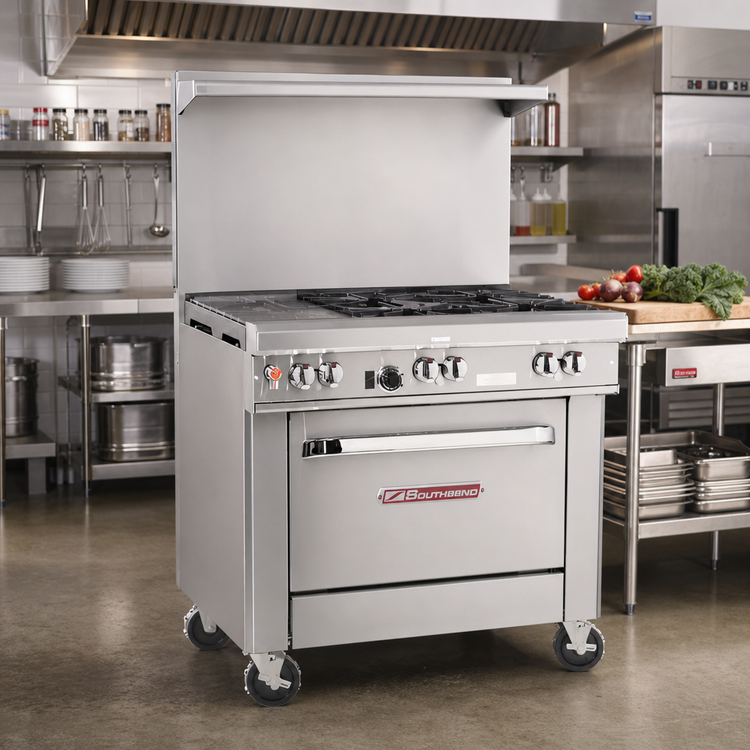

Southbend “Ultimate” 36" Gas Restaurant Range
4 Open Burners • 12" Left-Side Griddle • Convection Oven BaseEngineered for high-volume kitchens that refuse to compromise on versatility or durability, the Southbend Ultimate 36" Range (Model 436A) combines powerful open-top cooking, griddle versatility and even convection baking in one heavy-duty footprint.
Key Features
- Four 27,000 BTU non-clog open burners with lifetime cast-iron heads.
- Cast-iron wavy grates promote full-surface pan stability and superior heat transfer.

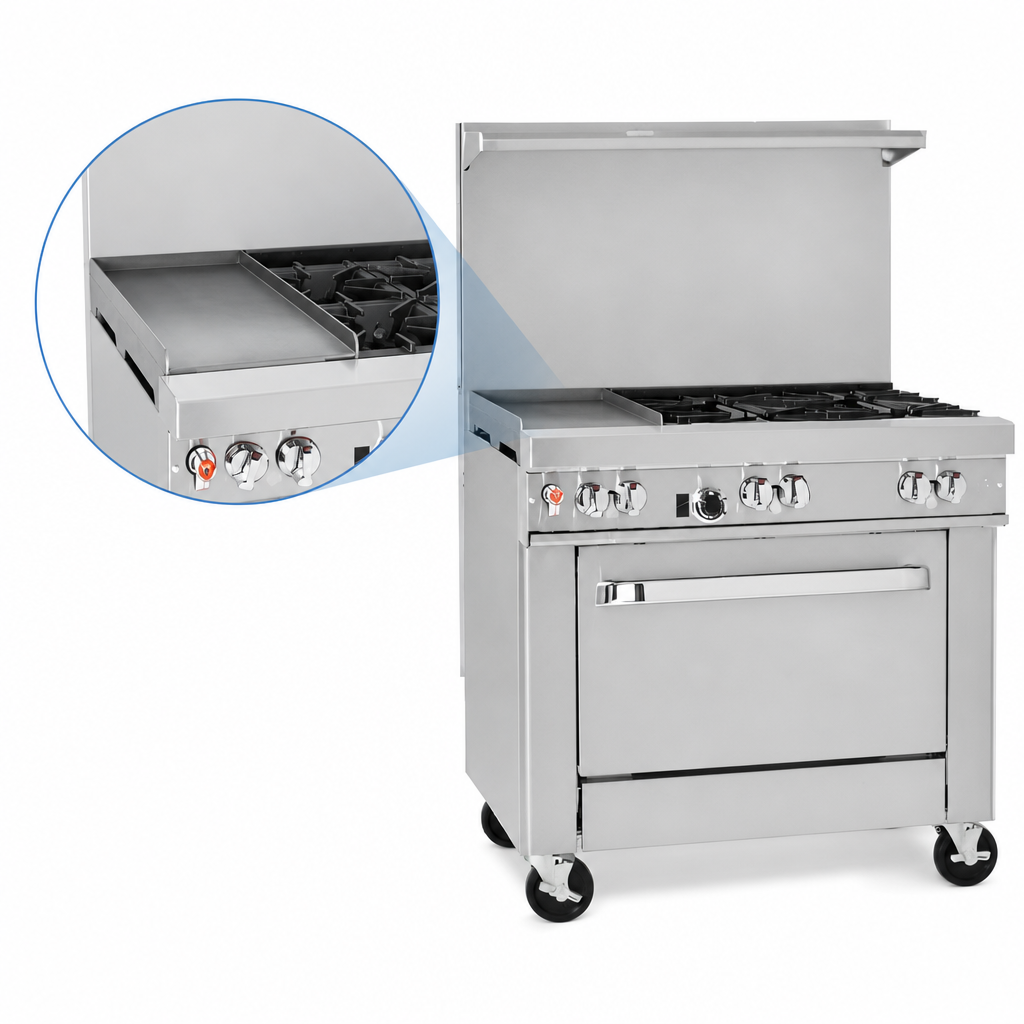

- 12" wide, ½" thick cold-rolled steel griddle (left side) for breakfast fare, searing or finishing.
- 32,000 BTU convection oven with battery spark ignition and 3 corrosion-resistant racks.
- One-piece removable drip tray and 22½" flue riser with heavy-duty storage shelf.
- All-stainless exterior—front, sides and 4" rail—for easy wipe-down and lasting good looks.
- 6" stainless steel adjustable legs (casters available) for perfect leveling and code compliance.
- Factory-installed 3/4" regulator and front-mounted manual shut-off valve.
- Certified cCSAus, CSA Flame & Star, and NSF for commercial kitchens.
At-a-Glance Specs
| Overall width | 36 1⁄2" (927 mm) |
|---|---|
| Total input | 158,000 BTU/hr (Natural Gas) |
| Open burners | 4 × 27,000 BTU, standing pilot |
| Griddle | 12" left, manual control, 18,000 BTU |
| Oven type | 32,000 BTU convection; 175 – 550 °F thermostat |
| Oven capacity | 26" W × 24" D × 14" H – fits full-size pans both directions |
| Exterior depth | 42 1⁄8" (1,070 mm) incl. handle |
| Cook-top height | 37" (940 mm) |
| Overall height w/ riser | 59 1⁄2" (1,511 mm) |
| Gas connection | 3/4" NPT (right rear) |
| Electrical | 115 V, 1-phase, 5.9 A, 6' cord & NEMA 5-15P plug (oven fan) |
| Warranty | 1-year parts & labor (see details below) |
Why Choose the Ultimate Series?
- Built to last – fully welded frame, porcelain-enameled oven cavity and spring-assisted door.
- Consistent results – coved-corner oven interior eliminates hot & cold spots.
- Service friendly – front access to pilots, battery pack and shut-off valve speeds maintenance.
- Space saver – three work stations in only 36" of line space.
Included in the Box
- (1) Southbend Ultimate 36" gas range with flue riser & shelf
- (3) Heavy-duty oven racks
- Factory pressure regulator (pre-installed)
- Owner’s & installation manual
Warranty: 1-year parts & labor from date of purchase. Certain consumables (e.g., spark ignitors, oven light bulbs) carry a 90-day warranty. Full terms available at southbendnc.com/service-and-parts.
Oversized cookware (over 12") should be limited to the rear burners to prevent damage to front-rail components.
