Southbend (Middleby) 4361D Ultimate Gas Ranges
Southbend (Middleby) 4361D Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4361D Ultimate Gas Ranges
Description

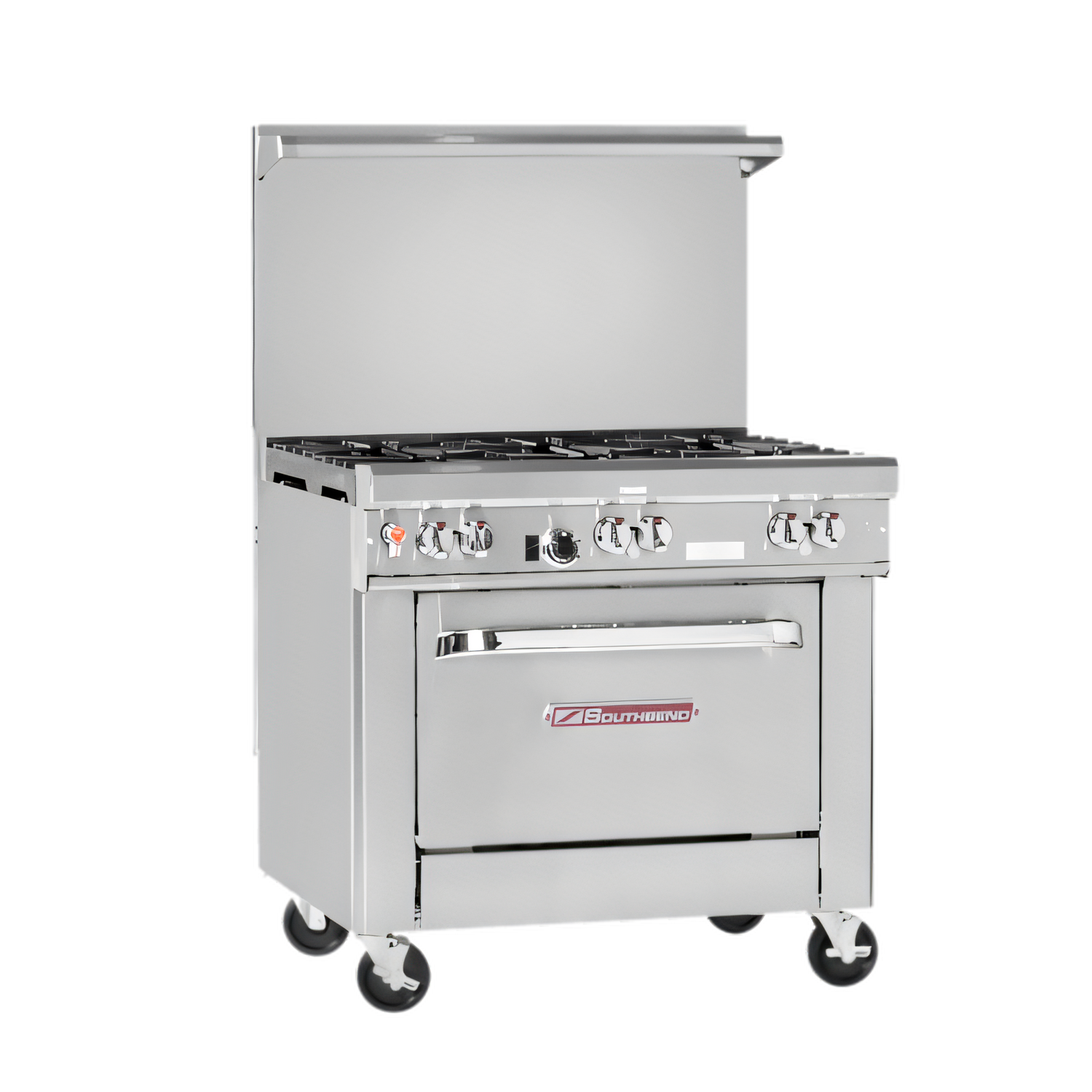

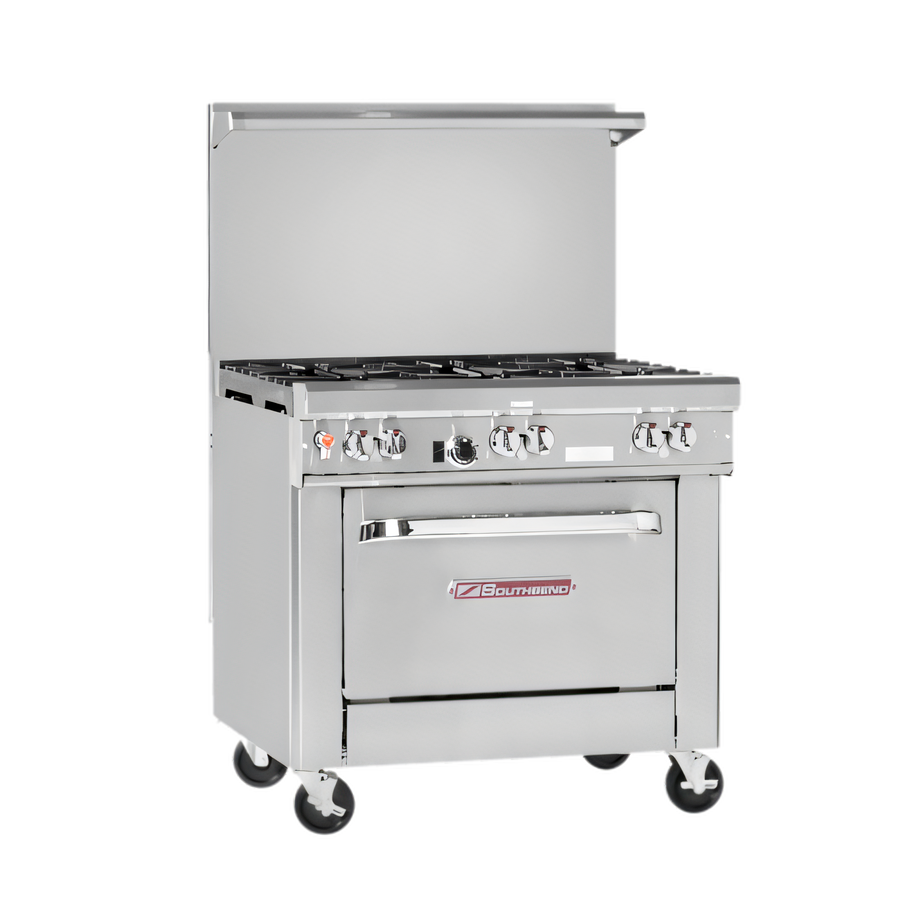

Southbend Ultimate 36" Restaurant Range – 6-Burner, Standard Oven, Gas
(Model 436D-6C • QUICK SHIP)Built for the busiest commercial kitchens, the Ultimate Series combines rugged construction with powerhouse performance. Six high-output open burners and a full-size oven deliver the speed, flexibility and reliability chefs expect from Southbend – and it all ships within two business days.
Key advantages

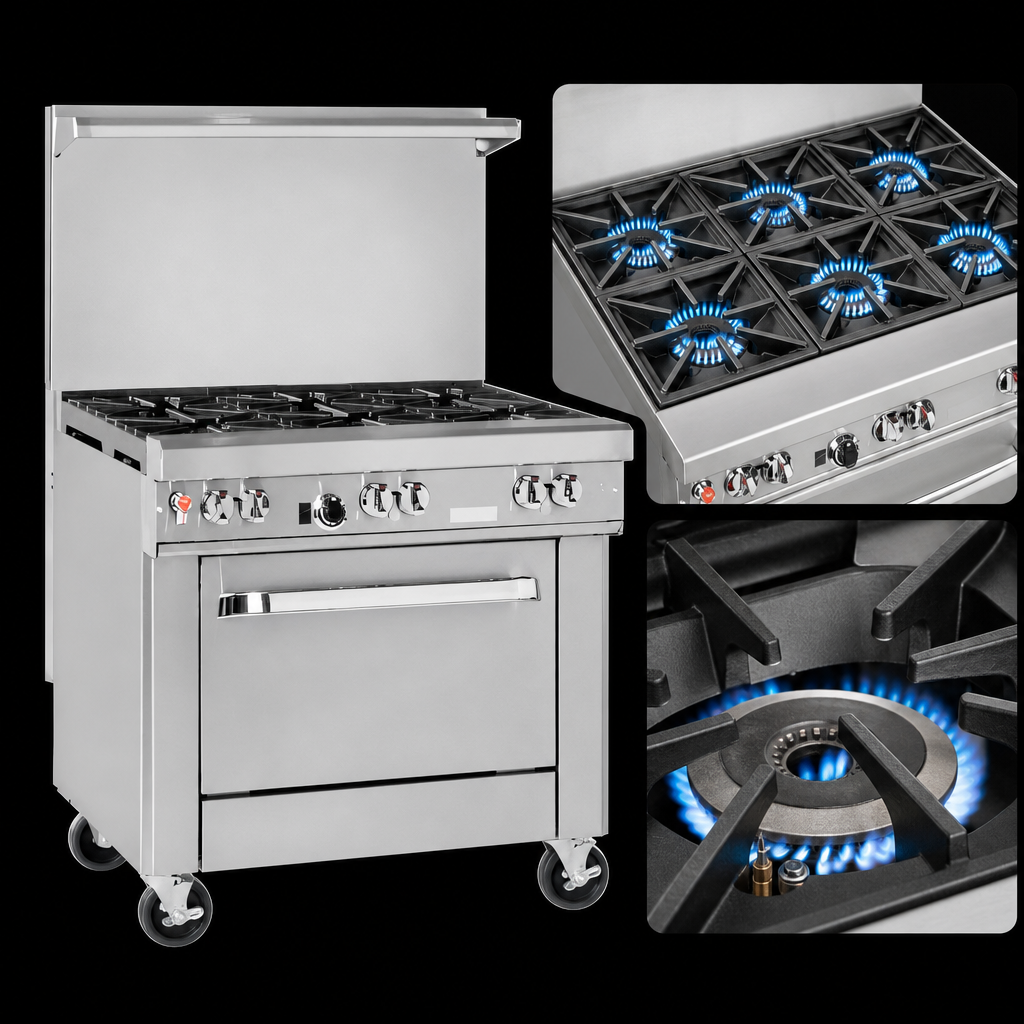

- Six 33,000 BTU patented cast-iron non-clog burners — rear grates handle stock pots up to 14"

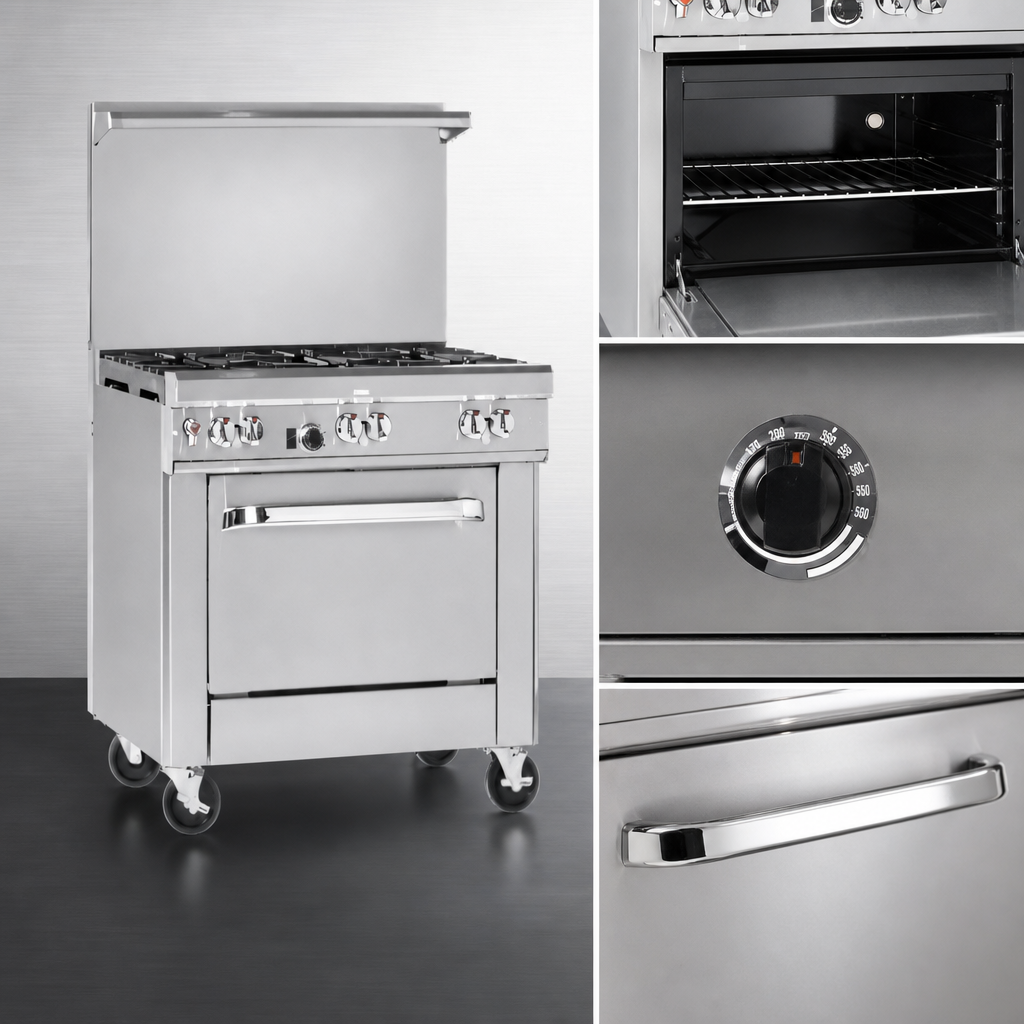

- 45,000 BTU standard oven with battery-spark ignition; holds full-size sheet pans either way
- 243,000 BTU total input for rapid recovery and high-volume production
- 22.5" flue riser with integrated stainless utility shelf keeps essentials close at hand
- Front-mounted manual gas shut-off for the entire range
- One-piece removable drip tray for fast, thorough clean-ups
- Durable stainless steel front, sides and 6" adjustable legs
- CSA Gas & NSF listed for safe, code-compliant installation
What’s in the box
- (1) heavy-duty oven rack with two-position side rails
- Factory-installed 3/4" pressure regulator
- Owner’s manual & quick-start guides
- 1-year limited parts & labor warranty
Technical specifications
| Cooking surface width | 36" (914 mm) |
|---|---|
| Overall dimensions (W × D × H) | 36.5" × 34" × 59.5" (with riser) |
| Burner output | 6 × 33,000 BTU open burners (198,000 BTU total) |
| Oven output | 45,000 BTU standard oven, 175-550 °F thermostat |
| Total input | 243,000 BTU/hr – Natural or LP (specify) |
| Gas connection | 3/4" NPT (rear), minimum inlet: 7" WC NAT / 11" WC LP |
| Ignition | Standing pilot (top) / battery spark (oven) |
| Oven cavity (W × D × H) | 26" × 26.5" × 14" |
| Shipping weight | Approx. 660 lb (300 kg) |
Quick-Ship terms
Need financing? Ask about Middleby Equipment Financing for fast credit decisions and affordable monthly payments.
Warranty & certifications
- 1-year parts & labor warranty serviced by Southbend Authorized Agencies
- CSA Gas & NSF sanitation approvals
- Designed and assembled in Fuquay-Varina, North Carolina
For complete warranty details, visit southbendnc.com/service-and-parts.
